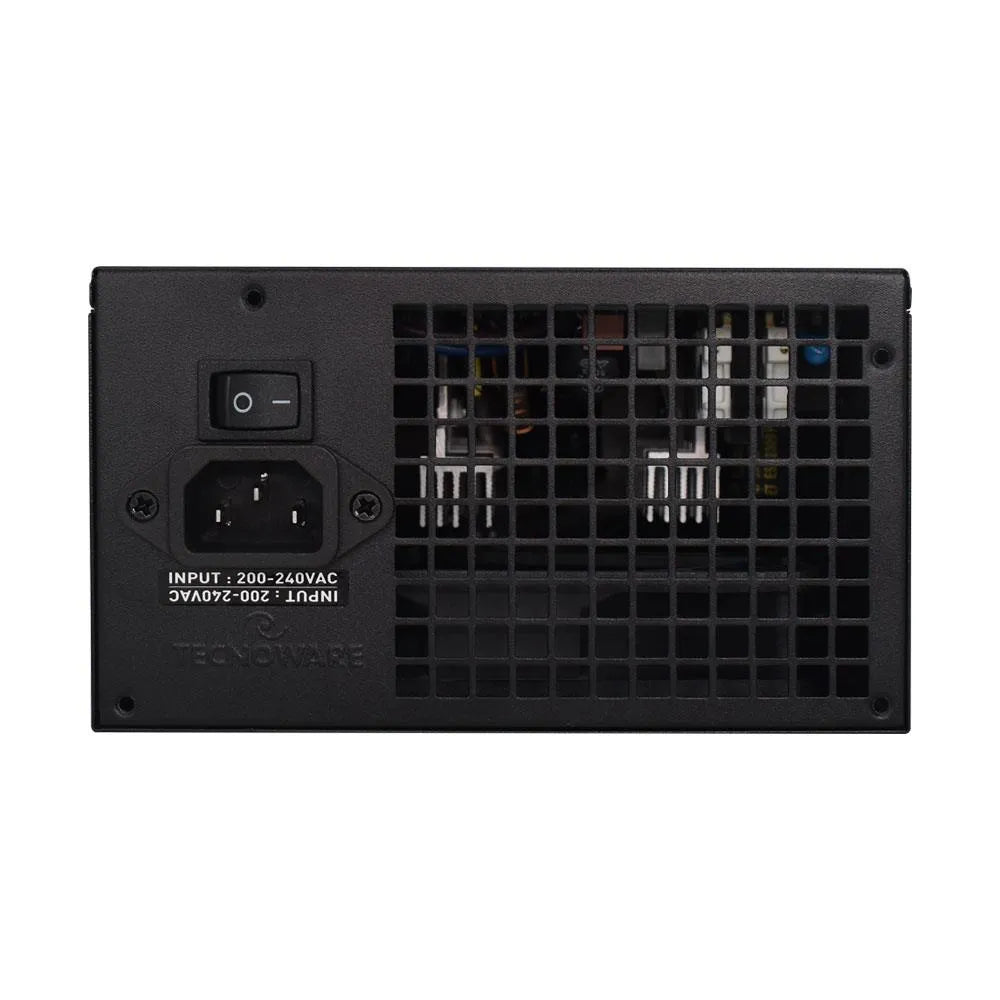

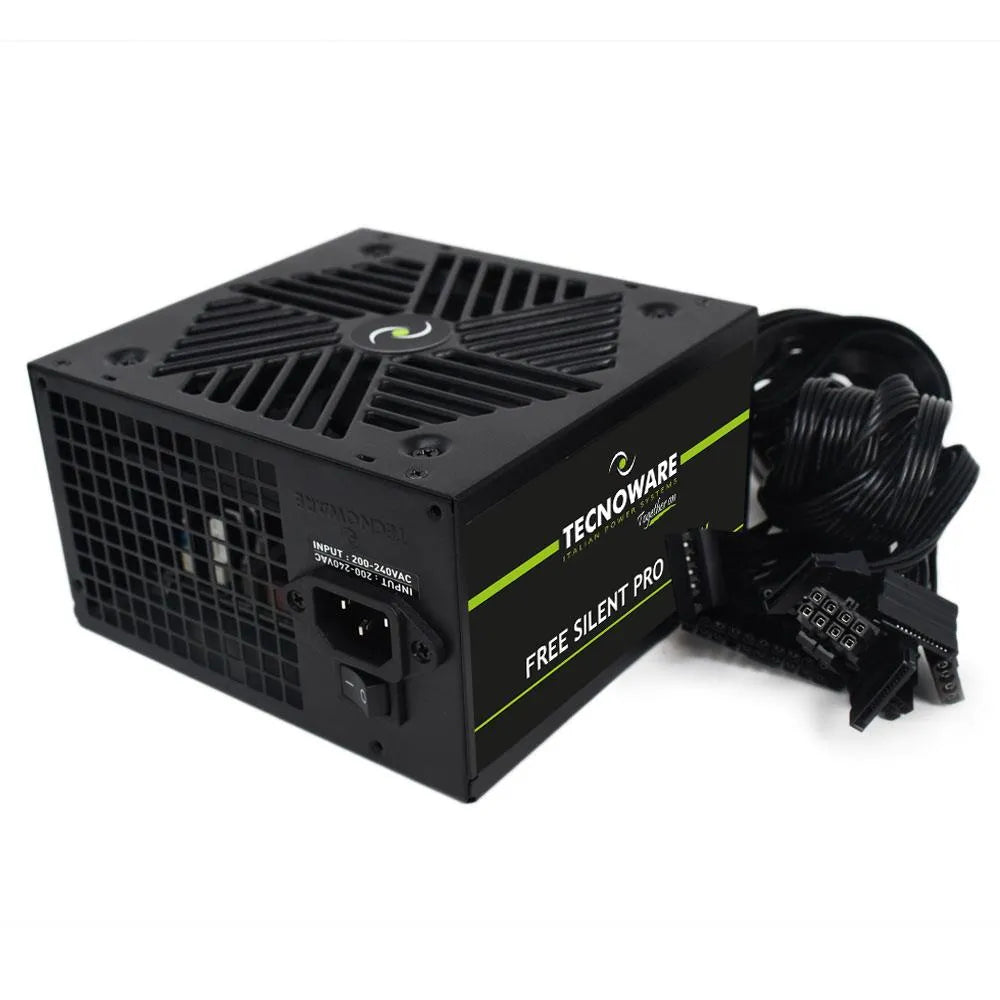

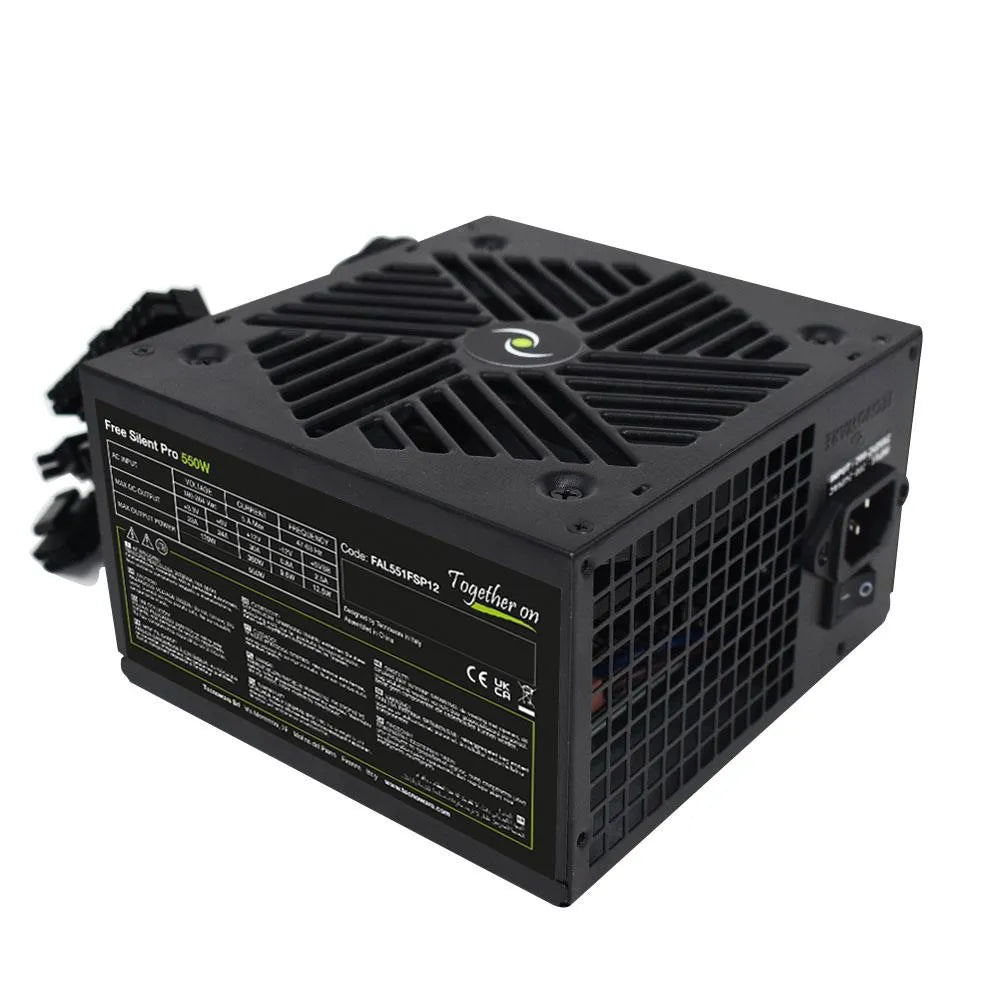

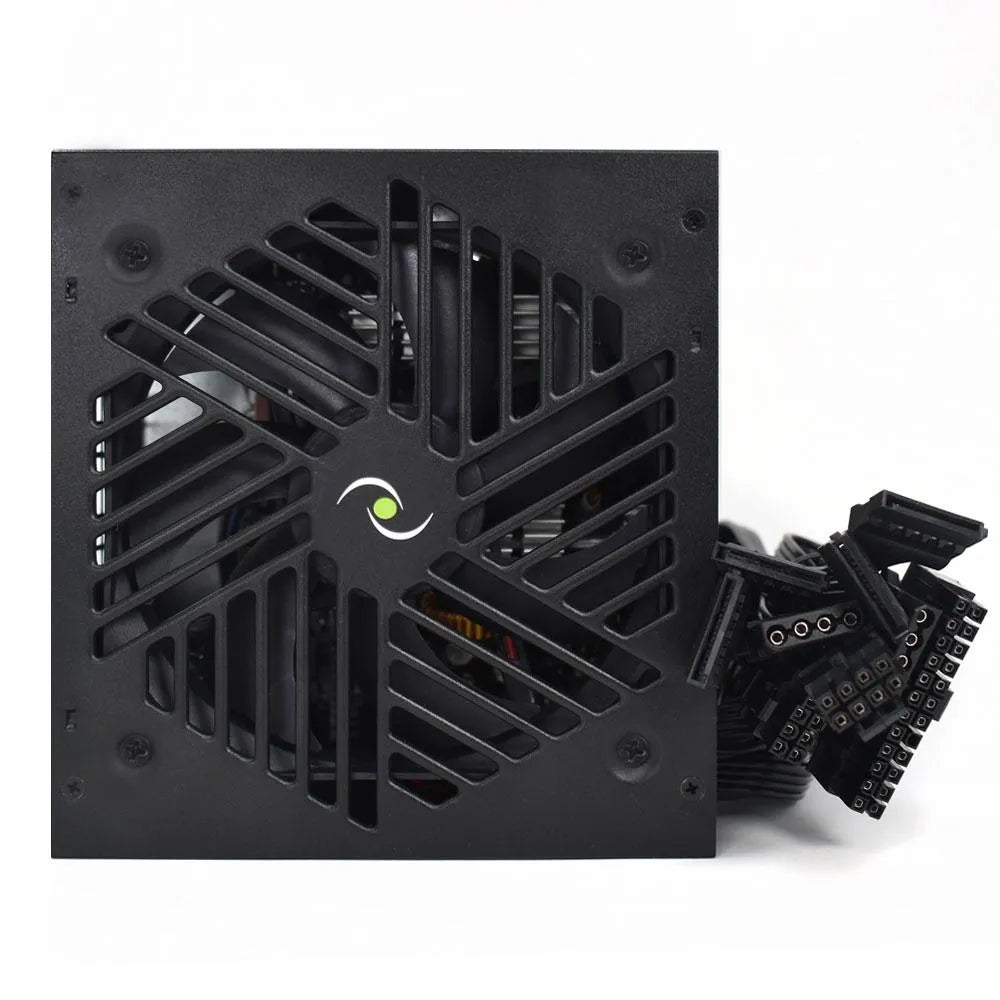

Power Supply|TECNOWARE|FAL551FSP12|ATX|550 W|FAL551FSP12
Regular price
€26,98
Regular price
Sale price
€26,98
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
TECNOWARE
Pieejamība:
In stock
SKU:
FAL551FSP12
Cena bez PVN 21%: €22,30
Regular price
€26,98
Regular price
Sale price
€26,98
Specifikācija
| Vienības kastes platums | 0.16 kg |
| Vienības kastes garums | 0.2 kg |
| Vienības kastes augstums | 0.1 kg |
| Modeļa nosaukums | FAL551FSP12 mm |
| Efektivitāte | 85 % |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.0032 cubm |
| Unit Calculated Weight | 1 kg |
| Summary | Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CE, RoHS kg |
| Combined power (+12V) | 360 W |
| Combined power (+3.3V) | 170 W |
| Combined power (+5V) | 170 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 9.6 W |
| Max output current (+3.3V) | 23 A |
| Max output current (+5V) | 24 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.8 A |
| Total power | 550 W |
| Cabling type | Non-Modular W |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 4 mm |
| PCI Express power connectors (6+2 pin) | 1 mm |
| 80 PLUS certification | Nē mm |
| ATX version | 2.31 mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Overload/Short circuit/Surge protection A |
| CPU power connector (4+4 pin) | Jā mm |
| Max output current (+12V) | 30 A |
| Power Factor Correction (PFC) type | Active A |
| Power factor | 0.9 A |
| ATX power connector (20+4 pin) | Jā W |
| CPU power cable length | 550 mm |
| PCI Express power cable length | 500 mm |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 180 - 264 V |
| Product colour | Black fan(s) |
| Depth | 150 mm |
| Height | 86 mm |
| Width | 140 mm |
| Weight | 1000 g |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| Input current | 5 A |
| Compliance certificates | CE/RoHS °C |
| Package type | Box mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
Apraksts
Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
- Internal Power Supply for Computers
- High Efficiency (>85%) and High Operation Noise
- Active PFC >0.9
- Dimensions: 140x86x150 mm (WxHxD)
- Input voltage 230 Vac 50Hz
- Temperature control of the fan speed
- Flat connection cables from 500mm to 800mm
- Surge protection
- Overload protection
- Short circuit protection
