Power Supply|MSI|MAG A850GL PCIE5 II|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|MAGA850GLPCIE5II
Couldn't load pickup availability
Cena bez PVN 21%: €102,26
Specifikācija
| Vienības kastes platums | 0.127 kg |
| Vienības kastes garums | 0.224 kg |
| Vienības kastes augstums | 0.301 kg |
| Modeļa nosaukums | MAG A850GL PCIE5 II mm |
| Efektivitāte | 90 % |
| Units per Shipping Box | 6 mm |
| Unit Calculated Volume | 0.009786 cubm |
| Unit Calculated Weight | 2.97 kg |
| Summary | MSI MAG A850GL PCIE5 II. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm kg |
| Combined power (+12V) | 846 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Total power | 850 W |
| Cabling type | Fully-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 8 mm |
| PCI Express power connectors (6+2 pin) | 4 mm |
| Peripheral (Molex) power cable length | 500 mm |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| ATX version | 3.1 mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage A |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 70.5 A |
| Power Factor Correction (PFC) type | Active A |
| PCI Express power connectors (16-pin) | 1 mm |
| Bearing technology | FDB mm |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active mm |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| Package type | Box mm |
| EPS power connector (8-pin) | Nē W |
| Number of +12V rail(s) | 1 A |
Apraksts

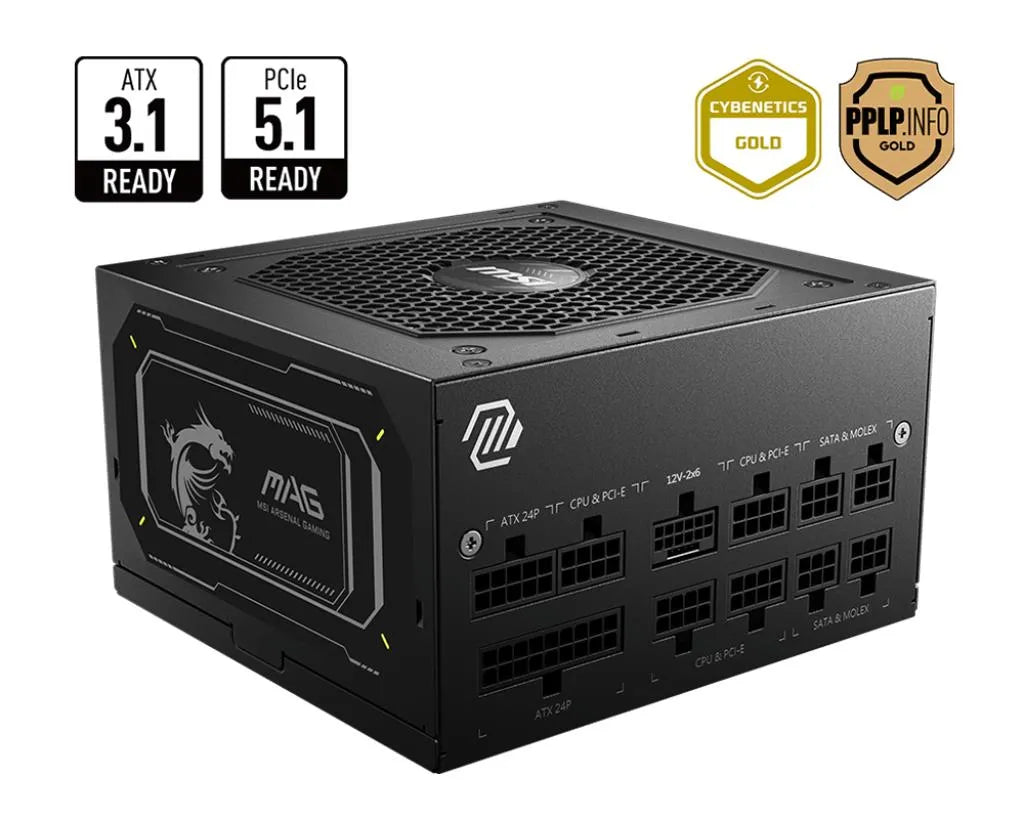

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold and Cybenetics Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED

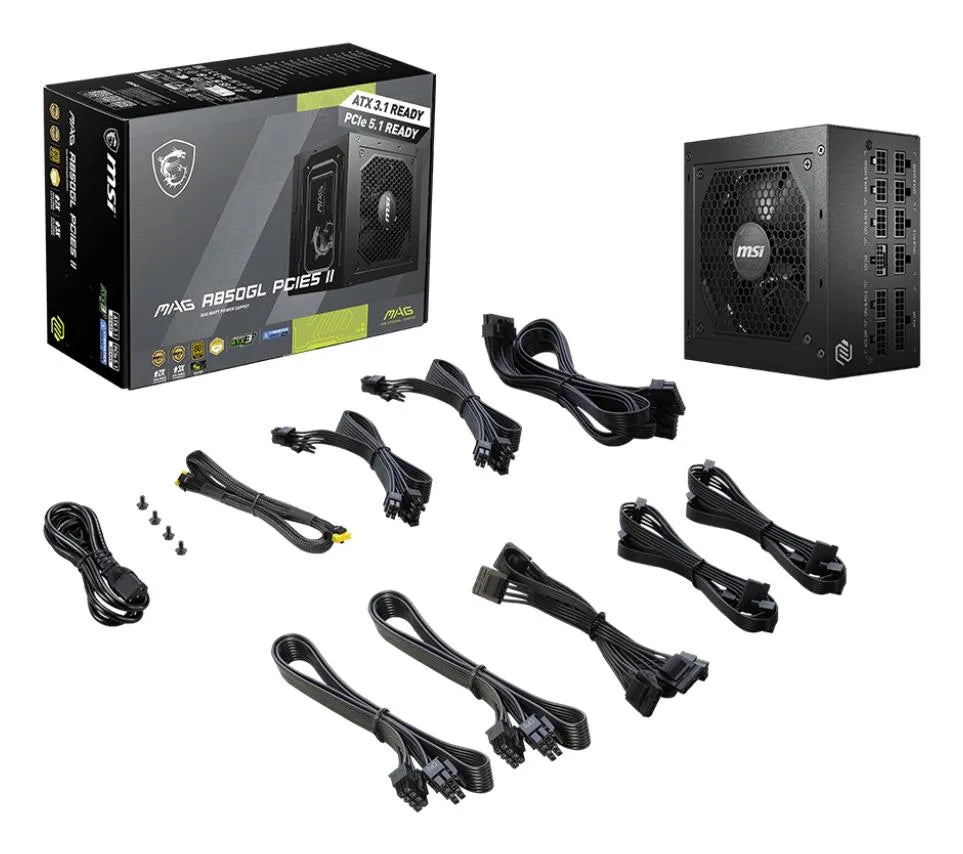

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

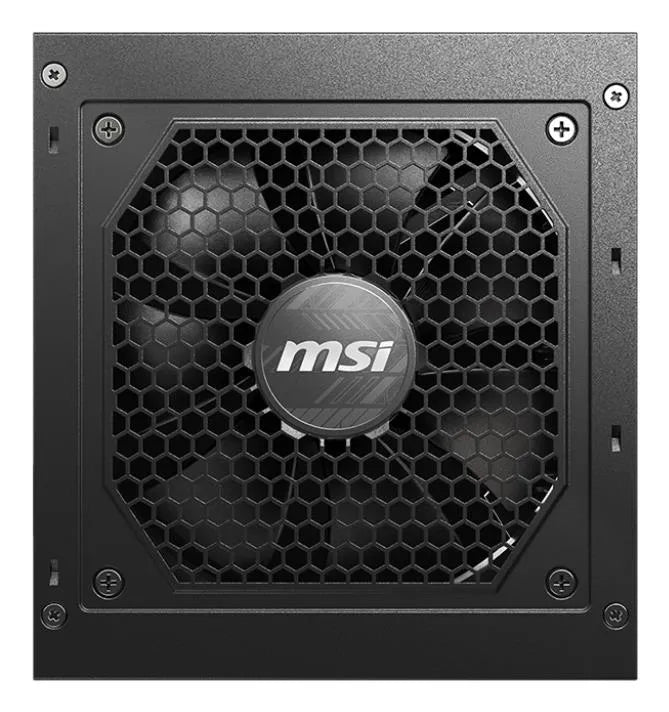

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

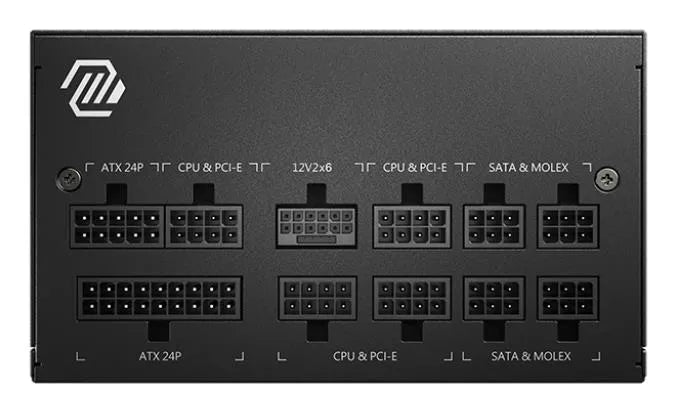

- ATX 3.1 ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency with Active PFC design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
- 120 mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
