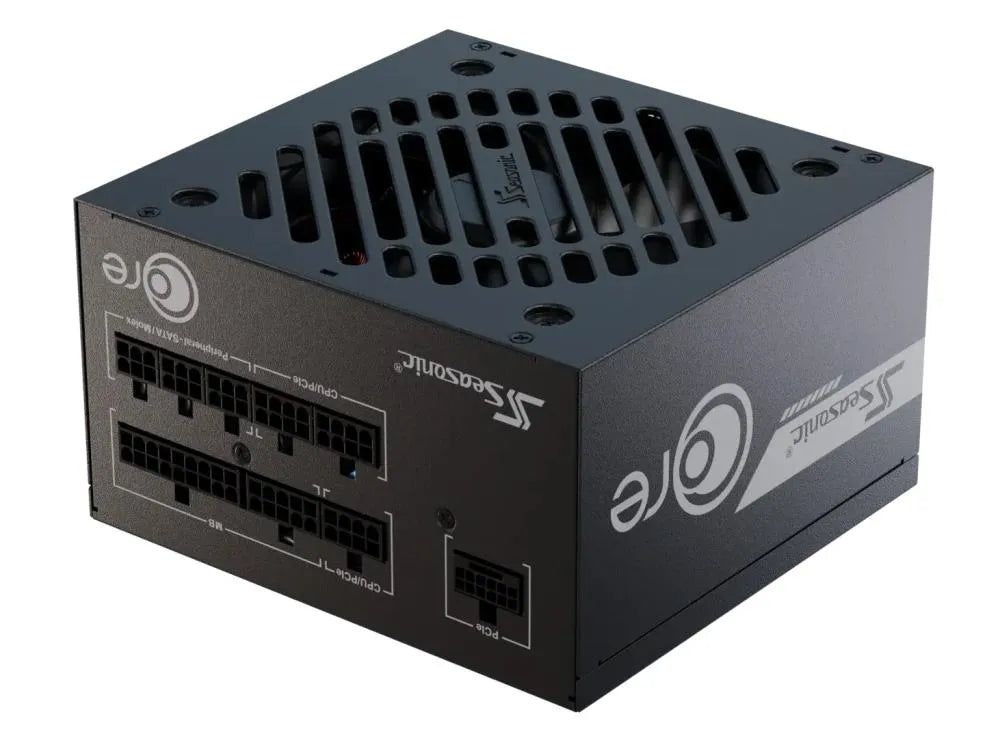

Power Supply|SEASONIC|SRP-CGX851-A5A32SF|850 Watts|Peak Power 850 Watts|Efficiency 80 PLUS GOLD|SRP-CGX851-A5A32SF
Couldn't load pickup availability
Cena bez PVN 21%: €116,84
Specifikācija
| Vienības kastes platums | 0.115 kg |
| Vienības kastes garums | 0.275 kg |
| Vienības kastes augstums | 0.19 kg |
| Modeļa nosaukums | SRP-CGX851-A5A32SF mm |
| Units per Shipping Box | 5 mm |
| Unit Calculated Volume | 0.00732 cubm |
| Unit Calculated Weight | 3.24 kg |
| Summary | Seasonic SRP-CGX851-A5A32SF. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, Peripheral (Molex) to SATA 3.3, CPU, PCIe, SATA kg |
| Combined power (+12V) | 840 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 850 W |
| Cabling type | Fully-Modular W |
| 80 PLUS certification | 80 PLUS Gold W |
| ATX version | 3.1 W |
| Power supply unit (PSU) form factor | ATX h |

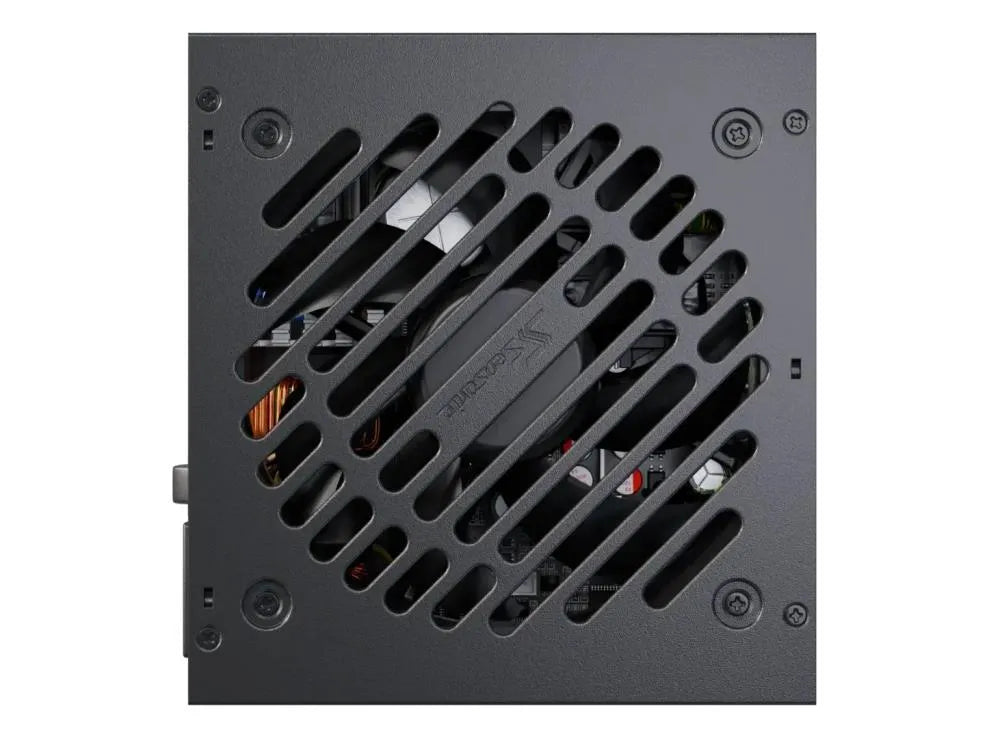

| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over total voltage/Over voltage/Short circuit/Under voltage A |
| Max output current (+12V) | 70 A |
| Number of PATA power connectors | 2 W |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 9 A |
| Package type | Box mm |

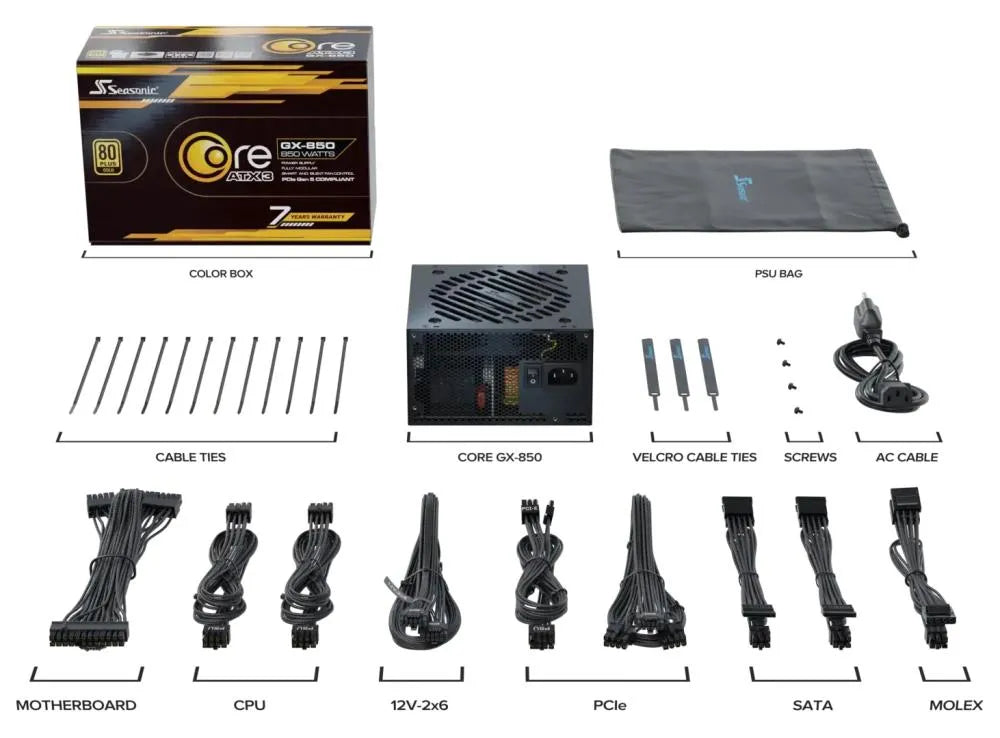

| Cables included | AC,Peripheral (Molex) to SATA 3.3,CPU,PCIe,SATA °C |
| Certification | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA °C |
| Operating temperature (T-T) | 0 - 50 °C |
Apraksts
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty.
New Seasonic OptiSink Design
The overall quality and reliability of the new CORE GXATX 3 Series has been greatly improved by a brand-new PCB (Printed Circuit Board) layout and the implementation of automated surface mount technology during production, which minimizes human production errors.
By using a redesigned PCB combined with smaller MOSFET and heat sink components, the internal space within the power supply was increased to enhance heat dissipation and airflow to result in better component cooling.

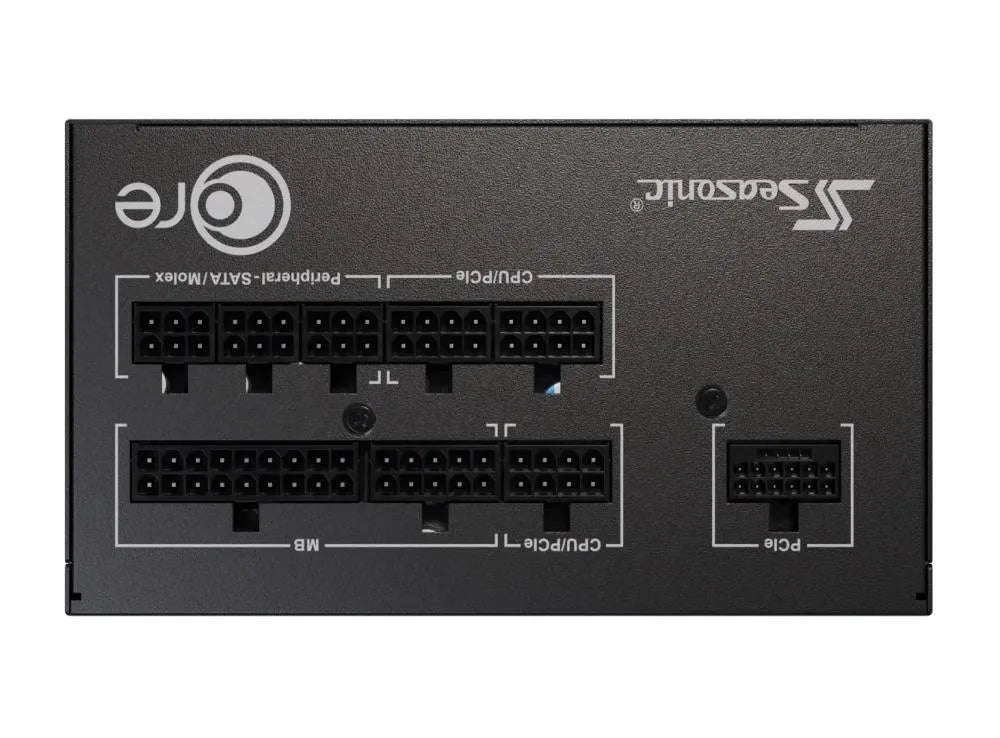

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
