Mainboard|ASUS|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|PRIMEB760-PLUS
Couldn't load pickup availability
Cena bez PVN 21%: €82,19
Specifikācija
| Vienības kastes platums | 0.055 kg |
| Vienības kastes garums | 0.33 kg |
| Vienības kastes augstums | 0.27 kg |
| Modelis | PRIME B760-PLUS g |
| Units per Shipping Box | 10 g |
| Unit Calculated Volume | 0.005814 cubm |
| Unit Calculated Weight | 1.32 kg |
| Summary | ASUS PRIME B760-PLUS. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold channels |
| Maximum number of SMP processors | 1 channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1700 channels |
| Supported processor sockets | LGA 1700 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported MHz |
| 12V power connector | Jā MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| EPS power connector (8-pin) | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of chassis fan connectors | 3 MHz |
| Number of COM connectors | 1 MHz |
| Number of SATA III connectors | 4 MHz |
| Peripheral (Molex) power connectors (4-pin) | 1 MHz |
| RGB LED pin header | Jā MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 2 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Line-in | Jā MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Passive channels |
| Motherboard chipset | Intel B760 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 3 MHz |
| PCI Express x16 (Gen 4.x) slots | 1 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| BIOS memory size | 128 Mbit |
| Thunderbolt headers | 1 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 MHz |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 MHz |
| PCI Express x1 (Gen 3.x) slots | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| Front panel connector | Jā MHz |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 2 MHz |
| VGA (D-Sub) ports quantity | 1 MHz |
| Wi-Fi | Nē MHz |
| Depth | 244 mm |
| Width | 305 mm |
| Cables included | SATA mm |
| S/PDIF out connector | Jā MHz |
| DisplayPorts quantity | 1 MHz |
| Headphone outputs | 1 MHz |
| Windows operating systems supported | Windows 10 x64/Windows 11 channels |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1200 g |
| Package width | 328 mm |
| Height | 36 mm |
| HDMI version | 2.1 MHz |
| Weight | 760 g |
Apraksts

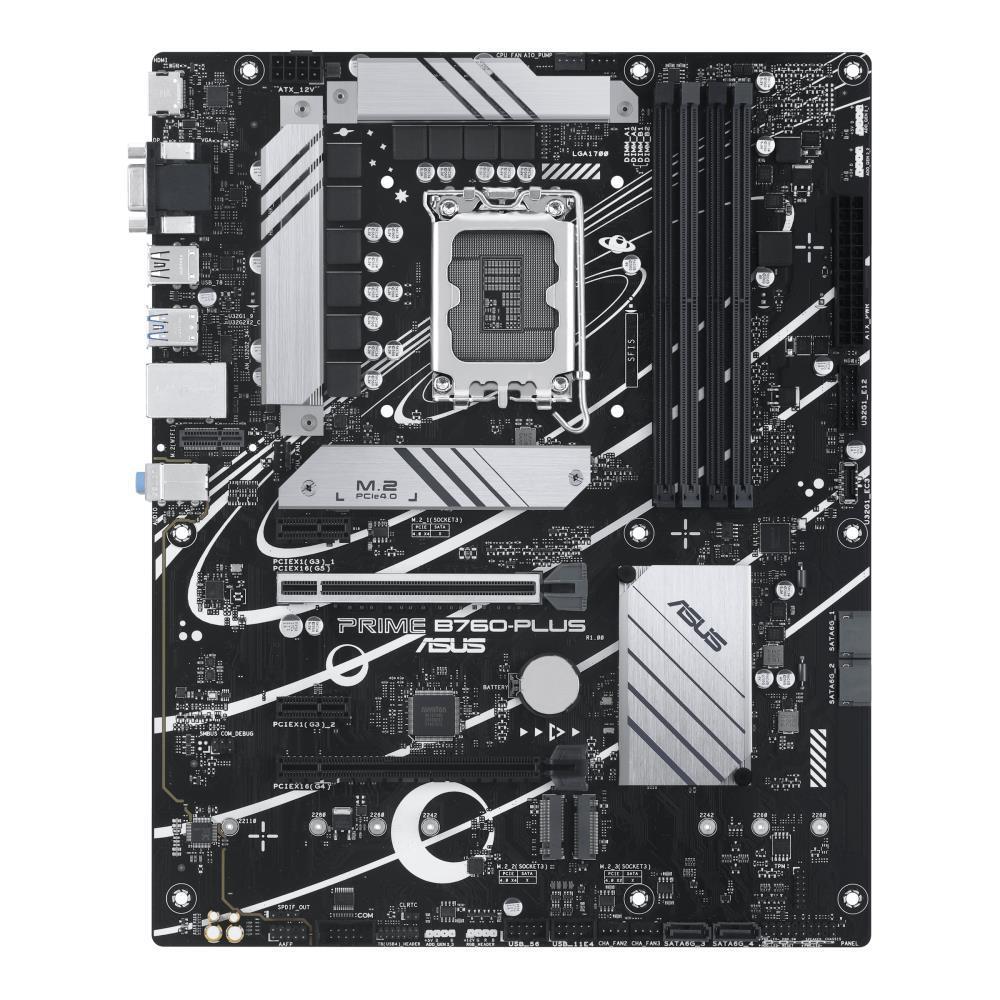

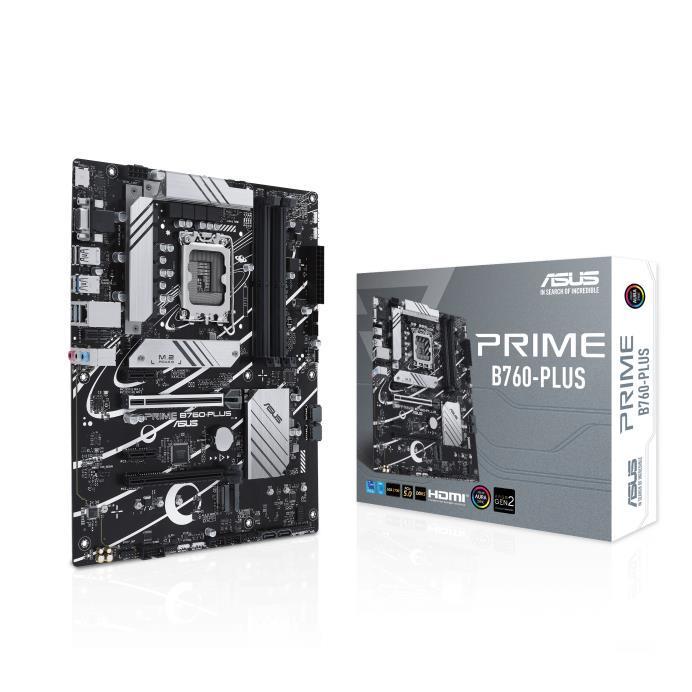

B760-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
