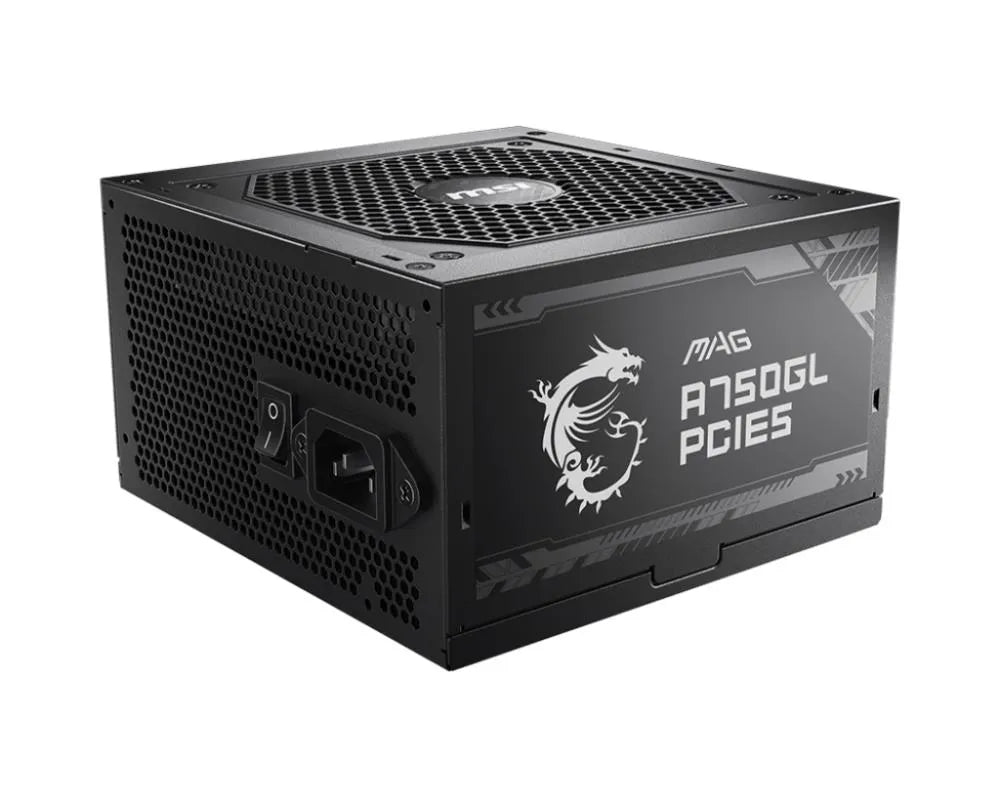

Power Supply|MSI|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MAGA750GLPCIE5
Couldn't load pickup availability
Cena bez PVN 21%: €91,94
Specifikācija
| Vienības kastes platums | 0.225 kg |
| Vienības kastes garums | 0.3 kg |
| Vienības kastes augstums | 0.13 kg |
| Modeļa nosaukums | MAG A750GL PCIE5 mm |
| Efektivitāte | 90 % |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.008775 cubm |
| Unit Calculated Weight | 2.81 kg |
| Summary | MSI MAG A750GL PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm kg |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Maximum input current (@220V) | 4 A |
| Total power | 750 W |
| Cabling type | Fully-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Motherboard power cable length | 450 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 8 mm |
| PCI Express power connectors (6+2 pin) | 3 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit A |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 62 A |
| Maximum input current (@110V) | 8 A |
| Power Factor Correction (PFC) type | Active A |
| ATX power connector (20+4 pin) | Nē W |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active mm |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| Package type | Box mm |
| Harmonized System (HS) code | 84733020 mm |
| EPS power connector (8-pin) | Nē W |
| ATX Power connector (24-pin) | Nē W |
| Illumination | Nē mm |
Apraksts
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

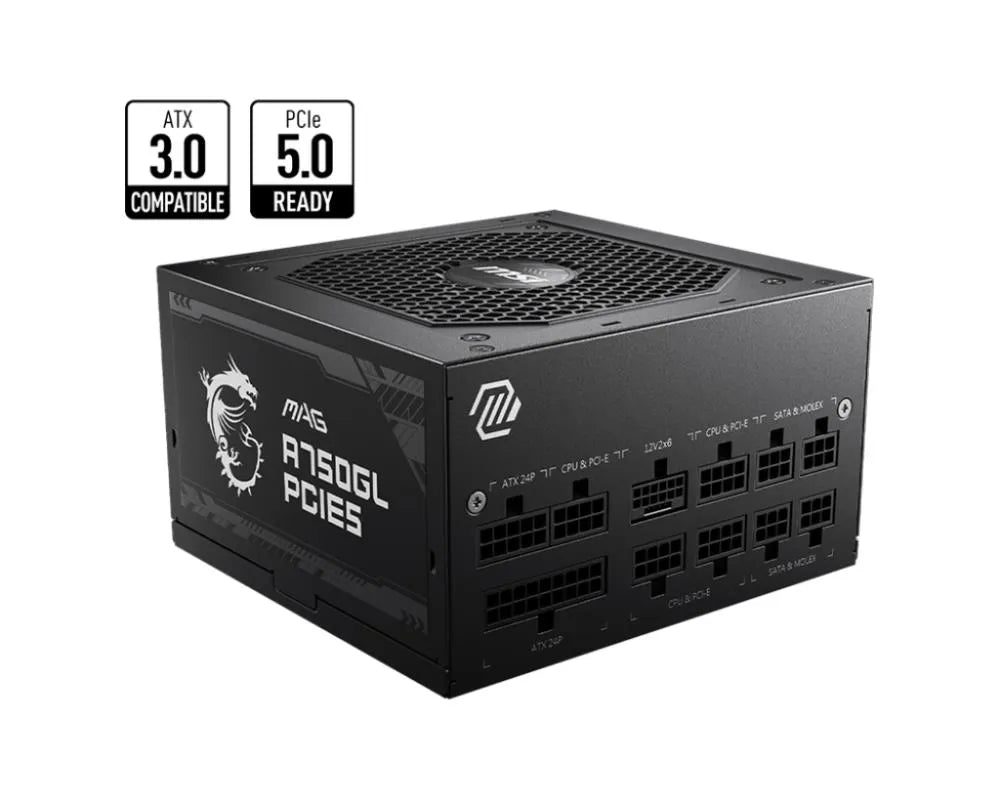

ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

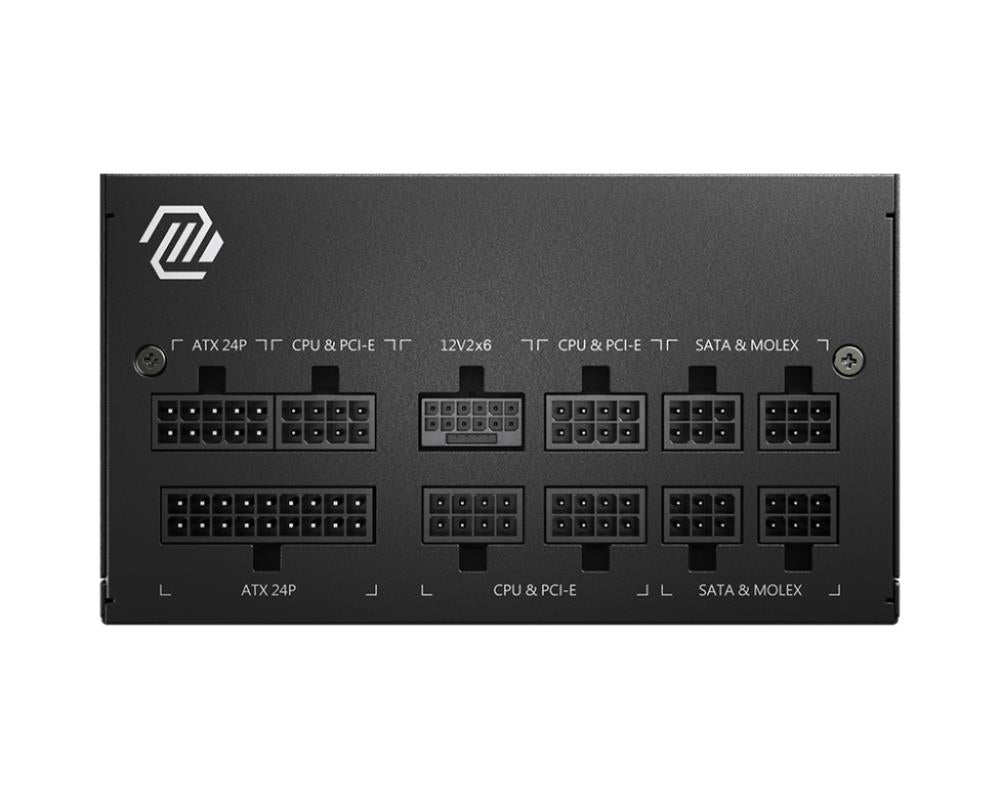

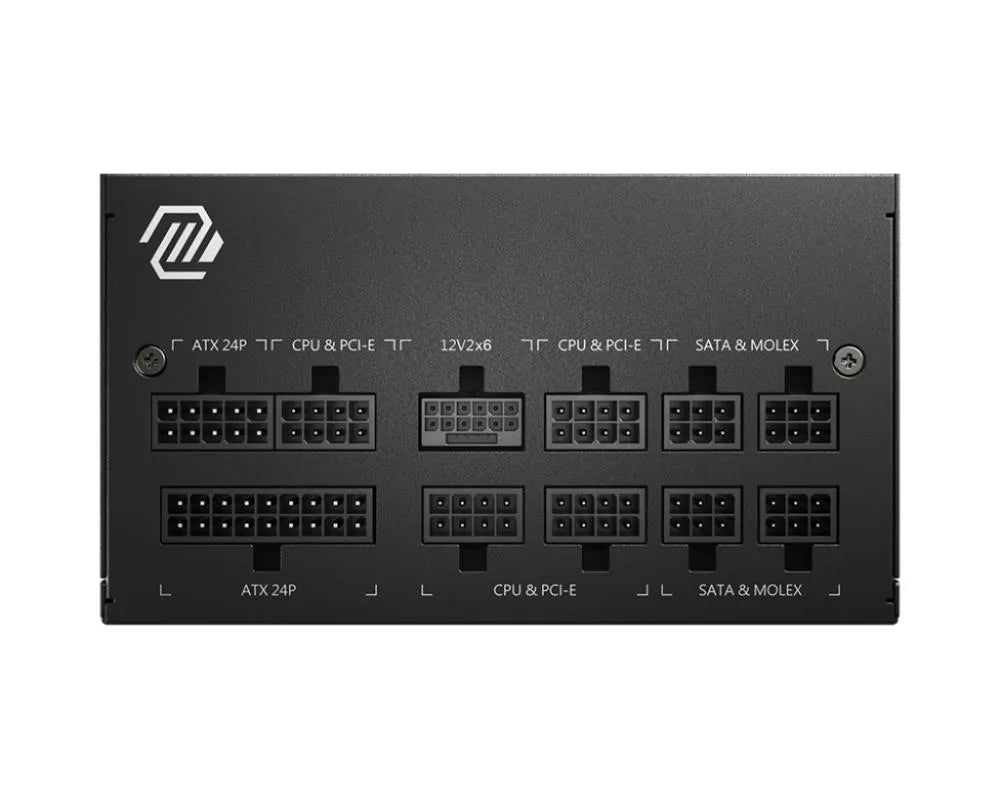

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

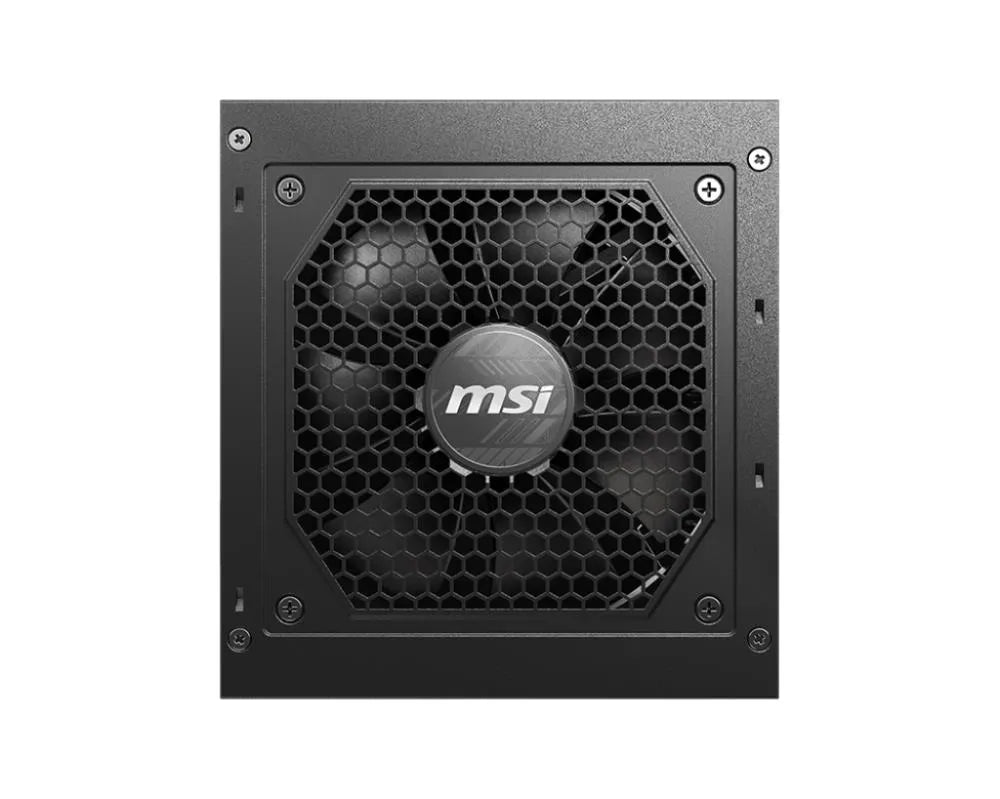

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module desig
