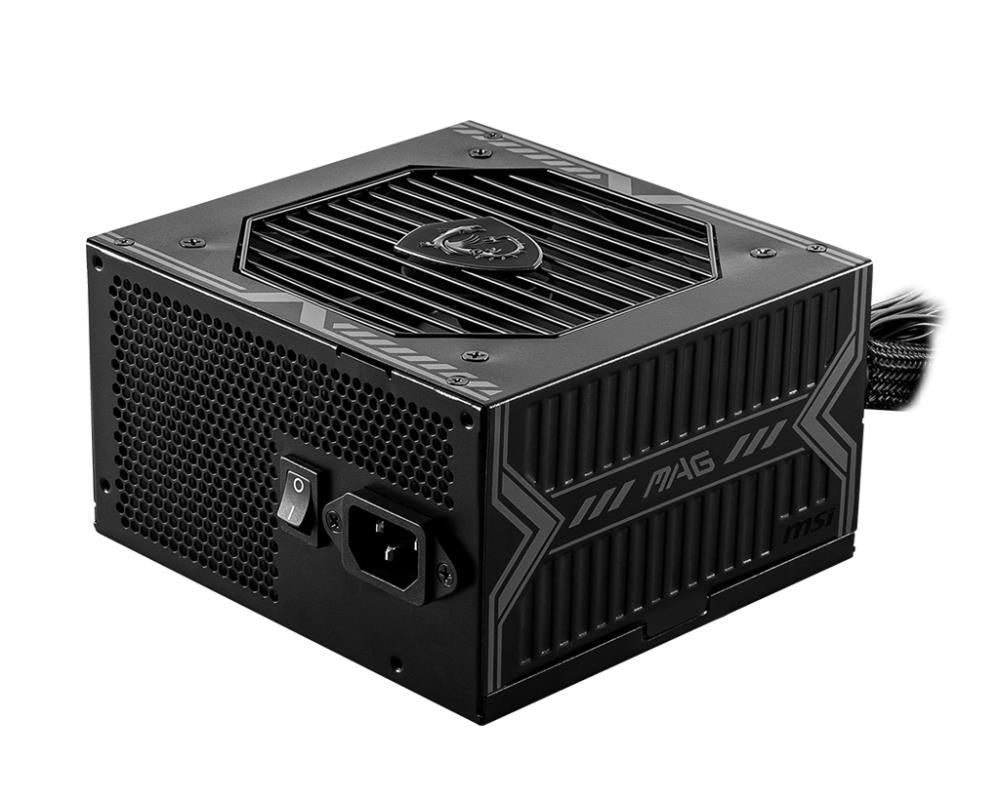

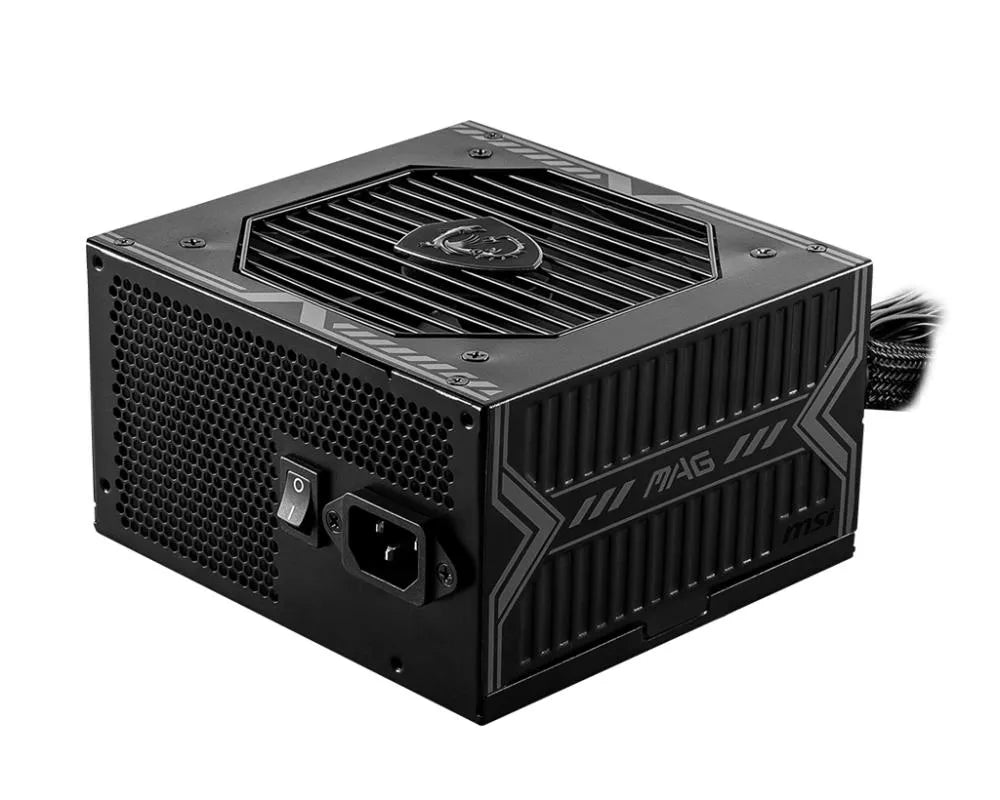

Power Supply|MSI|550 Watts|Efficiency 80 PLUS BRONZE|PFC Active|MAGA550BN
Couldn't load pickup availability
Cena bez PVN 21%: €46,80
Specifikācija
| Vienības kastes platums | 0.11 kg |
| Vienības kastes garums | 0.25 kg |
| Vienības kastes augstums | 0.19 kg |
| Modeļa nosaukums | MAG A550BN mm |
| Efektivitāte | 85 % |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.005225 cubm |
| Unit Calculated Weight | 2.09 kg |
| Summary | MSI MAG A550BN UK PSU '550W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm kg |
| Combined power (+12V) | 546 W |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Maximum input current (@220V) | 4 A |
| Total power | 550 W |
| Cabling type | Non-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Floppy disk drive connector | Jā W |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 5 mm |
| PCI Express power connectors (6+2 pin) | 2 mm |
| 80 PLUS certification | 80 PLUS Bronze mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit A |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 45.5 A |
| Maximum input current (@110V) | 8 A |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 1 W |
| ATX power connector (20+4 pin) | Nē W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active mm |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| Harmonized System (HS) code | 84733020 mm |
| EPS power connector (8-pin) | Nē W |
| ATX Power connector (24-pin) | Nē W |
Apraksts
MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.
5-YEAR LIMITED WARRANTY
The MAG A550BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
- 80 Plus Bronze certified for high efficiency
- 120mm Low Noise Fan
- Industrial level protection with OVP,OCP,OPP,OTP, SCP
- DC-DC Circuit Design
- Active PFC design
