| Marketing Description |
| RUTX14 is the fastest single modem LTE router in our portfolio. 5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, dual SIM for advanced throughput and ultra-reliable connectivity. Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention. Combination of fast LTE CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity. |
| Product Features |
- Download up to 600 Mbps, upload up to 150 Mbps
- Wave-2 802.11ac Dual Band WI-FI and Bluetooth LE
|
| Product Properties |
| Product Description |

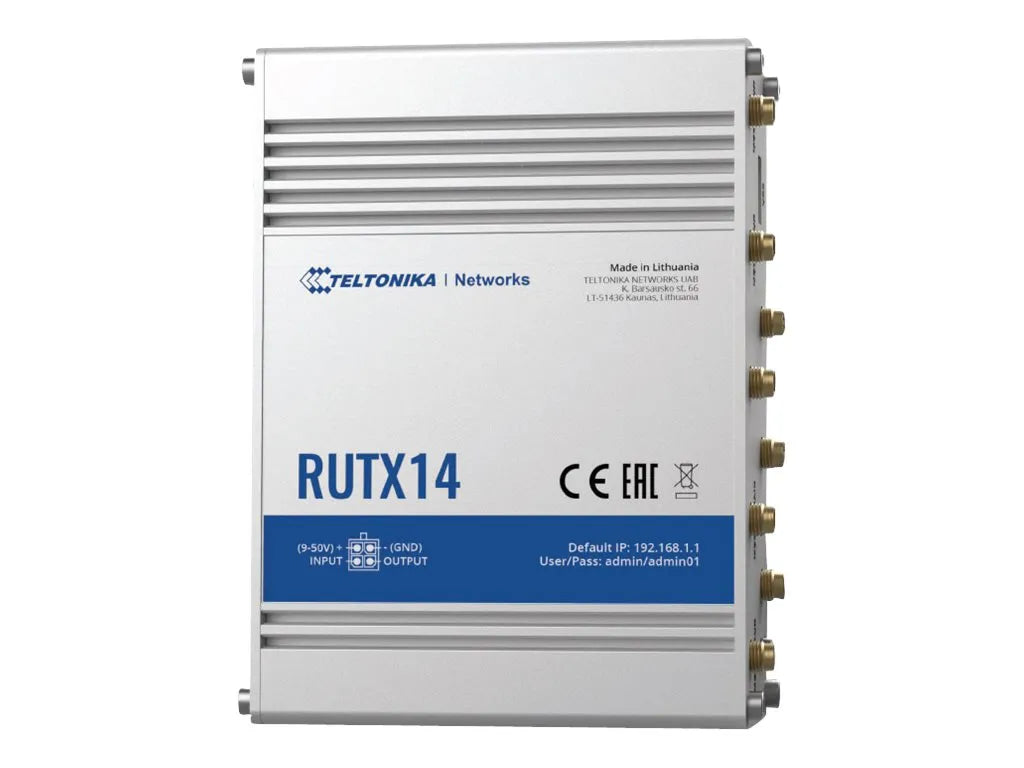

Teltonika RUTX14 - wireless router - WWAN - Wi-Fi 5, LTE, Bluetooth - 3G - desktop |
| Device Type |
Wireless router - wireless cellular modem - 5-port switch (integrated) |
| Enclosure Type |
Desktop |
| Mobile Communication Protocol |
WCDMA, FDD LTE, TDD LTE |
| Generation |
3G |
| WAN Ports Qty |
1 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 4.0 LE |
| Frequency Band |
2.4 GHz / 5 GHz |
| Capacity |
Concurrent connections: 150 |
| Network / Transport Protocol |
TCP/IP, PPTP, UDP/IP, L2TP, NTP, ICMP/IP, IPSec, PPPoE, ARP, SMTP, FTP, DHCP, DNS, DDNS, HTTP, HTTPs, IPv4, IPv6 |
| Routing Protocol |
RIP-1, RIP-2, BGP, EIGRP, VRRP, NHRP, OSPFv2, static IP routing, GRE |
| Remote Management Protocol |
SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI, TR-069, JSON-RPC, Modbus, NTP, MQTT |
| VoIP Protocols |
H.323, SIP |
| Features |
Firewall protection, NAT support, VPN support, load balancing, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), ALG support, E-mail alert, MAC address filtering, Access Point operational mode, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPSec NAT-Traversal (NAT-T), Dynamic Multipoint VPN (DMVPN), SMS alert, port forwarding, reset button, DHCP relay, SNMP trap, GRE tunneling, tagged VLAN, SYN Flooding, Captive Portal, MU-MIMO technology, system log, passive PoE supported, Web Filtering, Hotspot Access Point Capability, DLNA support, DMZ support, port-based VLAN, black list, white list, bridge mode, Point-to-Point Protocol (PPP), DDoS Protection, aluminium housing, VoIP passthrough support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11e, IEEE 802.11n, IEEE 802.3az, UPnP, IEEE 802.11r, IEEE 802.11ac Wave 2 |
| Dimensions (WxDxH) |
13.2 cm x 9.5 cm x 4.4 cm |
| Weight |
515 g |
