Specifikācija
| Vienības kastes platums | 0.07 kg |
| Vienības kastes garums | 0.32 kg |
| Vienības kastes augstums | 0.24 kg |
| Izmēri | 209 x 126 x 26 mm Mpps |
| Modeļa nosaukums | TL-SG1210PP kg |
| Pārslēgšanas jauda | 20 Gbps |
| Pārsūtīšanas ātrums | 14.88 Mpps |
| IEEE 802.1p | Jā kg |
| 10Base-T / 100Base-TX / 1000Base-T | 9 kg |
| Energoapgāde | External Mpps |
| IEEE 802.3af | Jā kg |
| PoE+ porti | 6 kg |
| IEEE 802.3at | Jā kg |
| Units per Shipping Box | 1 Mpps |
| Unit Calculated Volume | 0.005376 cubm |
| Product Net Weight | 1.2 kg |
| Unit Calculated Weight | 1.63 kg |
| 10/100/1000BASE-T/SFP combo | 1 kg |
Apraksts

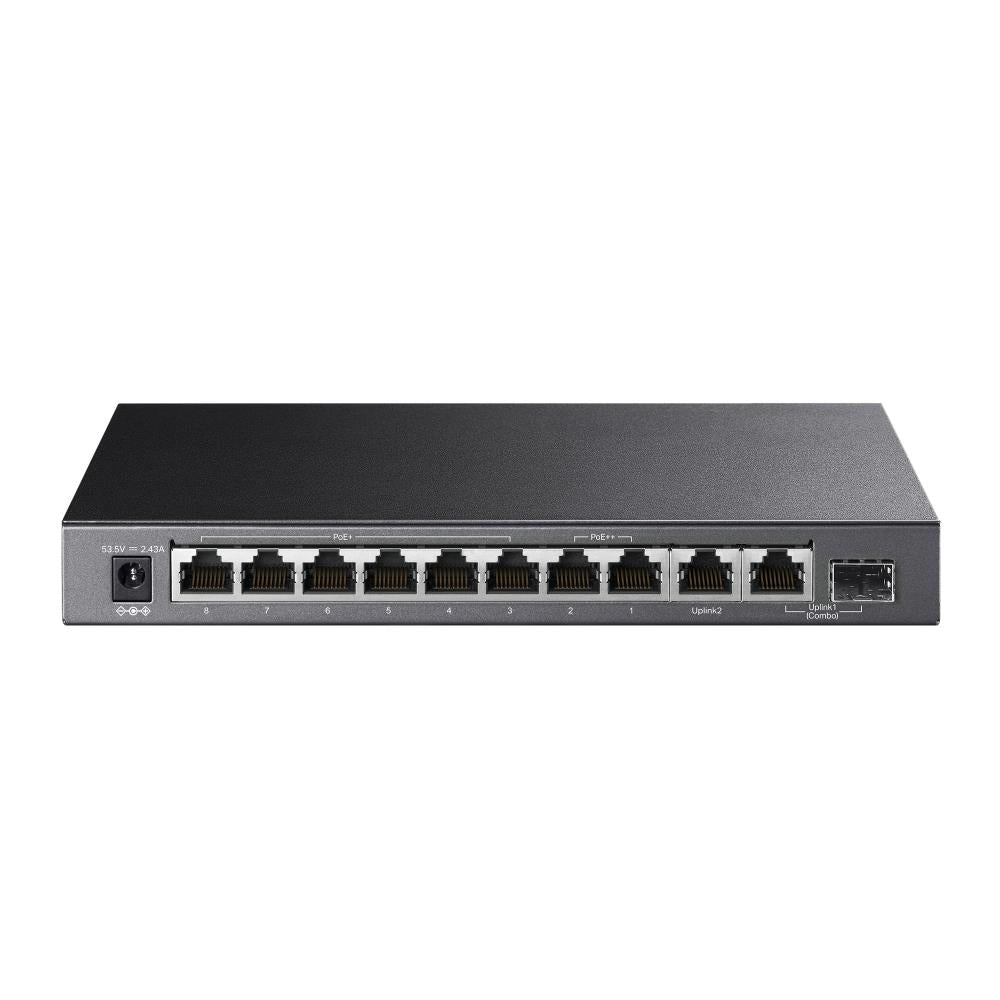

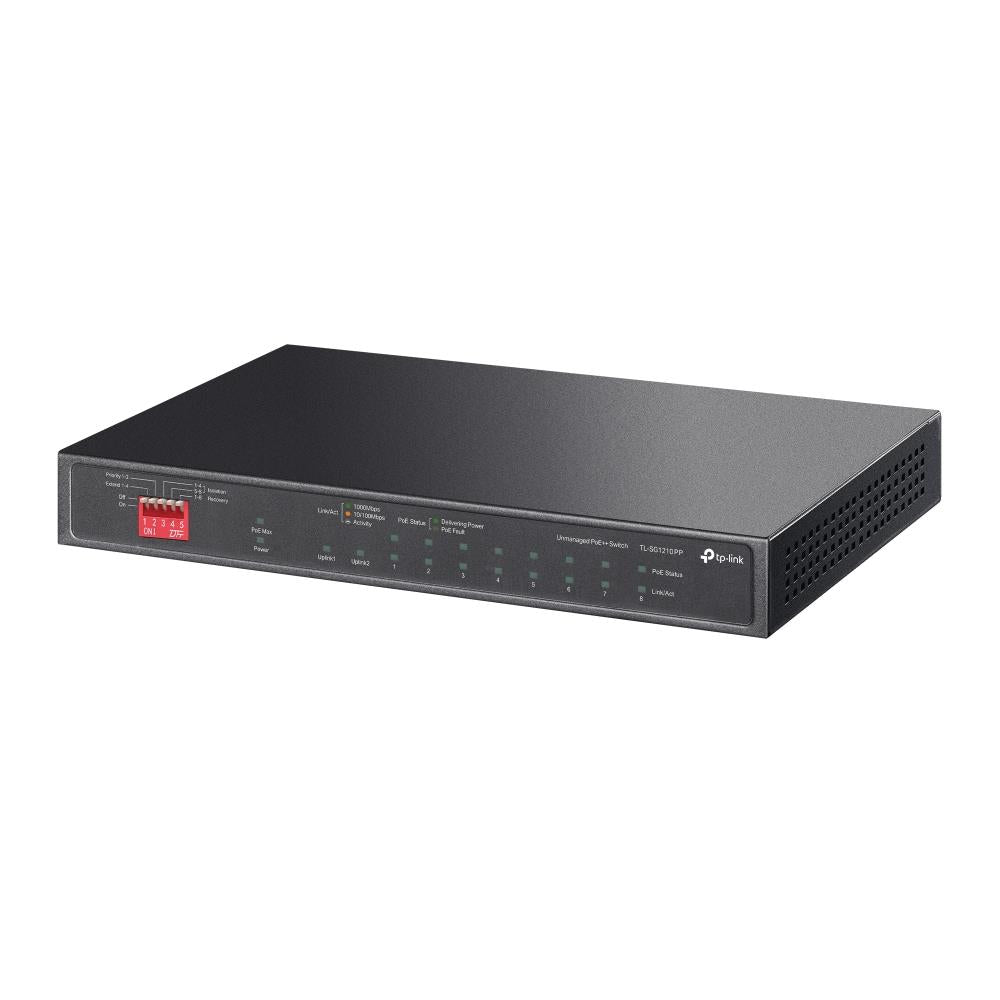

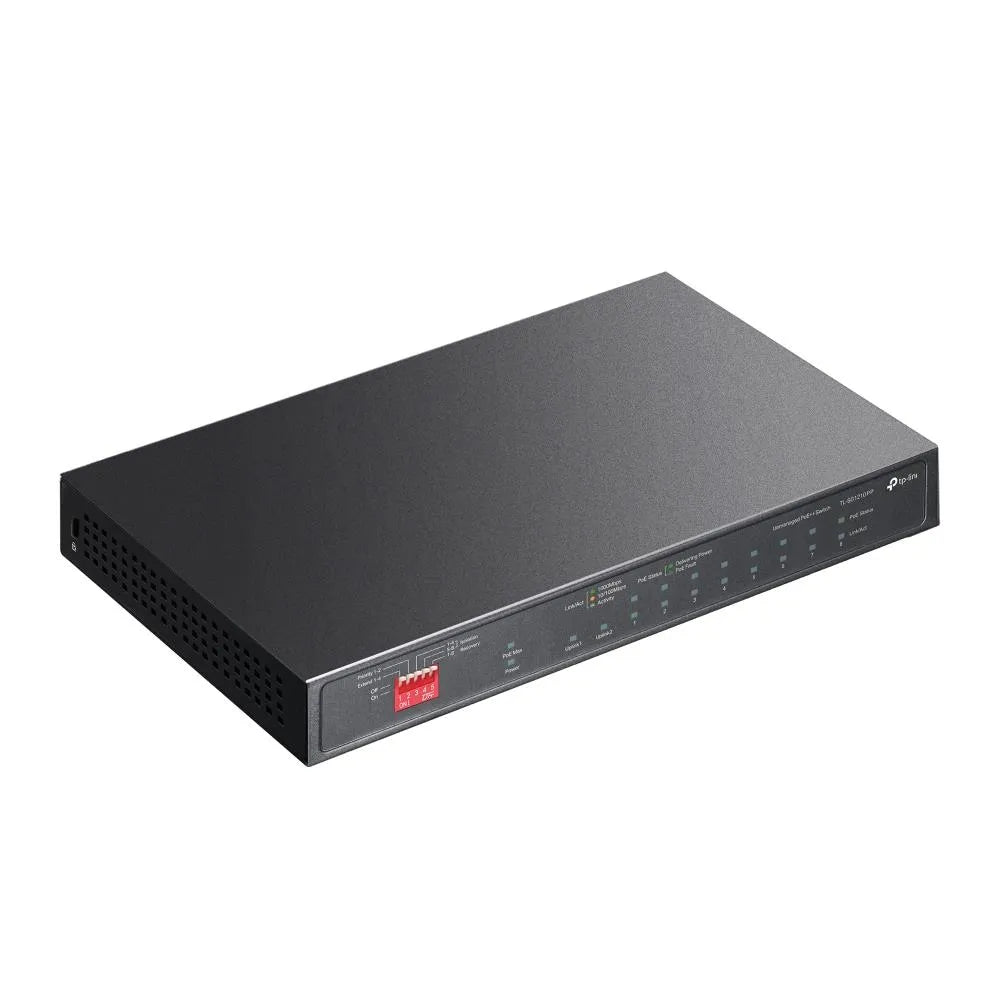

TL-SG1210PP New
10-Port Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
- 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port
- With 2× PoE++ ports and 6× PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60 W for PoE++ port
- Supports PoE Power up to 123 W for all PoE ports
- Plug and Play, no configuration and installation required
- Up to 250m data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Priority Mode guarantees the quality of sensitive applications like video monitoring in critical business areas by prioritizing the data of ports 1-2
