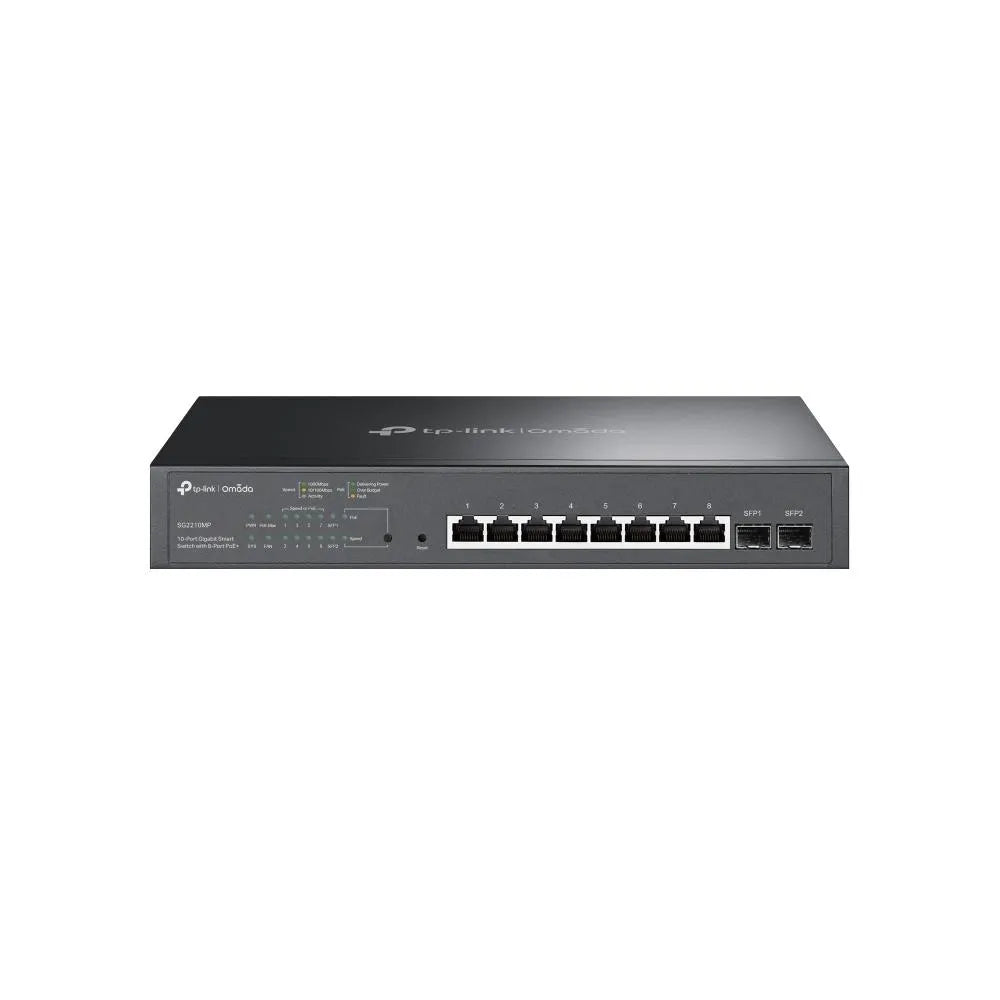

Switch|TP-LINK|Omada|SG2210MP|PoE+ ports 8|150 Watts|SG2210MP
Parastā cena
€184,26
Parastā cena
Akcijas cena
€184,26
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
TP-LINK
Pieejamība:
Ir noliktavā
SKU:
SG2210MP
Cena bez PVN 21%: €152,28
Parastā cena
€184,26
Parastā cena
Akcijas cena
€184,26
Specifikācija
| Vienības kastes platums | 0.08 kg |
| Vienības kastes garums | 0.405 kg |
| Vienības kastes augstums | 0.25 kg |
| Modeļa nosaukums | Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ mm |
| Sērija | Omada mm |
| Units per Shipping Box | 8 mm |
| Unit Calculated Volume | 0.009418 cubm |
| Unit Calculated Weight | 2.7 kg |
| Summary | TP-Link Omada 10-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U kg |
| Units per Pallet | Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ mm |
|
|
| ARP inspection | Jā kg |
| Switch layer | L2/L2+ kg |
| Switch type | Managed kg |
| Basic switching RJ-45 Ethernet ports quantity | 8 kg |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) kg |
| 10G support | Nē kg |
| Copper ethernet cabling technology | 1000BASE-T/100BASE-TX/10BASE-T kg |
| Networking standards | IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z kg |
| VLAN support | Jā kg |
| Jumbo frames | 9000 Mpps |
| Jumbo frames support | Jā Mpps |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Access Control List (ACL) | Jā Gbit/s |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping Gbit/s |
| Security algorithms | EAP-LEAP/EAP-MD5/EAP-TLS/EAP-TTLS/HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS Gbit/s |
| Product colour | Black fan(s) |
| Rack mounting | Jā fan(s) |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC W |
| Power over Ethernet (PoE) | Jā W |
| Total Power over Ethernet (PoE) budget | 150 W |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 180 mm |
| Height | 44 mm |
| Width | 294 mm |
| Form factor | 1U Gbit/s |
| Power consumption (max) | 173.9 W |
| Power supply included | Jā W |
| Quality of Service (QoS) support | Jā kg |
| Broadcast storm control | Jā kg |
| Flow control support | Jā kg |
| Number of VLANs | 4000 kg |
| Port mirroring | Jā kg |
| Rate limiting | Jā kg |
| Virtual LAN features | MAC address-based VLAN/Multicast VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN kg |
| Forwarding rate | 14.9 Mpps |
| Packet buffer memory | 4.1 MB |
| IGMP snooping | Jā Gbit/s |
| Multicast support | Jā Gbit/s |
| Gigabit Ethernet (copper) ports quantity | 8 kg |
| Certification | CE, FCC, RoHS mm |
| Power over Ethernet plus (PoE+) ports quantity | 8 W |
| Web-based management | Jā kg |
| Cloud-managed | Jā kg |
| Configuring Location Settings (CLI) | Jā kg |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493 kg |
| System event log | Jā kg |
| SFP module slots quantity | 2 kg |
| Link aggregation | Jā kg |
| Spanning tree protocol | Jā kg |
| Fiber ethernet cabling technology | 1000BASE-X/100BASE-FX kg |
| Number of queues | 8 entries |
| BPDU filtering/protection | Jā Gbit/s |
| IP-MAC-Port binding | Jā Gbit/s |
| Queue scheduling algorithms | SP/Weighted Round Robin (WRR) Gbit/s |
| SSH/SSL support | Jā Gbit/s |
| Management protocols | SNMPv1/v2c/v3, SNTP Gbit/s |
| Number of fans | 1 fan(s) |
| Heat dissipation | 594.46 BTU/h |
Apraksts
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance. /
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
- 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and desktop/rack mounting design
