Specifikācija
| Vienības kastes platums | 0.25 kg |
| Vienības kastes garums | 0.53 kg |
| Vienības kastes augstums | 0.08 kg |

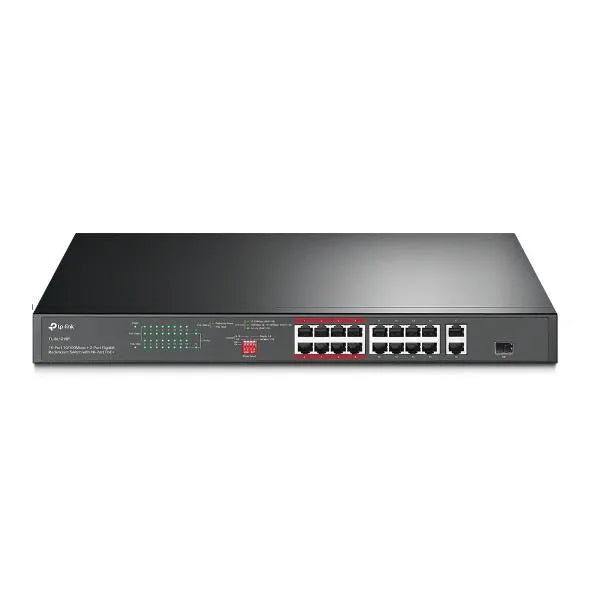

| Modelis | TL-SL1218P kg |
| Izmēri | 440 × 180 × 44 mm Mpps |
| Iekļautie piederumi | • TL-SL1218P • Power Cable • Installation Guide • Two mounting brackets Mpps |
| Primāro portu skaits | 16 kg |
| Pārslēgšanas jauda | 7.2 Gbps |
| Pārsūtīšanas ātrums | 5.36 Mpps |
| Galda/podesta | Jā kg |
| 10Base-T / 100Base-TX | 16 kg |
| Pārslēgšanas metode | Store-and-forward Mpps |
| 10/100/1000M | 2 kg |
| Energoapgāde | External Mpps |
| IEEE 802.3af | Jā kg |
| PoE+ porti | 16 kg |
| IEEE 802.3at | Jā kg |
| Kombinētais 10/100/1000M-T/SFP | 1 kg |
| Units per Shipping Box | 6 Mpps |
| Unit Calculated Volume | 0.01335 cubm |
| Product Net Weight | 2 kg |
| Unit Calculated Weight | 3.06 kg |
Apraksts
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.

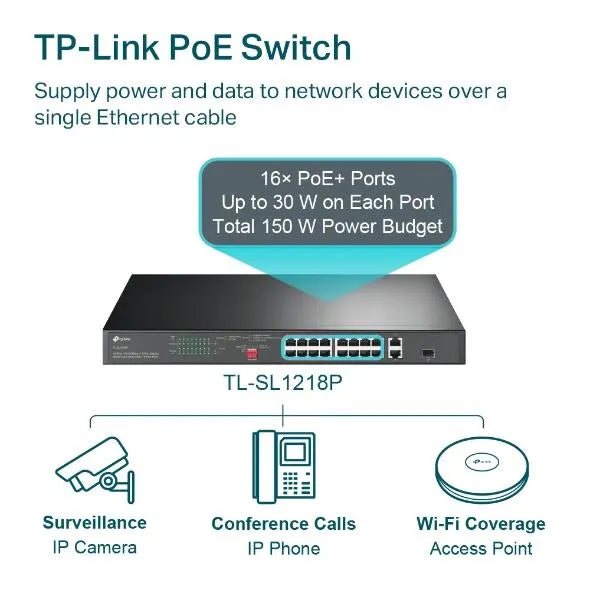

- High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
- Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**

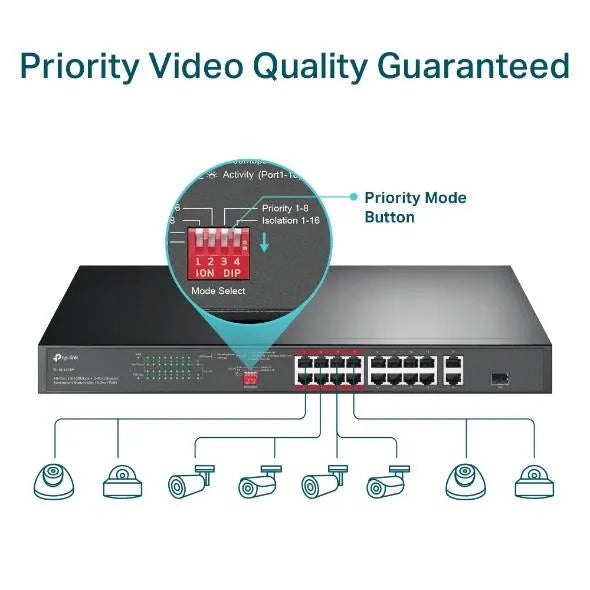

- Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Easy to use, with no configuration and installation needed.
