Specifikācija
| Vienības kastes platums | 0.07 kg |
| Vienības kastes garums | 0.1 kg |
| Vienības kastes augstums | 0.015 kg |
| Modelis | KPM7VRUG30T7 G |
| Units per Shipping Box | 1 G |
| Unit Calculated Volume | 0.000105 cubm |
| Unit Calculated Weight | 0.117 kg |
| Summary | Kioxia PM7-R. SSD capacity: 30 TB, SSD form factor: 2.5", Read speed: 4150 MB/s, Write speed: 3200 MB/s, Data transfer rate: 22.5 Gbit/s, Component for: Server/workstation kg |
| Component for | server/workstation kg |
| Hardware encryption | Jā Gbit/s |
| Interface | SAS Gbit/s |
| Memory type | BiCS FLASH TLC h |
| Random read (4KB) | 720000 IOPS |
| Random write (4KB) | 80000 IOPS |
| SSD capacity | 30720 GB |
| SSD form factor | 2.5" GB |
| Operating temperature (T-T) | 0 - 70 °C |
| Data transfer rate | 22.5 Gbit/s |
| Mean time between failures (MTBF) | 2500000 h |
| Read speed | 4150 MB/s |
| Write speed | 3200 MB/s |
| Operating voltage | 12 V |
| Depth | 100.45 mm |
| Height | 15 mm |
| Weight | 150 g |
| Width | 68.85 mm |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Power consumption (average) | 5 W |
| End-to-End Data Protection | Jā Gbit/s |
| Operating relative humidity (H-H) | 5 - 95 % |
Apraksts

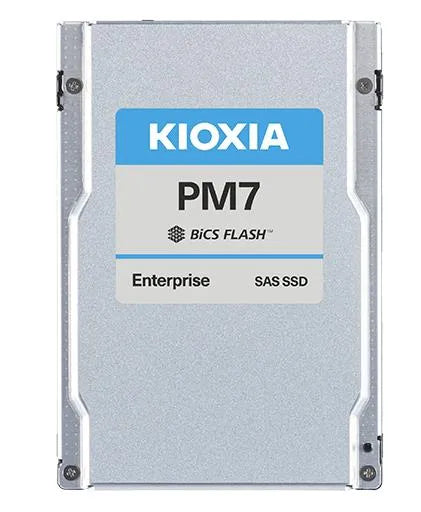

Enterprise SAS SSDSAS SSD 2.5-inch
PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.
- 24G SAS interface with single/dual-port support
- T10 Multi-Stream Write support
- 2.5-inch form factor, 15 mm Z-height
- 1 DWPD with 100 % Random Write Workload
- Power Loss Protection and End-to-End Data Protection, including T10 DIF
