Power Supply|MSI|PRO A850PL PCIE5|ATX|PC|100 - 240 V|850 W|PROA850PLPCIE5
Couldn't load pickup availability
Cena bez PVN 21%: €133,04
Specifikācija
| Modeļa nosaukums | PRO A850PL PCIE5 mm |
| Unit Calculated Volume | 0.006554 cubm |
| Unit Calculated Weight | 2.85 kg |
| Summary | MSI PRO A850PL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm kg |
| Combined power (+12V) | 849.6 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Total power | 850 W |
| Cabling type | Fully-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Floppy disk drive connector | Nē W |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 6 mm |
| PCI Express power connectors (6+2 pin) | 3 mm |
| 80 PLUS certification | 80 PLUS Platinum mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| On/off switch | Jā fan(s) |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 70.8 A |
| Power Factor Correction (PFC) type | Active A |
| ATX power connector (20+4 pin) | Jā W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active mm |
| Product colour | Black fan(s) |
| Depth | 150 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| ATX Power connector (24-pin) | Nē W |
Apraksts
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

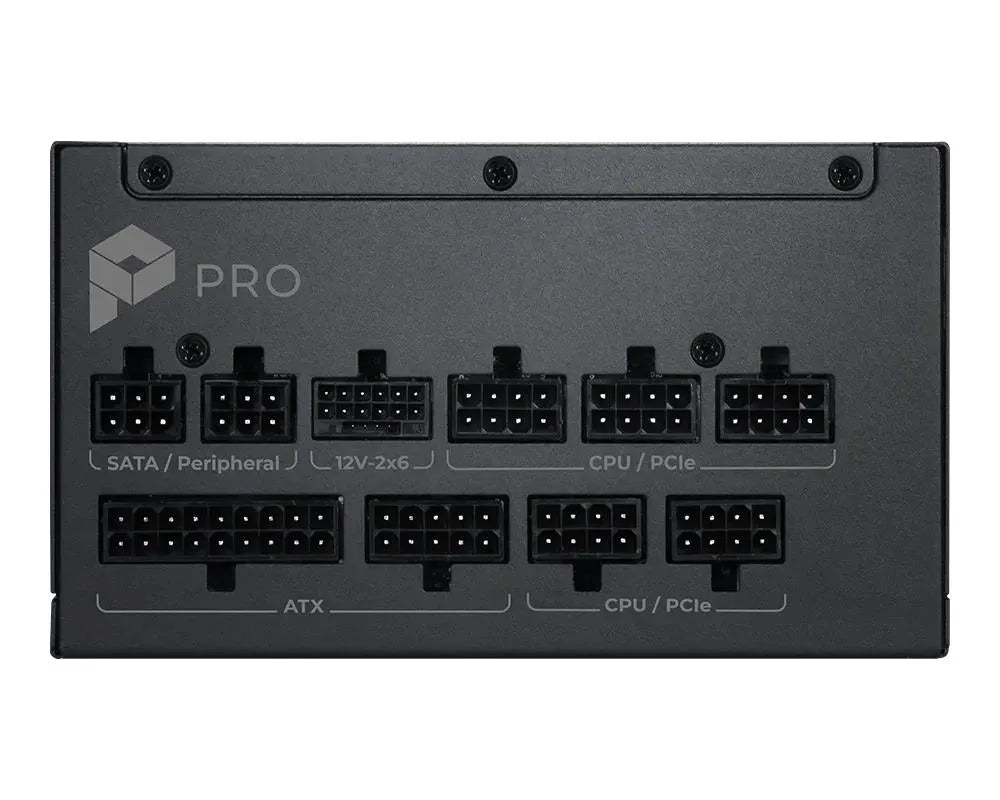

Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards.
GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.

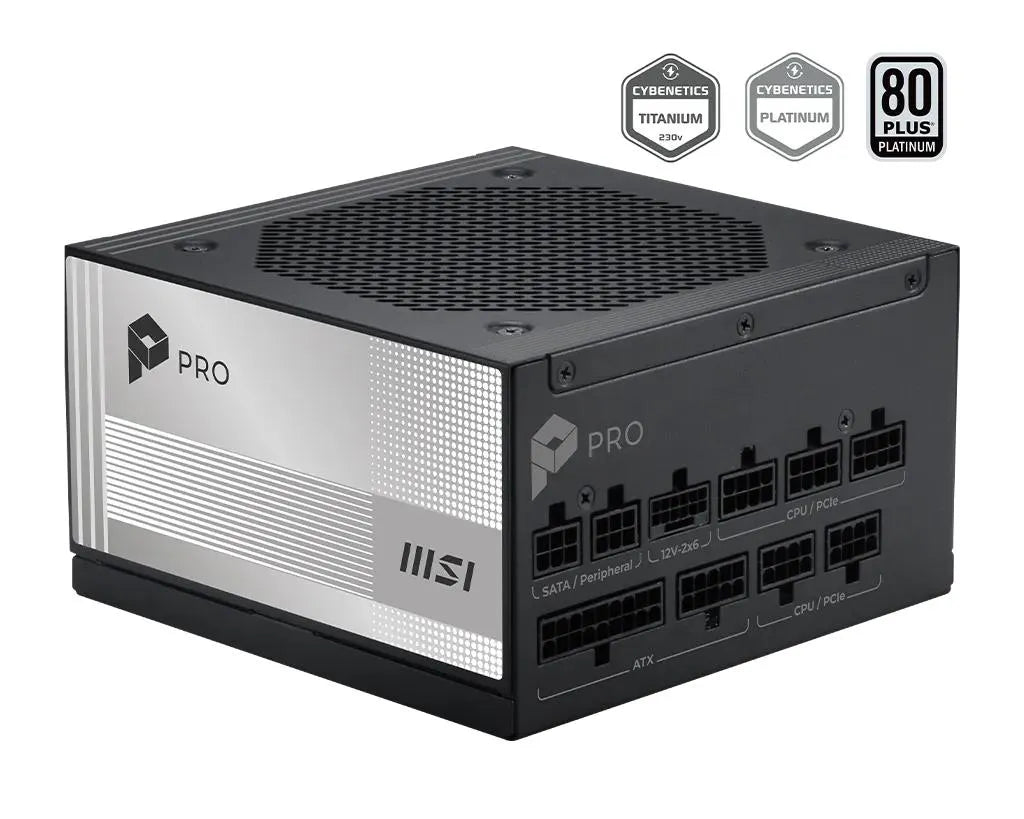

Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
- ATX 3.1 Ready
- PCIe 5.1 Ready (600W)
- 105°C Main Electrolytic Capacitor
- 80 PLUS Platinum Certification
- Embossed Jacket Certified Cables
- Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO
