Power Supply|ENDORFY|SUPREMO FM6|850 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|EY7A012
Couldn't load pickup availability
Cena bez PVN 21%: €112,69
Specifikācija
| Vienības kastes platums | 0.27 kg |
| Vienības kastes garums | 0.1 kg |
| Vienības kastes augstums | 0.22 kg |
| Modeļa nosaukums | SUPREMO FM6 year(s) |
| Units per Shipping Box | 1 year(s) |
| Unit Calculated Volume | 0.00594 cubm |
| Unit Calculated Weight | 2.72 kg |
| Summary | ENDORFY Supremo FM6 850 W. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, SATA power cable length: 560 mm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC kg |

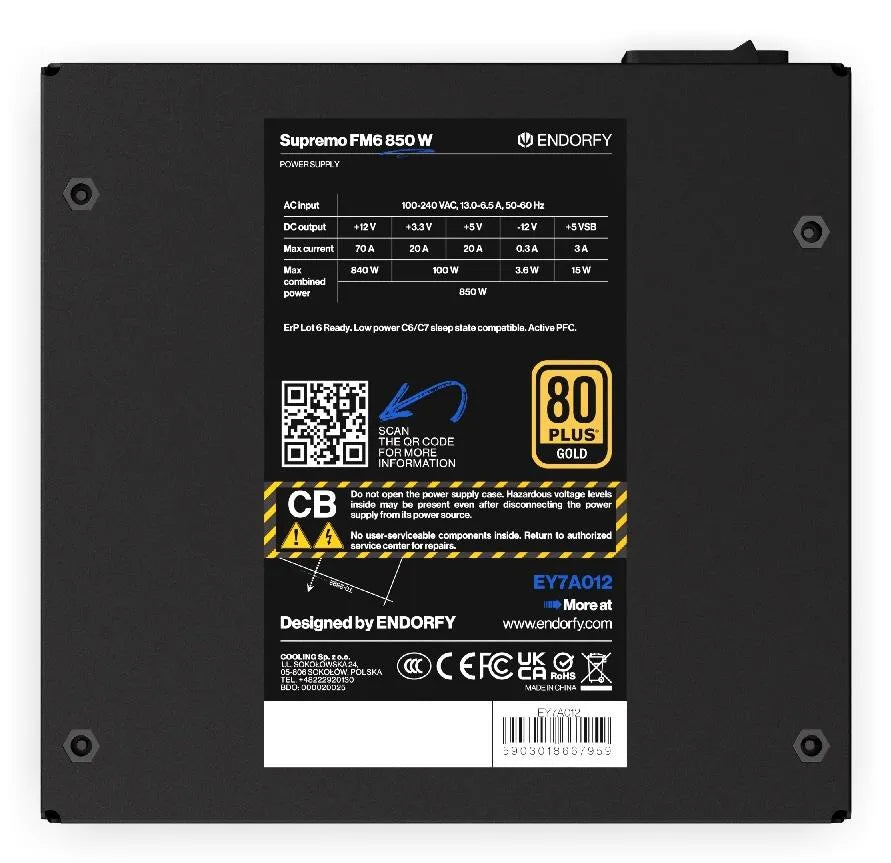

| Combined power (+12V) | 840 W |
| Combined power (+3.3V) | 66 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 850 W |

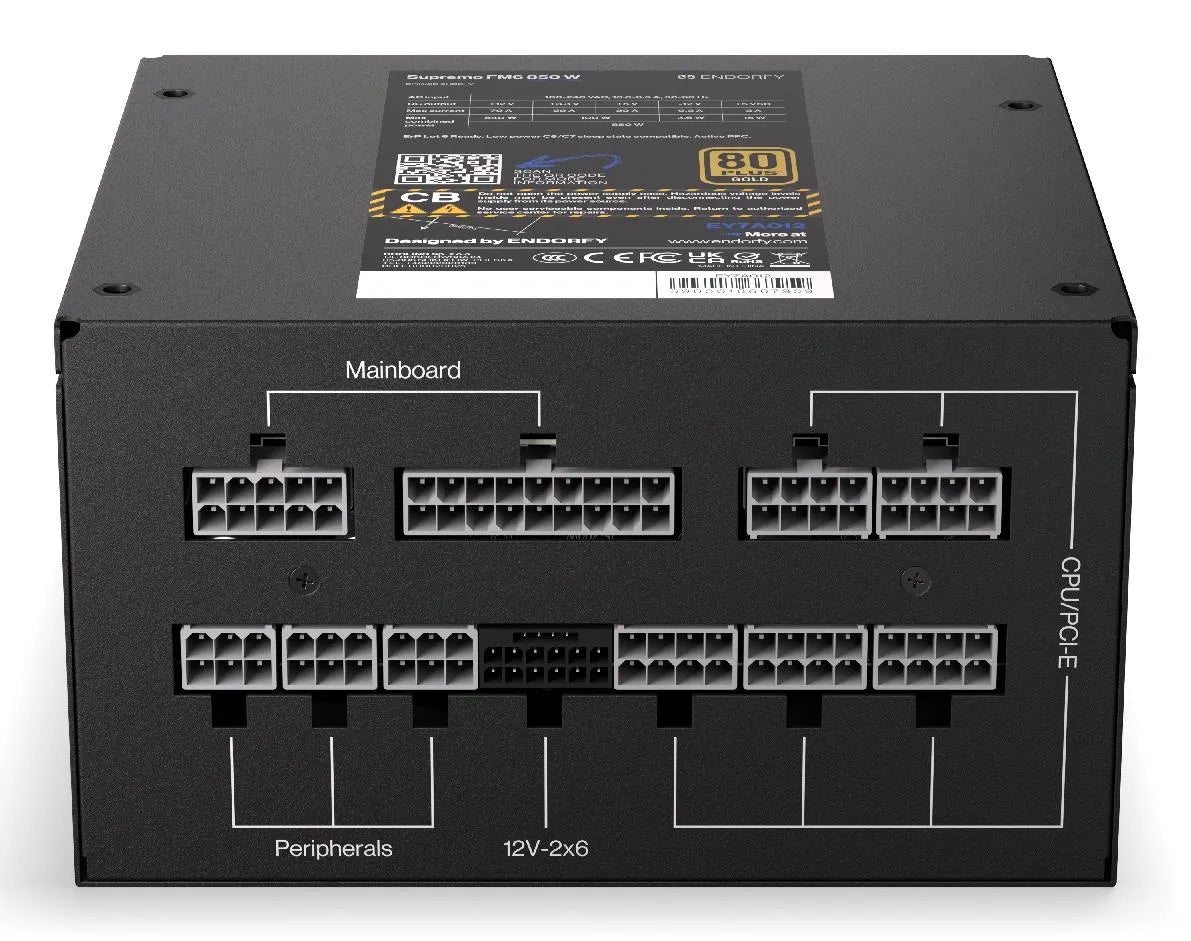

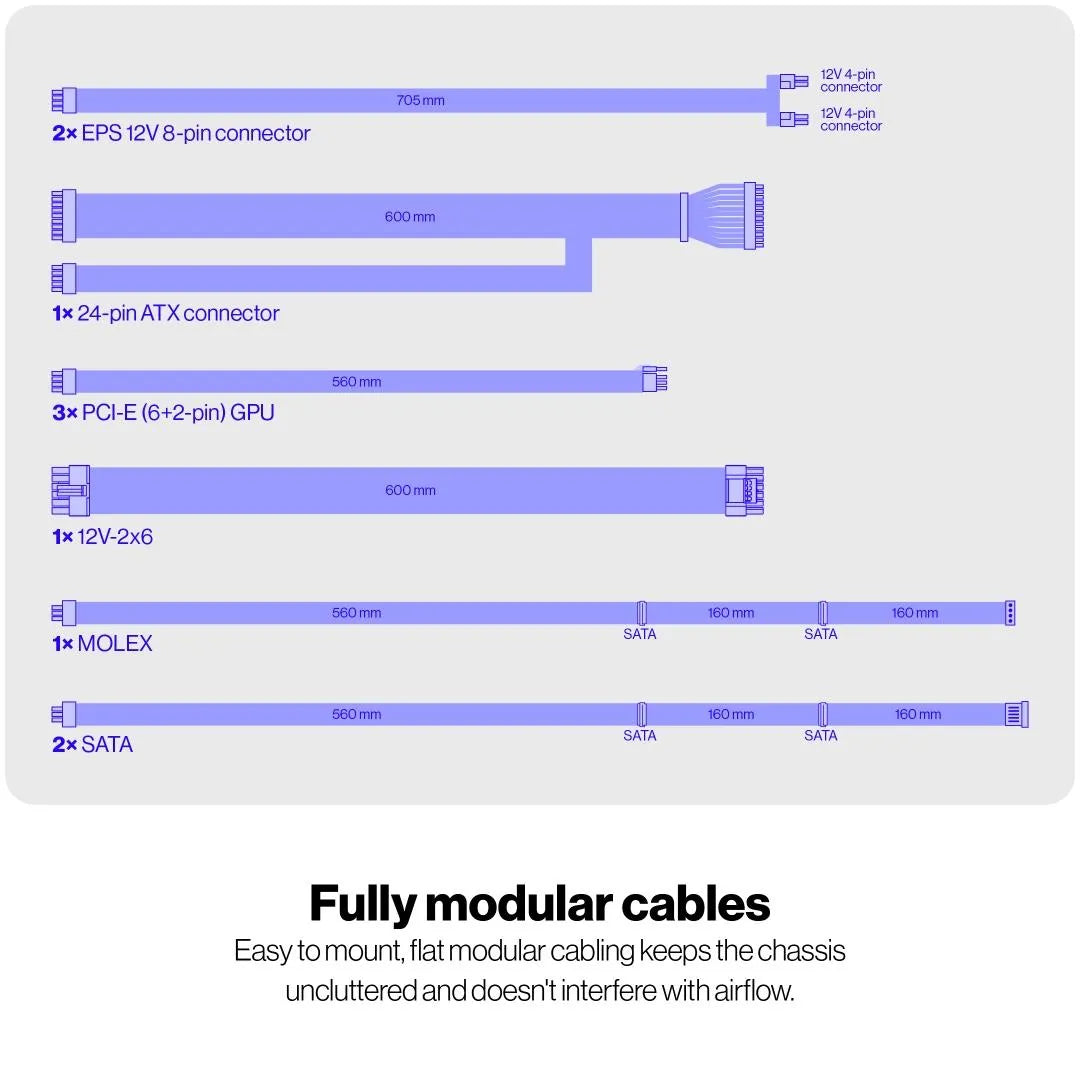

| Cabling type | Fully-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Motherboard power connector | 24-pin ATX W |
| Number of SATA power connectors | 8 W |
| PCI Express power connectors (6+2 pin) | 3 W |
| SATA power cable length | 560 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| ATX version | 3.1 mm |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 120 mm |
| Fan location | Top mm |
| On/off switch | Jā fan(s) |

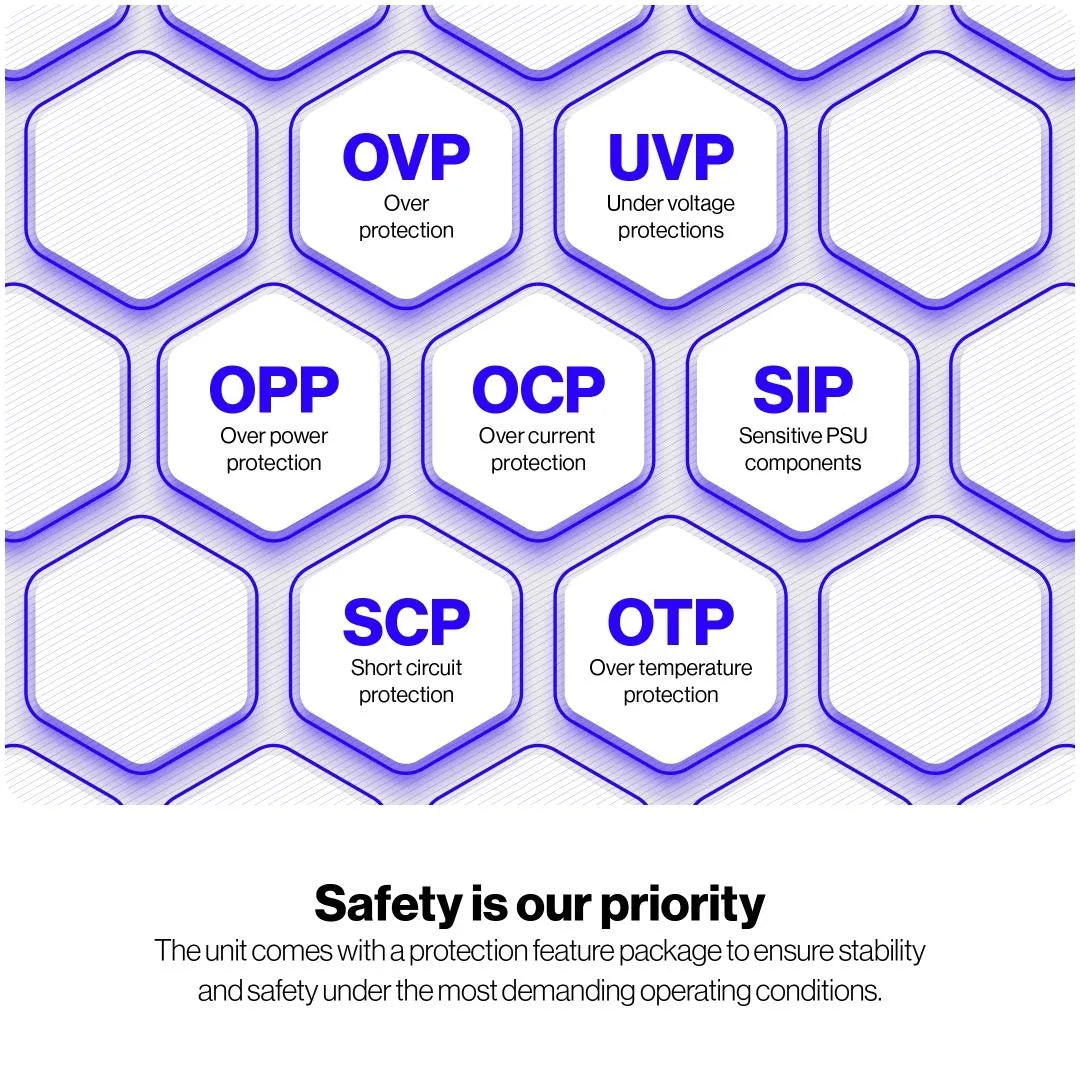

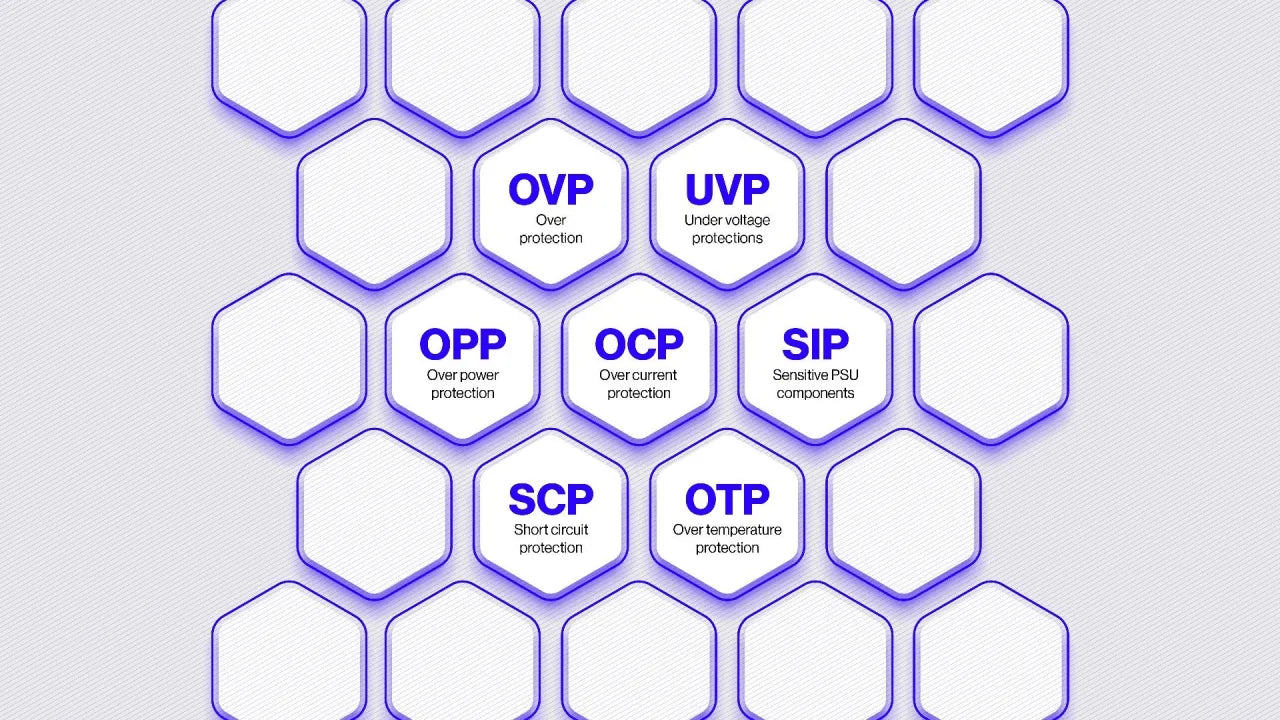

| Power protection features | Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage A |
| Max output current (+12V) | 70 A |
| Power Factor Correction (PFC) type | Active A |
| Bearing technology | FDB mm |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
| Weight | 1460 g |
| Peripheral (Molex) power connectors (4-pin) | 1 W |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 13 - 6.5 A |
| Compliance certificates | CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA fan(s) |
| Package depth | 270 mm |
| Package height | 95 mm |
| Package type | Box mm |
| Package weight | 2740 g |
| Package width | 220 mm |
| Cables included | AC fan(s) |
| Manual | Jā kg |
| Warranty period | 10 year(s) |
| Illumination | Nē RPM |
| Country of origin | China mm |
| Fan speed | 1260 - 1540 RPM |
| PCI Express power connectors (12+4 pin) | 1 W |
| LED indicators | Nē RPM |
| On/off fan switch | Nē fan(s) |
| Case or master carton dimensions (W x D x H) | 600 x 235 x 290 mm |
| Case or master carton weight | 17000 kg |
| Doesn't contain | Cadmium/Lead/Mercury mm |
Apraksts
Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.
Supremo FM6 850 W

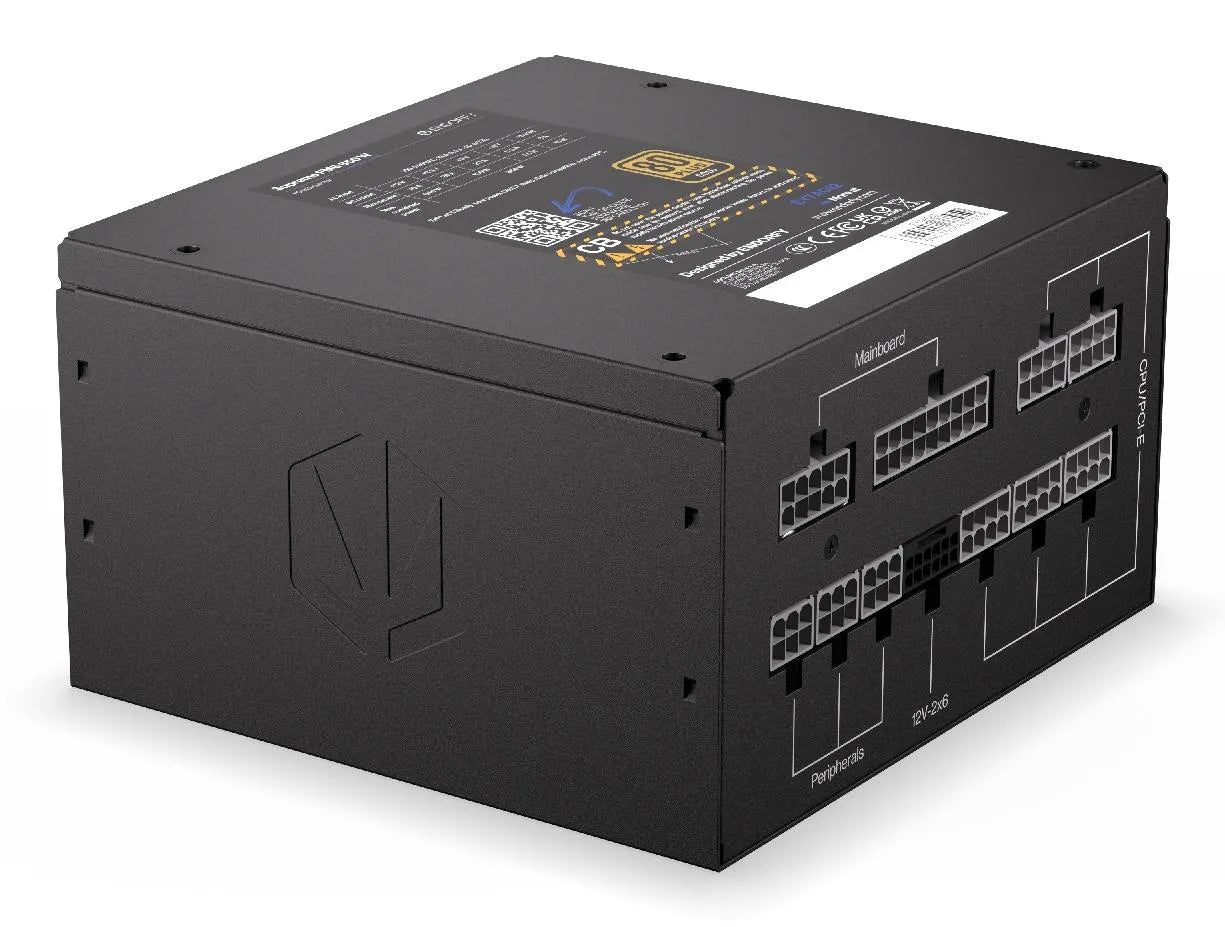

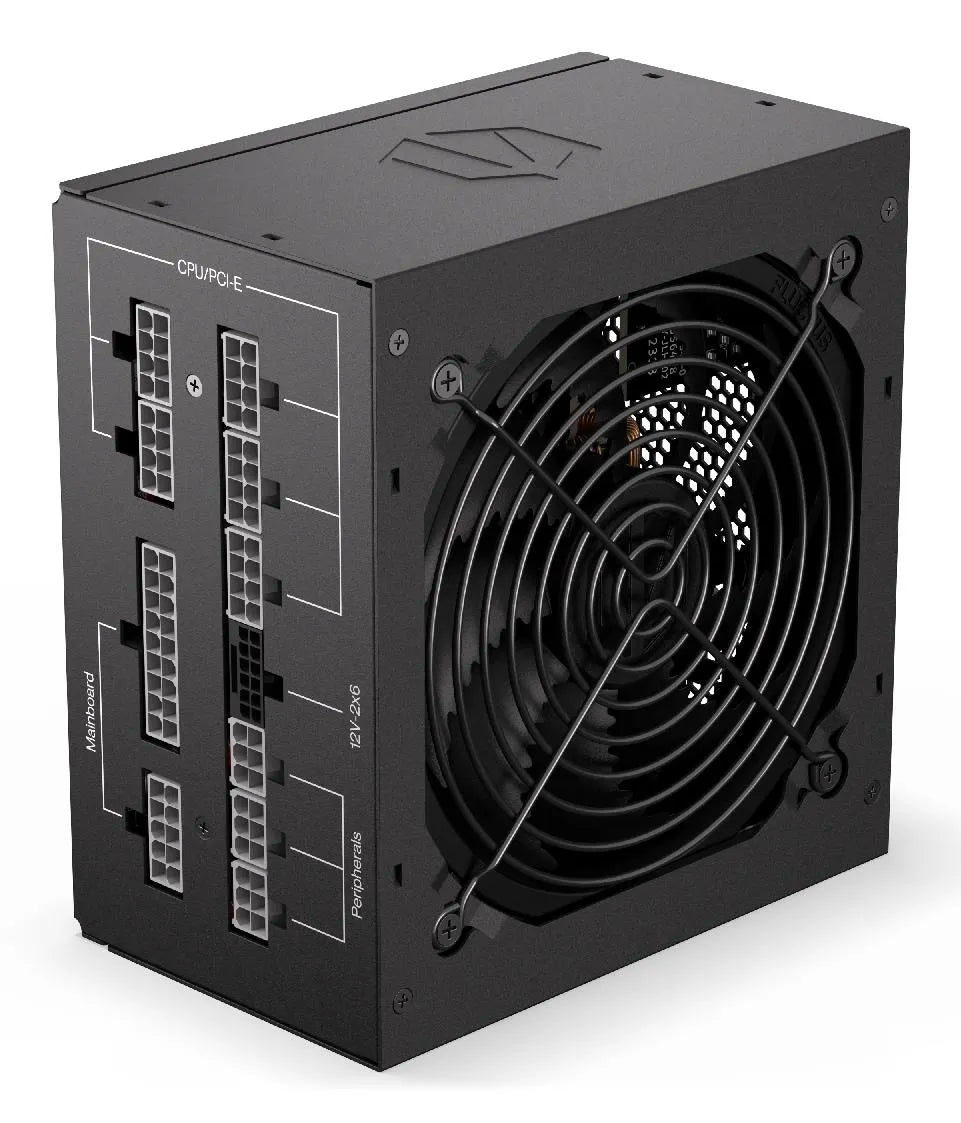

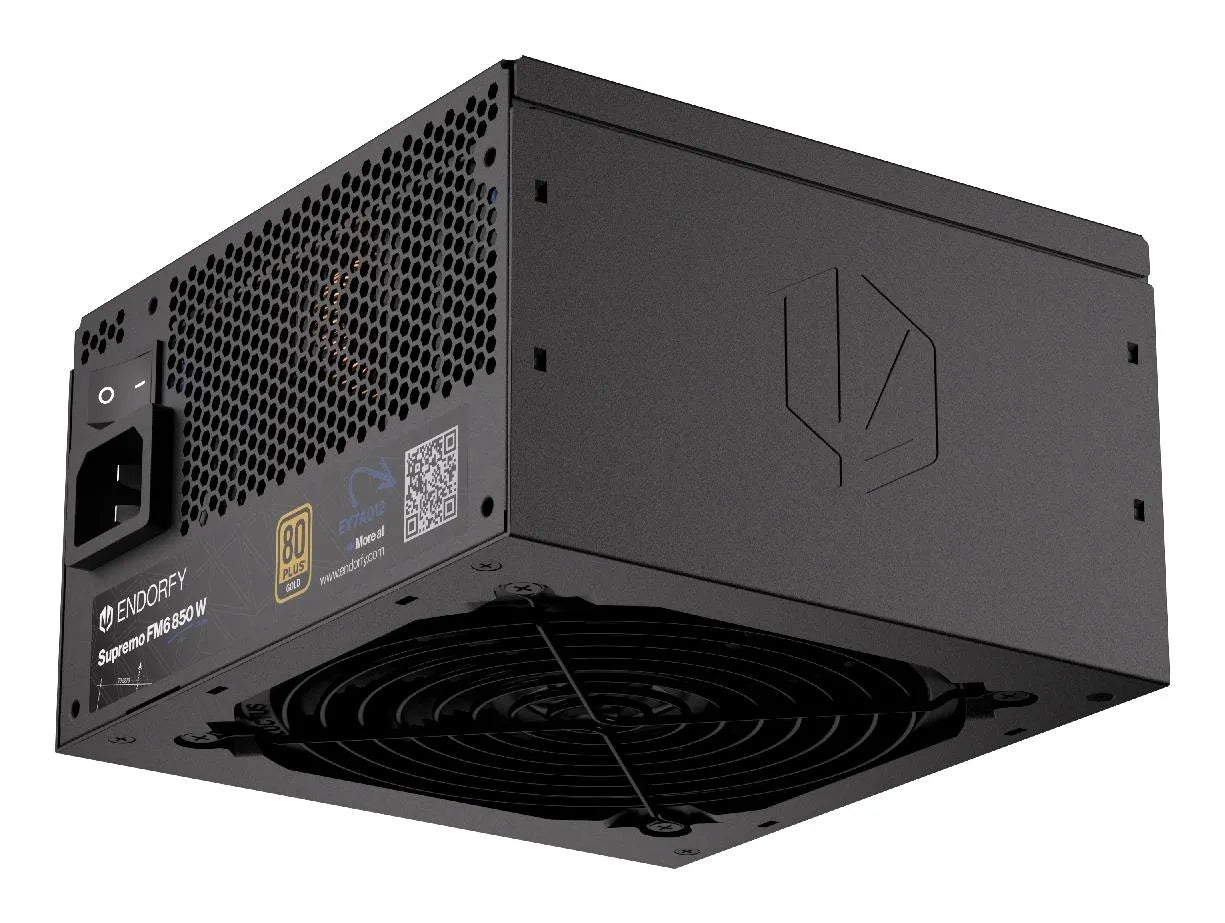

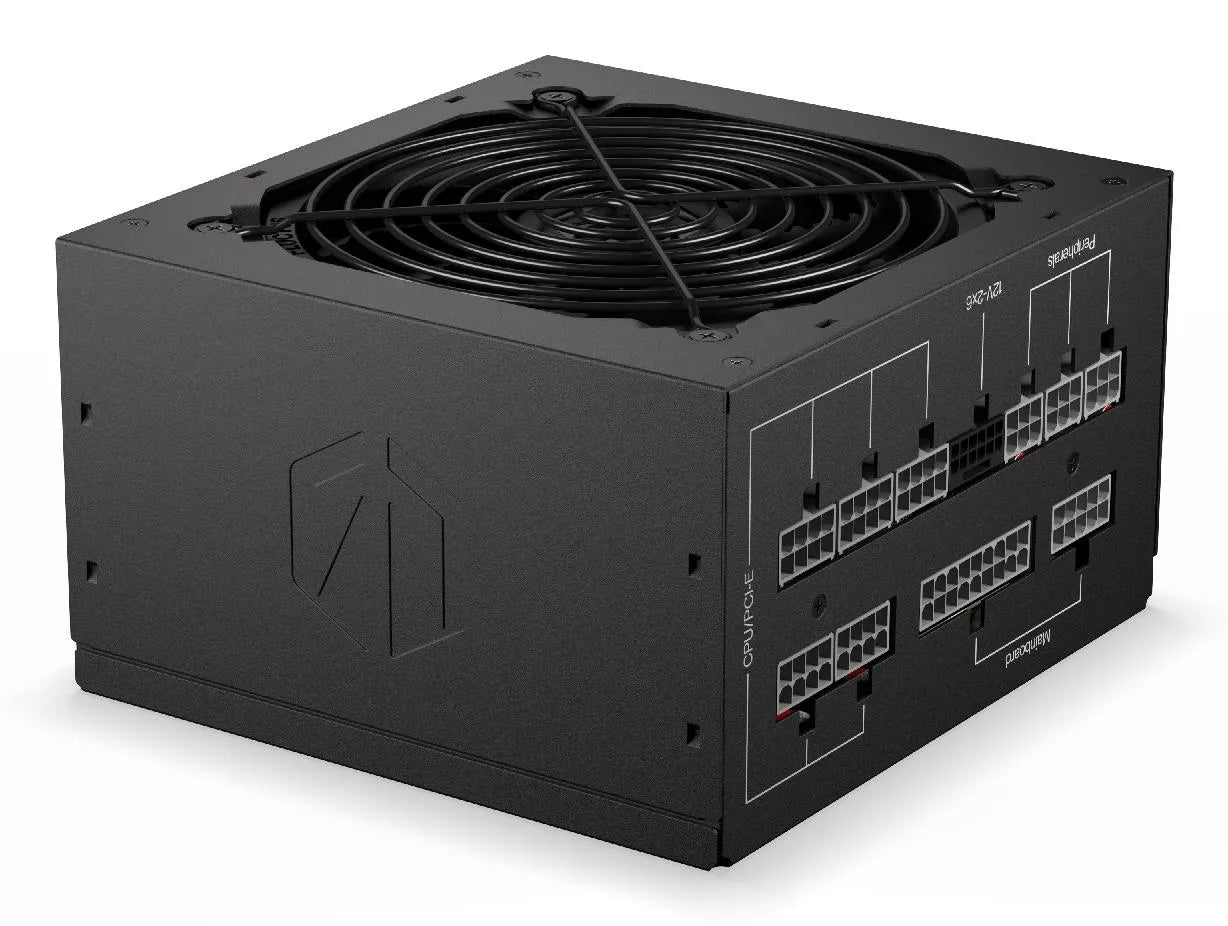

Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

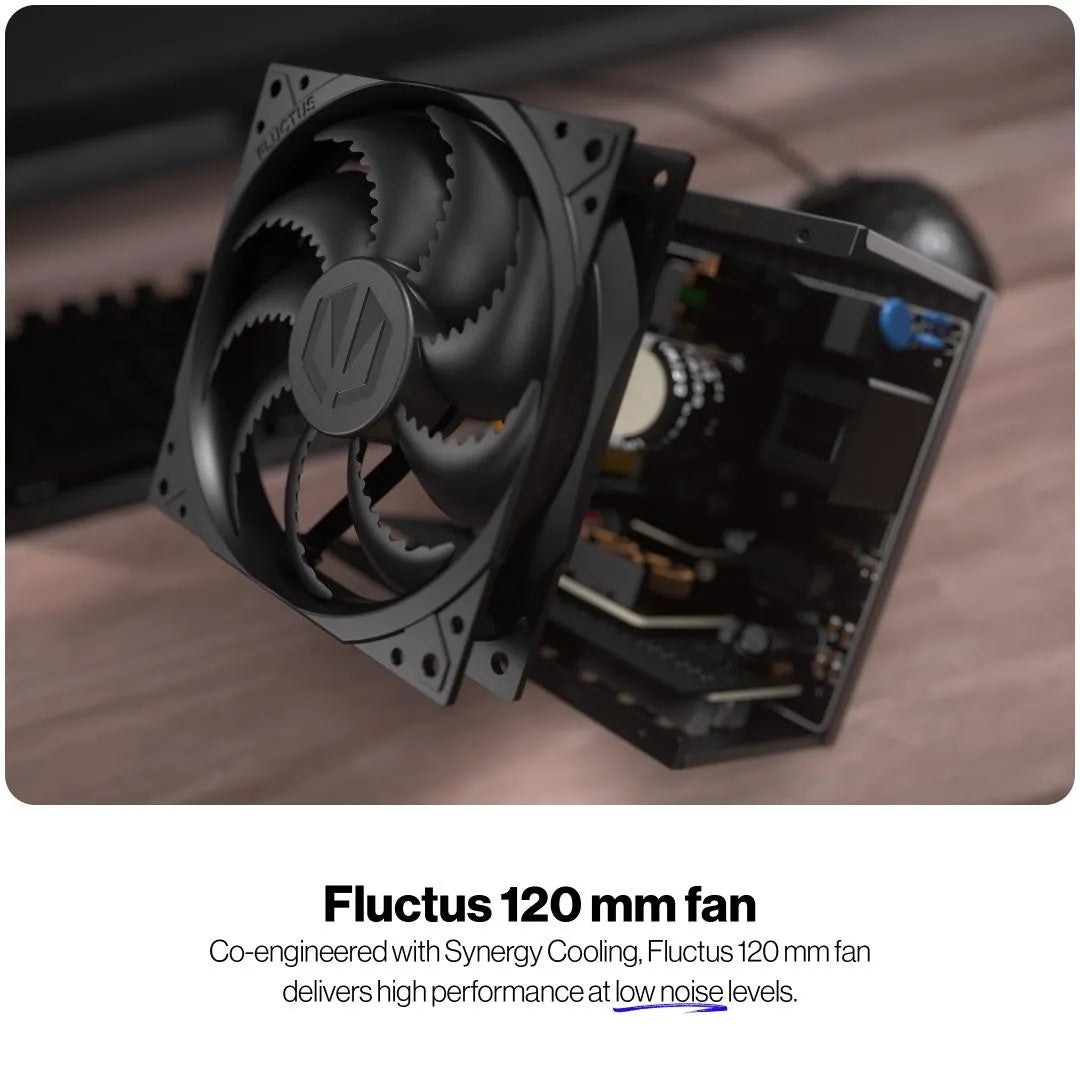

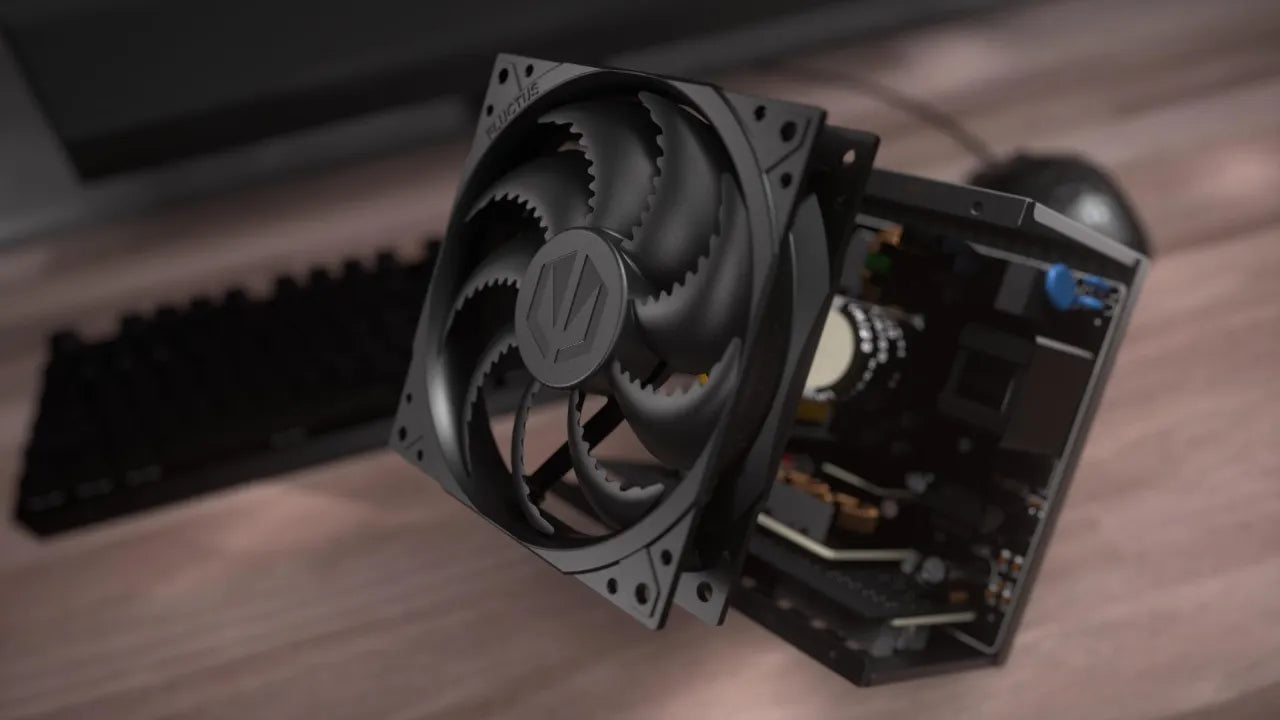

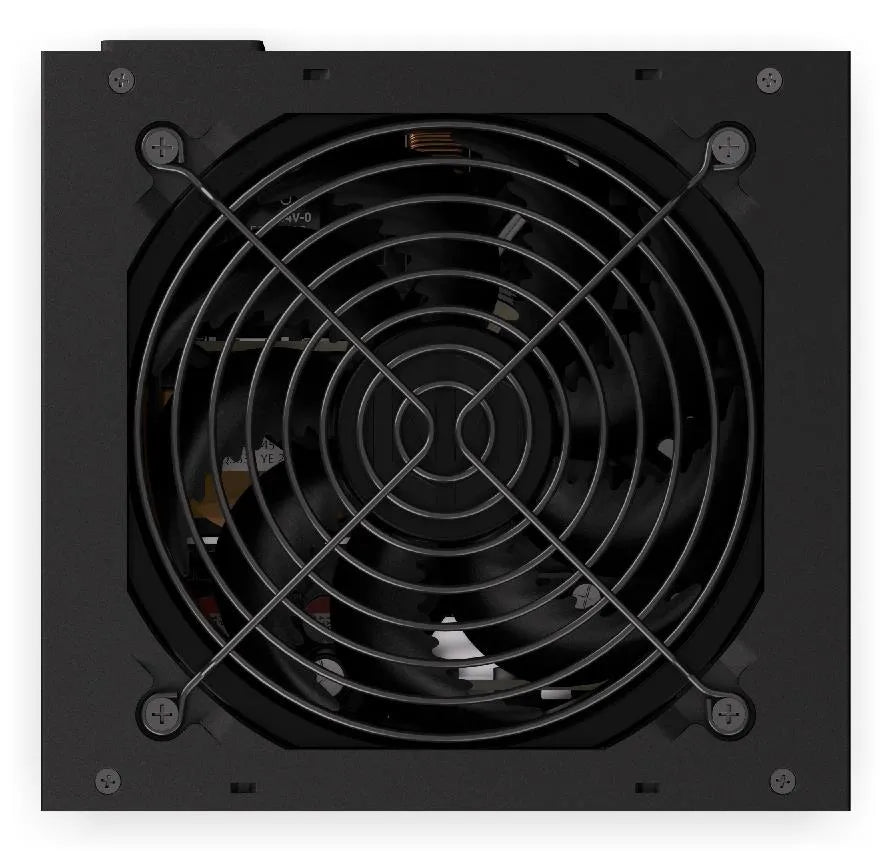

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

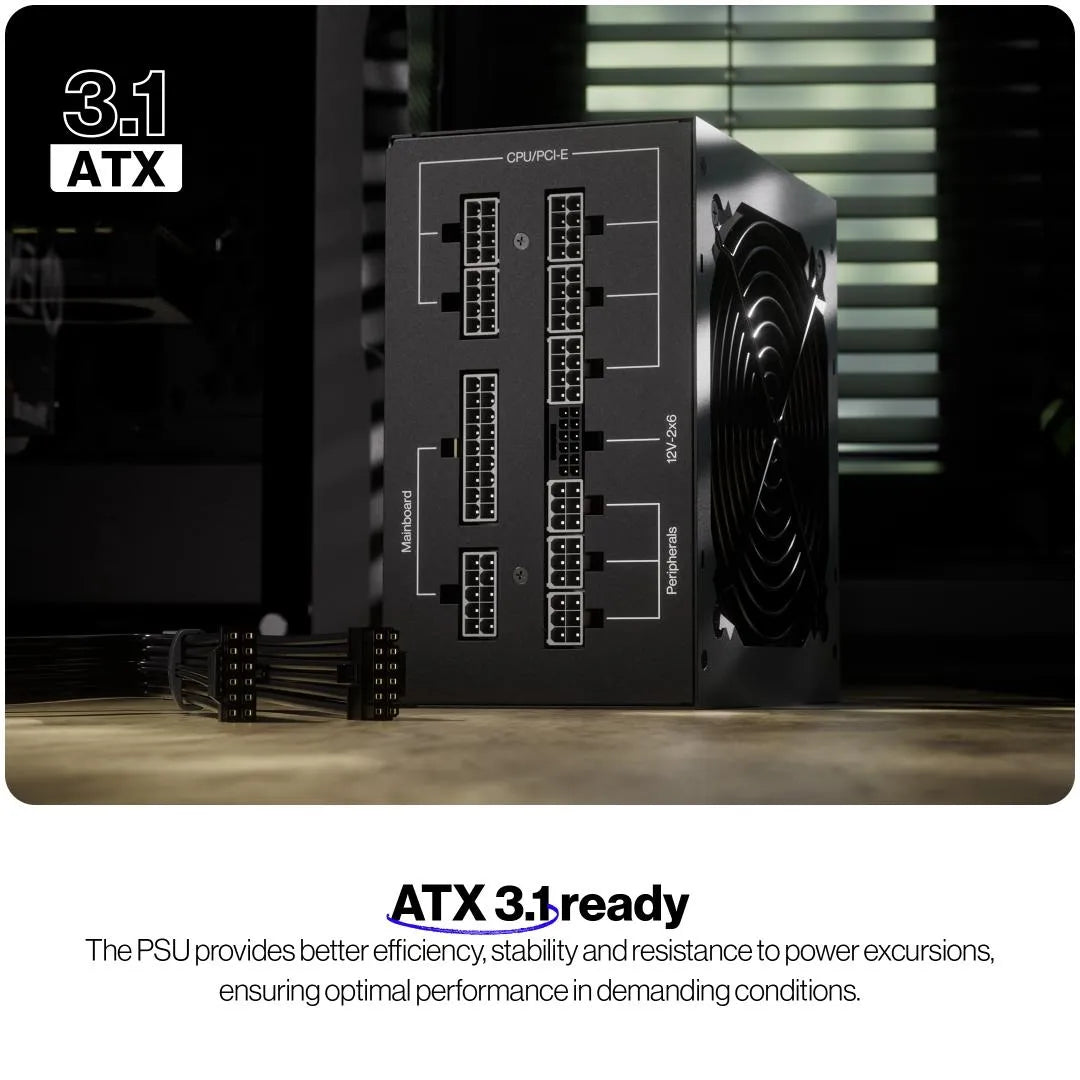

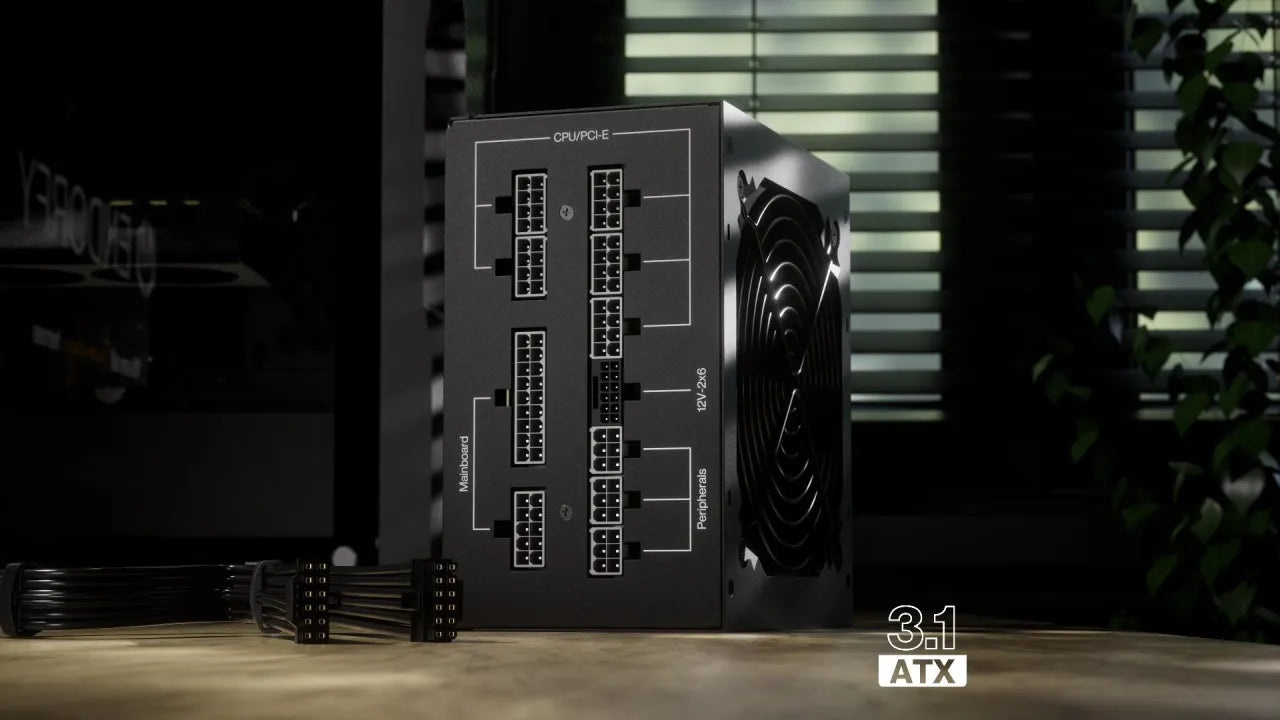

Ready for latest ATX 3.1 standards

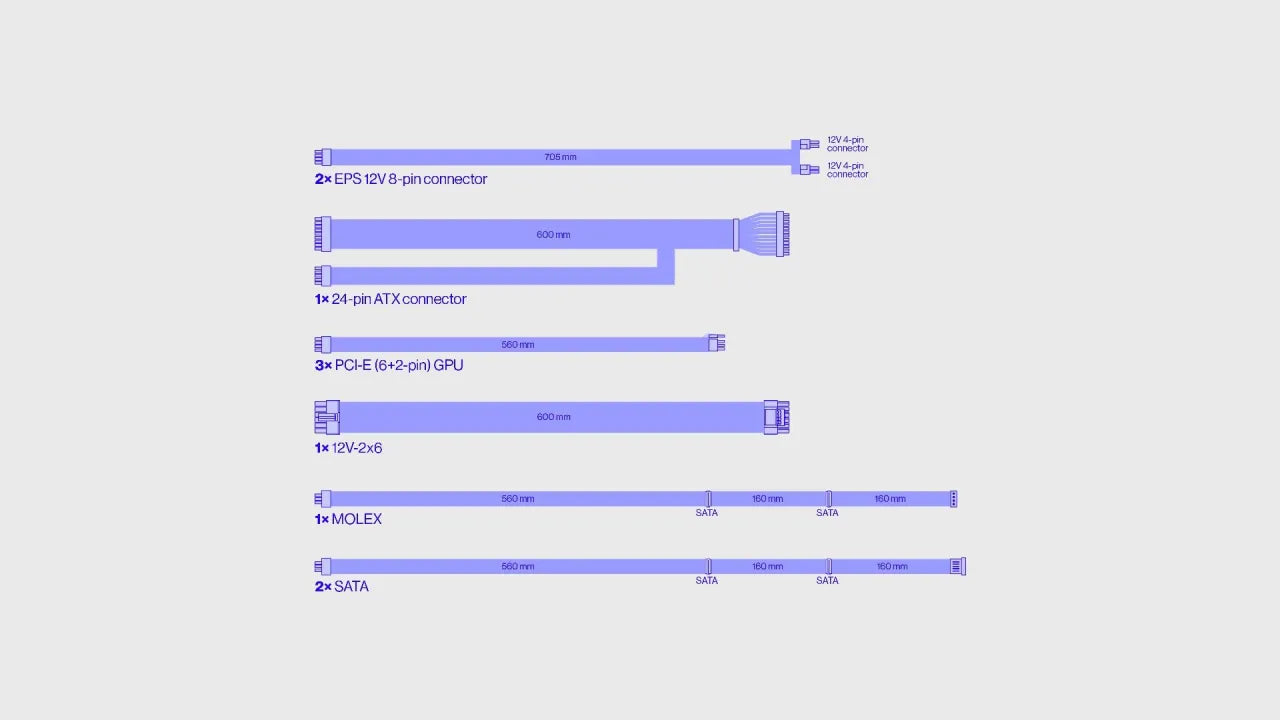

Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

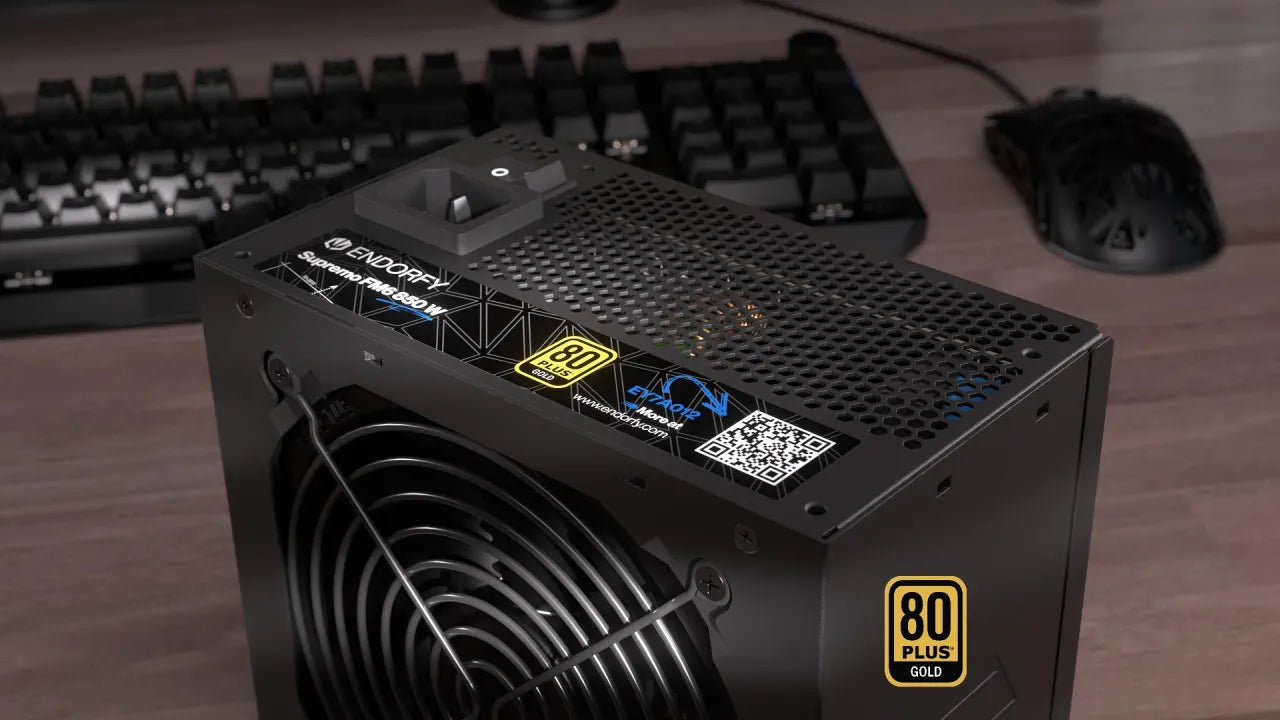

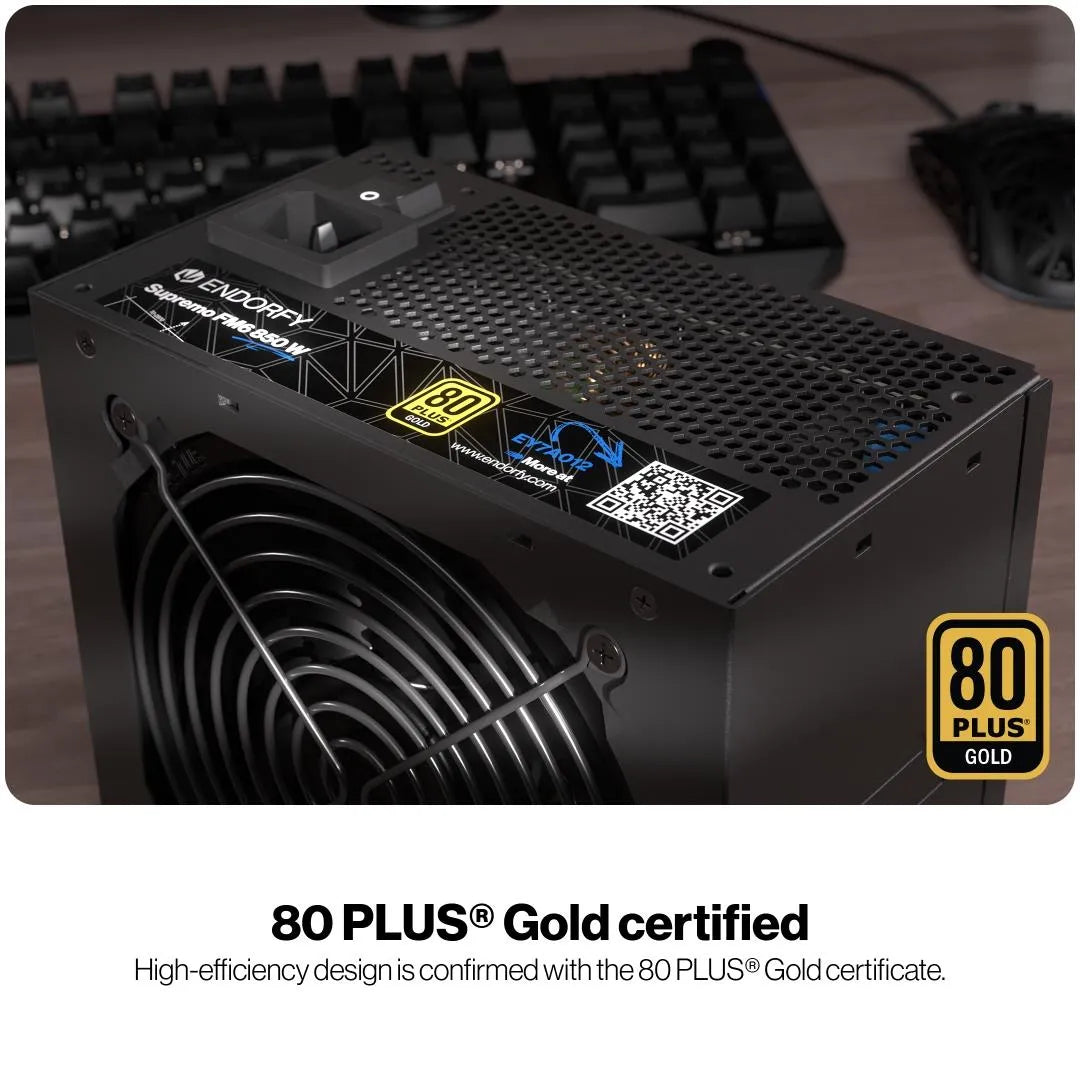

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life.

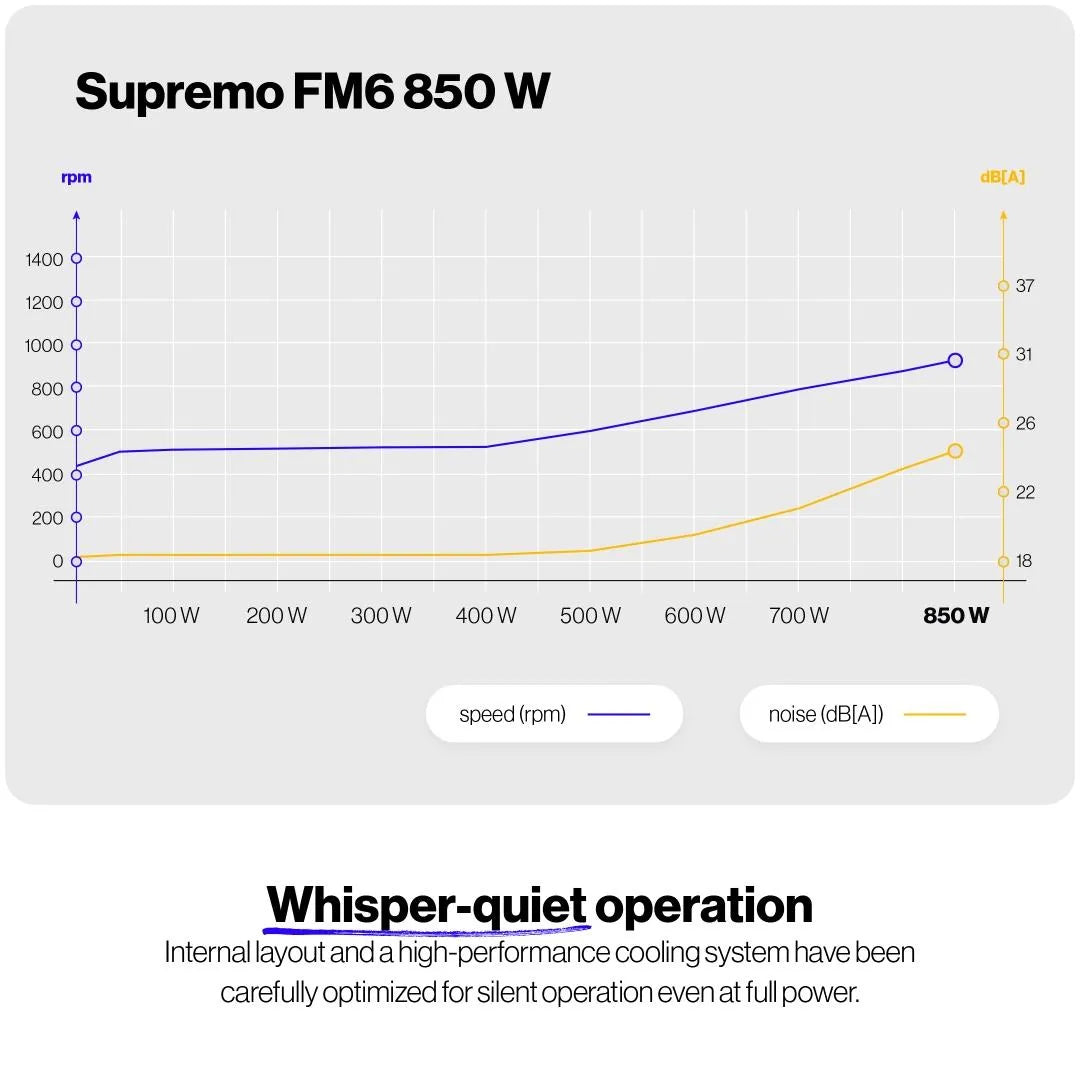

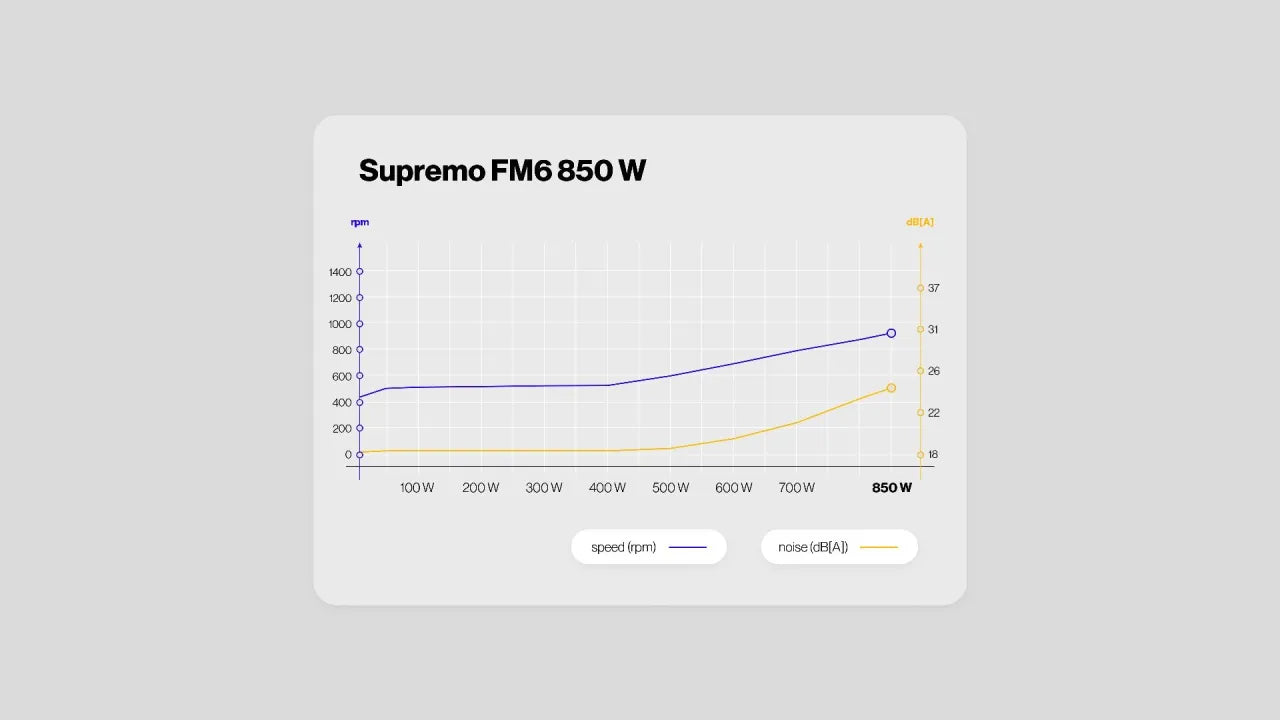

Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

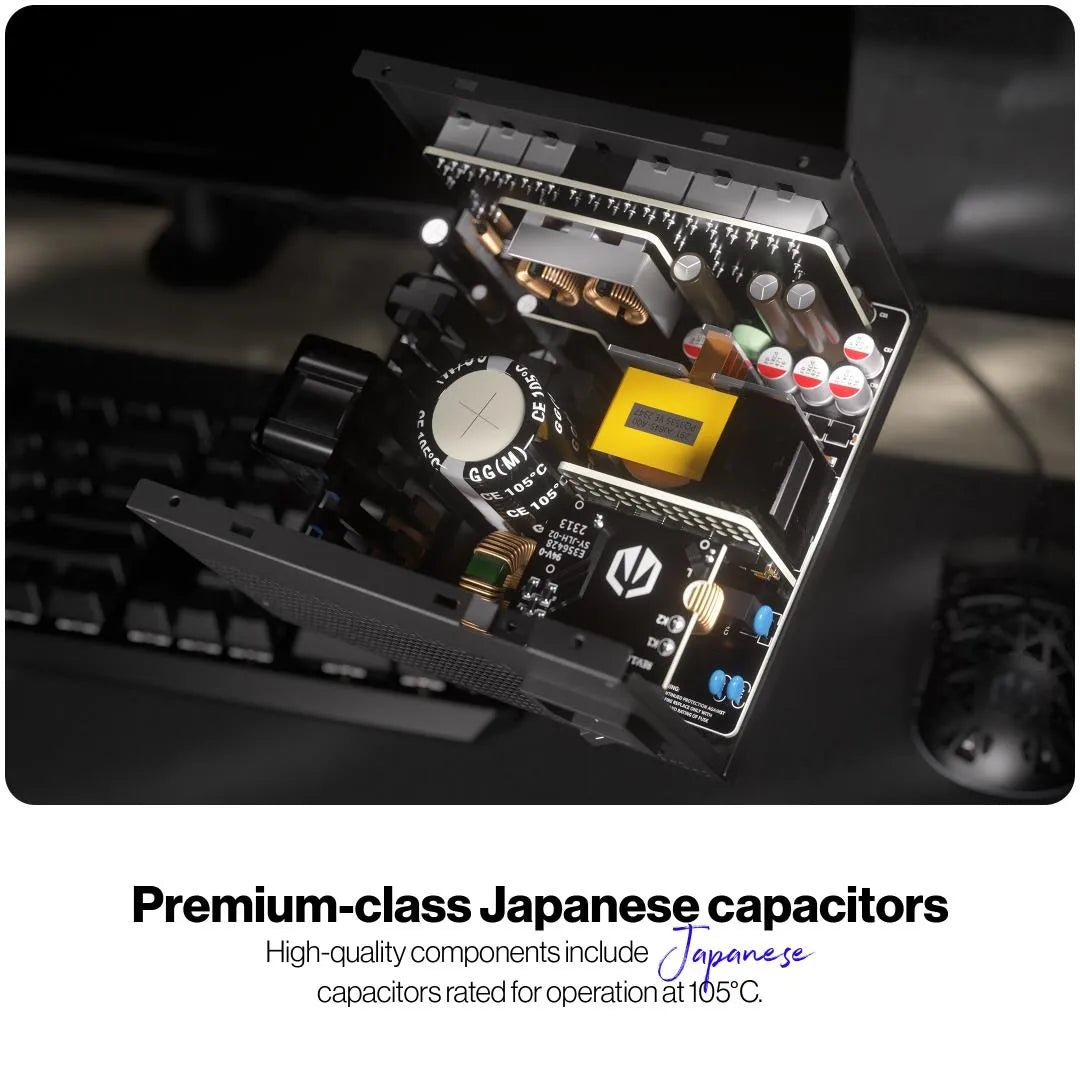

Premium class capacitors made in Japan

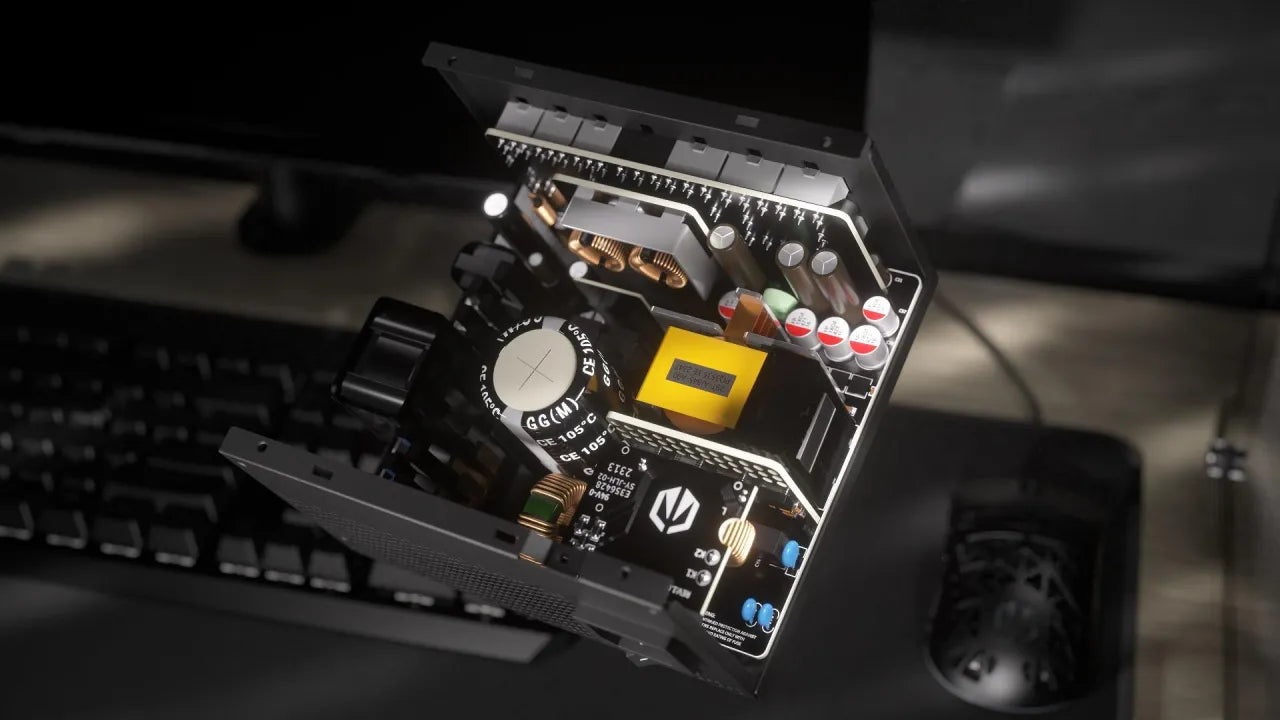

All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions.
