Power Supply|ADATA|PROBE BRONZE Power Supply|700 Watts|Efficiency 80 PLUS BRONZE|PFC Active|MTBF 100000 hours|PROBE700B-BKCEU
Couldn't load pickup availability
Cena bez PVN 21%: €48,07
Specifikācija
| Vienības kastes platums | 0.1 kg |
| Vienības kastes garums | 0.26 kg |
| Vienības kastes augstums | 0.19 kg |
| Modeļa nosaukums | PROBE BRONZE Power Supply mm |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.00494 cubm |
| Unit Calculated Weight | 1.88 kg |
| Summary | XPG PROBE 700 BRONZE Power Supply. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM kg |
| Max output current (+3.3V) | 19 A |
| Max output current (+5V) | 17 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Total power | 700 W |
| Cabling type | Non-Modular W |
| EPS power connector (4+4 pin) | Jā W |
| Motherboard power connector | 20+4 pin ATX W |
| Number of SATA power connectors | 5 W |
| PCI Express power connectors (6+2 pin) | 2 W |
| 80 PLUS certification | 80 PLUS Bronze W |
| ATX version | 2.52 W |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 120 mm |
| Power protection features | Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under voltage A |
| Max output current (+12V) | 54 A |
| Power Factor Correction (PFC) type | Active A |
| Power factor | 0.99 A |
| Bearing technology | Sleeve W |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Weight | 1526.6 g |
| Peripheral (Molex) power connectors (4-pin) | 2 W |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 10 A |
| Certification | CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM °C |
| Operating temperature (T-T) | 0 - 40 °C |
| ATX Power connector (24-pin) | Jā W |
| Fan speed | 2160 - 2640 RPM |
Apraksts
VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Compact Size for Easy Installation
With a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.

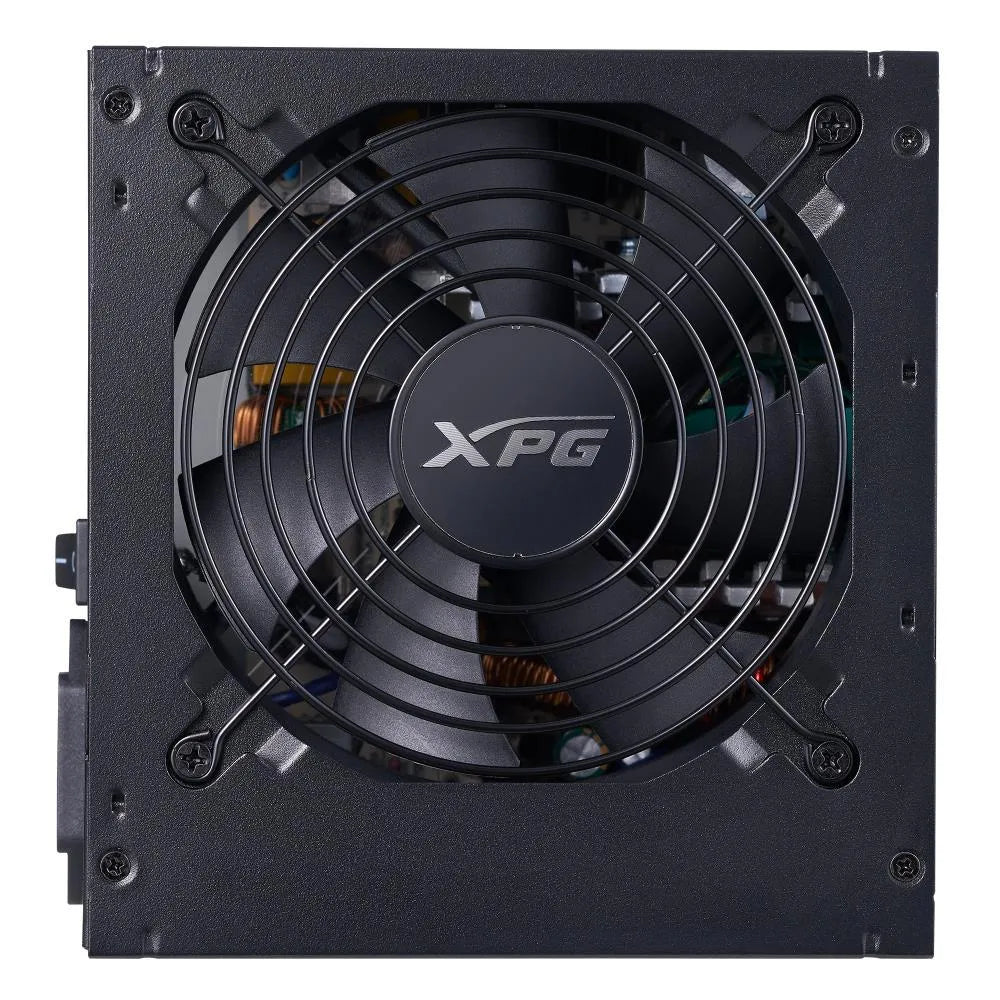

Intelligent Fan-Curve Design
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.
Six Industrial Safeguards
XPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature.
- Certified 80 PLUS Bronze efficiency
- Compact 140mm length design ensures easier installation with mainstream PC cases
- 6 industrial protections
- Intelligent Fan-Curve design
