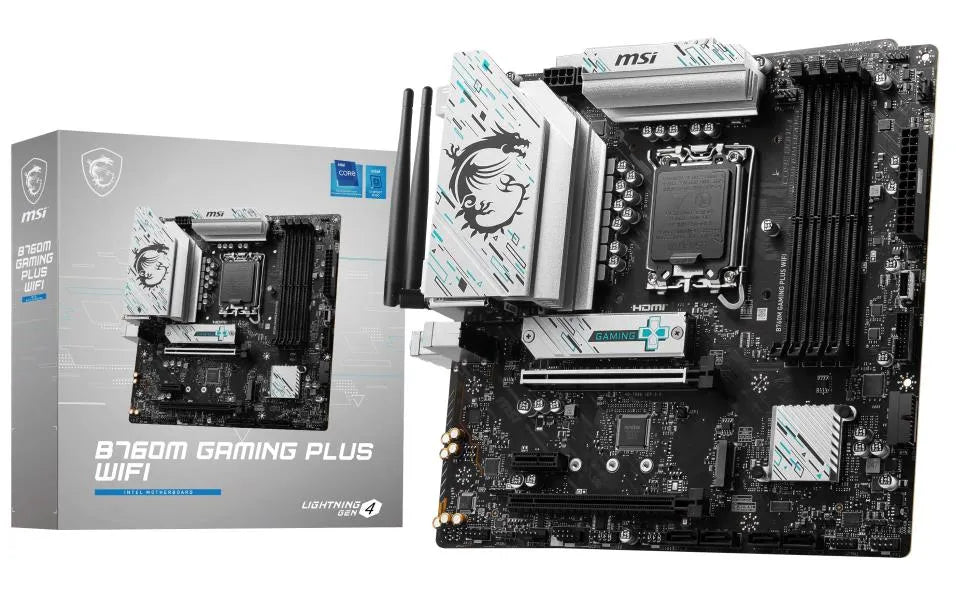

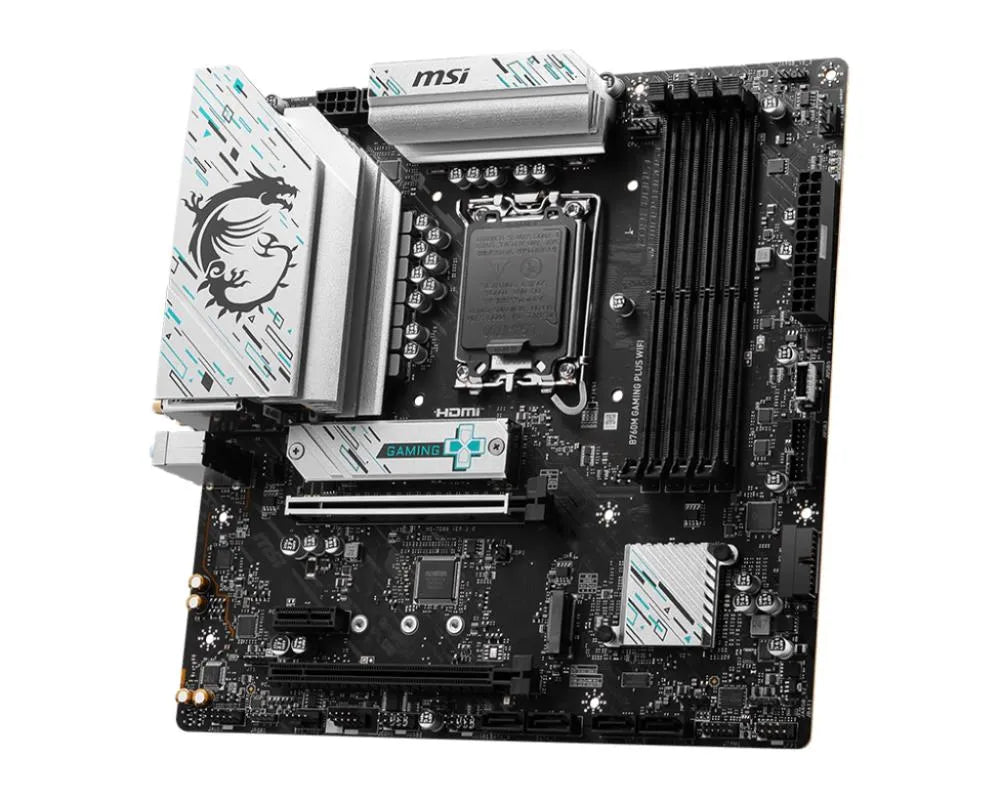

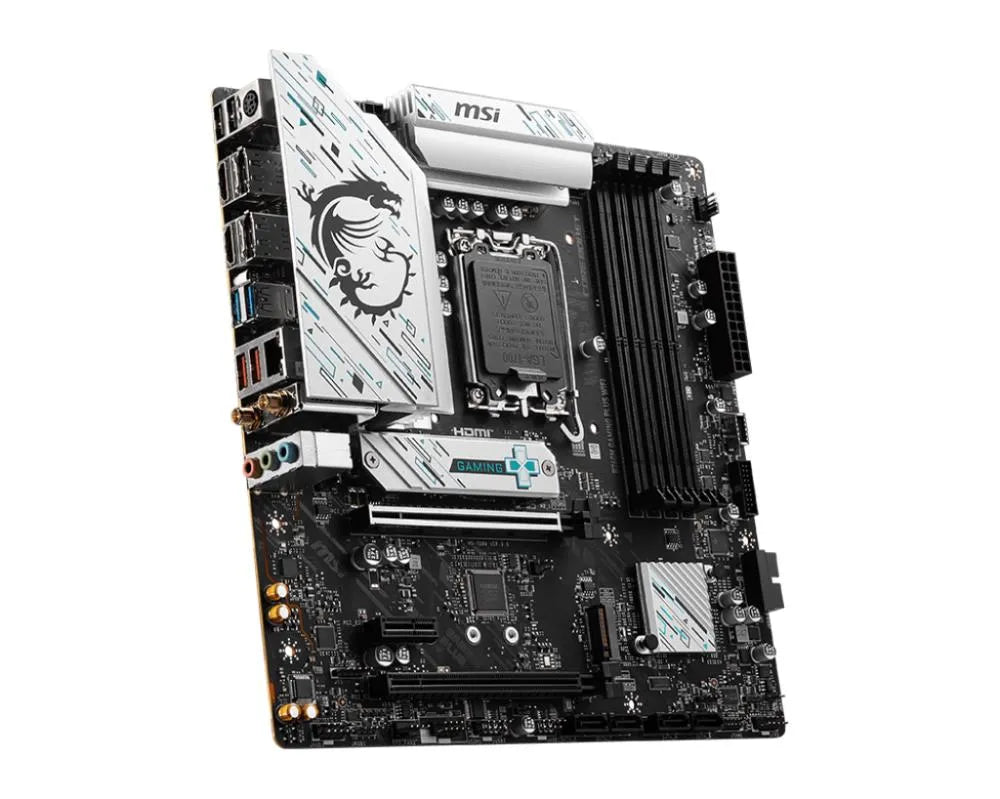

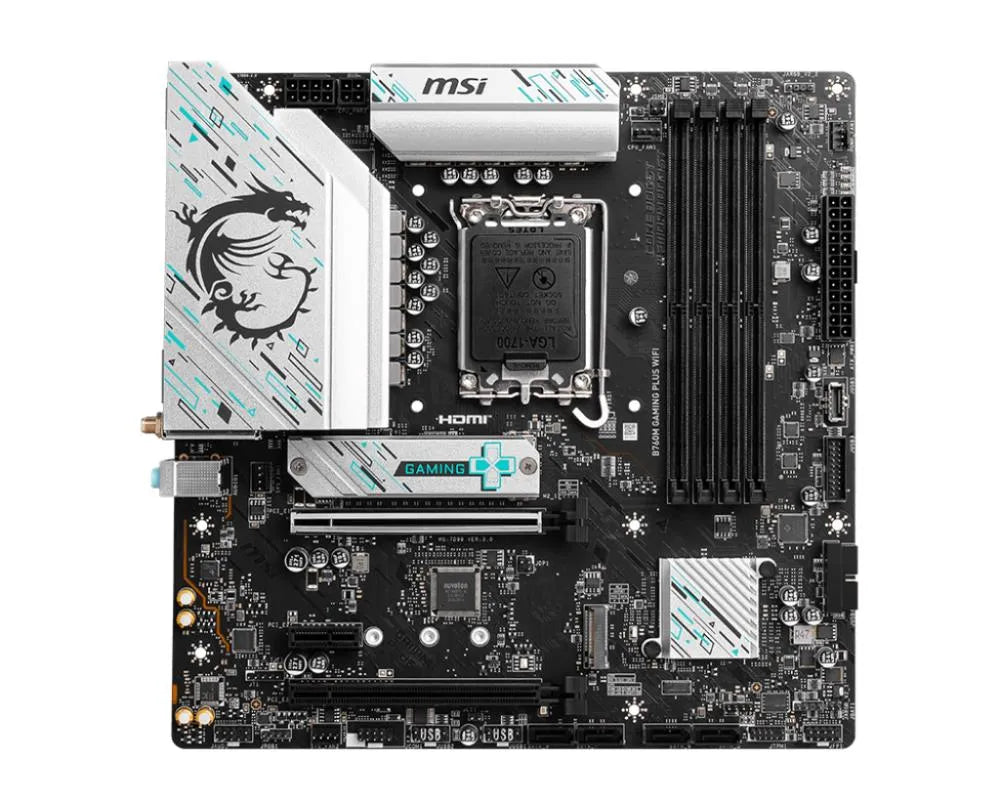

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express 4.0 16x|2xM.2|2xHDMI|2xDisplayPort|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B760MGAMINGPLUSWIFI
Parastā cena
€153,00
Parastā cena
Akcijas cena
€153,00
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
MSI
Pieejamība:
Ir noliktavā
SKU:
B760MGAMINGPLUSWIFI
Cena bez PVN 21%: €126,45
Parastā cena
€153,00
Parastā cena
Akcijas cena
€153,00
Specifikācija
| Vienības kastes platums | 0.0275 kg |
| Vienības kastes garums | 0.3 kg |
| Vienības kastes augstums | 0.055 kg |
| Modelis | B760M GAMING PLUS WIFI mm |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.3 MHz |
| Units per Shipping Box | 10 mm |
| Unit Calculated Volume | 0.005495 cubm |
| Unit Calculated Weight | 1.34 kg |
| Summary | MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold channels |
| Maximum number of SMP processors | 1 channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1700 channels |
| Supported processor sockets | LGA 1700 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 6800 MHz |
| Supported memory clock speeds | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 4 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) MHz |
| Wi-Fi standards | 802.11a/802.11ad/802.11b/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel B760 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| Power source type | ATX channels |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 MHz |
| PCI Express x1 (Gen 3.x) slots | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| Front panel connector | Jā MHz |
| ACPI version | 6.4 MHz |
| System Management BIOS (SMBIOS) version | 3.5 Mbit |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 2 MHz |
| USB 2.0 ports quantity | 2 MHz |
| Wi-Fi | Jā MHz |
| Depth | 243.84 mm |
| Width | 243.84 mm |
| DisplayPorts quantity | 2 MHz |
| Windows operating systems supported | Windows 10/Windows 11 channels |
| HDMI version | 2.1 MHz |
Apraksts
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
