Mainboard|GIGABYTE|AMD B550|Socket AM4|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|GIGABYTE B550M K WIFI6E|B550MKWF6E
Parastā cena
€103,55
Parastā cena
Akcijas cena
€103,55
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
GIGABYTE
Pieejamība:
Ir noliktavā
SKU:
B550M K WF6E
Cena bez PVN 21%: €85,58
Parastā cena
€103,55
Parastā cena
Akcijas cena
€103,55
Specifikācija
| Nosūtīšanas kastes dziļums | 26.7999992370605 cm |
| Nosūtīšanas kastes augstums | 7.19999980926514 cm |
| Nosūtīšanas kastes svars | 0.922999978065491 kg |
| Nosūtīšanas kastes platums | 27.5 cm |
| Vienības kastes platums | 0.275 kg |
| Vienības kastes garums | 0.268 kg |
| Vienības kastes augstums | 0.072 kg |
| Modelis | GIGABYTE B550M K WIFI6E cm |
| Baterija | Lithium battery g |
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.3 pixels |
| Units per Shipping Box | 1 cubm |
| Unit Calculated Volume | 0.005306 cubm |
| Product Net Weight | 0.94 kg |
| Unit Calculated Weight | 0.923 kg |
| Summary | GIGABYTE B550M K WIFI6E Motherboard - AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, WIFI 6E, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, Fast Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) kg |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM4 channels |
| Supported processor sockets | Socket AM4 channels |
| ECC ?ompatibility | ECC & Non-ECC channels |
| Maximum internal memory | 128 GB |
| Memory channels | Dodeca-channel channels |
| Memory slots type | DIMM channels |
| Number of memory slots | 4 channels |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz |
| Supported memory types | DDR4-SDRAM channels |
| Unbuffered memory | Jā GB |
| RAID levels | 0/1/10 GB |
| RAID support | Jā GB |
| Supported storage drive interfaces | M.2,SATA GB |
| Supported storage drive types | HDD & SSD GB |
| Parallel processing technology support | Not supported GB |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 1 pixels |
| Number of SATA III connectors | 4 pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 1 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 pixels |
| DisplayPort version | 1.4 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| Microphone in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) pixels |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) pixels |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC kg |
| Cooling type | Passive channels |
| Motherboard chipset | AMD B550 kg |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | micro ATX kg |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 2 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| BIOS memory size | 128 Mbit |
| PCI Express x1 (Gen 3.x) slots | 1 pixels |
| BIOS type | UEFI AMI pixels |
| Units per Pallet | 27.5 cm |
| PS/2 ports quantity | 1 pixels |
| LAN controller | Realtek RTL8111H pixels |
| DirectX version | 12.0 pixels |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage kg |
| ACPI version | 5.0 Mbit |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) mm |
| Screws included | Jā mm |
| Number of HDDs supported | 2 GB |
| Number of storage drives supported | 6 GB |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 4 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 244 mm |
| HDCP | Jā pixels |
| Maximum resolution | 5120 x 2880 pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 1 pixels |
| Product colour | Dark brown kg |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) mAh |
| Battery type | CR2032 g |
| Battery weight | 3 g |
| Country of origin | China Mbit |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1016 g |
| Package width | 270 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| Weight | 940 g |
| Maximum internal memory per slot | 32 GB |
| Number of CPU fan connectors | 1 pixels |
| Number of EPS power connectors (8-pin) | 1 pixels |
| 1st M.2 highest PCI Express generation | 4.0 pixels |
| 1st M.2 largest key size | 2280 pixels |
| 2nd M.2 highest PCI Express generation | 3.0 pixels |
| 2nd M.2 largest key size | 2280 pixels |
| WLAN controller model | MediaTek MT7902 pixels |
| Antenna included | Jā mm |
| Battery weight | 3 g |
| HDCP version | 2.3 pixels |
| Battery capacity | 220 mAh |
|
|
| 27.5 cm | |
| Name | MB AMD B550 SAM4 MATX/B550M K WF6E GIGABYTE cm |
| Unit Width | 27.5 cm |
| Unit Depth | 26.8 cm |
| Unit Height | 7.2 cm |
Apraksts

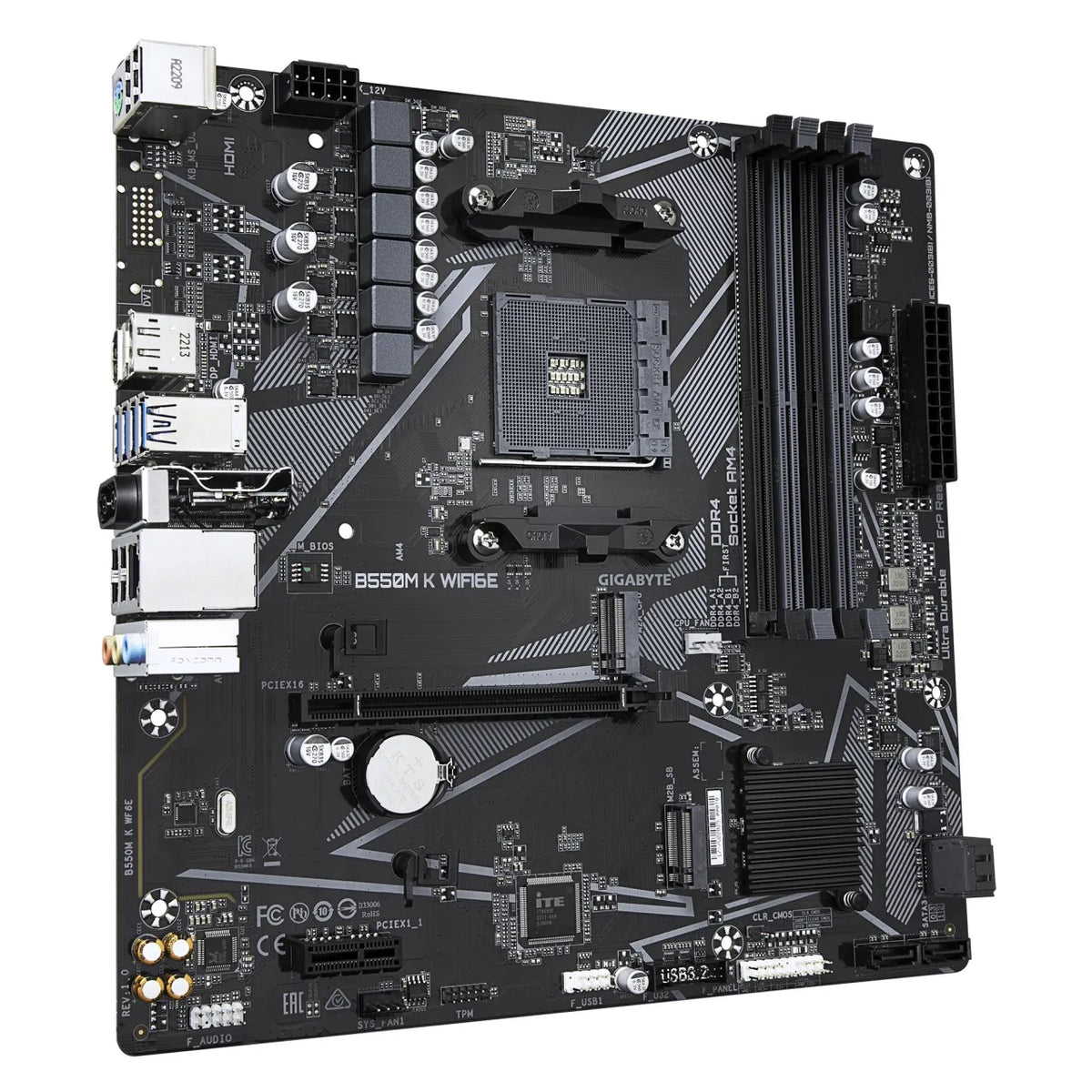

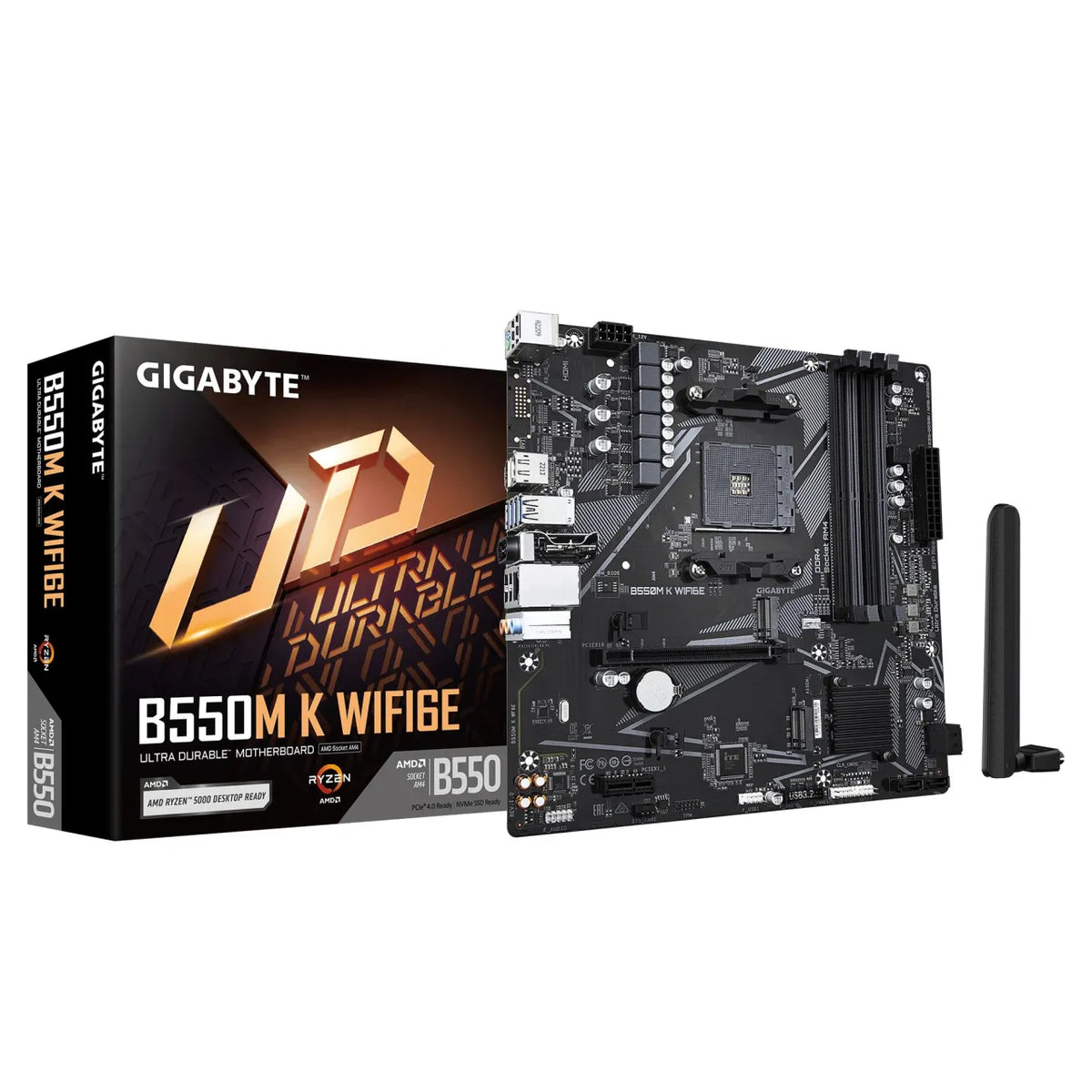

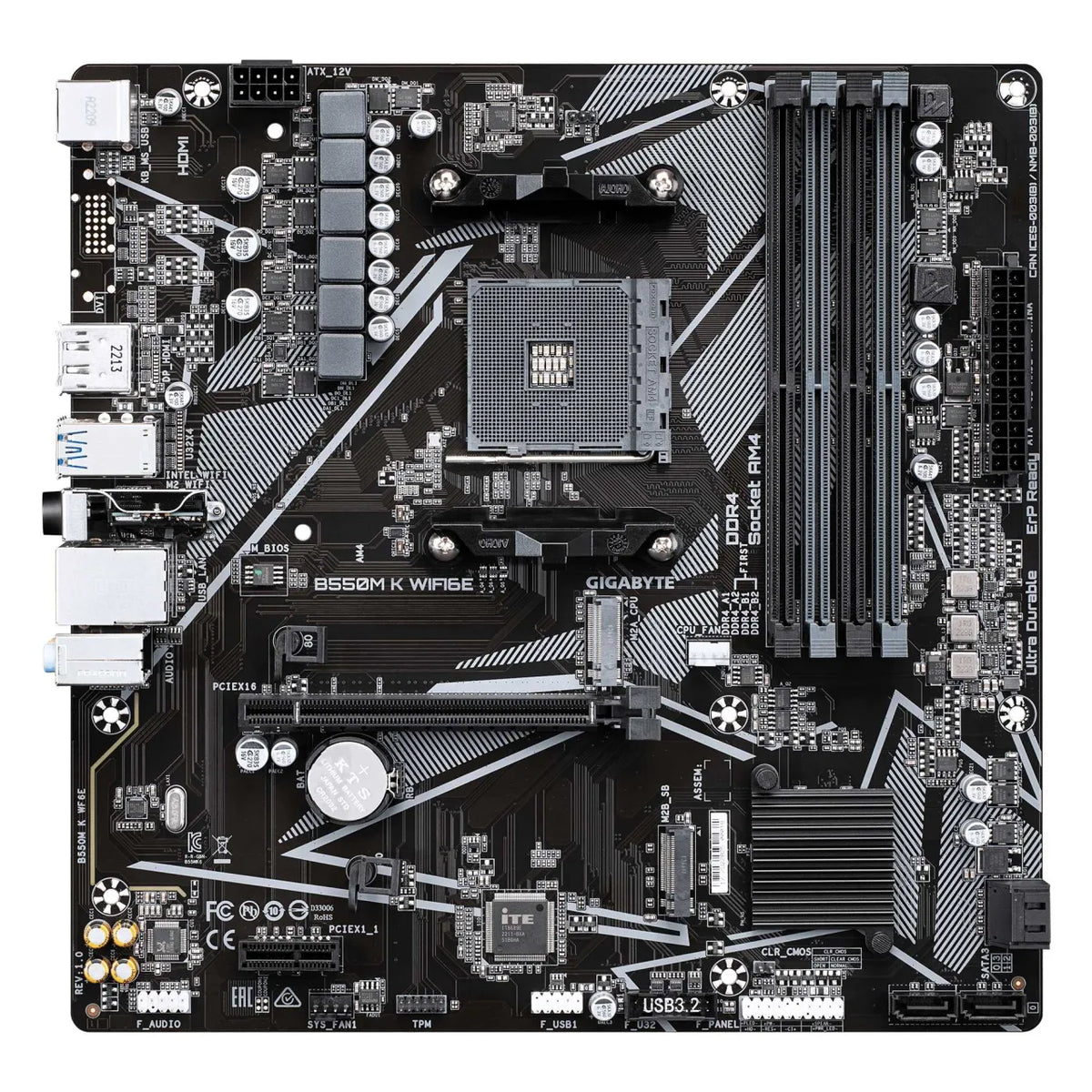

GIGABYTE B550M K WIFI6E
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology./
GIGABYTE B550M K WIFI6E
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Ultra Durable PCIe 4.0 Ready x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Fast Networks: GbE LAN & Wi-Fi 6E 802.11ax
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

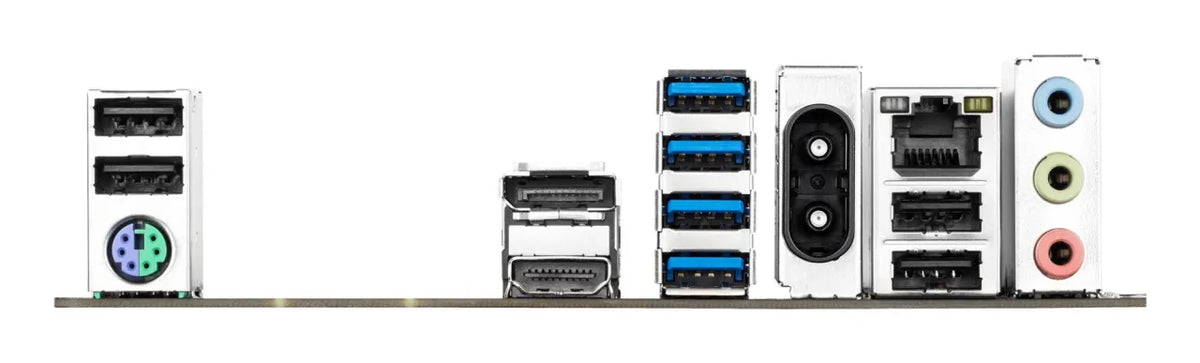

- Rear DisplayPort and HDMI for Multi-display Support
- Anti-Sulfur Resistors Design
