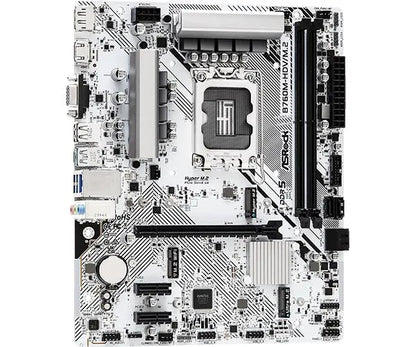

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAV-In|1xAV-out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B760M-HDV/M.2

Specifikācija

Apraksts

+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

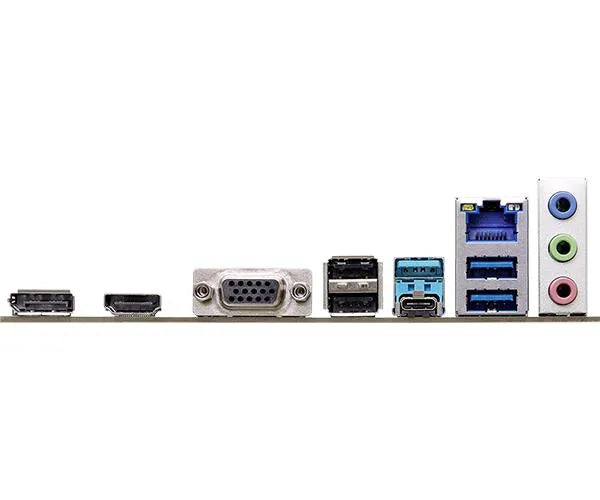

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 7+1+1 Power Phase
• Supports DDR5 7200MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
• 1 Ultra M.2 (PCIe Gen3 x4)
• 1 USB 3.2 Gen1 Type-C (Rear)
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer
