Case|BE QUIET|PURE BASE 501|MidiTower|Not included|ATX|MicroATX|MiniITX|Colour Black|BGW74
Couldn't load pickup availability
Cena bez PVN 21%: €94,45
Specifikācija
| Vienības kastes platums | 0.3 kg |
| Vienības kastes garums | 0.52 kg |
| Vienības kastes augstums | 0.51 kg |
| Modelis | BGW74 mm |
| Modeļa nosaukums | PURE BASE 501 mm |
| Paplašinājumu slotu skaits | 7 mm |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.076/0.07956 cubm |
| Unit Calculated Weight | 8.8 kg |
| Summary | be quiet! PURE BASE 501 Airflow Window Black. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm kg |
| Maximum CPU cooler height | 178 mm |
| Maximum PSU length | 180 mm |
| Number of 2.5" bays | 5 mm |
| Number of 3.5" bays | 2 mm |
| On/off button | Jā mm |
| Reset button | Jā mm |
| Side window | Jā mm |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX mm |
| Power supply included | Nē mm |
| Supported power supply form factors | ATX/PS2 mm |
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 1x 140 mm mm |
| Number of front fans supported (max) | 3 cfm |
| Number of rear fans supported (max) | 1 cfm |
| Number of top fans supported (max) | 2 cfm |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 140 mm mm |
| Top fans diameters supported | 120/140 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Anti-dust filter | Jā kg |
| Front radiator sizes supported | 120/140/240/280/360 mm |
| Rear radiator sizes supported | 120/140 mm |
| Top radiator sizes supported | 120/240 mm |
| Form factor | Midi Tower kg |
| Product colour | Black mm |

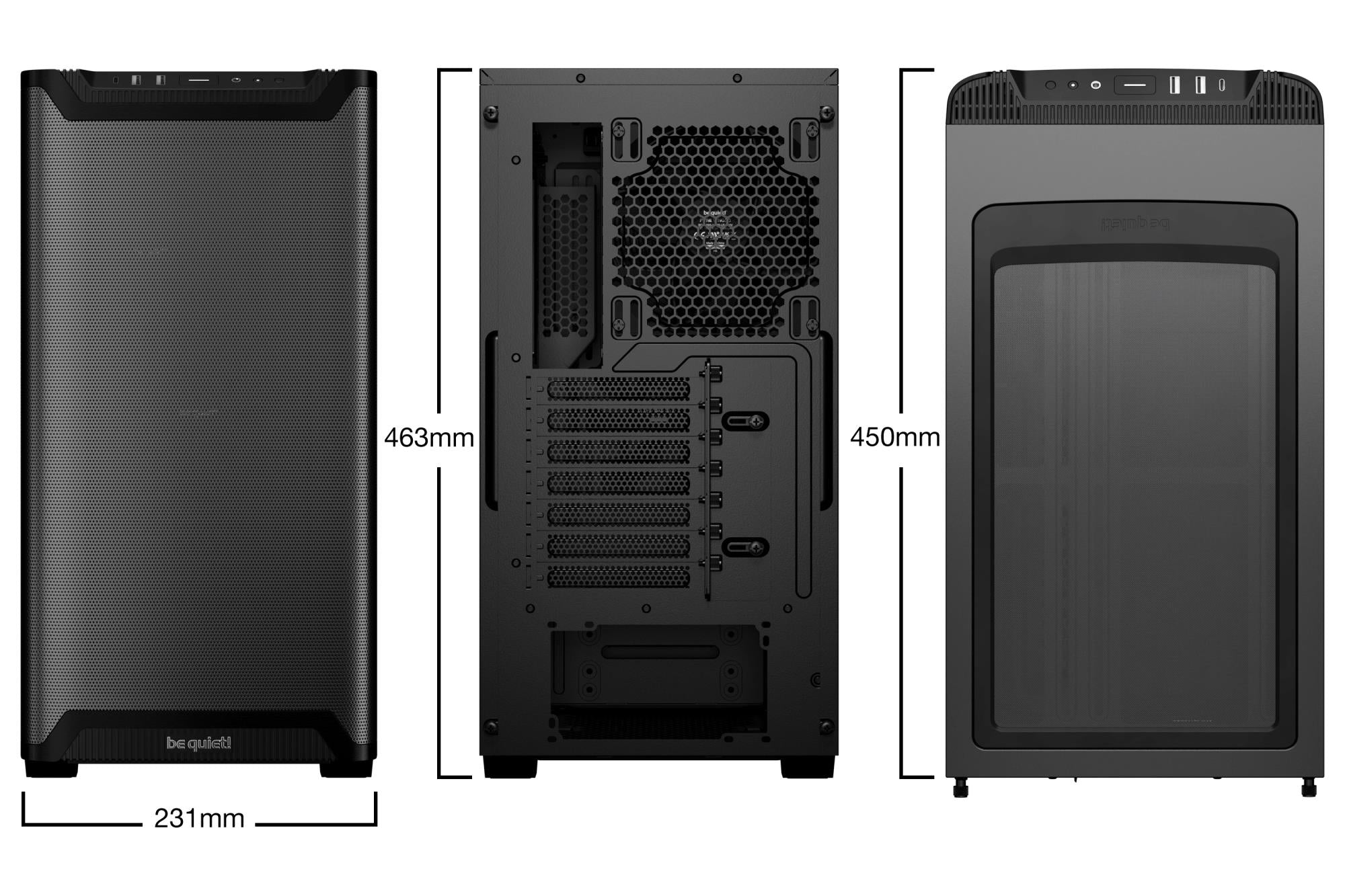

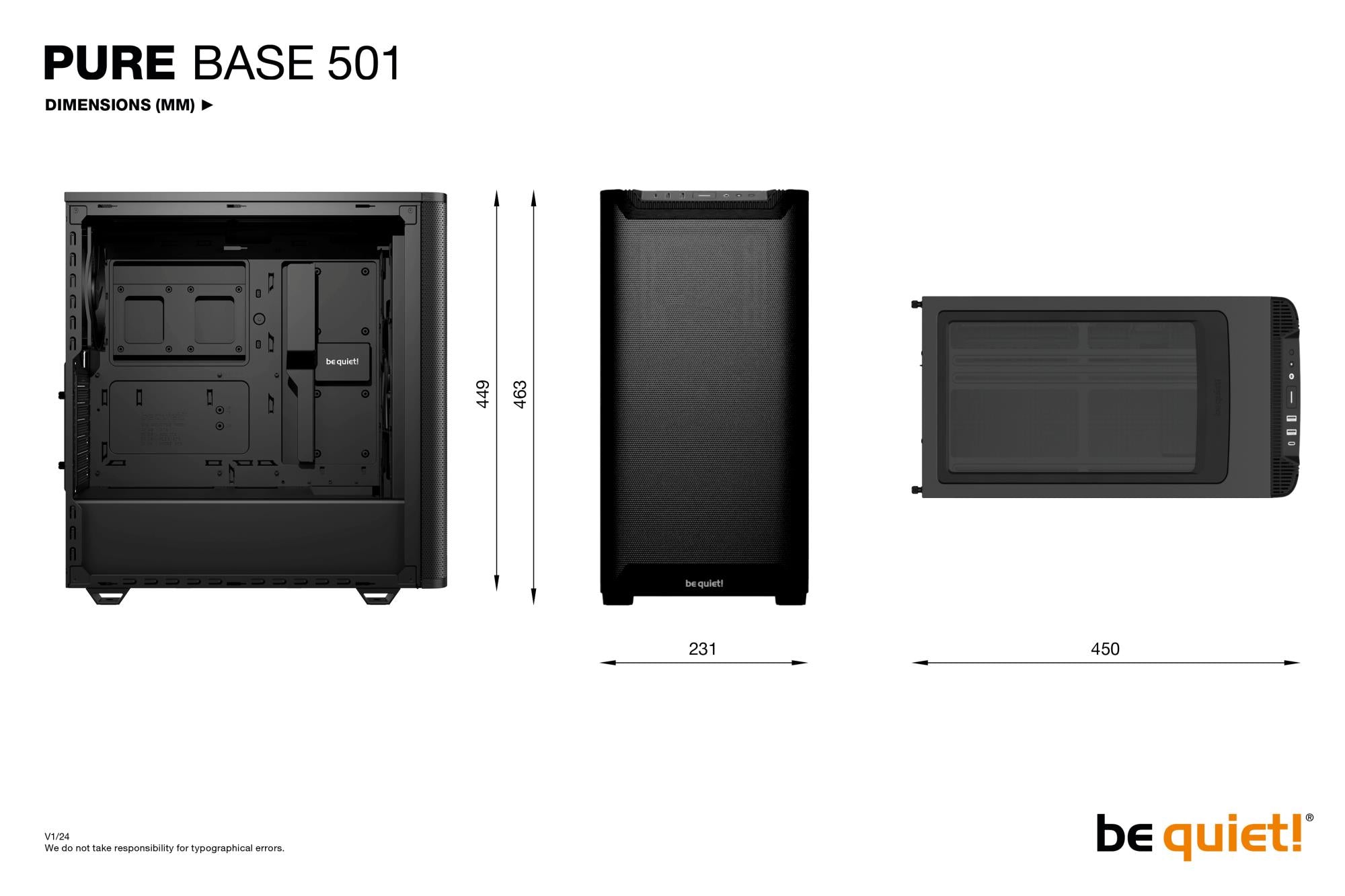

| Depth | 450 mm |
| Height | 463 mm |
| Width | 231 mm |
| Material | Acrylonitrile butadiene styrene (ABS)/Steel/Tempered glass kg |
| Type | PC mm |
| Audio input | Jā mm |
| Audio output | Jā mm |
| Weight | 7200 g |
| Package weight | 8400 g |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 mm |
| Compliance certificates | CE/REACH/RoHS/UKCA " |
| Pulse-width modulation (PWM) support | Jā cfm |
| Package depth | 518 mm |
| Package height | 503 mm |
| Package width | 292 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 mm |
| Maximum air pressure | 0.96 mmH2O |
| Maximum airflow | 57.4 cfm |
| Cooling & Ventilation System | front 1x Pure Wings 3 140mm PWM; rear 1x Pure Wings 3 140mm PWM mm |
Apraksts
Comfortably compact

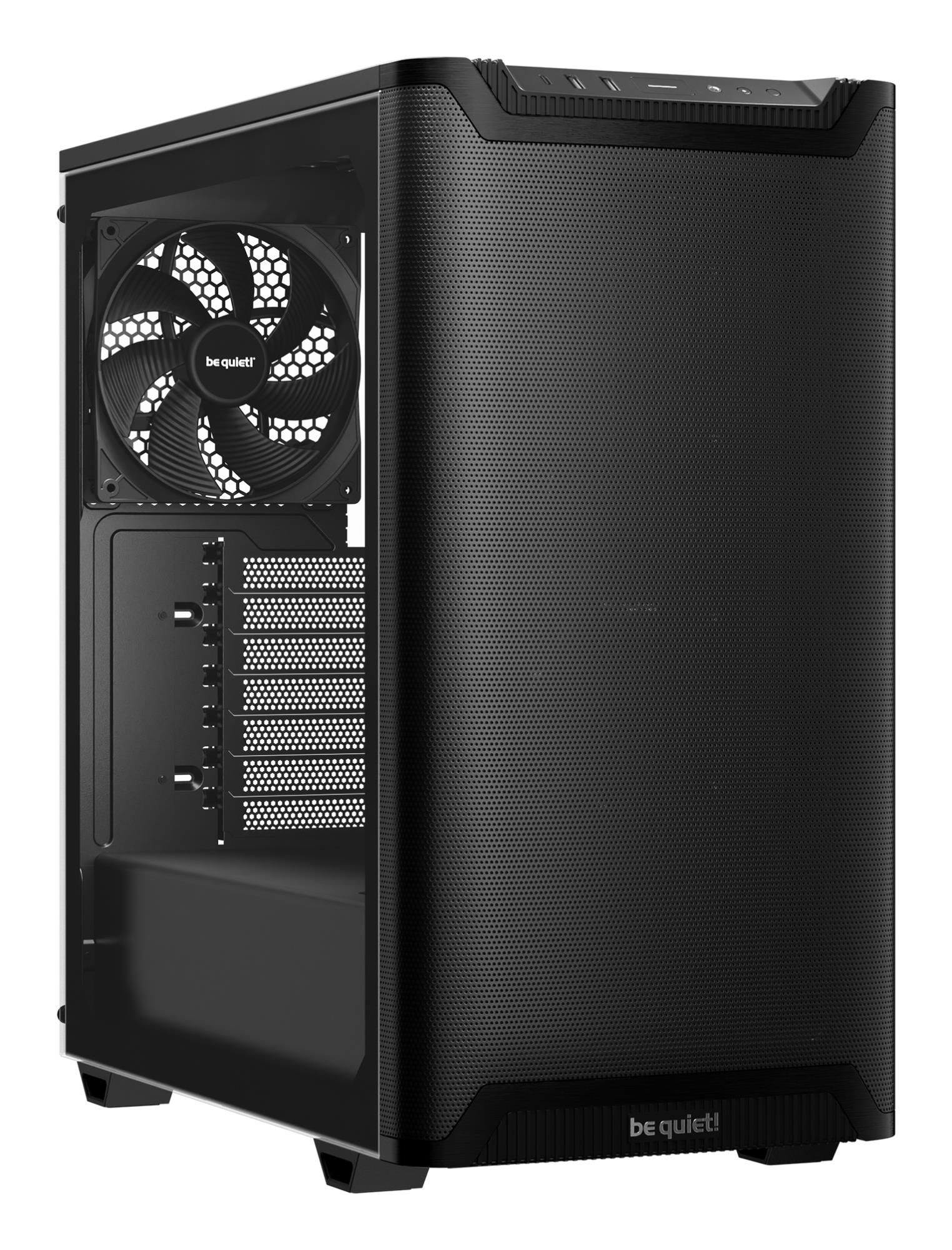

Pure Base 501 Airflow Window Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 Airflow Window Black is reduced to excel at its core functions and is aimed at users that appreciate an
unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow

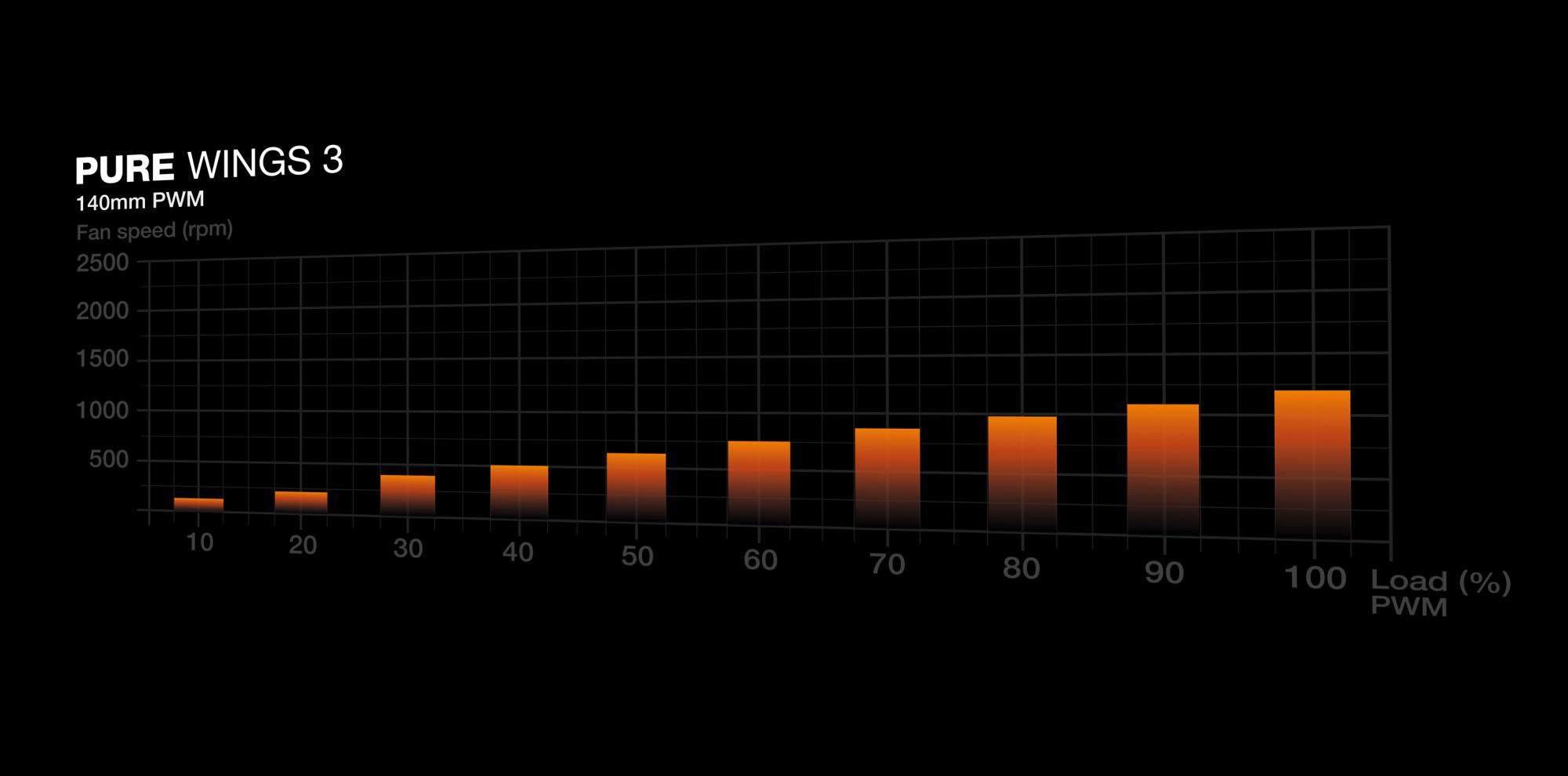

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware

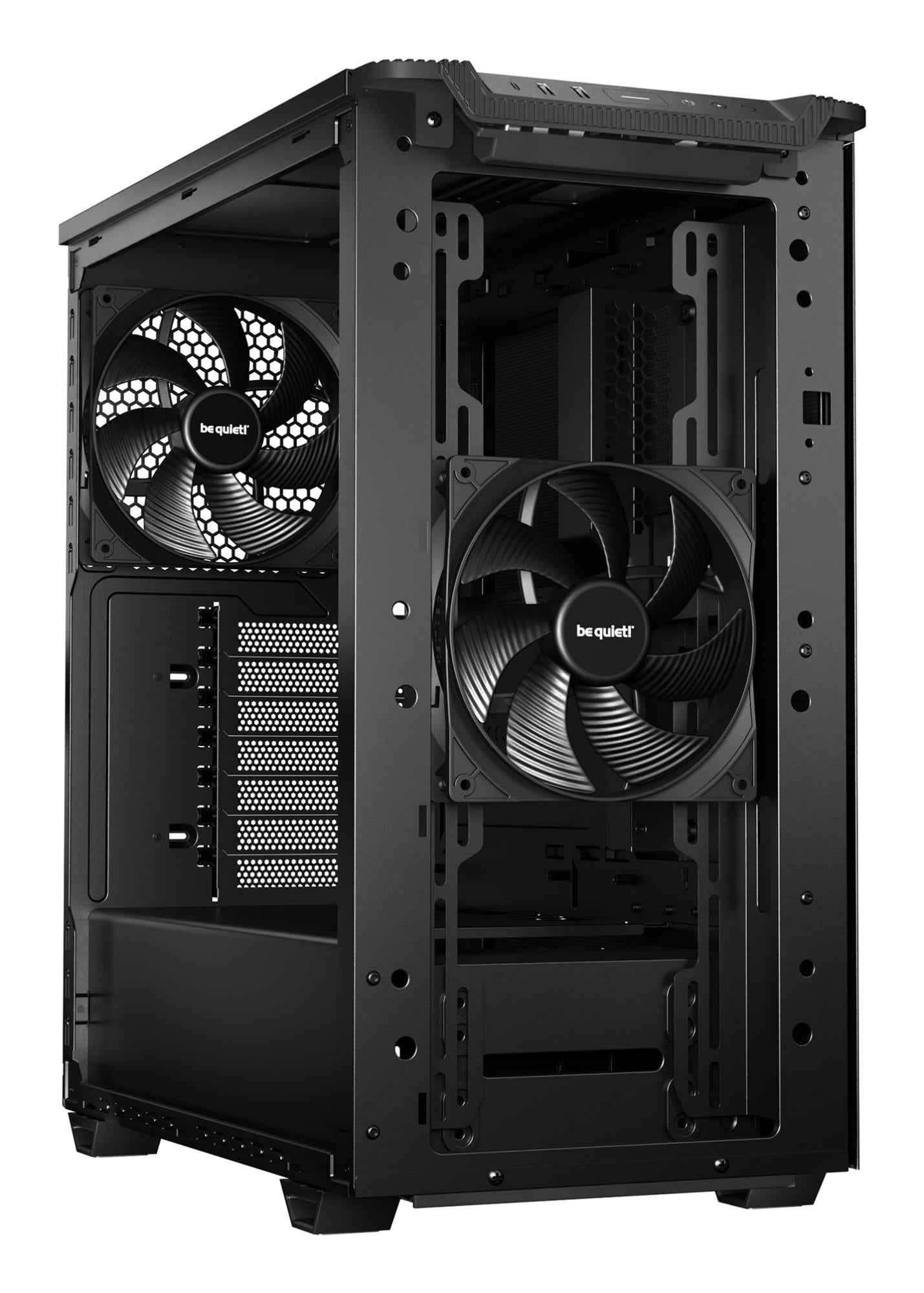

Despite its compact dimensions, Pure Base 501 Airflow Window Black offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Window Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system

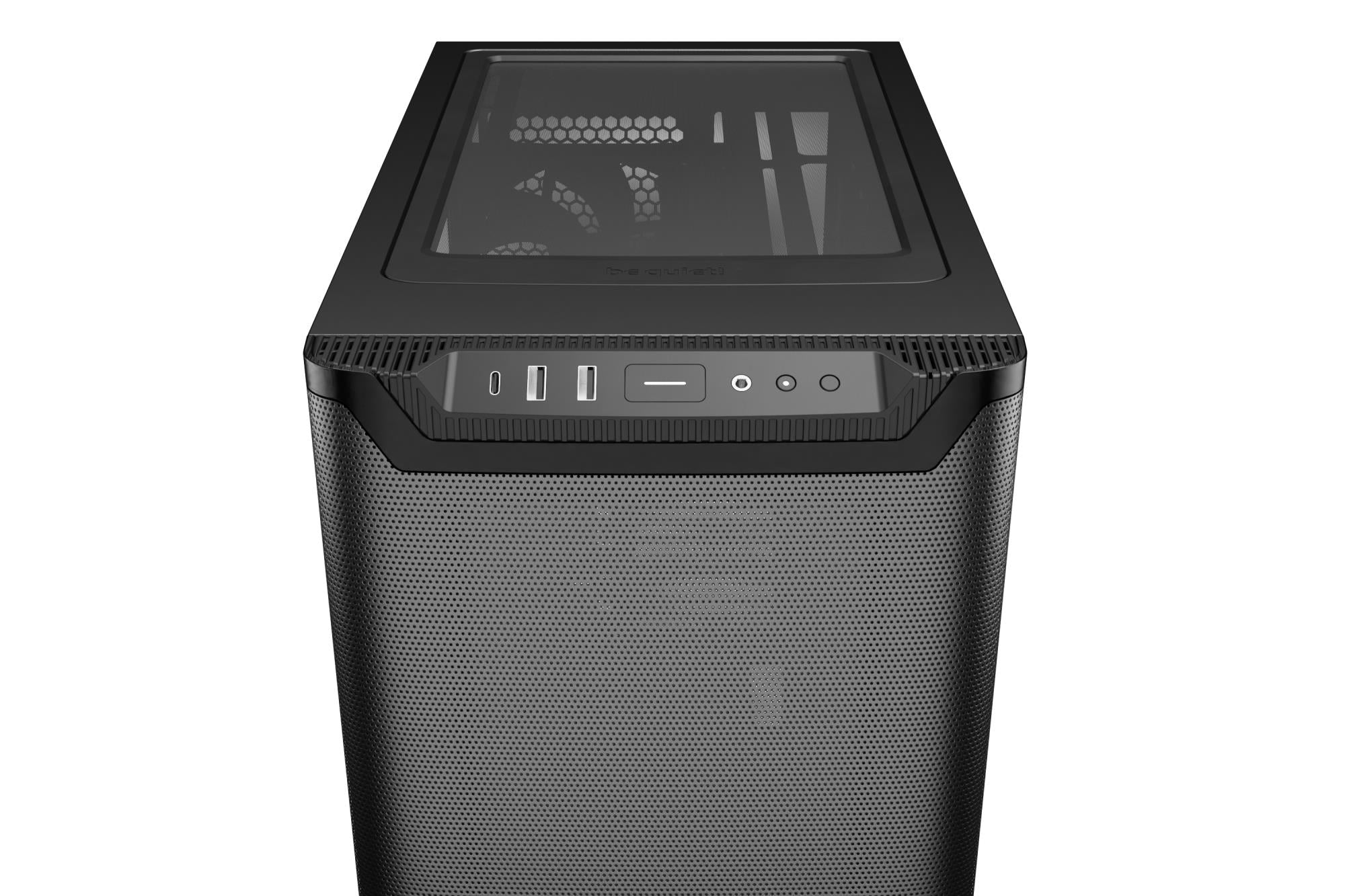

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
SHOW ME WHAT YOU'VE GOT
A perfect view inside your PC

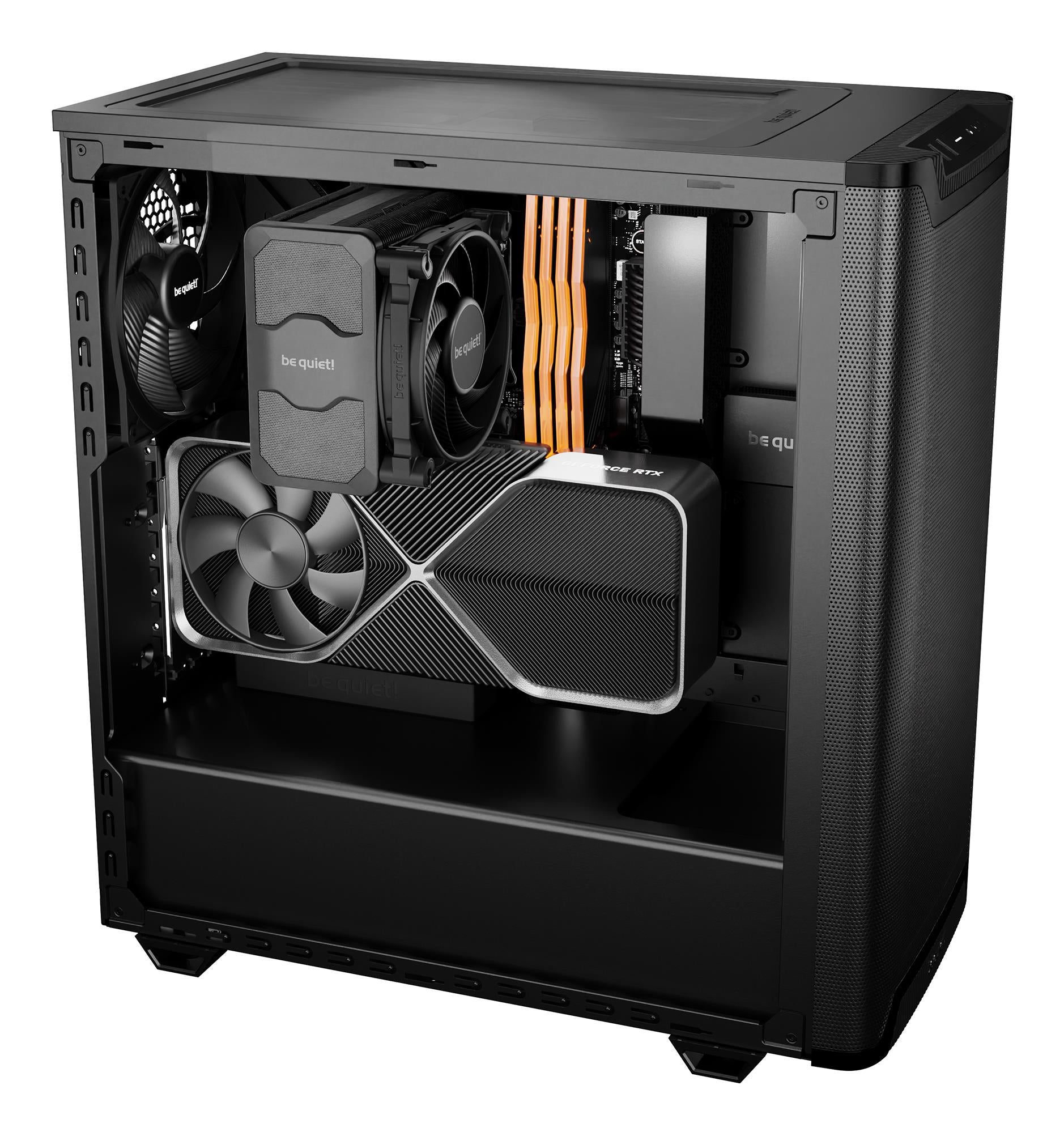

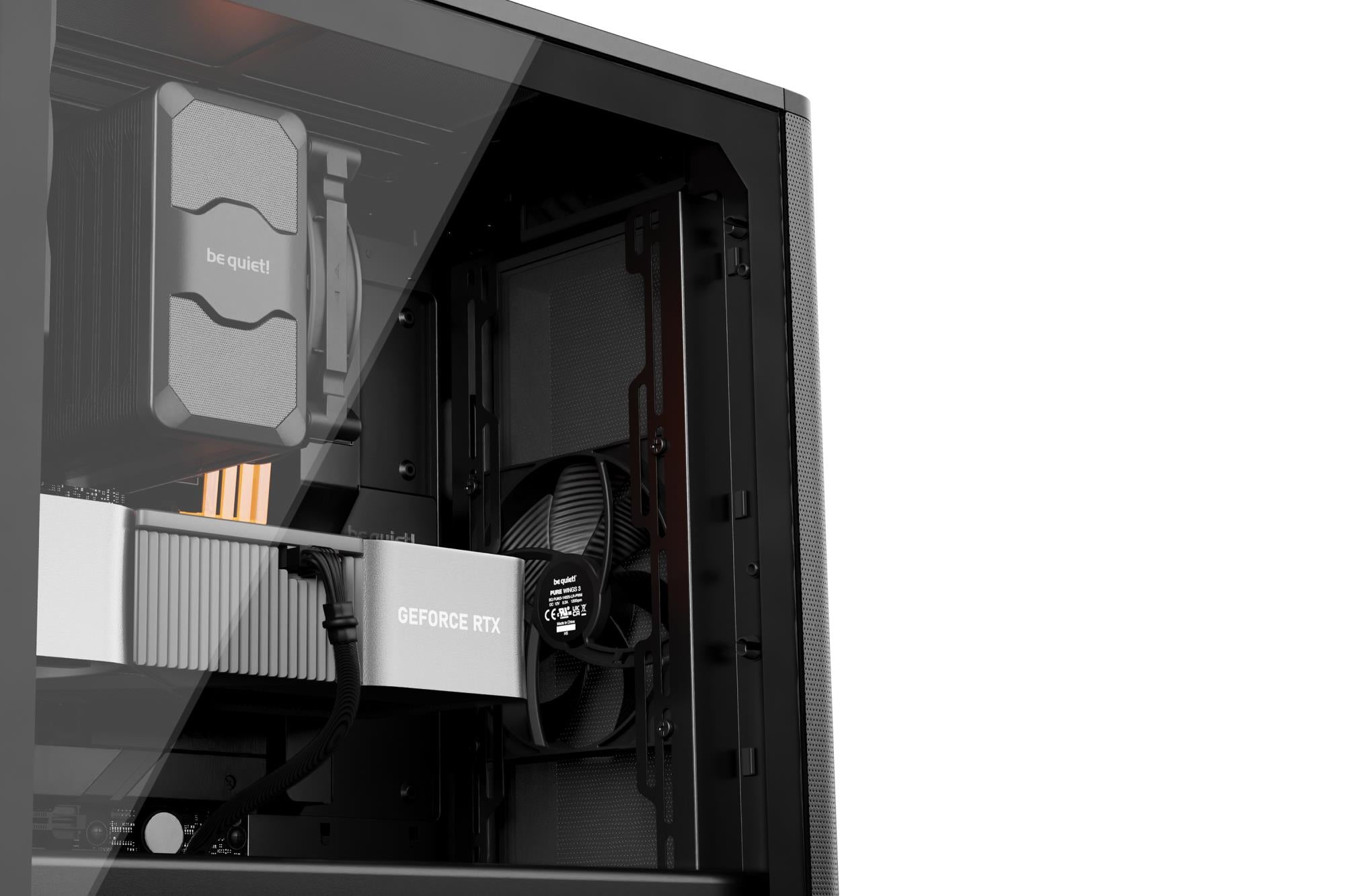

The high-quality, fully-windowed side panel offers a perfect view of the components inside your Pure Base 501 Airflow Window Black. The window is made of tinted and tempered glass with black painted side bars.
- High airflow intake front panel and top cover for maximum performance
- 2 preinstalled Pure Wings 3 140mm PWM fans for extraordinary air pressure
- Generous space for high-end graphics cards and large coolers, despite compact footprint
- Optional vertical graphics card installation
- Water cooling ready for radiators up to 360mm
- USB 3.2 Gen. 2 Type C for best connectivity
- Comfortable cable management with clever cable routing design
- Side panel made of tempered glass
