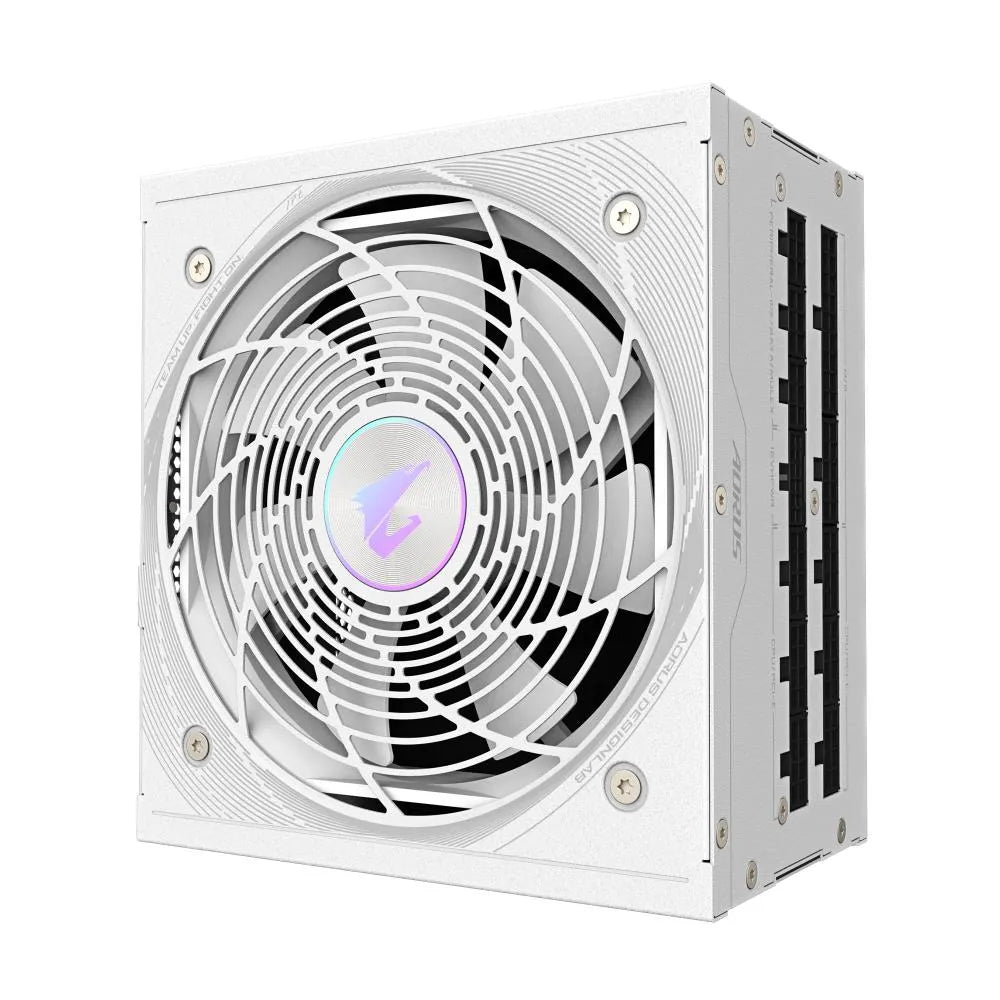

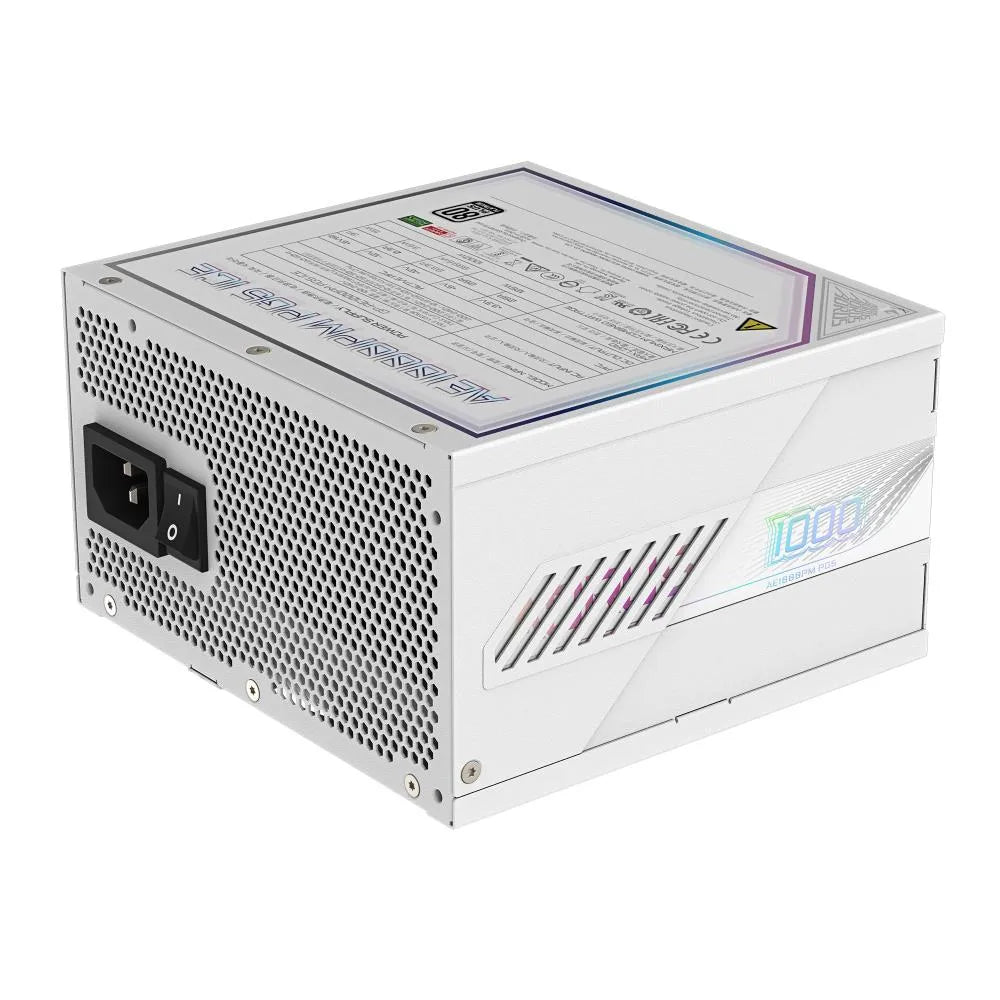

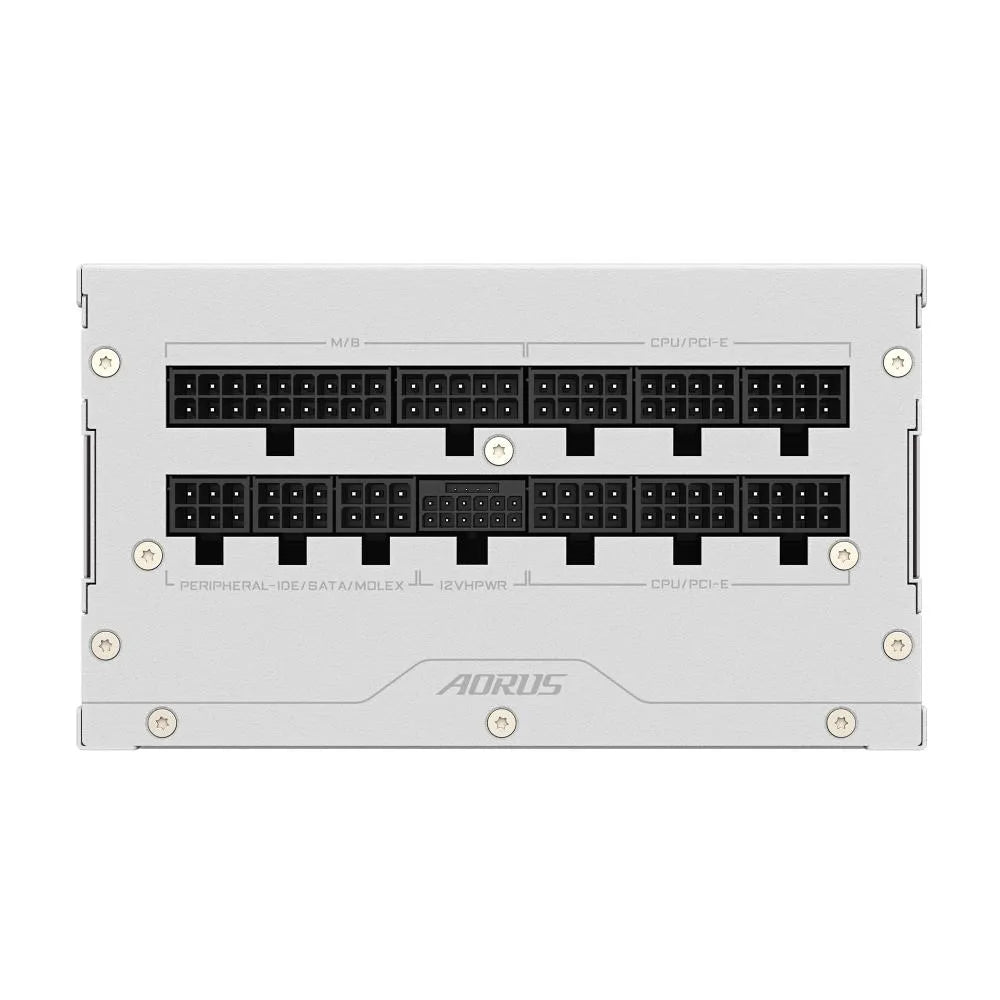

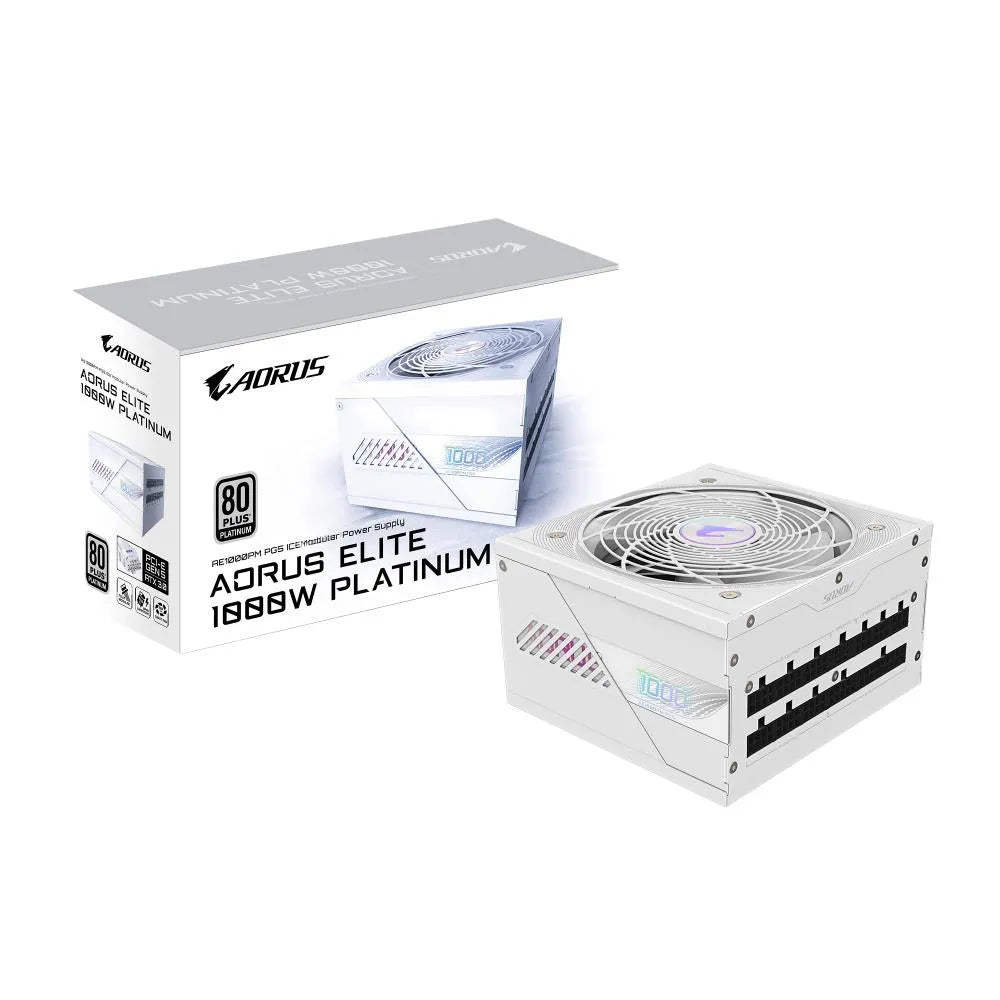

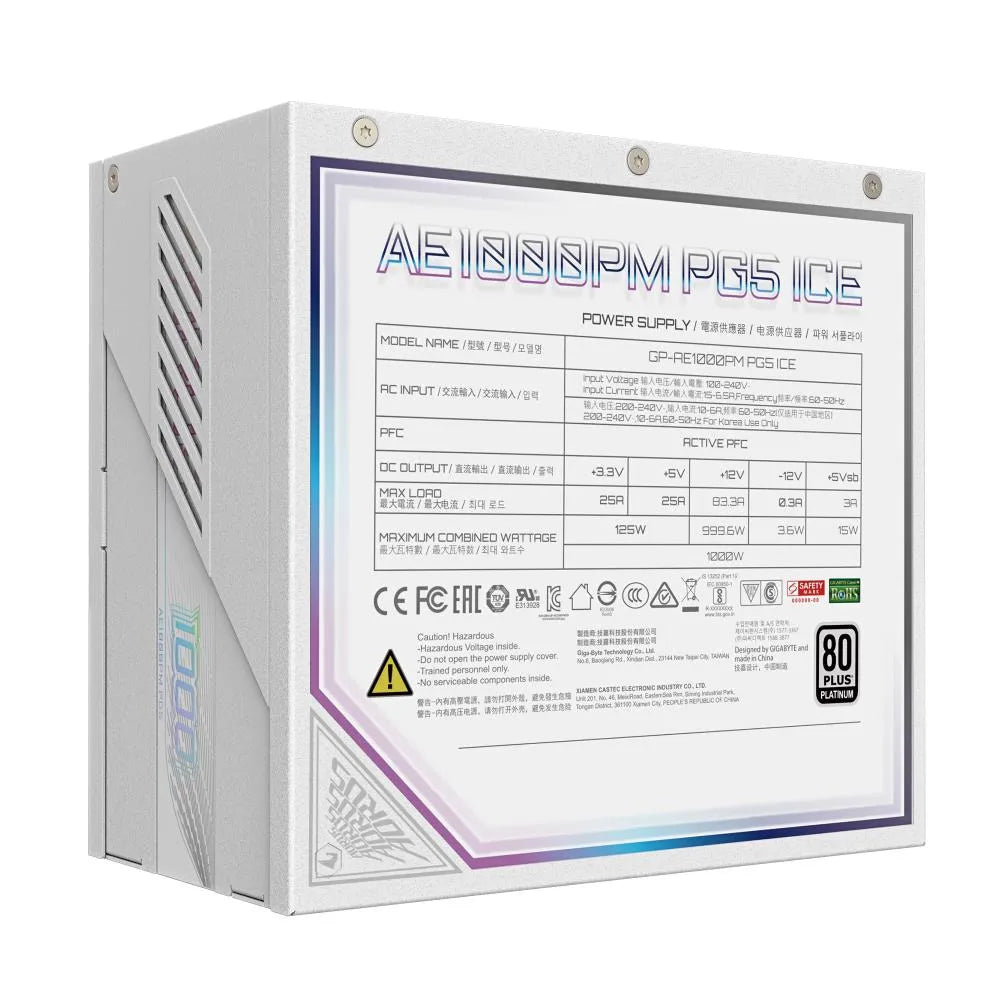

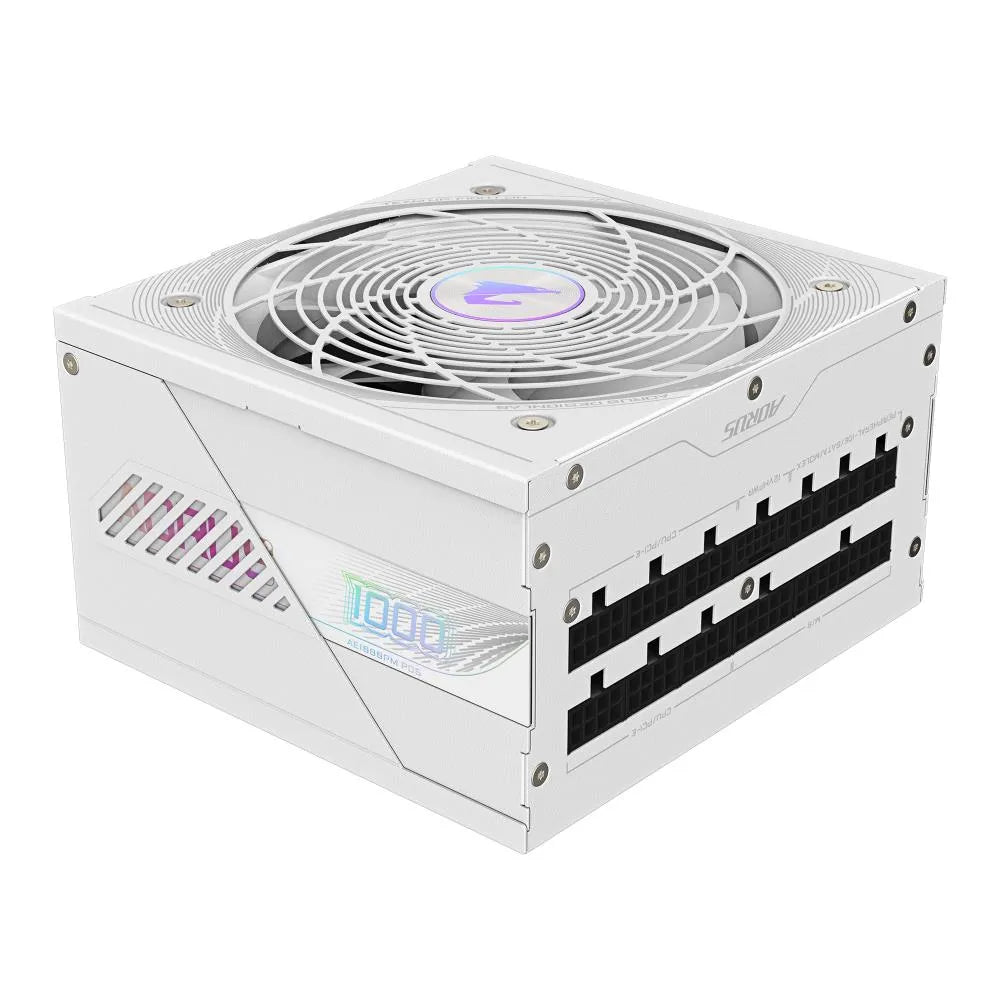

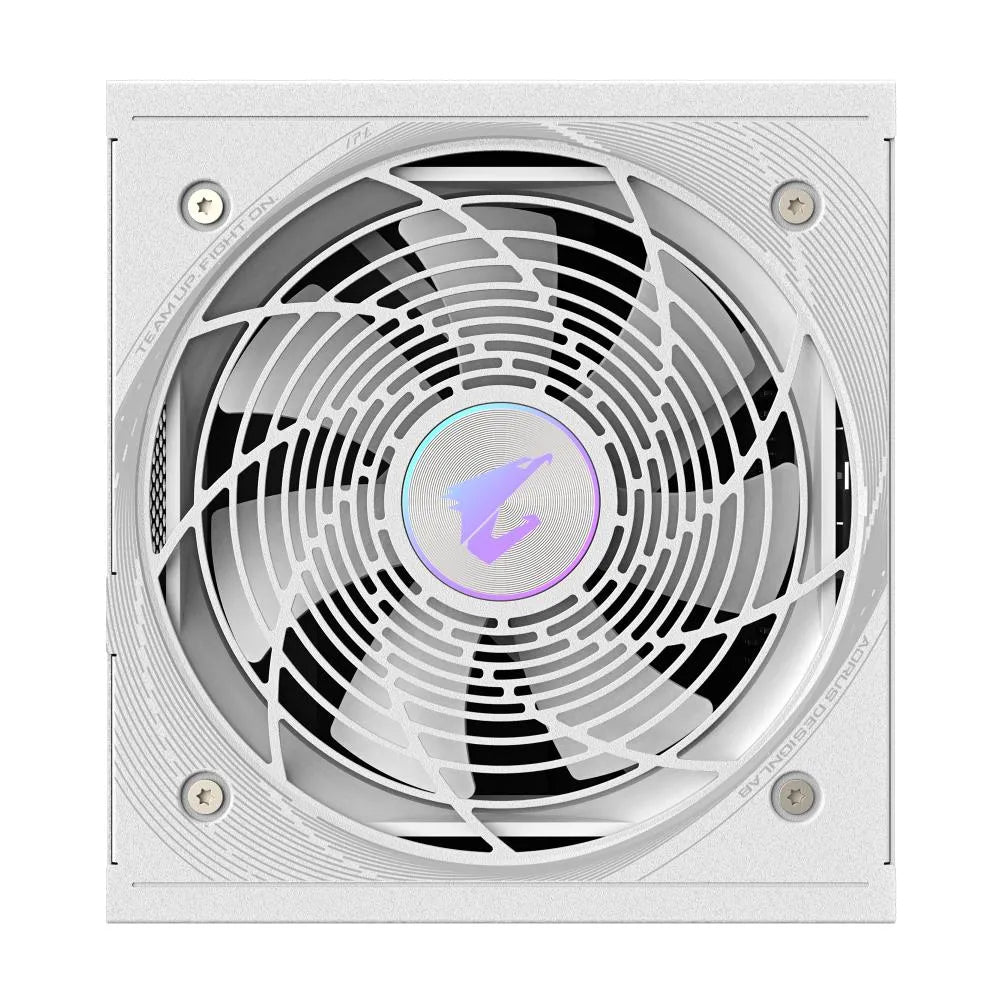

Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE
Regular price
€180,05
Regular price
Sale price
€180,05
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
GIGABYTE
Pieejamība:
In stock
SKU:
GP-AE1000PMPG5ICE
Cena bez PVN 21%: €148,80
Regular price
€180,05
Regular price
Sale price
€180,05
Specifikācija
| Vienības kastes platums | 0.12 kg |
| Vienības kastes garums | 0.34 kg |
| Vienības kastes augstums | 0.205 kg |
| Modeļa nosaukums | GP-AE1000PM PG5 ICE year(s) |
| Efektivitāte | 92 % |
| Units per Shipping Box | 5 year(s) |
| Unit Calculated Volume | 0.01086 cubm |
| Unit Calculated Weight | 3.73 kg |
| Summary | GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm kg |
| Combined power (+12V) | 999.6 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 1000 W |
| Cabling type | Fully-Modular W |
| Floppy disk drive connector | Jā W |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 6 mm |
| PCI Express power connectors (6+2 pin) | 6 mm |
| 80 PLUS certification | 80 PLUS Platinum mm |
| ATX version | 3.1 mm |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 120 mm |
| Fan location | Top mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage ms |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 83.3 A |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 2 W |
| Hold time | 16 ms |
| Power factor | 0.9 A |
| ATX power connector (20+4 pin) | Jā W |
| PCI Express connector | Jā mm |
| Bearing technology | Ball bearing mm |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | White fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Weight | 3102 g |
| Peripheral (Molex) power connectors (4-pin) | 4 mm |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 15 - 6.5 A |
| Package depth | 206 mm |
| Package height | 120 mm |
| Package type | Box mm |
| Package weight | 3732 g |
| Package width | 340 mm |
| Warranty period | 10 year(s) |
| Power Good signal delay range | 100 - 150 ms |
Apraksts
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty
