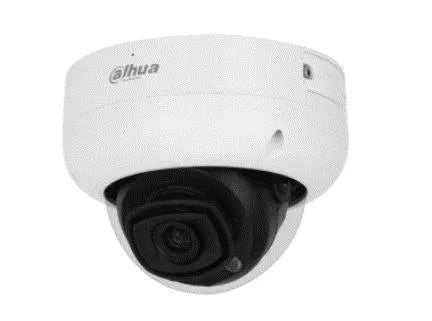

NET CAMERA 4MP IR DOME/HDBW5442R-ASE-0280B-S3 DAHUA
Parastā cena
€184,63
Parastā cena
Akcijas cena
€184,63
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
DAHUA
Pieejamība:
Nav noliktavā
SKU:
HDBW5442R-ASE-0280B-S3
Cena bez PVN 21%: €152,59
Parastā cena
€184,63
Parastā cena
Akcijas cena
€184,63
Specifikācija
| Vienības kastes platums | 0.14 kg |
| Vienības kastes garums | 0.15 kg |
| Vienības kastes augstums | 0.14 kg |
| Modelis | IPC-HDBW5442R-ASE-0280B-S3 g |
| Diametrs | 122 mm |
| Units per Shipping Box | 1 g |
| Unit Calculated Volume | 0.00294 cubm |
| Unit Calculated Weight | 0.71 kg |
| Summary | Dahua Technology WizMind IPC-HDBW5442R-ASE-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.002 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 89°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"), Number of effective pixels (H x V): 2688 x 1520 pixels. Detect distance: 50 m, Observe distance: 38.6 m, Recognize distance: 19.3 m kg |
| Connectivity technology | Wired kg |
| Adjustment shutter speed | Auto/Manual kg |
| Total megapixels | 4 MP |
| International Protection (IP) code | IP67 kg |
| Wide Dynamic Range (WDR) | Jā kg |
| Minimum illumination | 0.002 lx |
| Number of sensors | 1 pixels |
| LED type | IR m |
| Night vision | Jā m |
| Back Light Compensation (BLC) | Jā m |
| Highlight Compensation (HLC) | Jā fps |
| DC output voltage | 12 MB |
| Fixed focal length | 3.6 mm |
| Day/night mode | Jā kg |
| Placement supported | Outdoor kg |
| Mounting type | Ceiling/wall kg |
| Angle of rotation | 355 ° |
| Camera shutter type | Electronic s |
| Lens viewing angle, horizontal | 89 ° |
| Lens viewing angle, vertical | 48 ° |
| Pan range | 0 - 355 ° |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
| Progressive scan | Jā " |
| Number of lenses | 1 m |
| Night vision distance | 50 m |
| Number of illumination LEDs | 1 m |
| Bit rate | 32 - 8192, 19 - 8192 Kbps m |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) m |
| Flip & mirror | Jā m |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual fps |
| Noise reduction technology | 3D noise reduction pixels |
| Privacy masking | Jā pixels |
| Region of Interest (ROI) encoding | Jā pixels |
| Video streaming | Jā MP |
| Voice codecs | G.711a/G.711Mu/G.723/G.726 channels |
| Networking standards | IEEE 802.1x/IEEE 802.3af channels |
| Streaming method | Multicast/Unicast user(s) |
| Supported network protocols | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP user(s) |
| Card reader integrated | Jā user(s) |
| ROM capacity | 128 MB |
| Intelligent Video Surveillance (IVS) system features | Abandoned object/Face detection/Missing object/People counting/Scene change/Tripwire MB |
| Video motion detection | Jā MB |
| Number of cameras | 1 g |
| Alarm input/output | Jā kg |
| Closest focusing distance | 1.3 m |
| Smart IR | Jā pixels |
| Audio input channels | 1.0 channels |
| Built-in HDD | Nē user(s) |
| IK code | IK10 kg |
| Camera pan control | Jā ° |
| Camera tilt control | Jā s |
| Detect distance | 50 m |
| Identify distance | 9.7 m |
| Observe distance | 38.6 m |
| Recognize distance | 19.3 m |
| Type | IP security camera kg |
| Form factor | Dome kg |
| Housing material | Metal kg |
| Product colour | White kg |
| Camera shutter speed | 1/3 - 1/100000 s |
| Tilt angle range | 0 - 75 ° |
| Optical sensor size | 1/1.8 " |
| Sensor type | CMOS " |
| Maximum resolution | 2688 x 1520 pixels |
| Noise reduction | Jā pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 pixels |
| Video compression formats | H.264/H.265/M-JPEG MP |
| Bluetooth | Nē channels |
| Ethernet interface type | Fast Ethernet channels |
| Ethernet LAN | Jā channels |
| Number of users | 20 user(s) |
| Wi-Fi | Nē user(s) |
| Compatible memory cards | MicroSD (TransFlash) user(s) |
| Internal memory | 512 MB |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 MB |
| Web browser | Jā MB |
| Power consumption (max) | 6.1 W |
| Power source type | DC,PoE W |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Depth | 122 mm |
| Height | 94 mm |
| Weight | 712.9 g |
| Width | 122 mm |
| Package weight | 986 g |
| Maximum aperture number | 1.6 m |
| Audio formats supported | AAC MP |
| Web-based management | Jā MB |
| Certification | CE-LVD: EN60950-1 CE-EMC: 2014/30/EU FCC: 47 CFR FCC 15, B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 kg |
| Mobile operating systems supported | Android/iOS °C |
| Audio output channels | 1.0 channels |
| Behavior analysis | Intrusion detection,Line crossing detection MB |
Apraksts
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
- Outputs max. 4 MP (2688×1520) @25/30fps
- Built-in IR LED, and the max. illumination distance is 50 m
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC
- 12 VDC/PoE power supply; ePoE
- IP67 and IK10 protection
- SMD 3.0
