Server Memory Module|KINGSTON|DDR5| 32 GB|Unregistered (unbuffered)|CL 46|1.1 V|288-pin DIMM|ECC Yes|KSM56E46BD8KM-32HA
Parastā cena
€1.480,40
Parastā cena
Akcijas cena
€1.480,40
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
KINGSTON
Pieejamība:
Low stock
SKU:
KSM56E46BD8KM-32HA
Cena bez PVN 21%: €1.223,47
Parastā cena
€1.480,40
Parastā cena
Akcijas cena
€1.480,40
Specifikācija
| Vienības kastes platums | 0.145 kg |
| Vienības kastes garums | 0.045 kg |
| Vienības kastes augstums | 0.007 kg |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 4.567E-05 cubm |
| Unit Calculated Weight | 0.029 kg |
| Summary | Kingston Technology KSM56E46BD8KM-32HA. Component for: Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46, ECC, Product colour: Black, Green kg |
| Buffered memory type | Unregistered (unbuffered) kg |
| CAS latency | 46 kg |
| ECC | Jā kg |
| Internal memory type | DDR5 GB |
| Memory form factor | 288-pin DIMM MT/s |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory voltage | 1.1 V |
| SPD profile | Jā ns |
| Lead plating | Gold GB |
| Memory data transfer rate | 5600 MT/s |
| Module configuration | 4096M x 72 V |
| Programming power voltage (VPP) | 1.8 V |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row cycle time | 48 ns |
| Units per Pallet | 133.35 mm |
| JEDEC standard | Jā GB |
| Memory ranking | 2 GB |
| On-Die ECC | Jā V |
| Component for | Server kg |
| Internal memory | 32 GB |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Width | 133.35 mm |
| Product colour | Black/Green V |
| Height | 31.25 mm |
| Compliance certificates | RoHS °C |
| Doesn't contain | Halogen °C |
| Sustainability compliance | Jā °C |
| Row Precharge Time (TRP) | 16 ns |
Apraksts

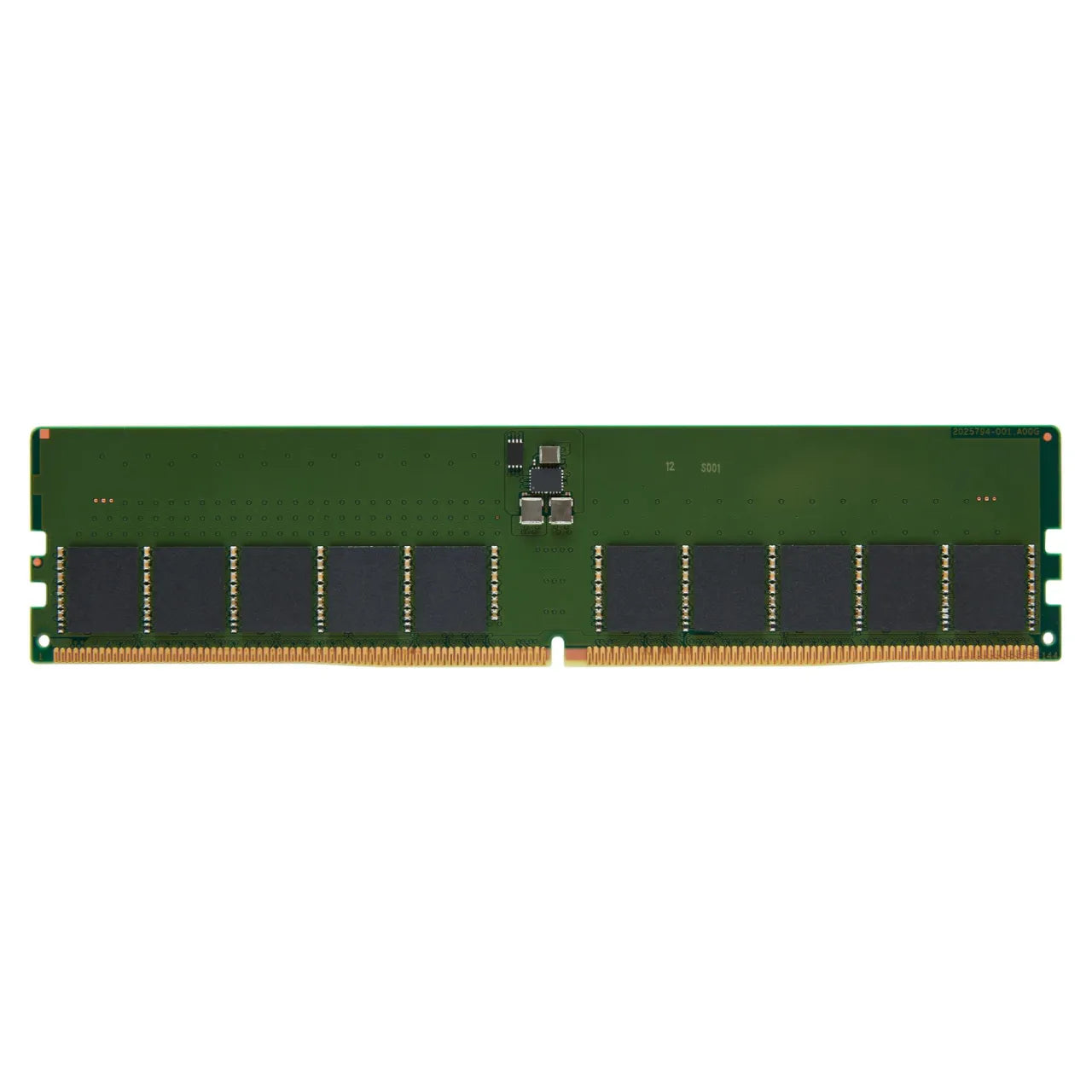

Kingston KSM56E46BD8KM-32HA
is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x72 ECC (x36, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
