Mainboard|MSI|Intel Z890|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|Z890GAMINGWIFI
Couldn't load pickup availability
Cena bez PVN 21%: €210,13
Specifikācija
| Vienības kastes platums | 0.27 kg |
| Vienības kastes garums | 0.34 kg |
| Vienības kastes augstums | 0.07 kg |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.4 MHz |
| Units per Shipping Box | 5 mm |
| Unit Calculated Volume | 0.008014 cubm |
| Unit Calculated Weight | 1.9 kg |
| Summary | MSI Z890 GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel Core Ultra (Series 2) channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1851 (Socket V1) channels |
| Supported processor sockets | Intel LGA1851 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8800 MHz |
| Supported memory clock speeds | 4800/5600/6400/7200/8800 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Nē MHz |
| ATX Power connector (24-pin) | Jā MHz |
| EPS power connector (8-pin) | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| USB 2.0 connectors | 4 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Thunderbolt ports quantity | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 MHz |
| Ethernet interface type | 5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) MHz |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel Z890 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 3 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 MHz |
| PCI Express x4 (Gen 4.x) slots | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| Units per Pallet | 243.84 mm |
| ACPI version | 6.5 MHz |
| System Management BIOS (SMBIOS) version | 3.7 Mbit |
| Number of HDDs supported | 7 MHz |
| Number of storage drives supported | 4 MHz |
| PCI Express x1 (Gen 4.x) slots | 1 MHz |
| HDMI ports quantity | 1 MHz |
| Wi-Fi | Jā MHz |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Total number of SATA connectors | 4 MHz |
| DisplayPorts quantity | 1 MHz |
| Product colour | Black channels |
| Windows operating systems supported | Windows 11 channels |
| HDMI version | 2.1 MHz |
| Number of EPS power connectors (8-pin) | 1 MHz |
| 1st M.2 highest PCI Express generation | 5.0 MHz |
| 1st M.2 largest key size | 2280 MHz |
| 2nd M.2 highest PCI Express generation | 4.0 MHz |
| 2nd M.2 largest key size | 2280 MHz |
| WLAN controller model | Killer Wi-Fi 7 BE1750 MHz |
| 3rd M.2 highest PCI Express generation | 4.0 MHz |
| 3rd M.2 largest key size | 2280 MHz |
Apraksts

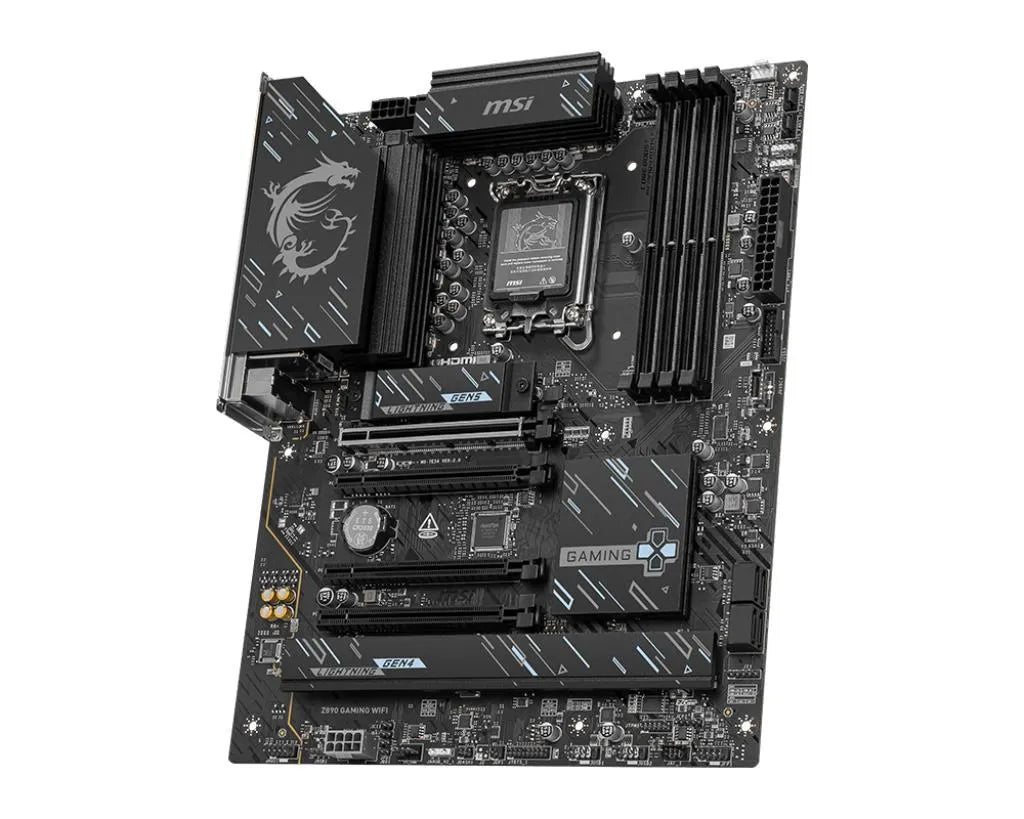

Z890 GAMING WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 2.5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
12+1+1+1 Duet Rail Power System
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MSI Gaming series motherboard is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
- Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
- 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
