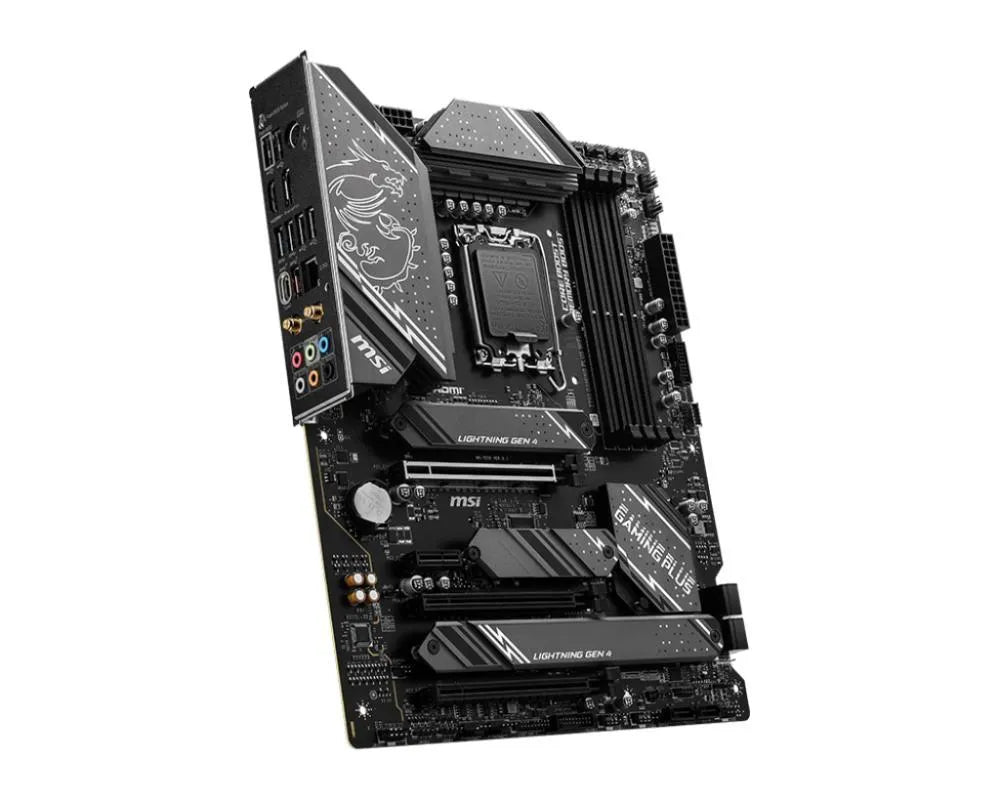

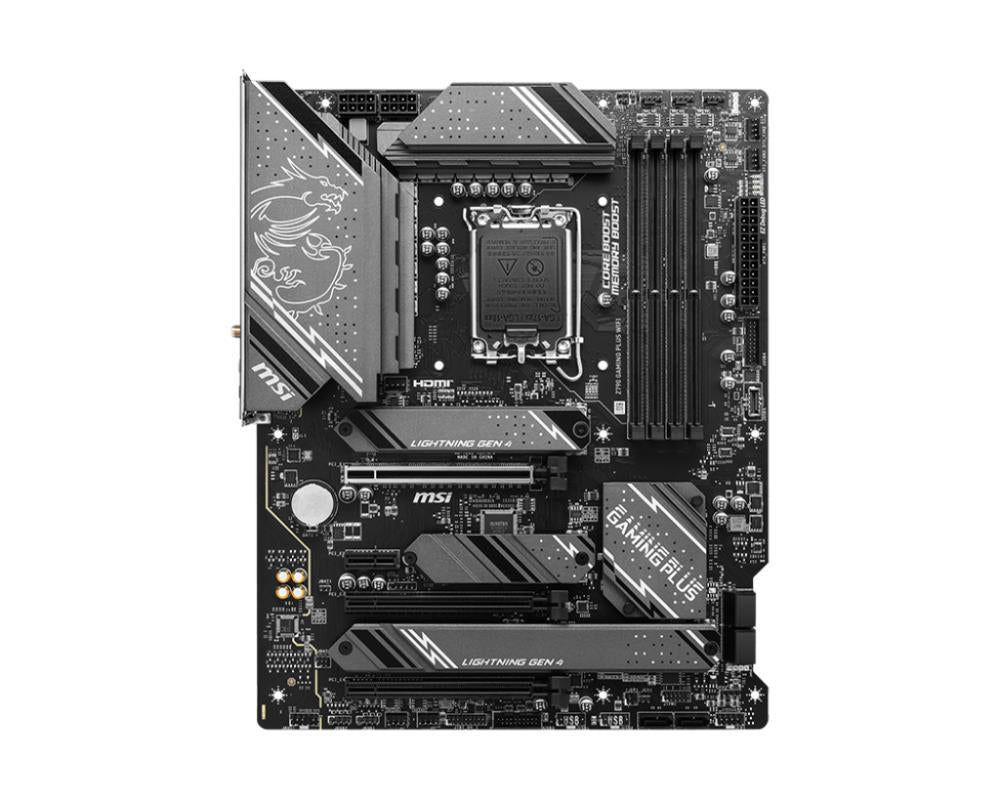

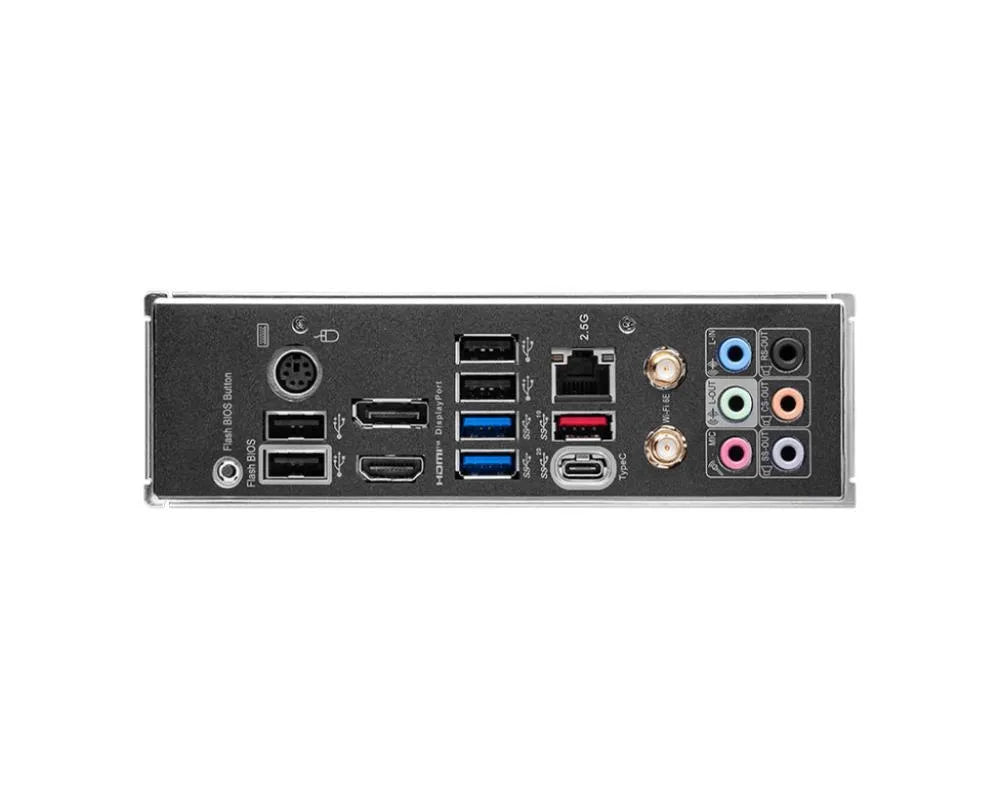

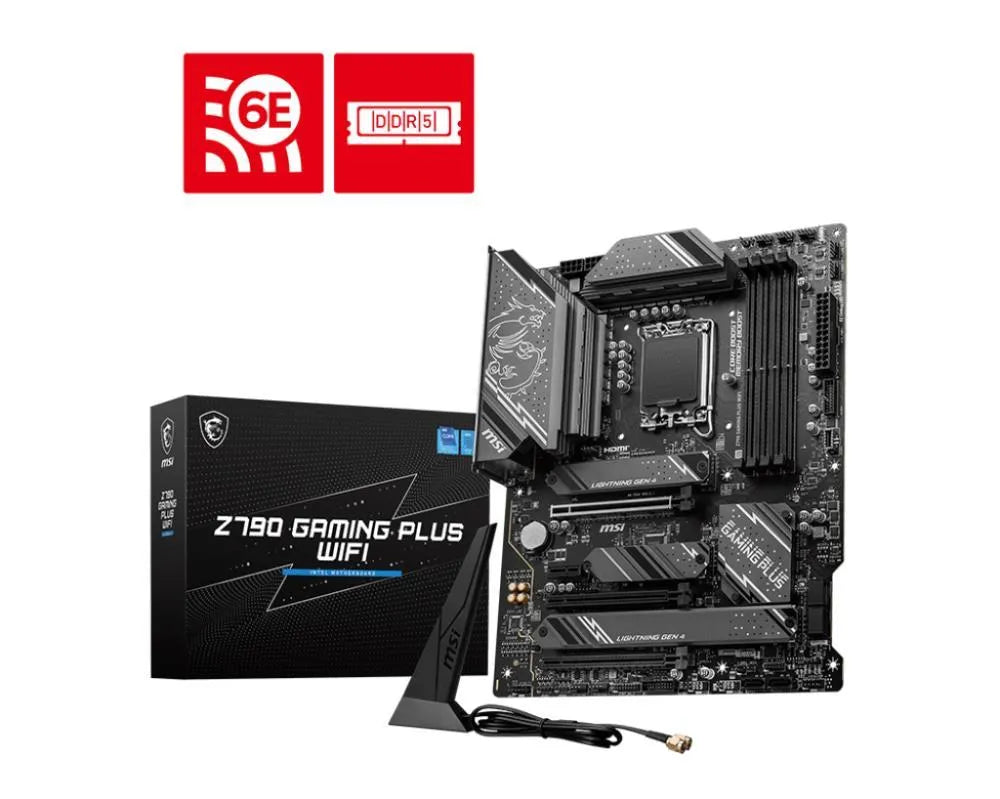

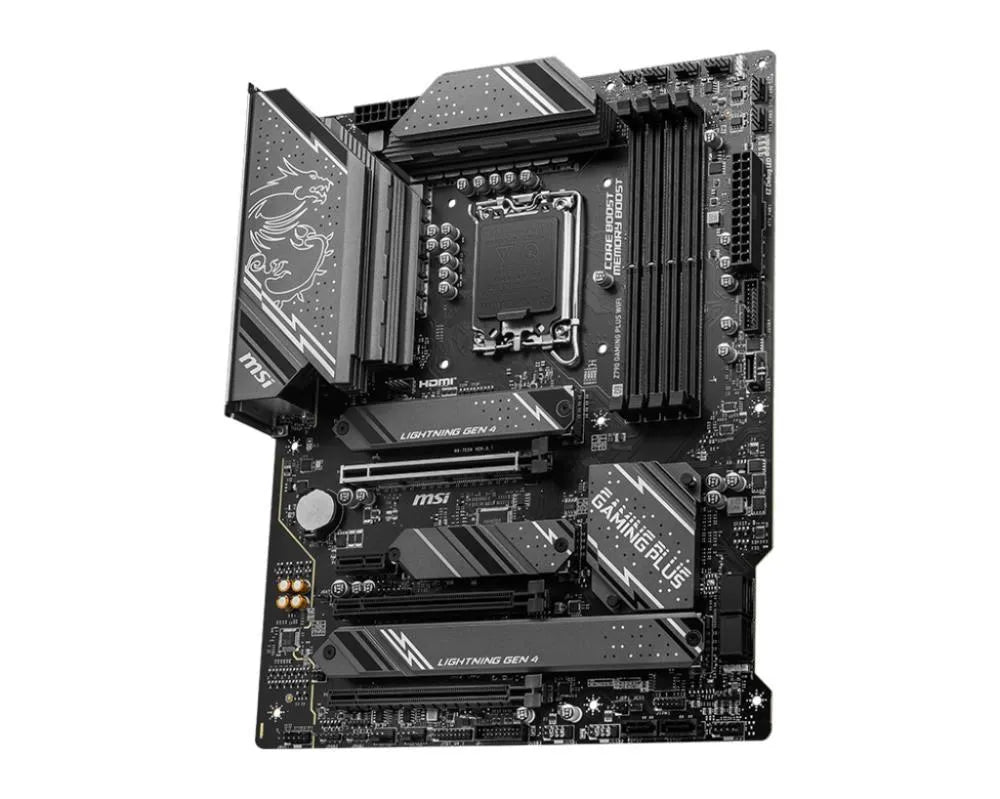

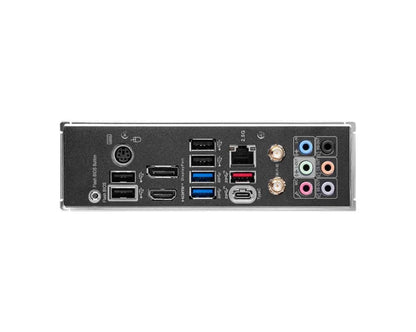

Mainboard|MSI|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|Z790GAMINGPLUSWIFI
Couldn't load pickup availability
Cena bez PVN 21%: €184,03
Specifikācija
| Modelis | Z790 GAMING PLUS WIFI |
| Mikroshēmu kopums | Intel Z790 |
| Sokets | LGA1700 |
| Formas faktors | ATX |
| Atmiņas tips | DDR5 |
| Frekvences ātrums | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz |
| Atmiņas sloti | 4 |
| M.2 | 4 |
| PCI-Express 16x | 3 |
| PCI-Express 1x | 1 |
| Audio ports | 6 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 3 |
| USB-C | 1 |
| Bluetooth | Jā |
| SATA | Jā |
| USB 2.0 | Jā |
| USB 3.2 | Jā |
| WiFi | Jā |
| Integrēta video | Depending on CPU |
| Integrēts LAN | 2.5 Gigabit |
| Integrēta audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
| TPM | Header |
| Nosūtīšanas kastes daudzums | 1 |
| Nosūtīšanas kastes dziļums | 34.5 cm |
| Nosūtīšanas kastes augstums | 7 cm |
| Nosūtīšanas kastes svars | 1.78 kg |
| Nosūtīšanas kastes platums | 27 cm |
| Vienības bruto tilpums | 0.006521 cubm |
| Vienības neto svars | 1.6 kg |
| Vienības bruto svars | 1.78 kg |
| Vienības kastes platums | 0.27 |
| Vienības kastes garums | 0.345 |
| Vienības kastes augstums | 0.07 |
Apraksts
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 14+1+1 Duet Rail Power System with DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
