Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|5xAudio port|B760GAMPLUSWIFIDDR4
Couldn't load pickup availability
Cena bez PVN 21%: €126,00
Specifikācija
| Vienības kastes platums | 0.066 kg |
| Vienības kastes garums | 0.27 kg |
| Vienības kastes augstums | 0.348 kg |
| Modelis | B760 GAMING PLUS WIFI DDR4 mm |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.3 MHz |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.006521 cubm |
| Unit Calculated Weight | 1.7 kg |
| Summary | MSI B760 GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel® Celeron®/Intel® Pentium® Gold channels |
| Processor manufacturer | Intel GB |
| Processor socket | LGA 1700 GB |
| Supported processor sockets | LGA 1700 GB |
| ECC ?ompatibility | Non-ECC GB |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speeds | 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 4 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) MHz |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel B760 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 2 MHz |
| PCI Express x16 (Gen 4.x) slots | 2 MHz |
| BIOS memory size | 256 Mbit |
| S/PDIF out port | Jā MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 MHz |
| PCI Express x1 (Gen 3.x) slots | 3 MHz |
| BIOS type | UEFI AMI Mbit |
| LAN controller | Dragon RTL8125BG MHz |
| ACPI version | 6.4 MHz |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 6 MHz |
| PCI Express x16 slots | 2 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Jā MHz |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Maximum internal memory supported by processor | 128 GB |
| S/PDIF out connector | Jā MHz |
| Total number of SATA connectors | 4 MHz |
| DisplayPorts quantity | 1 MHz |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| HDMI version | 2.1 MHz |
| PCI Express x1 slots | 3 MHz |
Apraksts

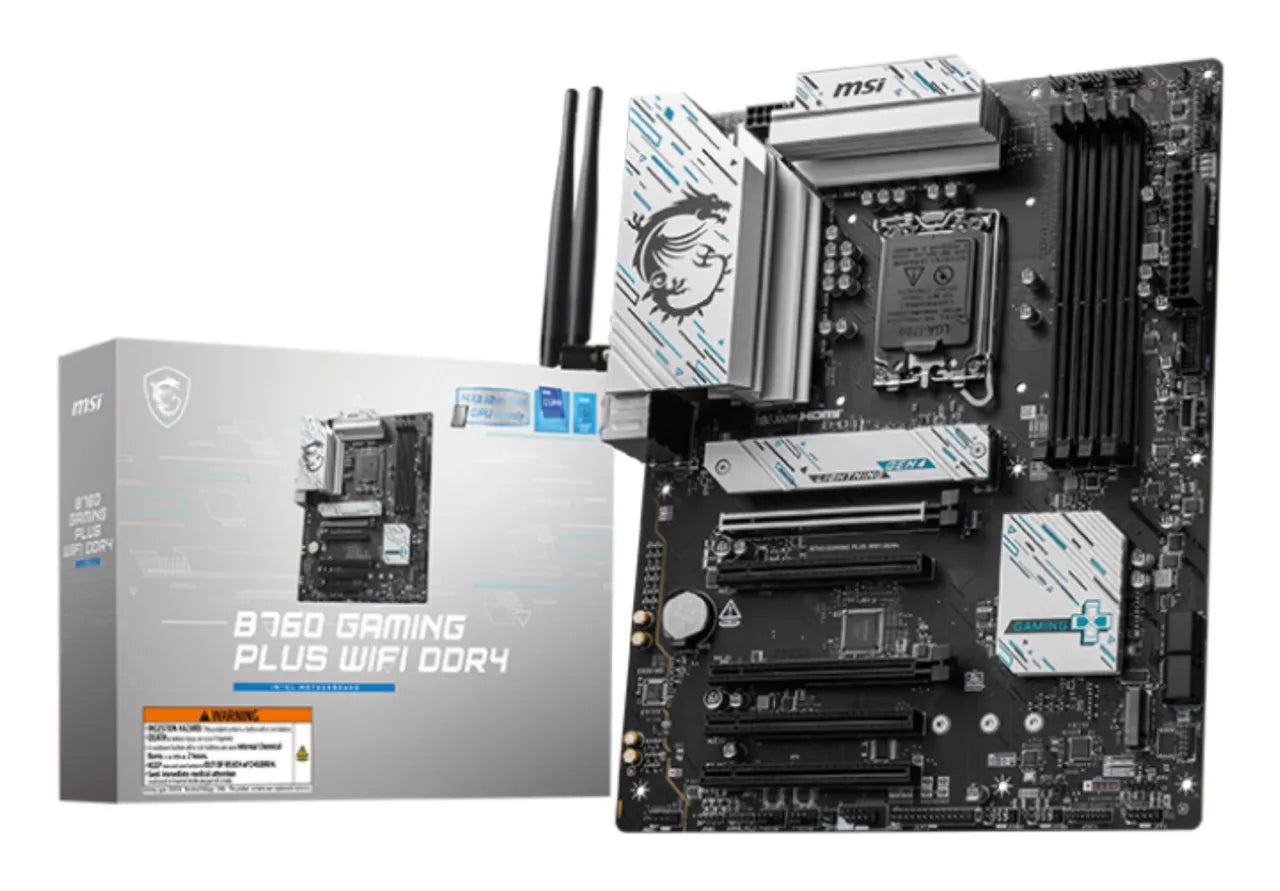

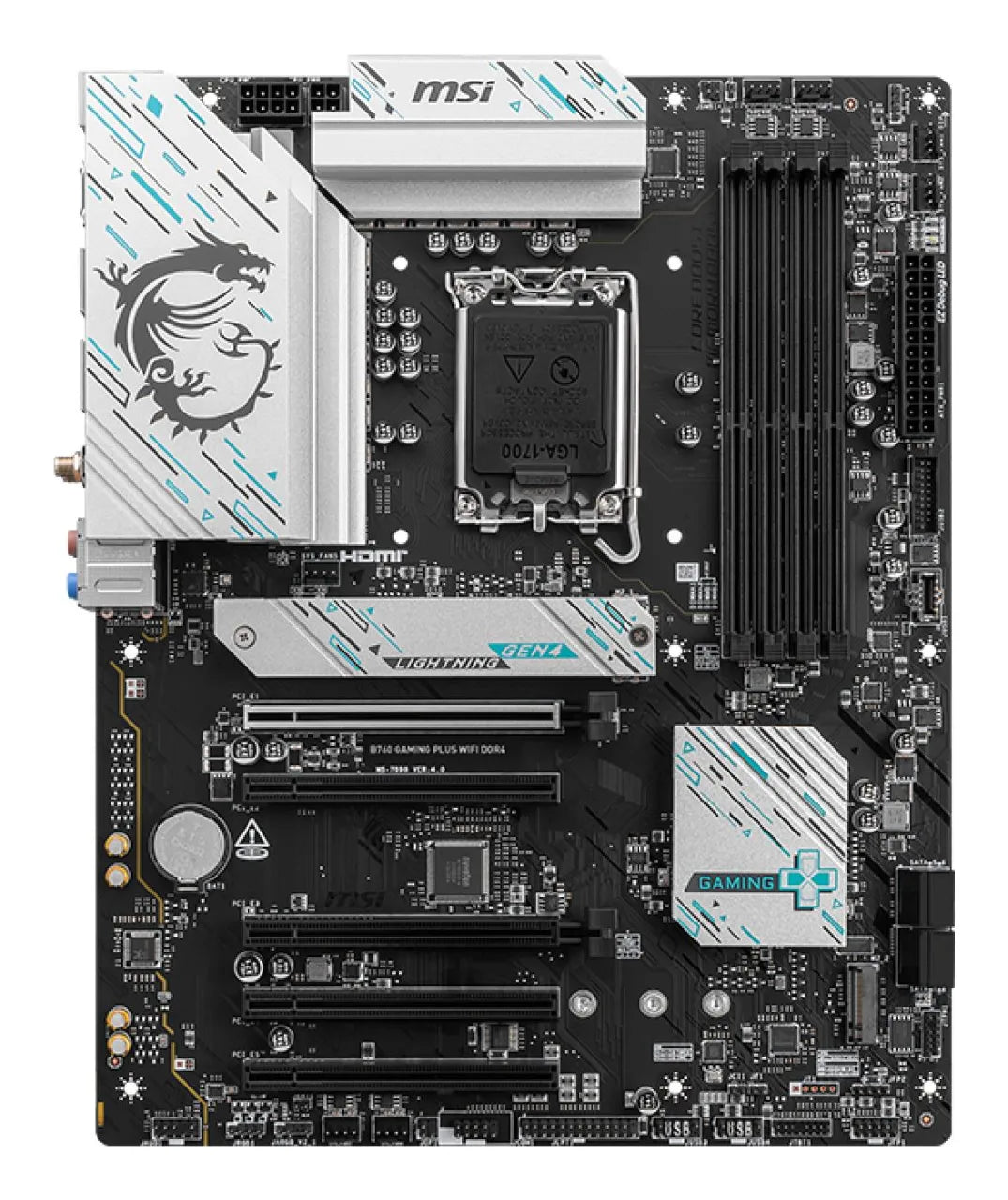

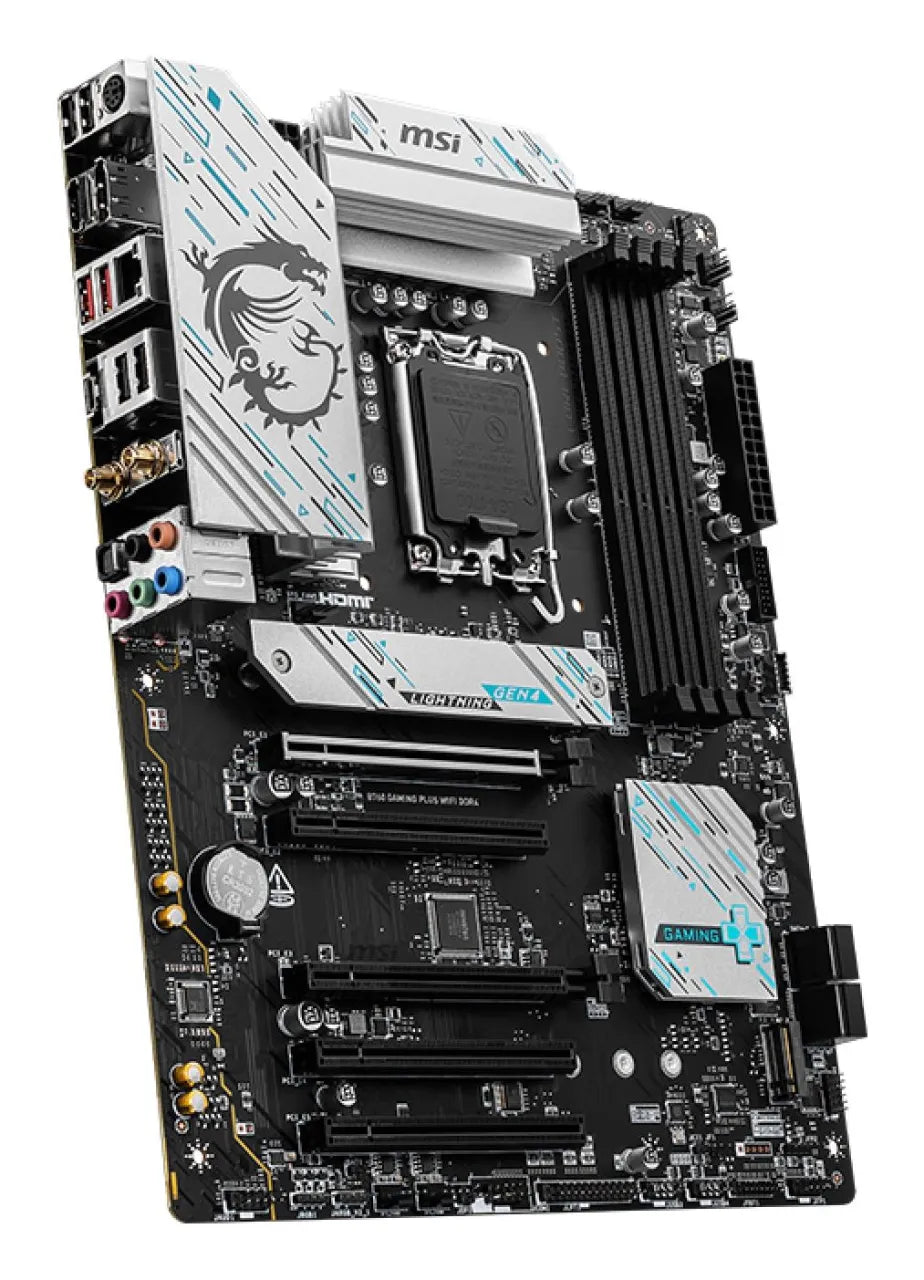

B760 GAMING PLUS WIFI DDR4
The B760 GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel® Core 14th /13th /12th Gen processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
B760 GAMING PLUS WIFI DDR4 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5333+(OC) MHz
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
