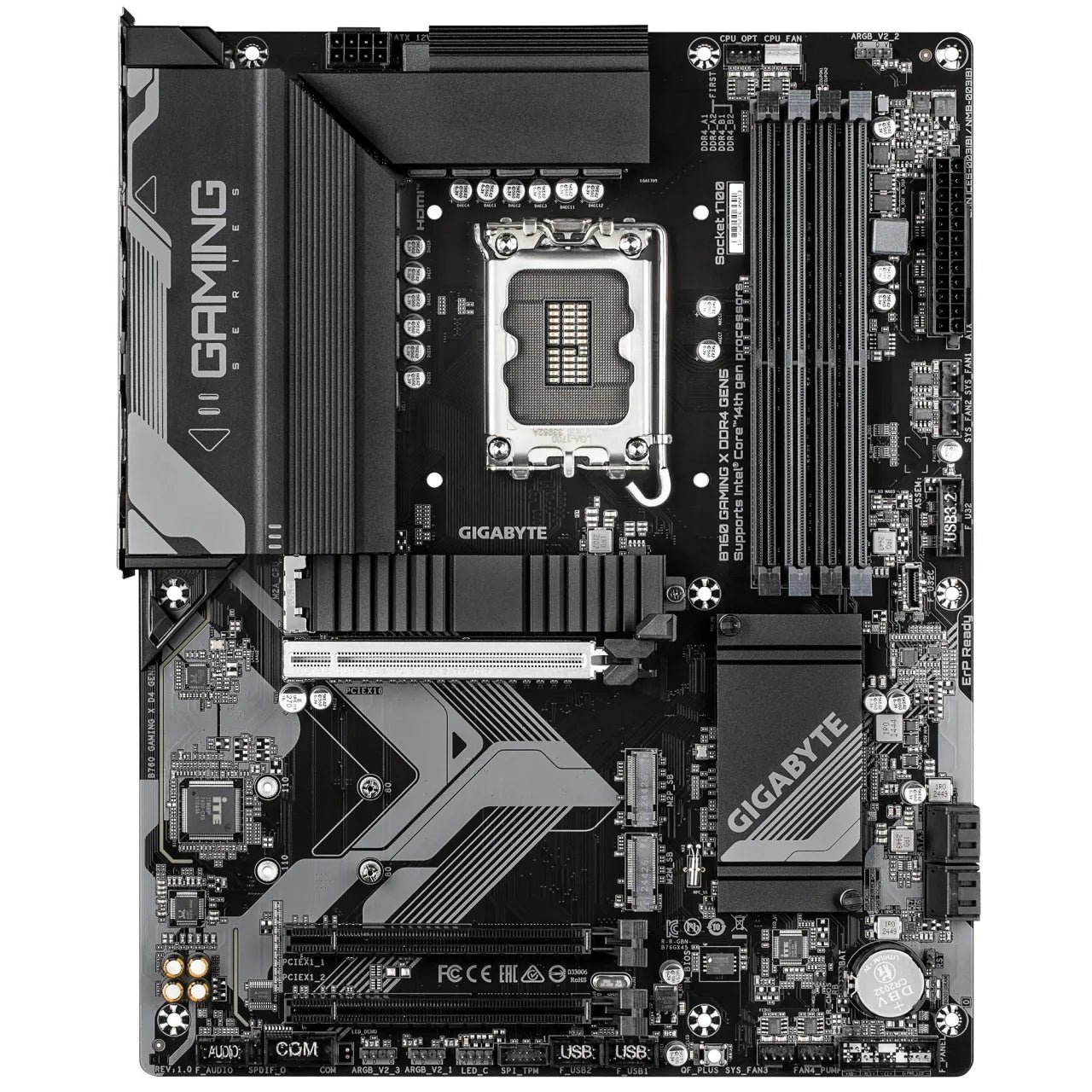

Mainboard|GIGABYTE|Intel B760|LGA 1700|ATX|RAM DDR4-SDRAM|4xSlots|3xNumber of M.2 (M) slots|B760GAMINGXD4GEN5
Parastā cena
€140,29
Parastā cena
Akcijas cena
€140,29
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
GIGABYTE
Pieejamība:
Ir noliktavā
SKU:
B760 GAMING X D4 GEN5
Cena bez PVN 21%: €115,94
Parastā cena
€140,29
Parastā cena
Akcijas cena
€140,29
Specifikācija
| Unit Calculated Volume | 0.00748 cubm |
| Unit Calculated Weight | 1.8 kg |
| Summary | GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125 kg |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® channels |
| Processor manufacturer | Intel GB |
| Processor socket | LGA 1700 GB |
| Supported processor sockets | LGA 1700 GB |
| ECC ?ompatibility | ECC & Non-ECC GB |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 4 pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 pixels |
| DisplayPort version | 1.2 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 pixels |
| Ethernet interface type | 2.5 Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Passive channels |
| Motherboard chipset | Intel B760 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 3 pixels |
| PCI Express x16 (Gen 5.x) slots | 1 pixels |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| LAN controller | Realtek RTL8125 pixels |
| DirectX version | 12.0 MHz |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling channels |
| PCI Express x16 (Gen 3.x) slots | 2 pixels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) mm |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 5 pixels |
| Wi-Fi | Nē pixels |
| Depth | 244 mm |
| Width | 305 mm |
| Maximum internal memory supported by processor | 128 GB |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2304 pixels |
| S/PDIF out connector | Jā pixels |
| Serial port headers | 1 pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 1 pixels |
| Product colour | Dark brown channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1800 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| Weight | 1590 g |
| Maximum internal memory per slot | 32 GB |
| Number of CPU fan connectors | 2 pixels |
| Number of EPS power connectors (8-pin) | 1 pixels |
| Number of RGB LED pin headers | 4 pixels |
| Number of water pump connectors | 2 pixels |
| 1st M.2 highest PCI Express generation | 4.0 pixels |
| 1st M.2 largest key size | 22110 pixels |
| 2nd M.2 highest PCI Express generation | 4.0 pixels |
| 2nd M.2 largest key size | 22110 pixels |
| 3rd M.2 highest PCI Express generation | 4.0 pixels |
| 3rd M.2 largest key size | 22110 pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- PCIe Gen5 Performance: Perfect Sync to Win
- Supports Intel Core 14th/ 13th/12 processors
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch: PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance: Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR4: 4*DIMMs with XMP Memory Module Support
- Fast Networks: 2.5GbE LAN
- Extended Connectivity: Front USB-C 10Gb/s, DP, HDMI
- Next Generation Storage: 3*PCIe 4.0 x4 M.2 Connectors
