Mainboard|GIGABYTE|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 4|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB 3.2|1xUSB-C|1xPS/2|1xOptical S/PDIF|1xRJ45|3xAudio port|B760MGPWIFIDDR41.0
Parastā cena
€118,40
Parastā cena
Akcijas cena
€118,40
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
GIGABYTE
Pieejamība:
Nav noliktavā
SKU:
B760M G P WIFI DDR4 1.0
Cena bez PVN 21%: €97,85
Parastā cena
€118,40
Parastā cena
Akcijas cena
€118,40
Specifikācija
| Vienības kastes platums | 0.07 kg |
| Vienības kastes garums | 0.27 kg |
| Vienības kastes augstums | 0.27 kg |
| Modelis | B760M G P WIFI DDR4 g |
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.3 pixels |
| Units per Shipping Box | 10 g |
| Unit Calculated Volume | 0.006384 cubm |
| Unit Calculated Weight | 1.29 kg |
| Summary | GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 4+1+1 phases VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6, 1 GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6 (802.11ax) kg |
| Compatible processor series | Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron® channels |
| Processor manufacturer | Intel GB |
| Processor socket | LGA 1700 GB |
| Supported processor sockets | LGA 1700 GB |
| ECC ?ompatibility | ECC & Non-ECC GB |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 5333 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 3 pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 pixels |
| DisplayPort version | 1.2 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) pixels |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) pixels |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel B760 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 2 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| BIOS memory size | 128 Mbit |
| PCI Express x1 (Gen 3.x) slots | 2 pixels |
| BIOS type | UEFI AMI Mbit |
| PS/2 ports quantity | 1 pixels |
| LAN controller | Realtek RTL8111H pixels |
| DirectX version | 12.0 MHz |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling channels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software mm |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 6 MHz |
| Clear CMOS jumper | Jā Mbit |
| Parallel connector | Jā pixels |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 2 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 244 mm |
| Maximum internal memory supported by processor | 128 GB |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2304 pixels |
| S/PDIF out connector | Jā pixels |
| Serial port headers | 1 pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 1 pixels |
| Product colour | Grey channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1200 g |
| Package width | 270 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| Weight | 1100 g |
| Maximum internal memory per slot | 32 GB |
| Number of CPU fan connectors | 1 pixels |
| Number of EPS power connectors (8-pin) | 1 pixels |
| Number of RGB LED pin headers | 2 pixels |
| 1st M.2 highest PCI Express generation | 4.0 pixels |
| 1st M.2 largest key size | 2280 pixels |
| 2nd M.2 highest PCI Express generation | 4.0 pixels |
| 2nd M.2 largest key size | 2280 pixels |
| WLAN controller model | Realtek RTL8851BE pixels |
| Antenna included | Jā mm |
Apraksts

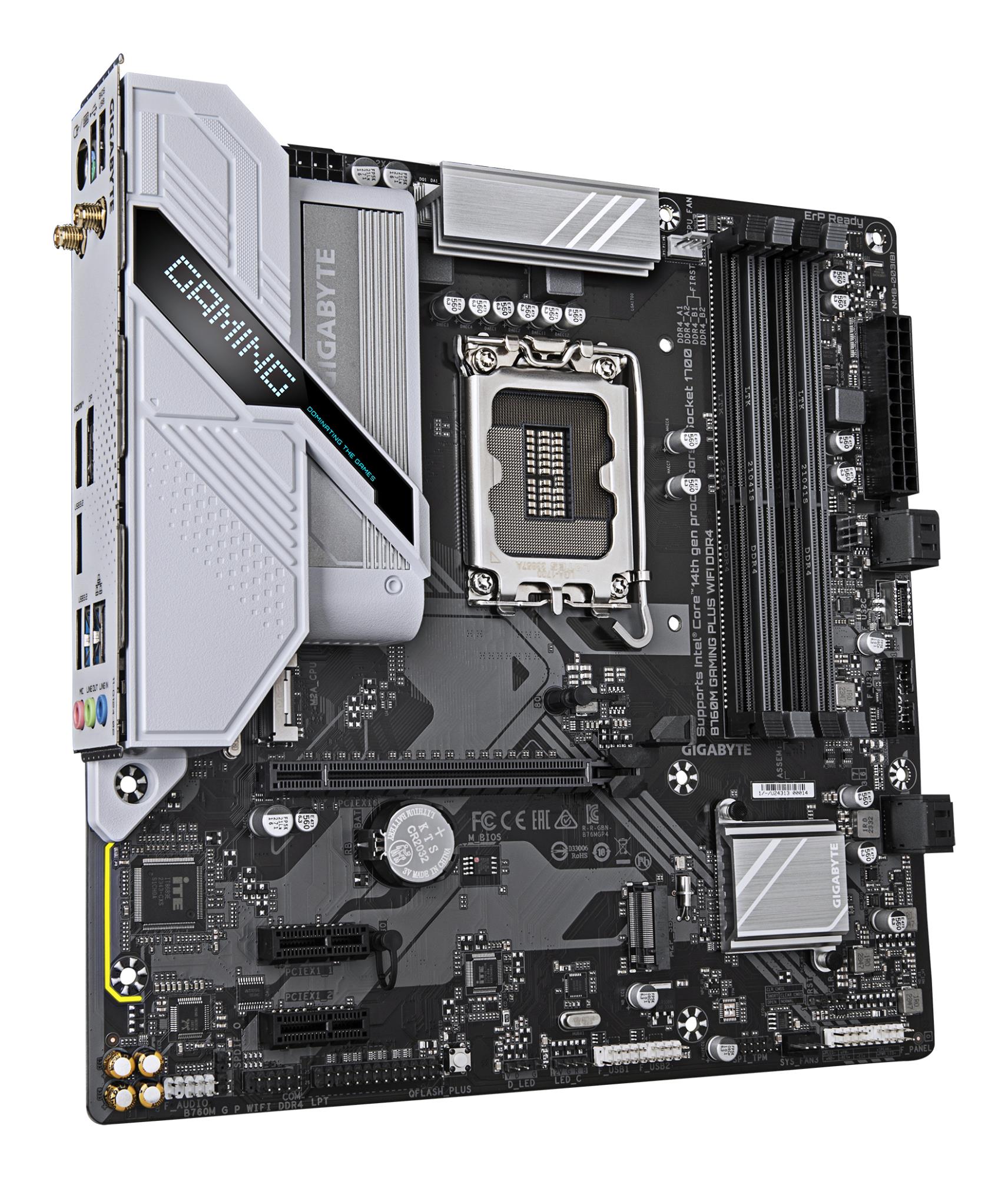

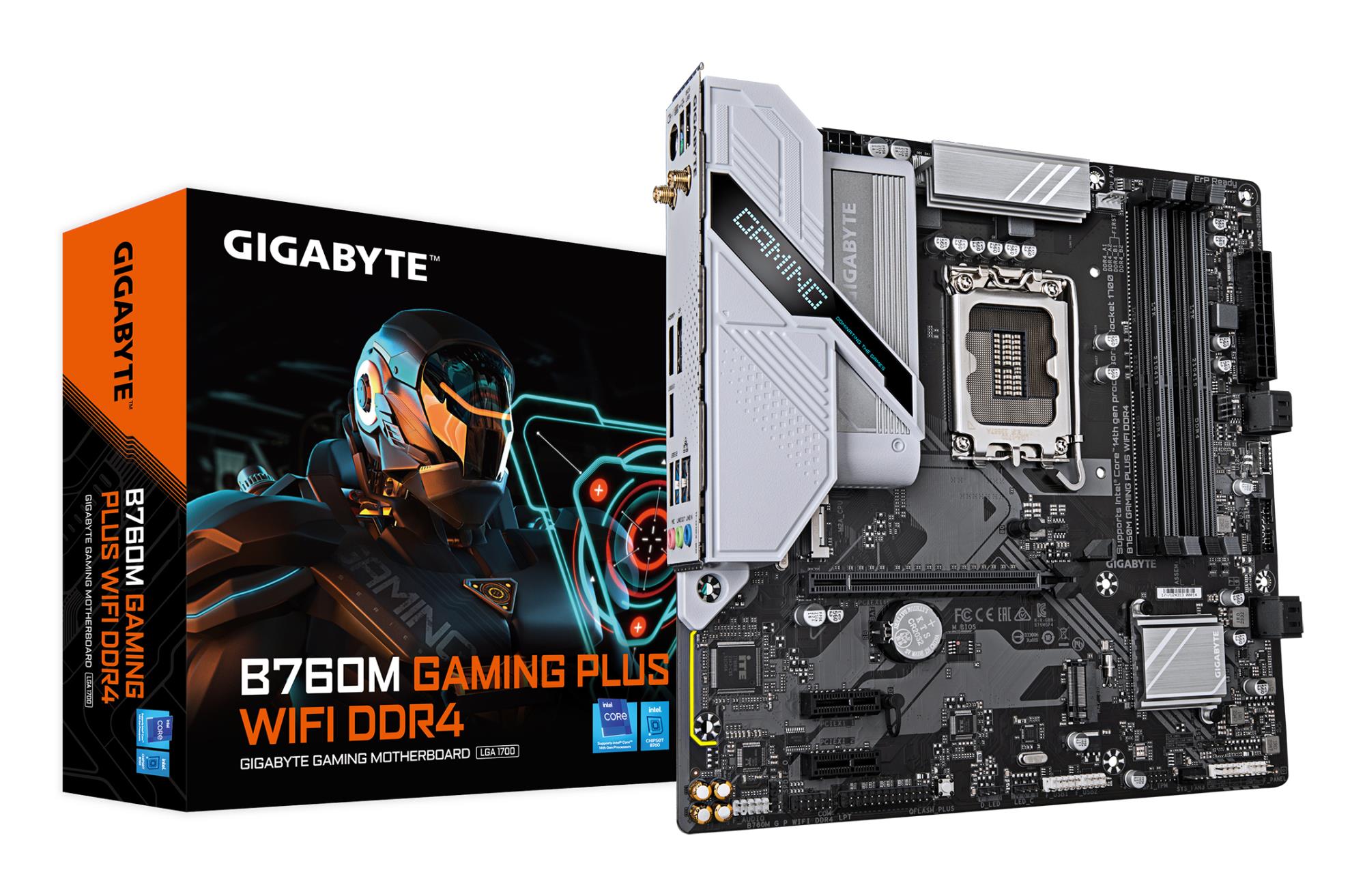

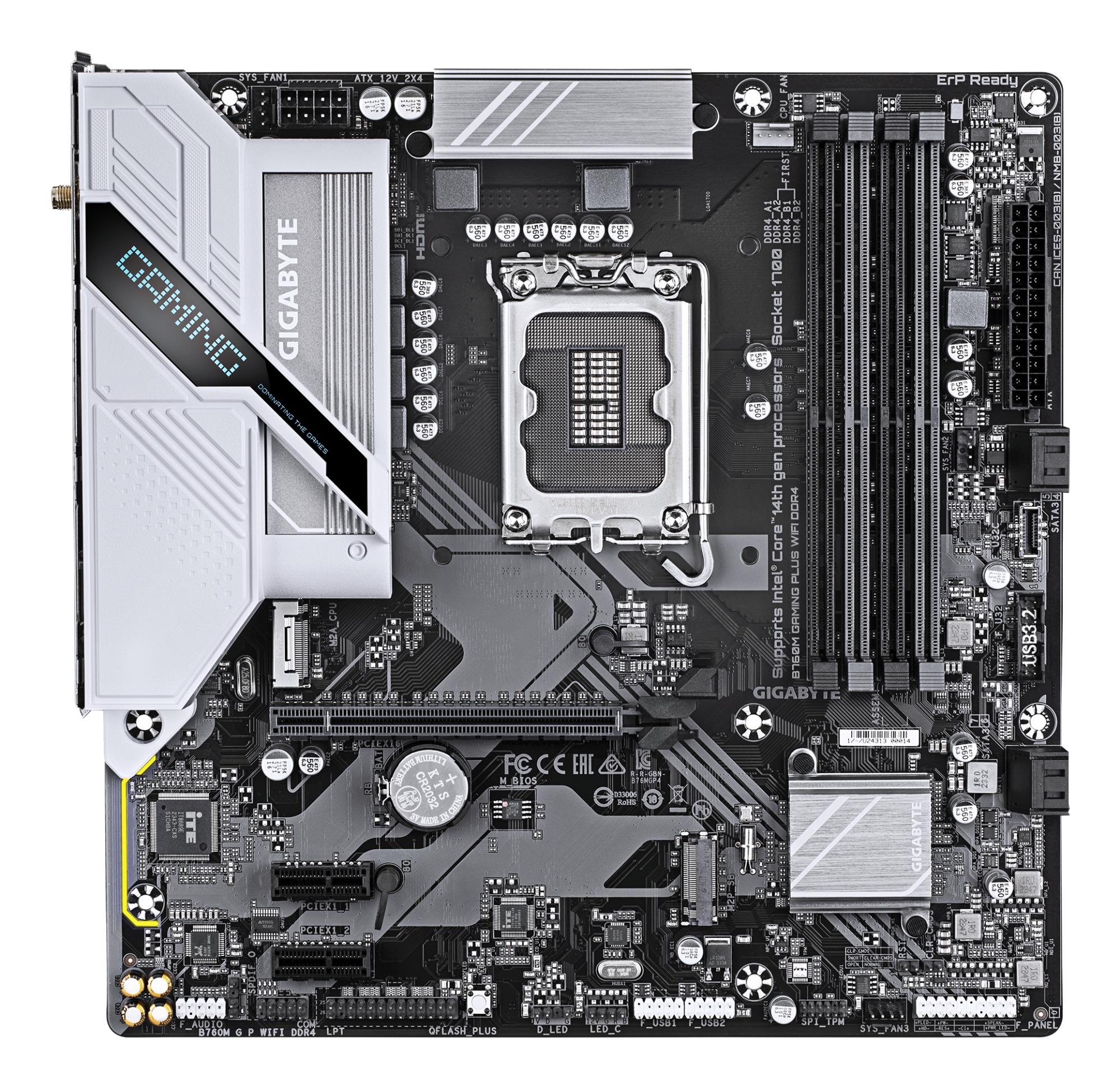

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR4：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：Wi-Fi 6 802.11ax, GbE LAN

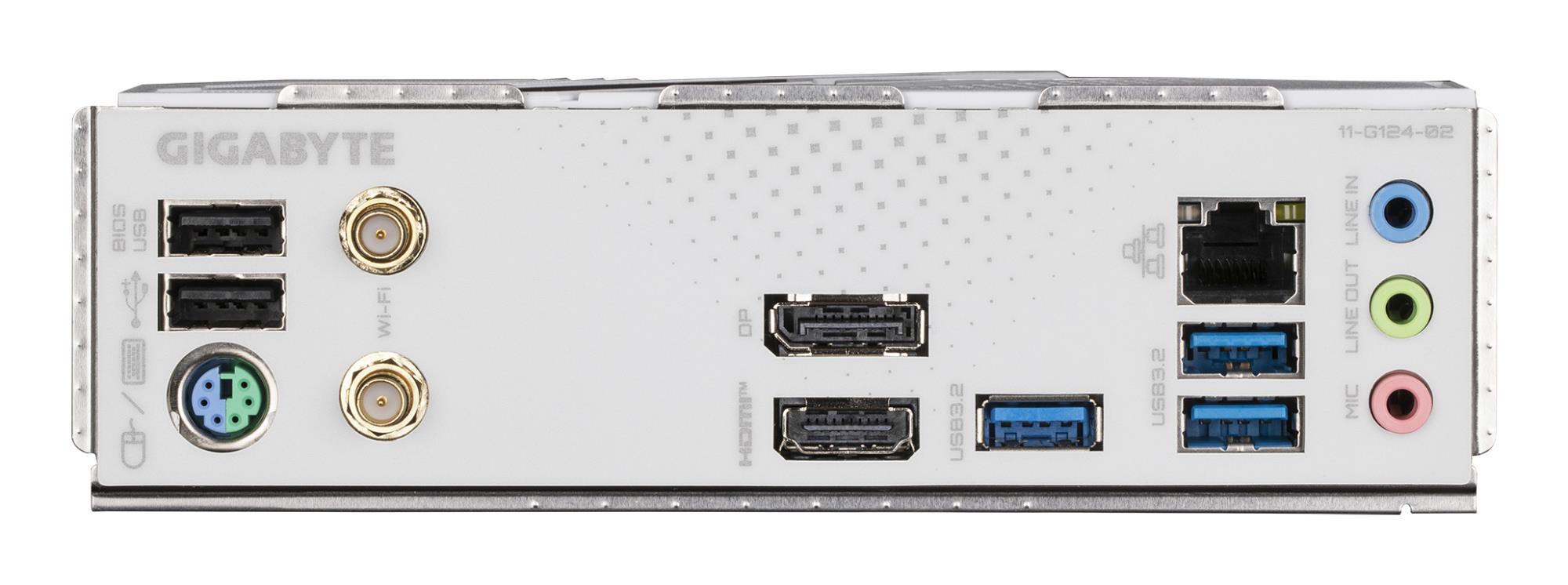

- Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
