Mainboard|GIGABYTE|AMD X870|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|On-board graphics card Yes|Wi-Fi Yes|Bluetooth Yes|4xNumber of M.2 (M) slots|X870 AORUS ELITE WIFI7 ICE|X870AELITEWF7ICE1.1
Parastā cena
€292,58
Parastā cena
Akcijas cena
€292,58
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
GIGABYTE
Pieejamība:
Ir noliktavā
SKU:
X870 A ELITE WF7 ICE 1.1
Cena bez PVN 21%: €241,80
Parastā cena
€292,58
Parastā cena
Akcijas cena
€292,58
Specifikācija
| Vienības kastes platums | 0.31 kg |
| Vienības kastes garums | 0.45 kg |
| Vienības kastes augstums | 0.38 kg |
| Modelis | X870 AORUS ELITE WIFI7 ICE g |
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.4 pixels |
| Units per Shipping Box | 5 g |
| Unit Calculated Volume | 0.01018 cubm |
| Unit Calculated Weight | 2.59 kg |
| Summary | GIGABYTE X870 AORUS ELITE WIFI7 ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels, On-board graphics card model: AMD Radeon Graphics. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be) kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD GB |
| Processor socket | Socket AM5 GB |
| Supported processor sockets | Socket AM5 GB |
| ECC ?ompatibility | Non-ECC GB |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2 MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Jā pixels |
| Parallel processing technology support | Not supported pixels |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 6 pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 pixels |
| DisplayPort version | 1.4 pixels |
| Microphone in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | 2.5 Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) pixels |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) pixels |
| Audio chip | Realtek ALC1220 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD X870 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 4 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| PCI Express x16 (Gen 5.x) slots | 1 pixels |
| BIOS memory size | 256 Mbit |
| S/PDIF out port | Jā pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 pixels |
| BIOS type | UEFI AMI Mbit |
| Clear CMOS button | Jā Mbit |
| LAN controller | Realtek RTL8125 pixels |
| DirectX version | 12.0 MHz |
| Discrete graphics support | Jā MHz |
| Number of displays supported | 4 pixels |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Noise/Temperature/Voltage/Water cooling channels |
| PCI Express x16 (Gen 3.x) slots | 1 pixels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software mm |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 8 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 4 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 305 mm |
| Maximum internal memory supported by processor | 256 GB |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Total number of SATA connectors | 4 pixels |
| Headphone outputs | 1 pixels |
| Product colour | White channels |
| Windows operating systems supported | Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2740 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| Weight | 2400 g |
| On-board graphics card model | AMD Radeon Graphics pixels |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 2 pixels |
| Number of EPS power connectors (8-pin) | 2 pixels |
| Number of RGB LED pin headers | 4 pixels |
| Number of water pump connectors | 3 pixels |
| 1st M.2 highest PCI Express generation | 5.0 pixels |
| 1st M.2 largest key size | 25110 pixels |
| 2nd M.2 highest PCI Express generation | 5.0 pixels |
| 2nd M.2 largest key size | 22110 pixels |
| WLAN controller model | MediaTek MT7925 pixels |
| Antenna included | Jā mm |
| USB 3.2 Gen 2x2 connectors | 1 pixels |
| 3rd M.2 highest PCI Express generation | 5.0 pixels |
| 3rd M.2 largest key size | 22110 pixels |
| USB4 Gen 3x2 ports quantity | 2 pixels |
| 4th M.2 highest PCI Express generation | 4.0 pixels |
| 4th M.2 largest key size | 22110 pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Twin 16+2+2 Phases Digital VRM with DrMOS
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L

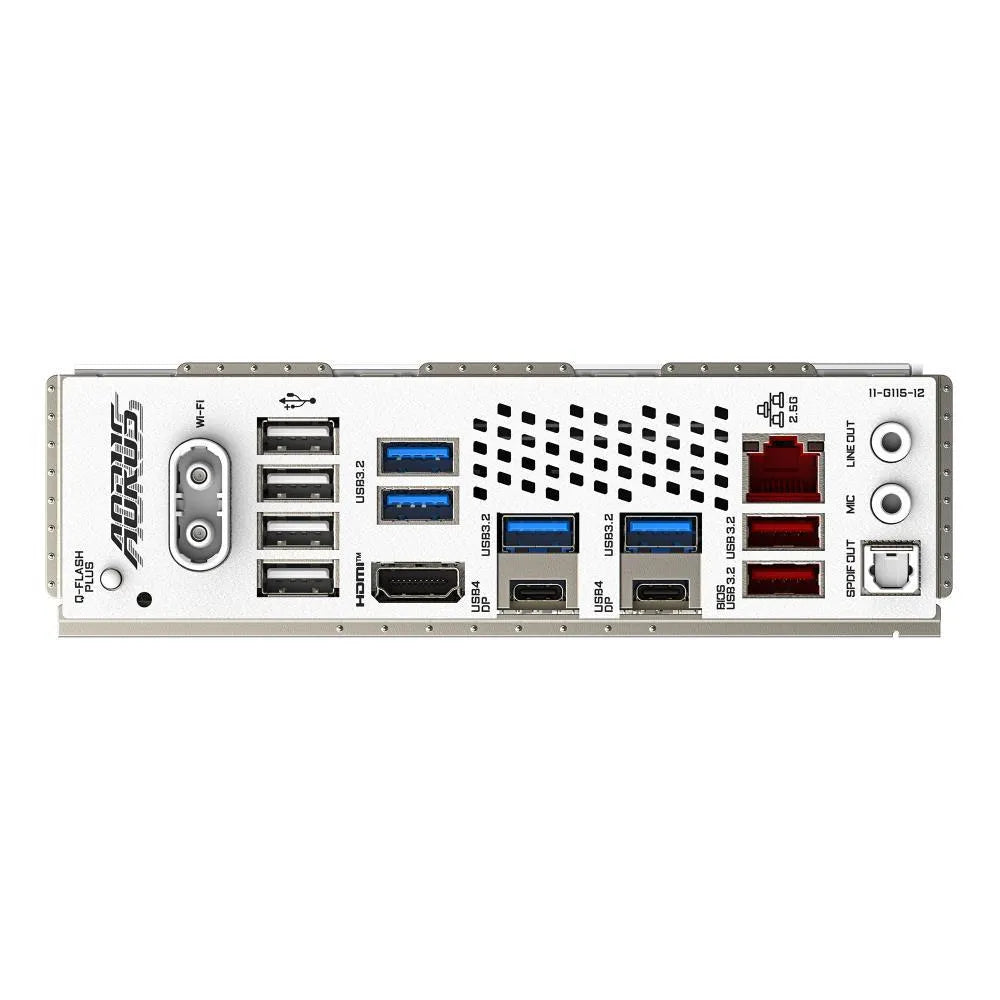

- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
