Mainboard|GIGABYTE|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|X870AELITEXICE
Parastā cena
€320,88
Parastā cena
Akcijas cena
€320,88
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
GIGABYTE
Pieejamība:
Ir noliktavā
SKU:
X870 A ELITE X ICE
Cena bez PVN 21%: €265,19
Parastā cena
€320,88
Parastā cena
Akcijas cena
€320,88
Specifikācija
| Vienības kastes platums | 0.08 kg |
| Vienības kastes garums | 0.335 kg |
| Vienības kastes augstums | 0.27 kg |
| Modelis | X870 AORUS ELITE X3D ICE g |
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.4 pixels |
| Units per Shipping Box | 5 g |
| Unit Calculated Volume | 0.01018 cubm |
| Unit Calculated Weight | 2.7 kg |

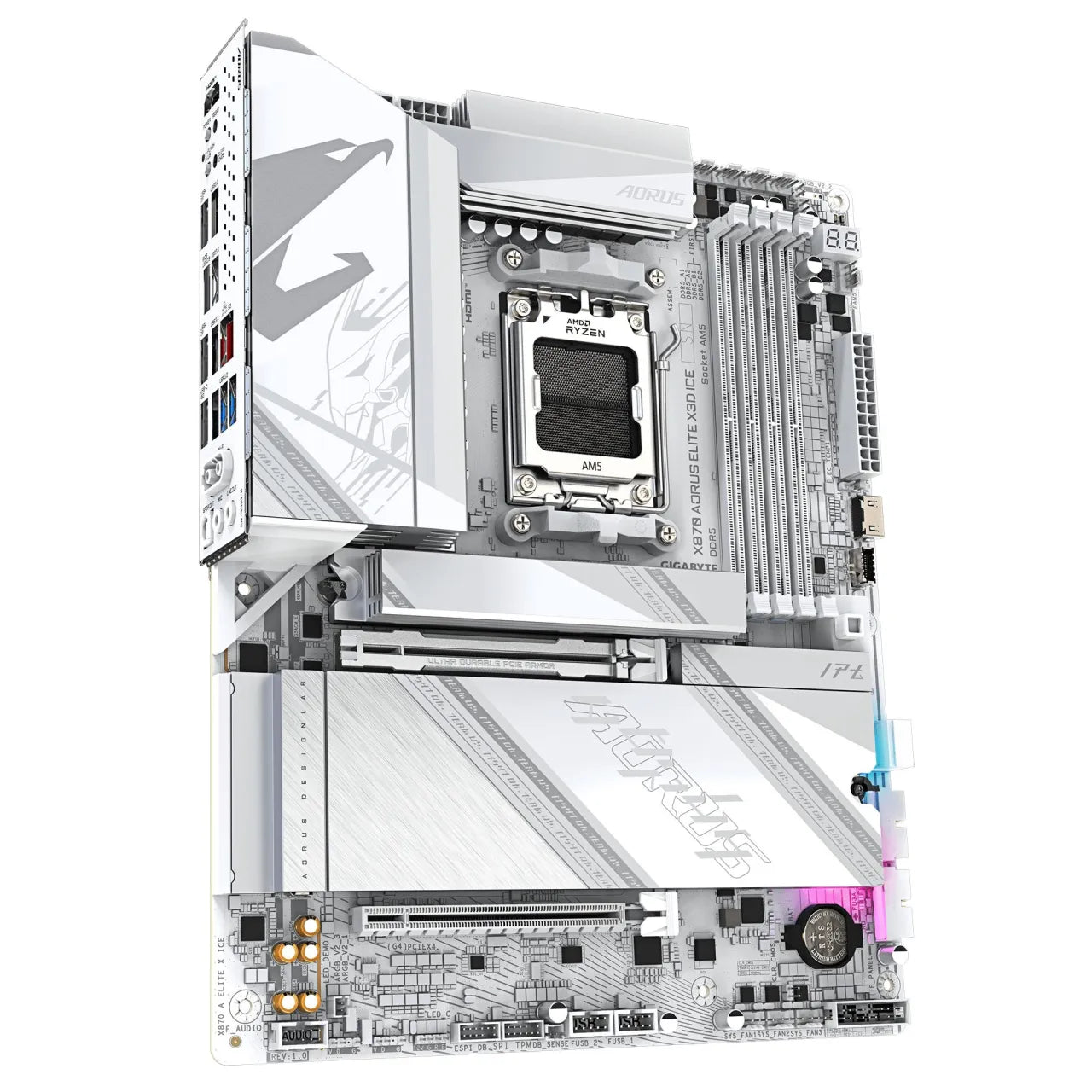

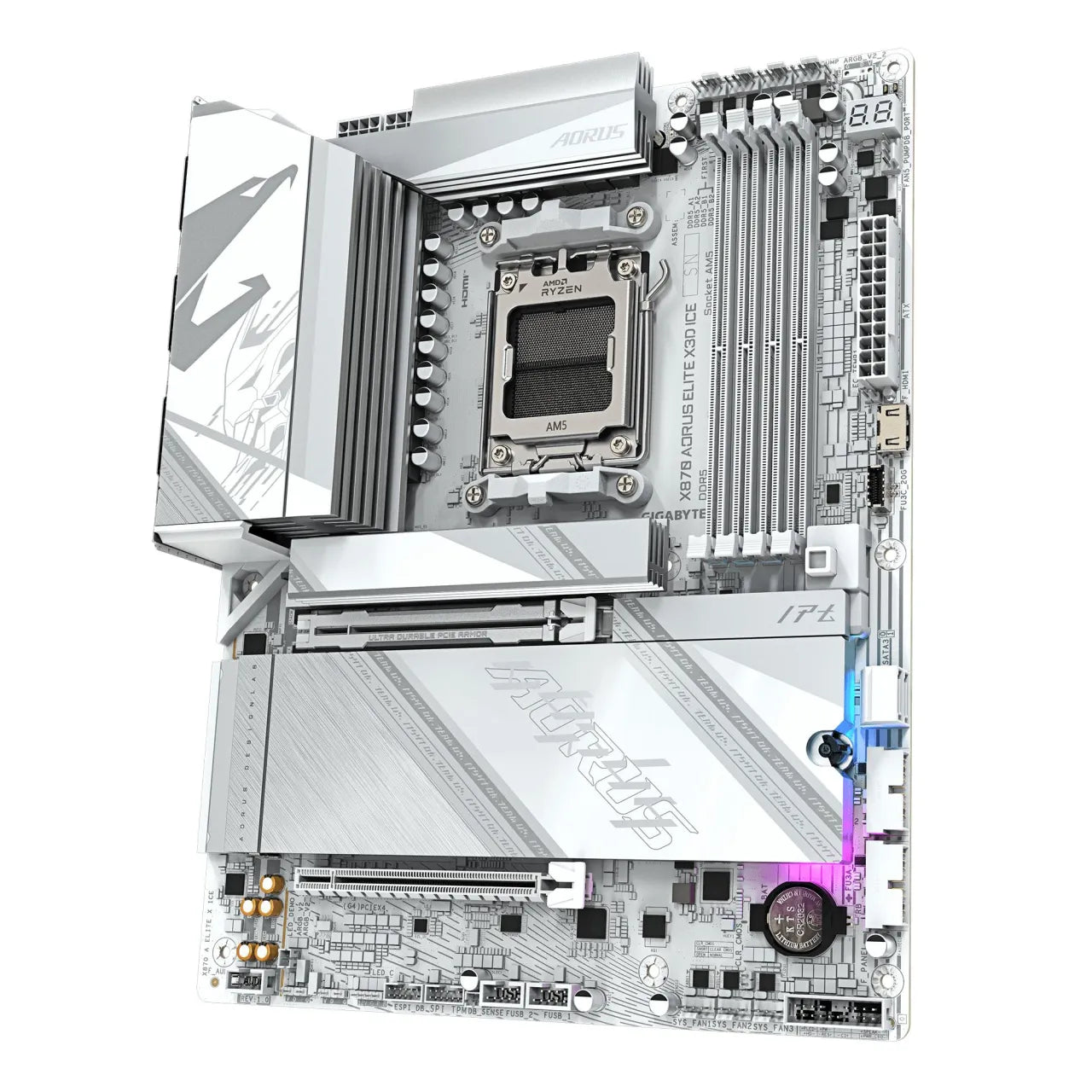

| Summary | GIGABYTE X870 AORUS ELITE X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be) kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 9000 MHz |
| Supported memory clock speeds | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 6 pixels |
| Number of SATA III connectors | 2 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 pixels |
| DisplayPort version | 1.4 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | 2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) pixels |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) pixels |
| Audio chip | Realtek ALC1220-VB kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Passive channels |
| Motherboard chipset | AMD X870 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 4 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| PCI Express x16 (Gen 5.x) slots | 1 pixels |
| BIOS memory size | 512 Mbit |
| S/PDIF out port | Jā pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| Clear CMOS button | Jā Mbit |
| Units per Pallet | X870 AORUS ELITE X3D ICE g |
| LAN controller | Realtek RTL8126 pixels |
| DirectX version | 12.0 MHz |
| Front panel connector | Jā pixels |
| PC health monitoring | CPU/Fan/Temperature/Voltage/Water cooling channels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) mm |
| Screws included | Jā mm |
| Number of HDDs supported | 2 MHz |
| Number of storage drives supported | 6 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 1 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 305 mm |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2304 pixels |
| Headphone outputs | 1 pixels |
| Product colour | White channels |
| Windows operating systems supported | Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2708 g |
| Package width | 335 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| Weight | 2420 g |
| Digital audio optical out | 1 pixels |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 2 pixels |
| Number of EPS power connectors (8-pin) | 2 pixels |
| Number of RGB LED pin headers | 4 pixels |
| Number of water pump connectors | 3 pixels |
| 1st M.2 highest PCI Express generation | 5.0 pixels |
| 1st M.2 largest key size | 25110 pixels |
| 2nd M.2 highest PCI Express generation | 5.0 pixels |
| 2nd M.2 largest key size | 22110 pixels |
| WLAN controller model | Qualcomm QCNCM865 pixels |
| Antenna included | Jā mm |
| USB 3.2 Gen 2x2 connectors | 1 pixels |
| 3rd M.2 highest PCI Express generation | 4.0 pixels |
| 3rd M.2 largest key size | 22110 pixels |
| USB4 Gen 2x2 ports quantity | 2 pixels |
| 4th M.2 highest PCI Express generation | 4.0 pixels |
| 4th M.2 largest key size | 22110 pixels |
| Number of temperature sensor headers | 2 pixels |
| HDCP version | 2.3 MHz |
| Number of noise detection headers | 1 pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
