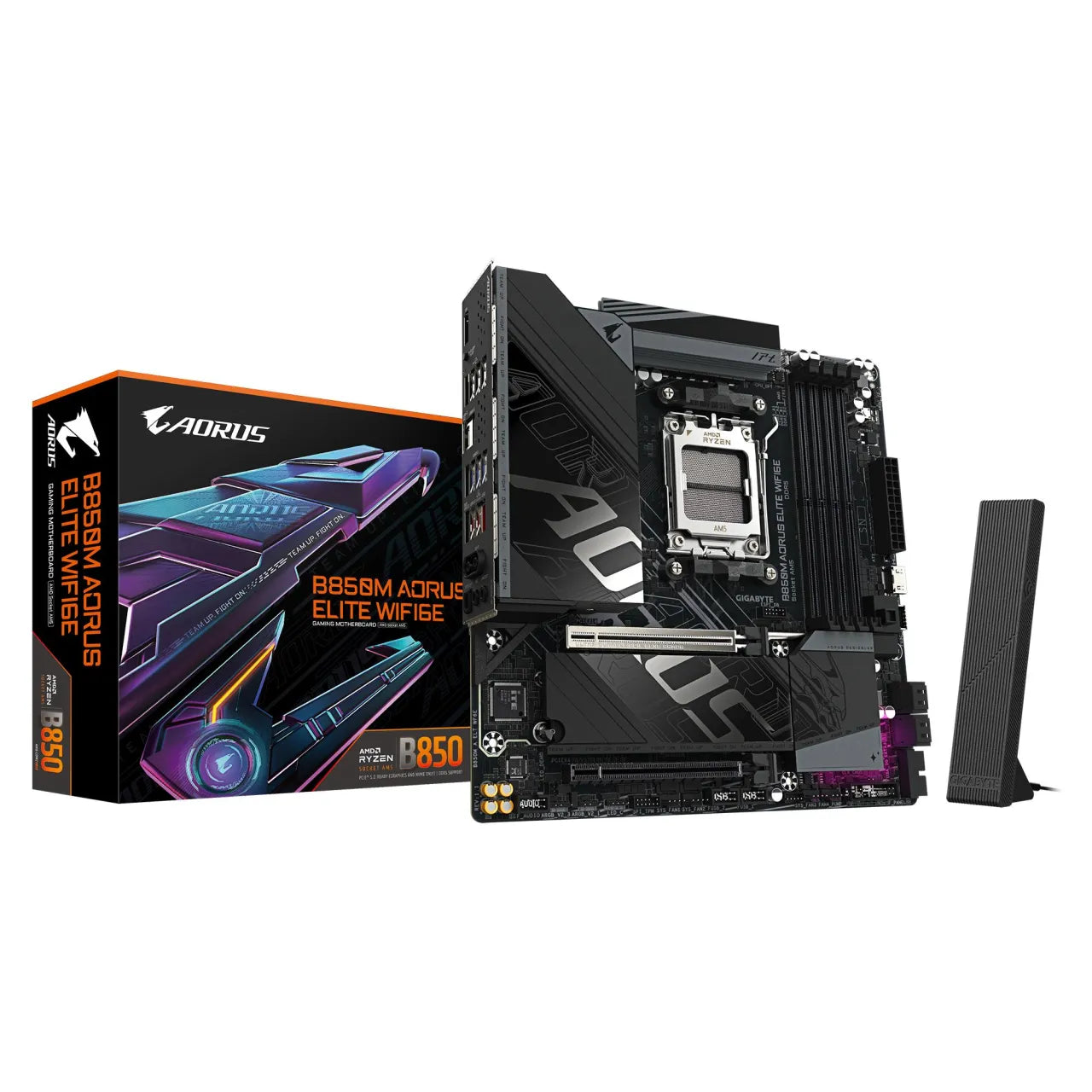

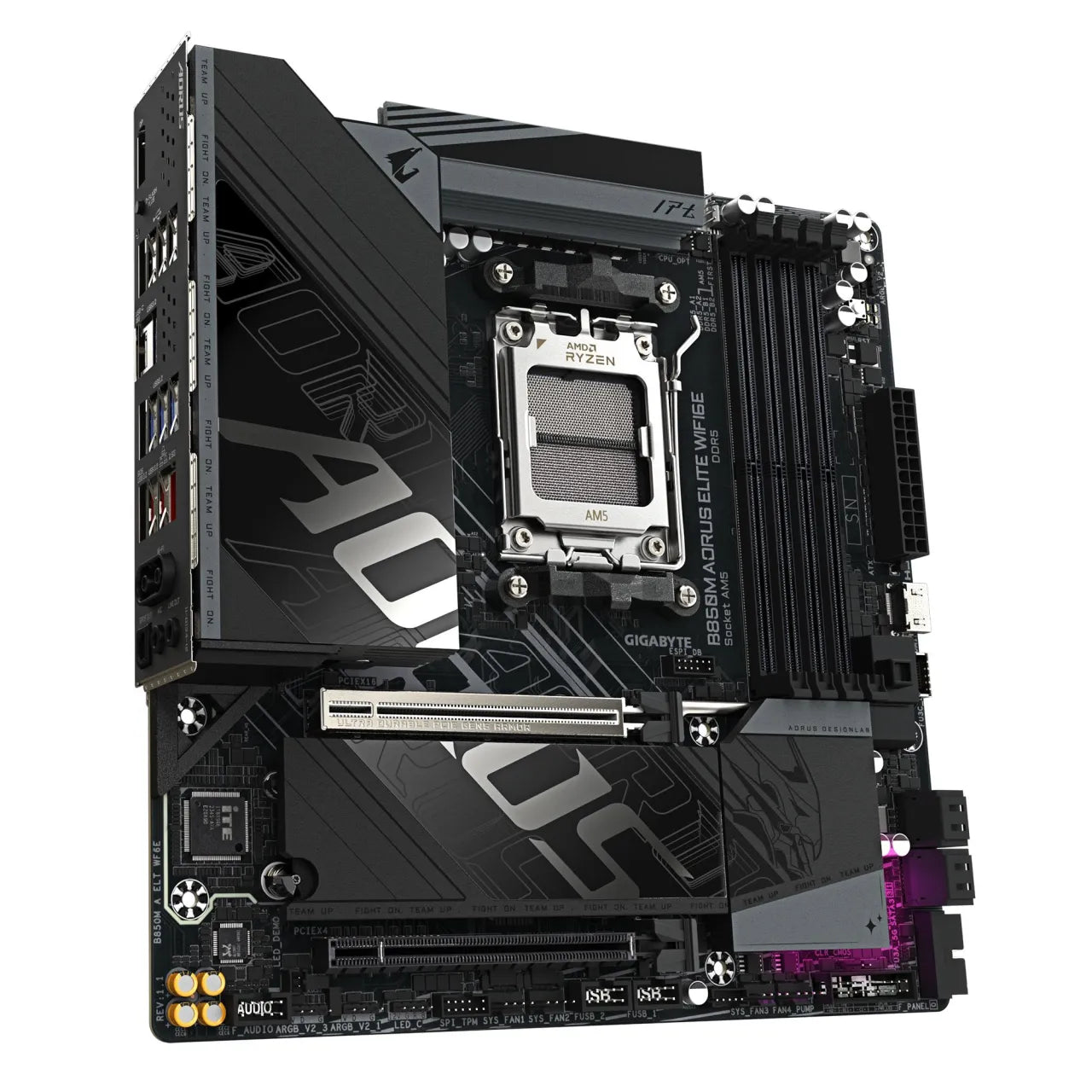

Mainboard|GIGABYTE|AMD B850|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|2xNumber of M.2 (M) slots|B850M AORUS ELITE WIFI6E (rev. 1.x)|B850MAELTWF6E1.1
Parastā cena
€212,27
Parastā cena
Akcijas cena
€212,27
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
GIGABYTE
Pieejamība:
Ir noliktavā
SKU:
B850M A ELT WF6E 1.1
Cena bez PVN 21%: €175,43
Parastā cena
€212,27
Parastā cena
Akcijas cena
€212,27
Specifikācija
| Vienības kastes platums | 0.27 kg |
| Vienības kastes garums | 0.27 kg |
| Vienības kastes augstums | 0.07 kg |
| Modelis | B850M AORUS ELITE WIFI6E (rev. 1.x) g |
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.3 pixels |
| Units per Shipping Box | 8 g |
| Unit Calculated Volume | 0.006549 cubm |
| Unit Calculated Weight | 1.96 kg |
| Summary | GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 4 pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 pixels |
| DisplayPort version | 1.4 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | 2.5 Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) pixels |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) pixels |
| Audio chip | Realtek ALC1220-VB kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Passive channels |
| Motherboard chipset | AMD B850 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | micro ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 2 pixels |
| PCI Express x16 (Gen 5.x) slots | 1 pixels |
| BIOS memory size | 256 Mbit |
| S/PDIF out port | Jā pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| Units per Pallet | B850M AORUS ELITE WIFI6E (rev. 1.x) g |
| LAN controller | Realtek RTL8125 pixels |
| DirectX version | 12.0 MHz |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling channels |
| PCI Express x16 (Gen 3.x) slots | 1 pixels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software mm |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 6 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 4 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 244 mm |
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 1 pixels |
| Product colour | Black channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1972.5 g |
| Package width | 270 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 1.4 pixels |
| Weight | 1780 g |
| Digital audio optical out | 1 pixels |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 2 pixels |
| Number of EPS power connectors (8-pin) | 1 pixels |
| Number of RGB LED pin headers | 4 pixels |
| Number of water pump connectors | 2 pixels |
| 1st M.2 highest PCI Express generation | 5.0 pixels |
| 1st M.2 largest key size | 25110 pixels |
| 2nd M.2 highest PCI Express generation | 4.0 pixels |
| 2nd M.2 largest key size | 22110 pixels |
| WLAN controller model | Realtek RTL8852CE pixels |
| Antenna included | Jā mm |
| USB 3.2 Gen 2x2 connectors | 1 pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
