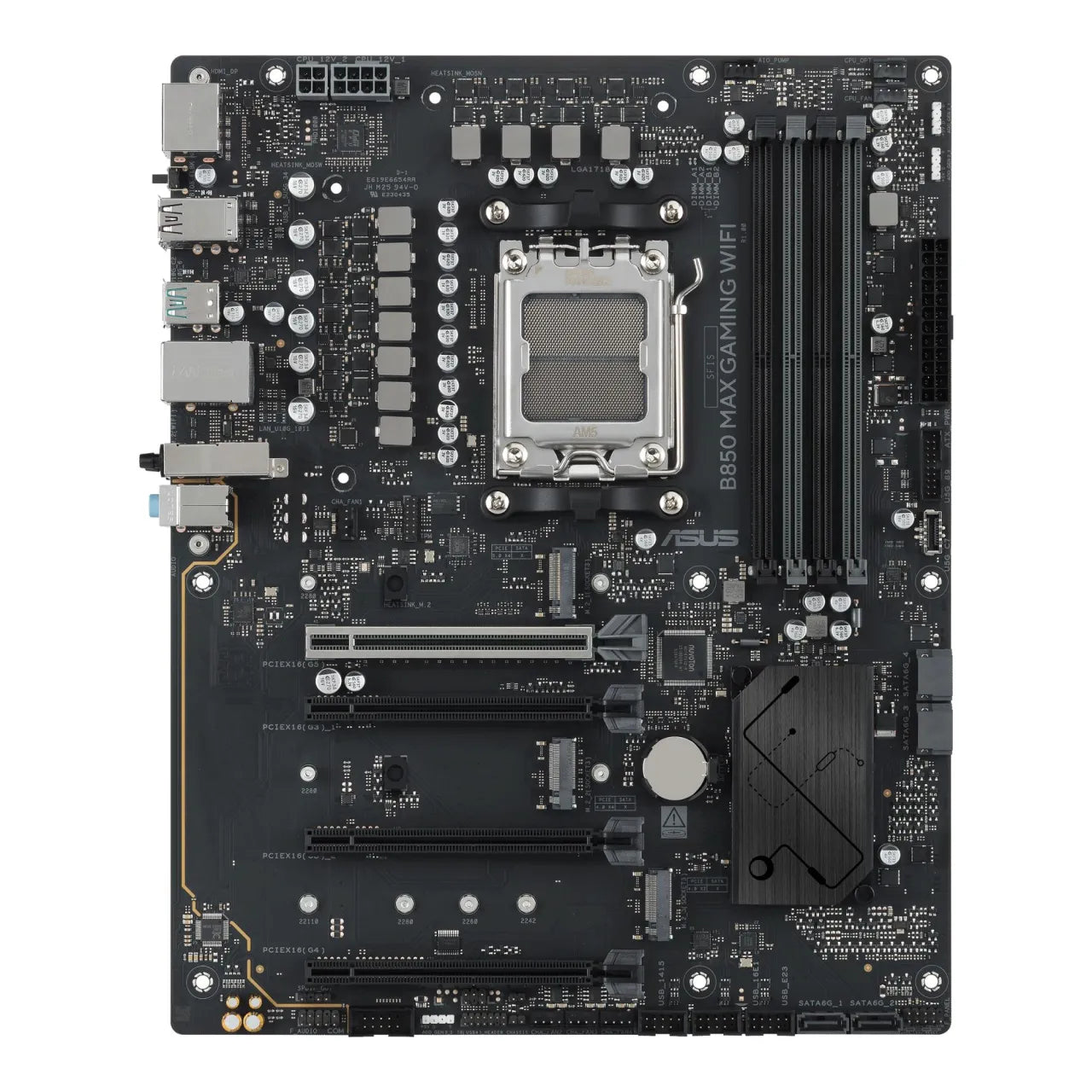

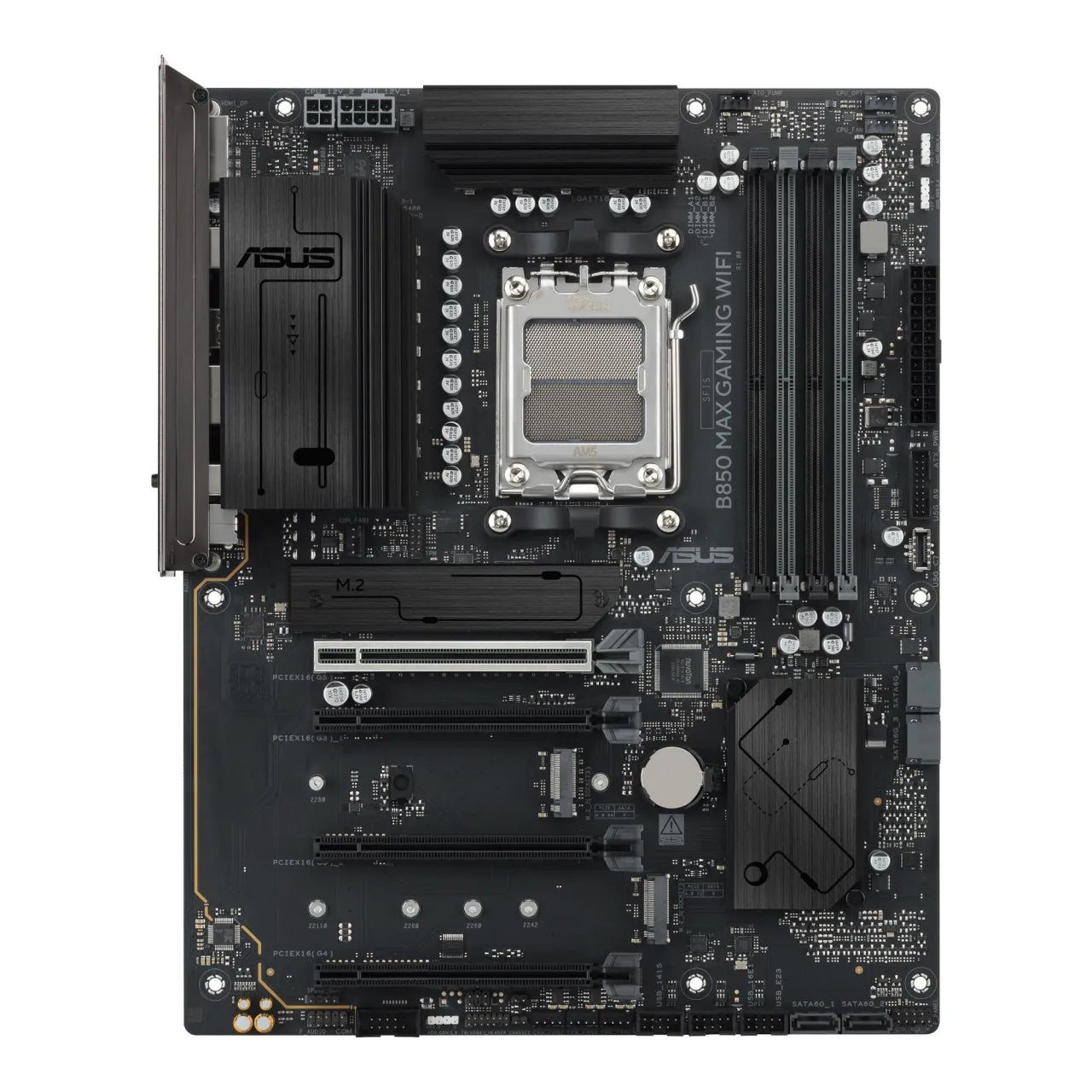

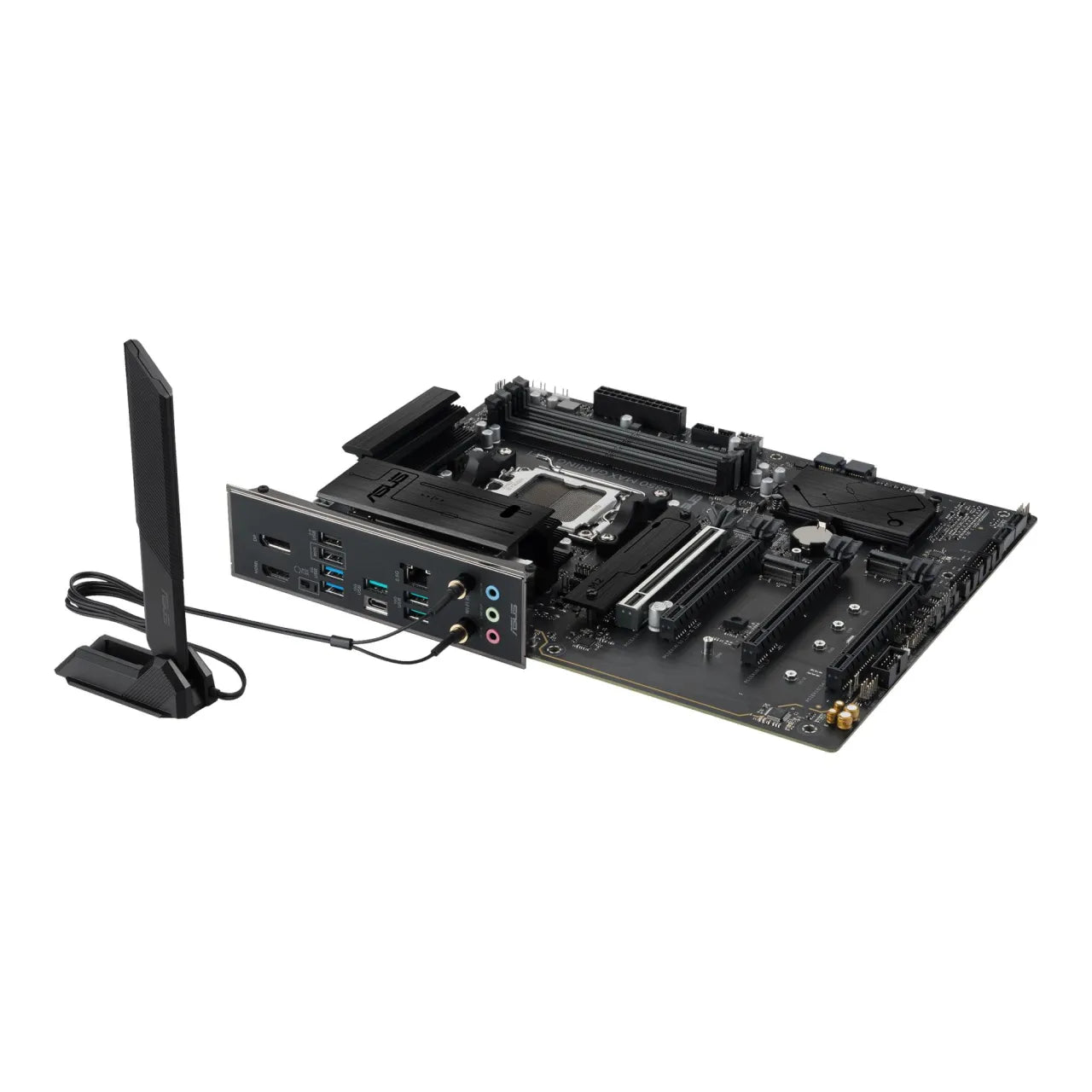

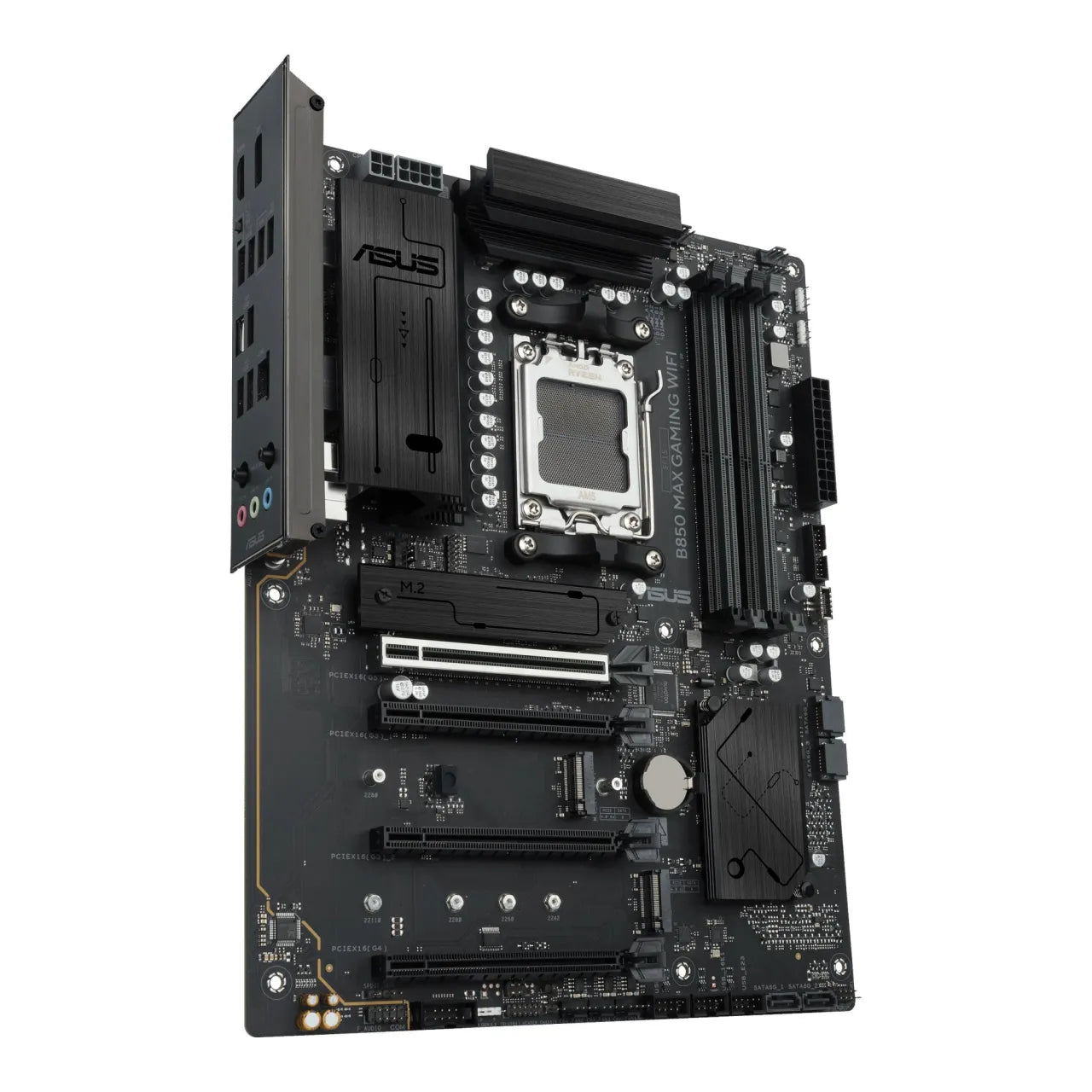

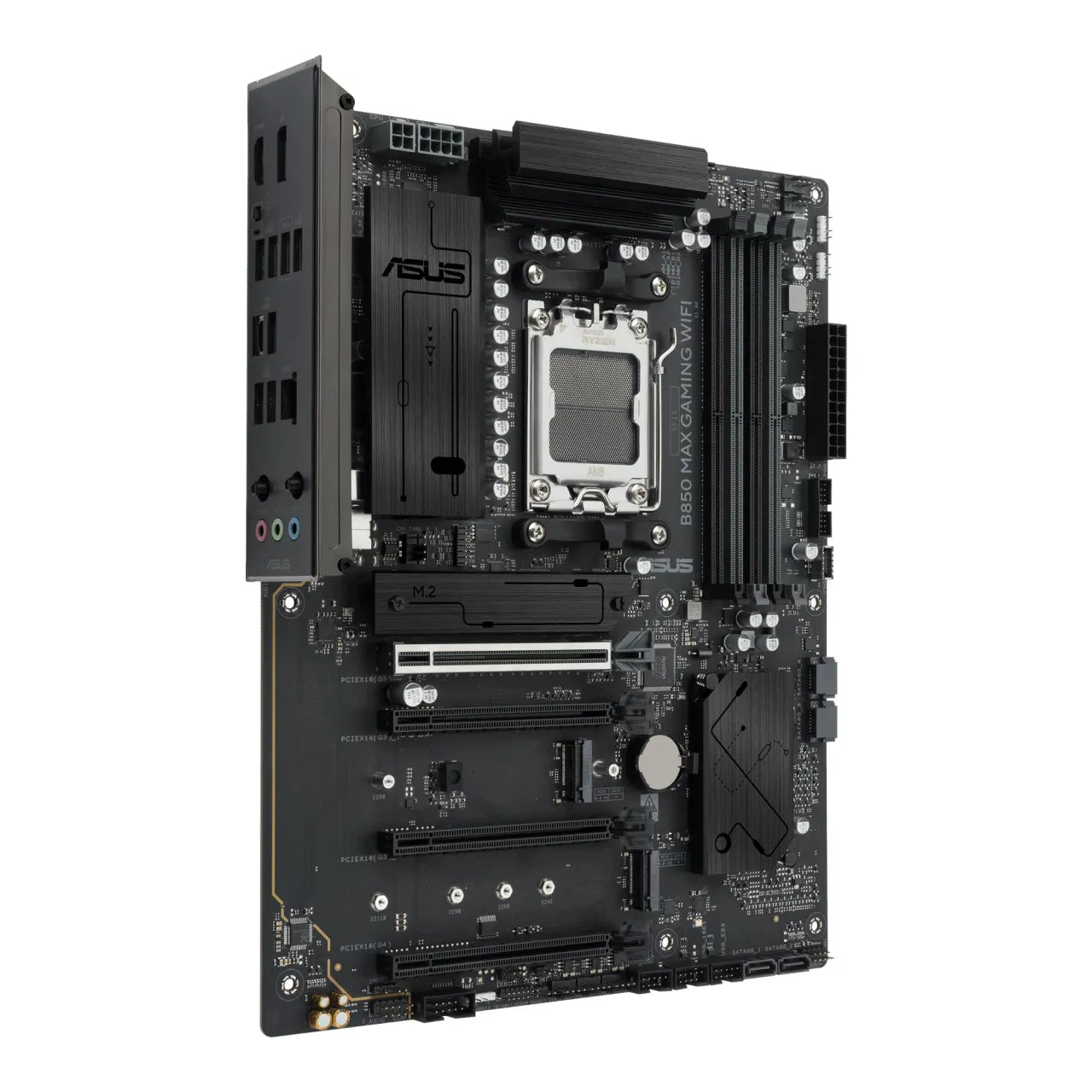

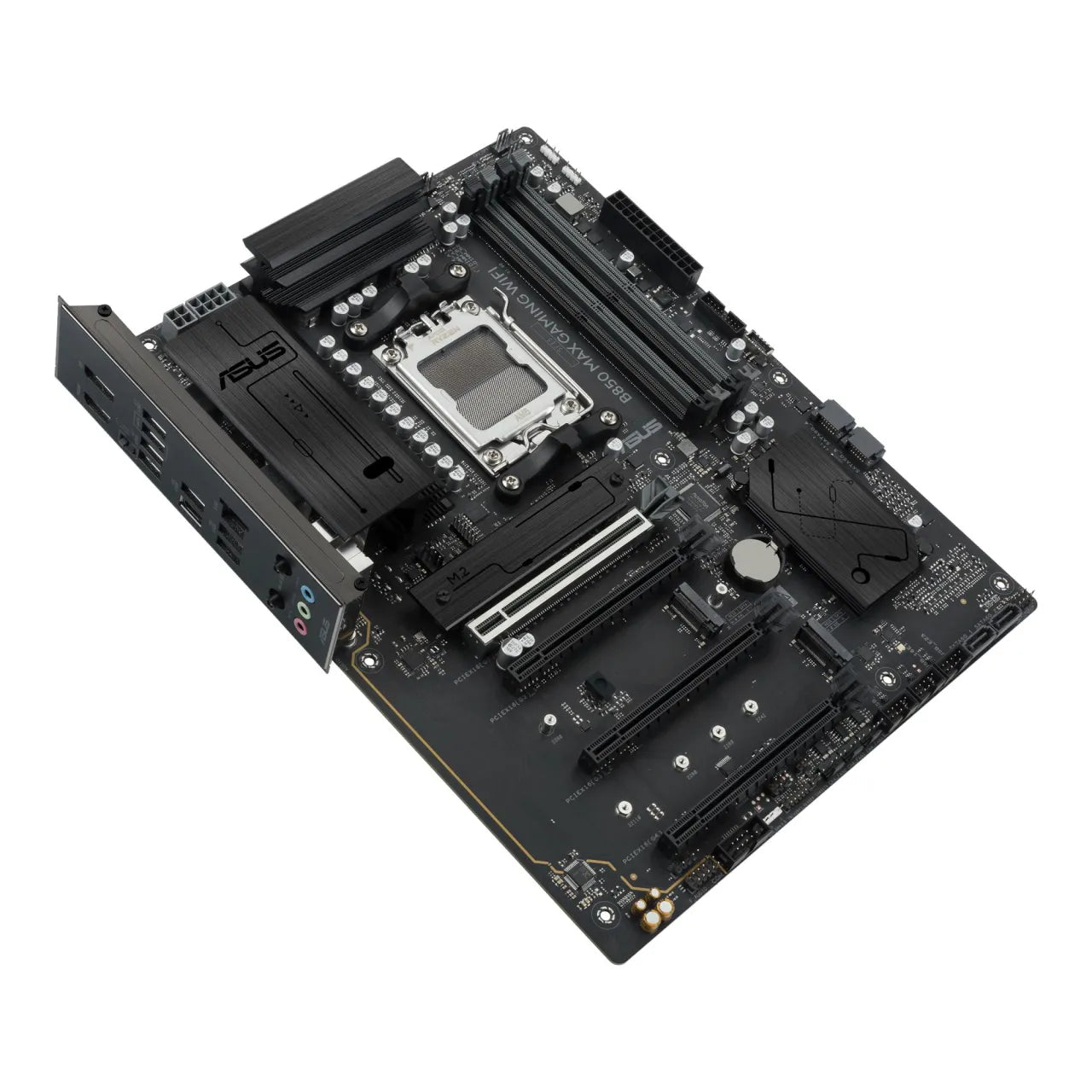

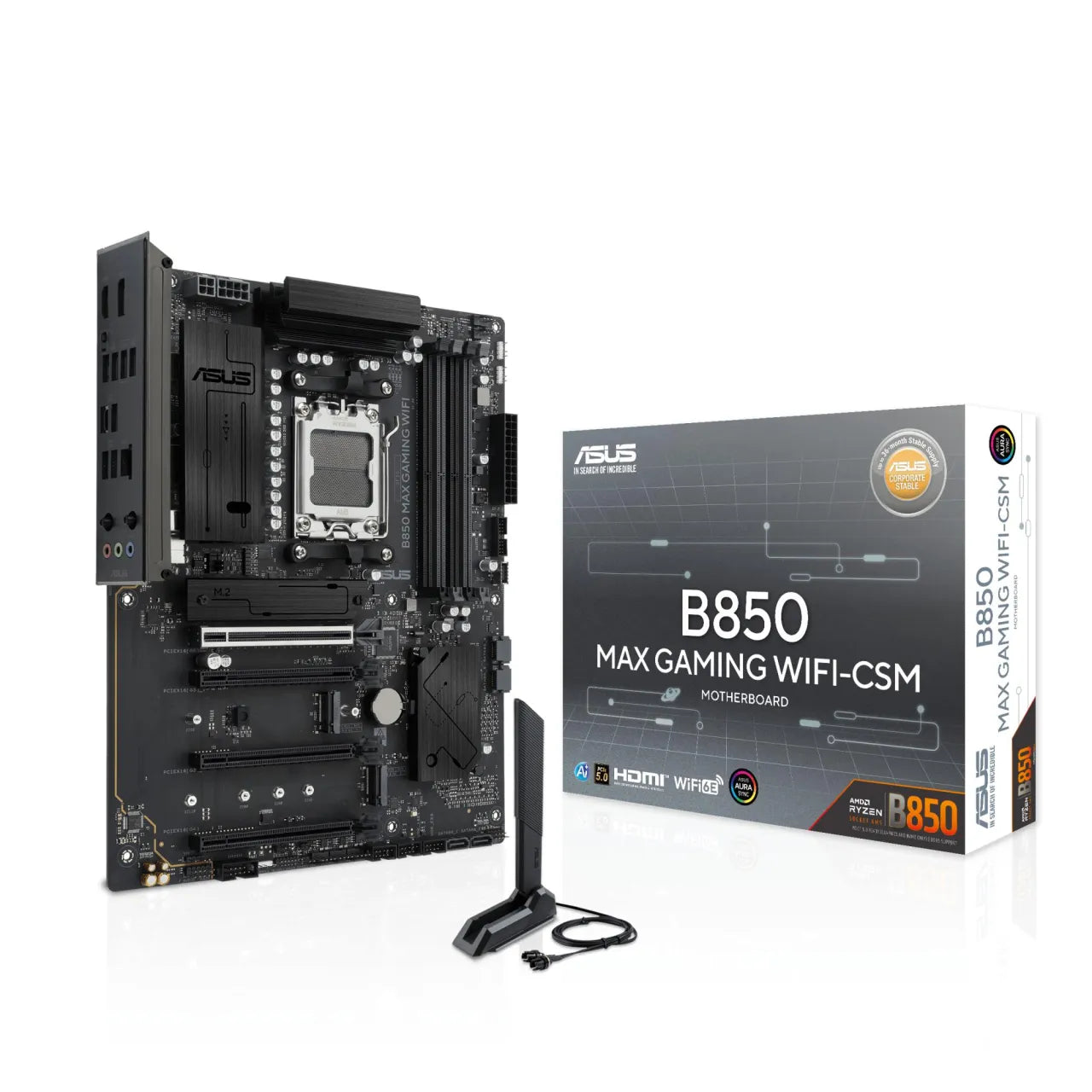

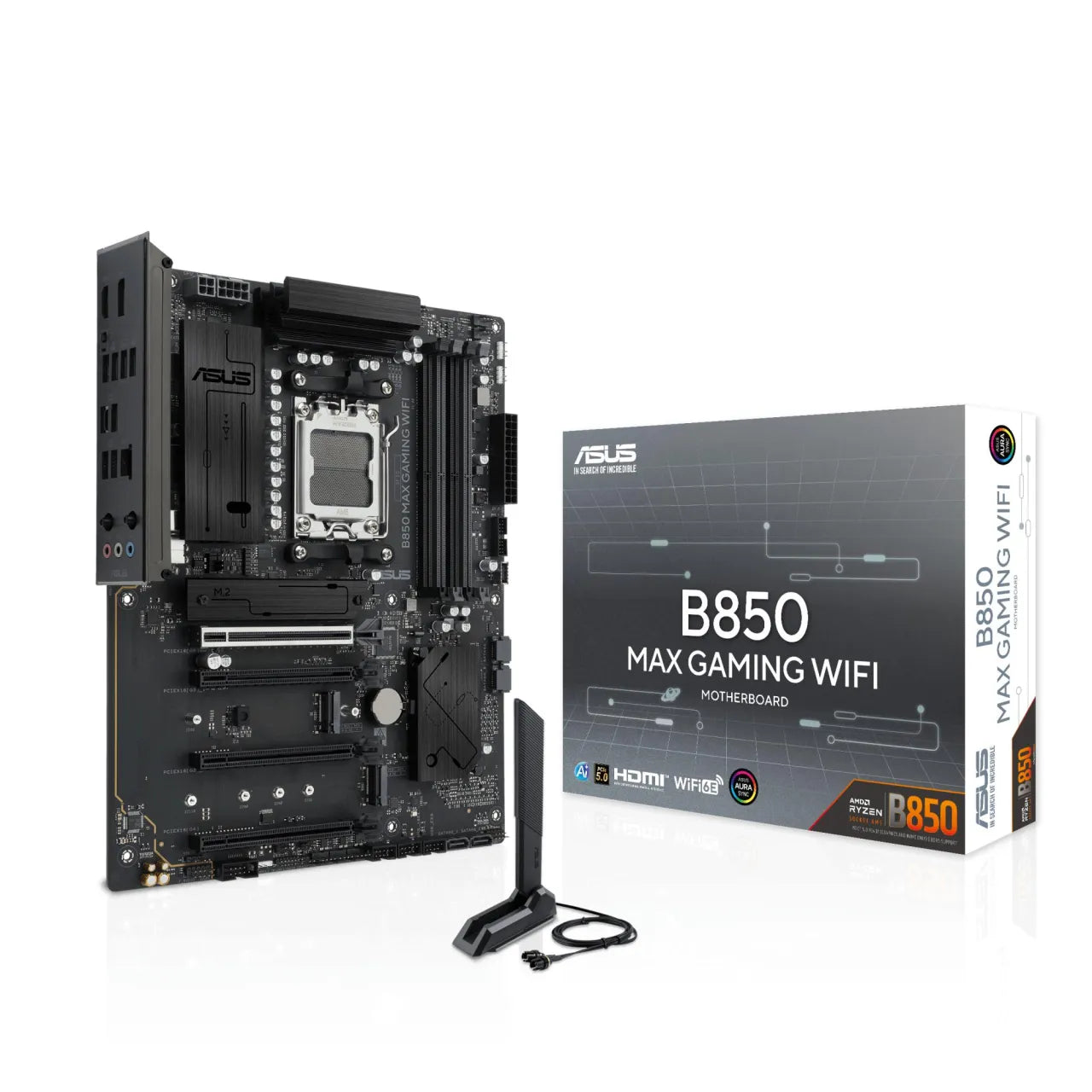

Mainboard|ASUS|AMD B850|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|B850MAXGAMINGWIFI
Parastā cena
€200,80
Parastā cena
Akcijas cena
€200,80
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
ASUS
Pieejamība:
Low stock
SKU:
B850 MAX GAMING WIFI
Cena bez PVN 21%: €165,95
Parastā cena
€200,80
Parastā cena
Akcijas cena
€200,80
Specifikācija
| Bluetooth | Jā pixels |
| Bluetooth versija | 5.4 pixels |
| Unit Calculated Volume | 0.007992 cubm |
| Unit Calculated Weight | 1.8 kg |
| Summary | ASUS B850 MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax) |
| Summary | ASUS B850 MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax) |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | ECC & Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 9000 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 4 pixels |
| Number of COM connectors | 1 pixels |
| Number of SATA III connectors | 4 pixels |
| Peripheral (Molex) power connectors (4-pin) | 1 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 3 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 pixels |
| DisplayPort version | 1.4 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| Microphone in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 pixels |
| WiFi-AP antenna jack | 2 pixels |
| Ethernet interface type | 2.5 Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) pixels |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) pixels |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Passive channels |
| Motherboard chipset | AMD B850 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 3 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| PCI Express x16 (Gen 5.x) slots | 1 pixels |
| BIOS memory size | 256 Mbit |
| Chassis intrusion connector | Jā pixels |
| Thunderbolt headers | 1 pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 pixels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| CnCode | 84733020 |
| Front panel connector | Jā pixels |
| PCI Express x16 (Gen 3.x) slots | 2 pixels |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 2 pixels |
| Wi-Fi | Jā pixels |
| Depth | 244 mm |
| Width | 305 mm |

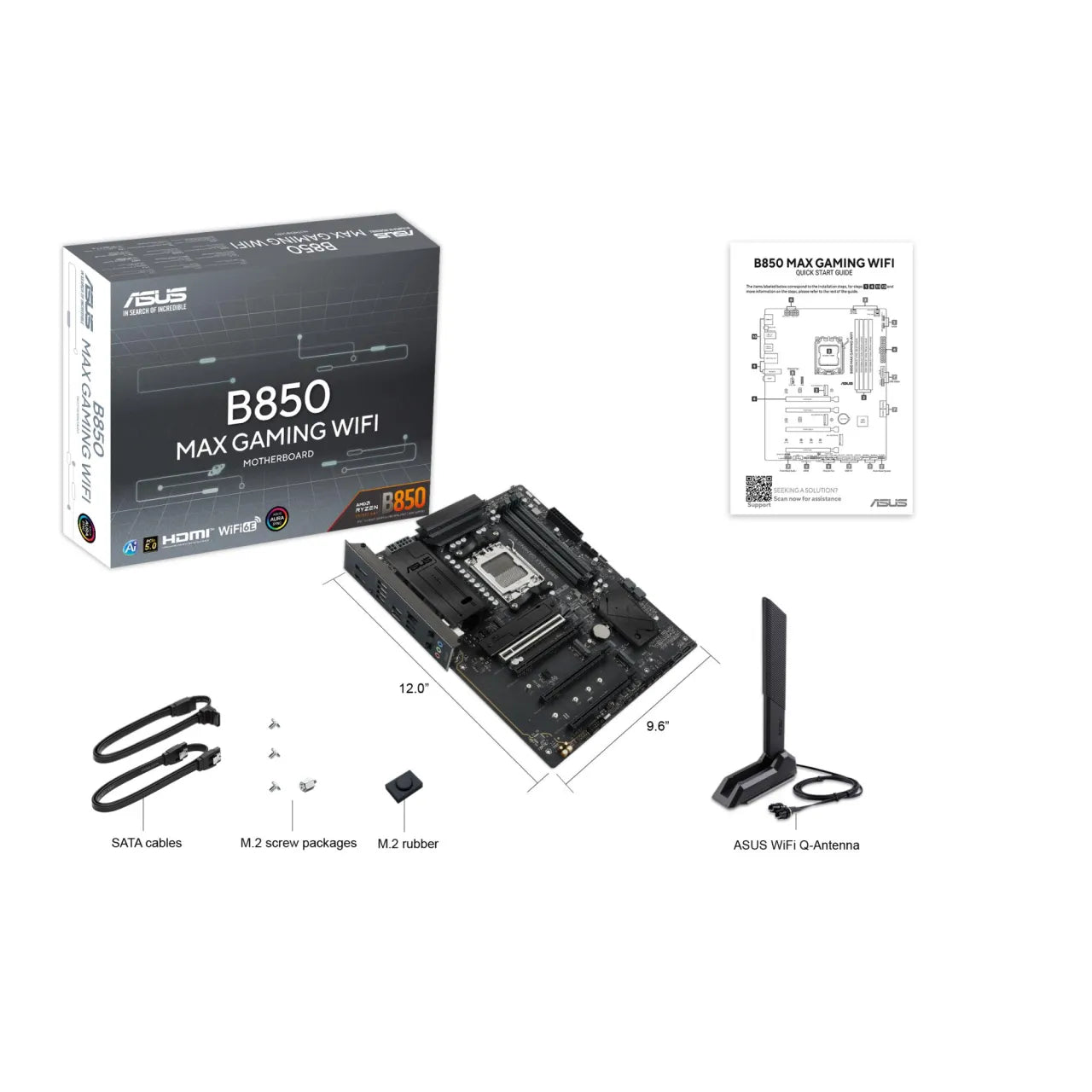

| Cables included | SATA mm |
| Maximum resolution | 7680 x 4320 pixels |
| S/PDIF out connector | Jā pixels |
| DisplayPorts quantity | 1 pixels |
| Headphone outputs | 1 pixels |
| Product colour | Black channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 channels |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1260 g |
| Package width | 353 mm |
| Height | 48 mm |
| HDMI version | 2.1 pixels |
| Weight | 1050 g |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 1 pixels |
| Number of EPS power connectors (8-pin) | 1 pixels |
| Number of RGB LED pin headers | 3 pixels |
| Number of water pump connectors | 1 pixels |
| 1st M.2 highest PCI Express generation | 5.0 pixels |
| 1st M.2 largest key size | 2280 pixels |
| 2nd M.2 highest PCI Express generation | 4.0 pixels |
| 2nd M.2 largest key size | 2280 pixels |
| Antenna included | Jā mm |
| 3rd M.2 highest PCI Express generation | 4.0 pixels |
| 3rd M.2 largest key size | 22110 pixels |
| BIOS flashback button | Jā pixels |
Apraksts
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications./
B850 MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
