Mainboard|ASUS|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|5xUSB 2.0|2xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|B850MMAXGAMINGWIFI
Parastā cena
€203,60
Parastā cena
Akcijas cena
€203,60
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
ASUS
Pieejamība:
Low stock
SKU:
B850M MAX GAMING WIFI
Cena bez PVN 21%: €168,26
Parastā cena
€203,60
Parastā cena
Akcijas cena
€203,60
Specifikācija
| Vienības kastes platums | 0.07 kg |
| Vienības kastes garums | 0.275 kg |
| Vienības kastes augstums | 0.27 kg |
| Modelis | B850M MAX GAMING WIFI g |
| Bluetooth | Jā GB |
| Bluetooth versija | 5.4 GB |
| Units per Shipping Box | 10 g |
| Unit Calculated Volume | 0.006259 cubm |
| Unit Calculated Weight | 1.52 kg |
| Summary | ASUS B850M MAX GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | ECC & Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory types | DDR5-SDRAM GB |
| Unbuffered memory | Jā GB |
| RAID levels | 0/1/10/5 GB |
| RAID support | Jā GB |
| Supported storage drive interfaces | M.2,SATA III GB |
| Supported storage drive types | HDD & SSD GB |
| Parallel processing technology support | Not supported GB |
| 12V power connector | Jā GB |
| ATX Power connector (24-pin) | Jā GB |
| CPU fan connector | Jā GB |
| EPS power connector (8-pin) | Jā GB |
| Front panel audio connector | Jā GB |
| Number of chassis fan connectors | 4 GB |
| Number of COM connectors | 1 GB |
| Number of SATA III connectors | 4 GB |
| RGB LED pin header | Jā GB |
| TPM connector | Jā GB |
| USB 2.0 connectors | 2 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 GB |
| Ethernet LAN (RJ-45) ports | 1 GB |
| Line-in | Jā GB |
| Microphone in | Jā GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 GB |
| WiFi-AP antenna jack | 1 GB |
| Ethernet interface type | Gigabit Ethernet GB |
| Ethernet LAN | Jā GB |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) GB |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) GB |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Passive channels |
| Motherboard chipset | AMD B850 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | micro ATX channels |
| Number of M.2 (M) slots | 3 GB |
| PCI Express x16 (Gen 4.x) slots | 3 GB |
| PCI Express x16 (Gen 5.x) slots | 1 GB |
| BIOS memory size | 256 Mbit |
| Chassis intrusion connector | Jā GB |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 GB |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 GB |
| BIOS type | UEFI AMI Mbit |
| Front panel connector | Jā GB |
| Screws included | Jā mm |
| Number of HDDs supported | 4 GB |
| Number of storage drives supported | 7 GB |
| HDMI ports quantity | 1 GB |
| USB 2.0 ports quantity | 5 GB |
| Wi-Fi | Jā GB |
| Depth | 244 mm |
| Width | 244 mm |
| Cables included | SATA mm |
| S/PDIF out connector | Jā GB |
| DisplayPorts quantity | 1 GB |
| Product colour | Black channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 channels |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1383 g |
| Package width | 275 mm |
| Weight | 859 g |
| Number of RGB LED pin headers | 3 GB |
| 1st M.2 highest PCI Express generation | 5.0 GB |
| 1st M.2 largest key size | 2280 GB |
| 2nd M.2 highest PCI Express generation | 4.0 GB |
| 2nd M.2 largest key size | 2280 GB |
| Antenna included | Jā mm |
| 3rd M.2 highest PCI Express generation | 3.0 GB |
| 3rd M.2 largest key size | 2280 GB |
Apraksts

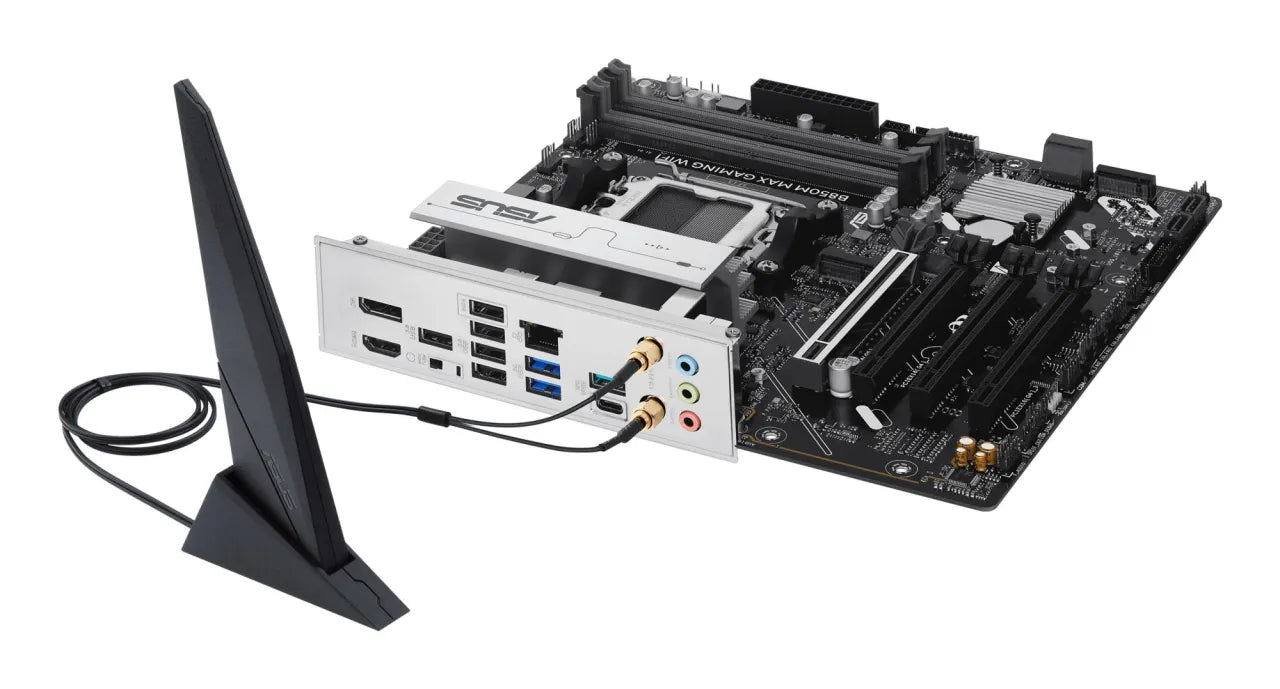

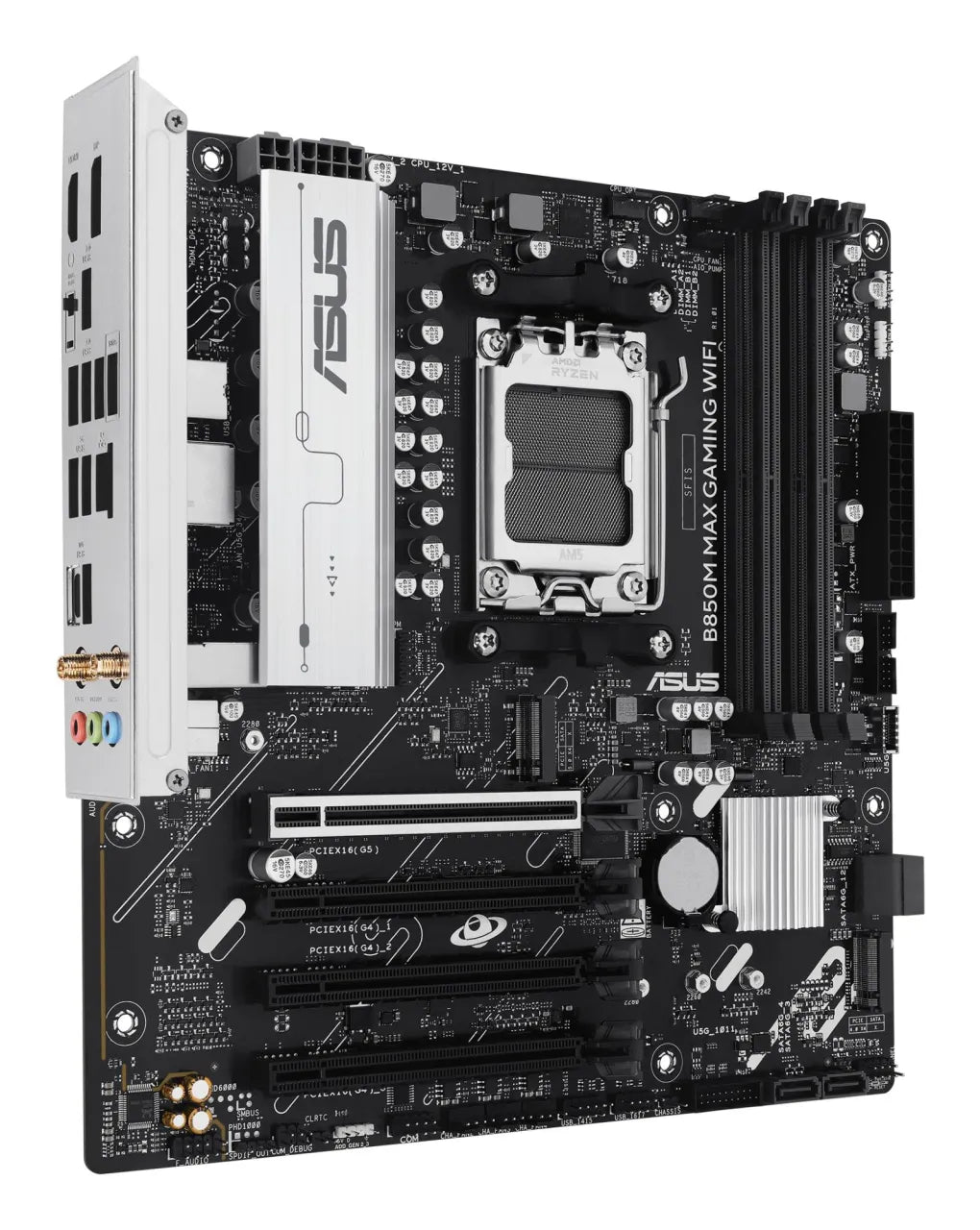

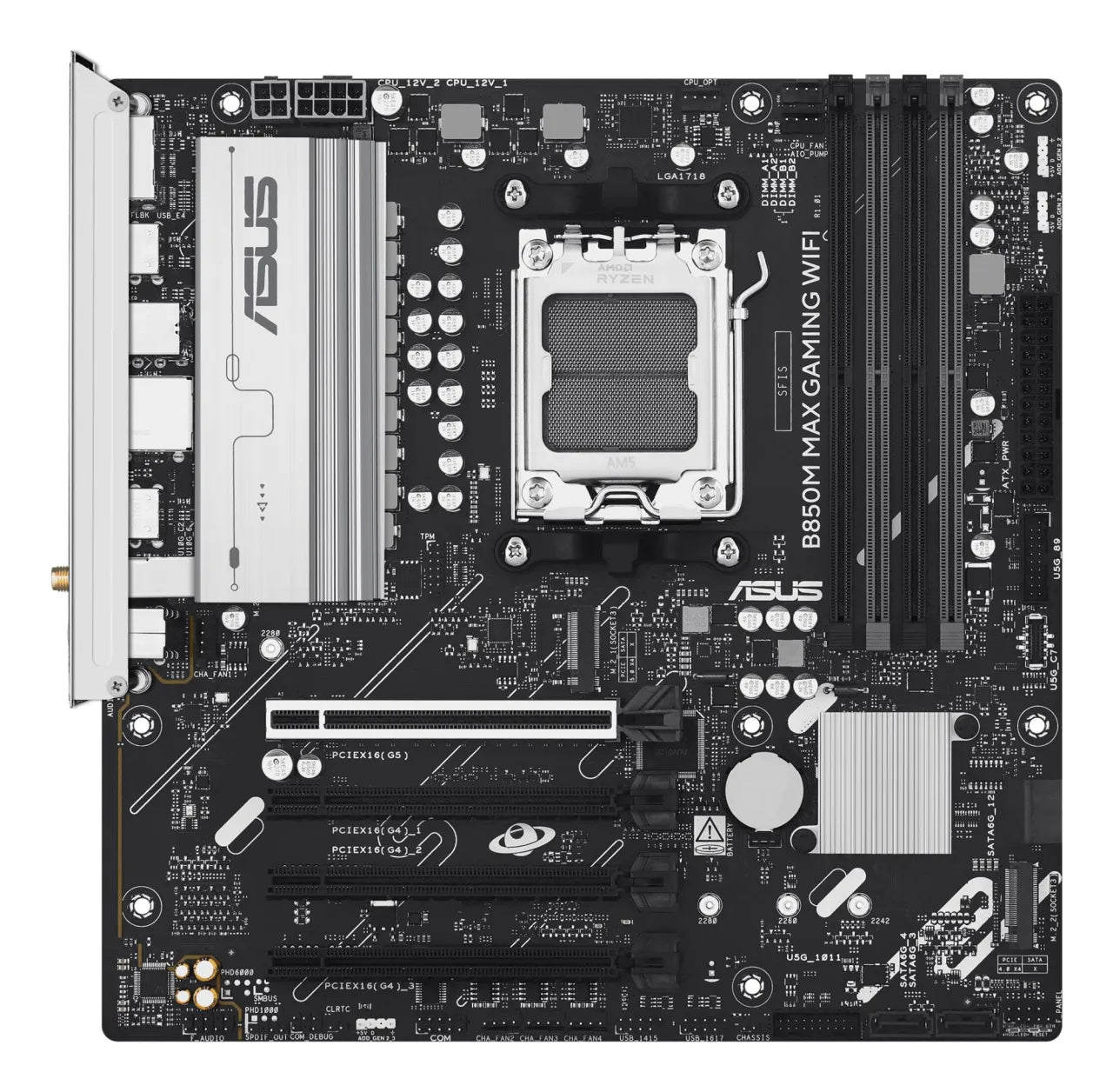

B850M MAX GAMING WIFI
B850M MAX GAMING WIFI motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M MAX GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
