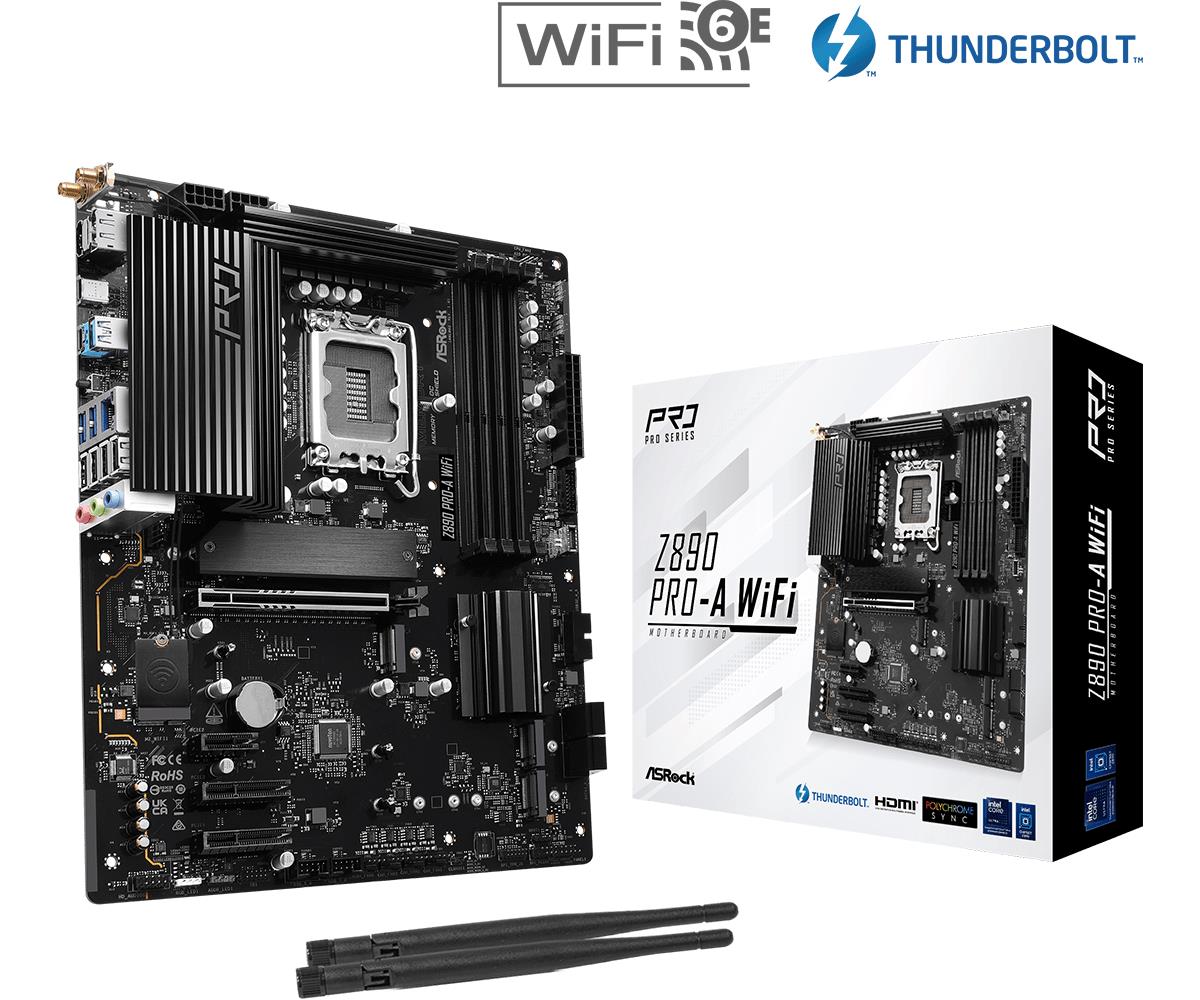

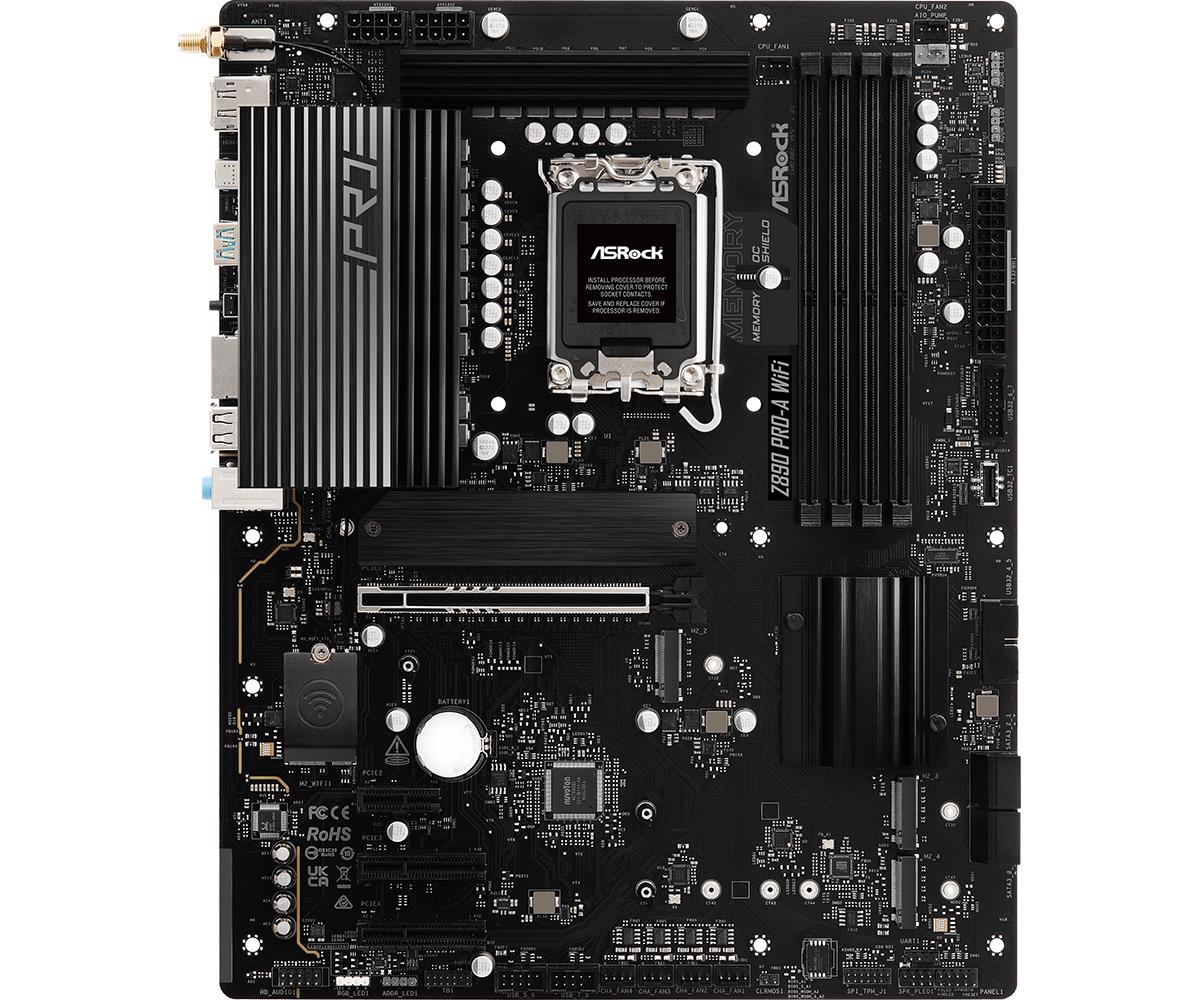

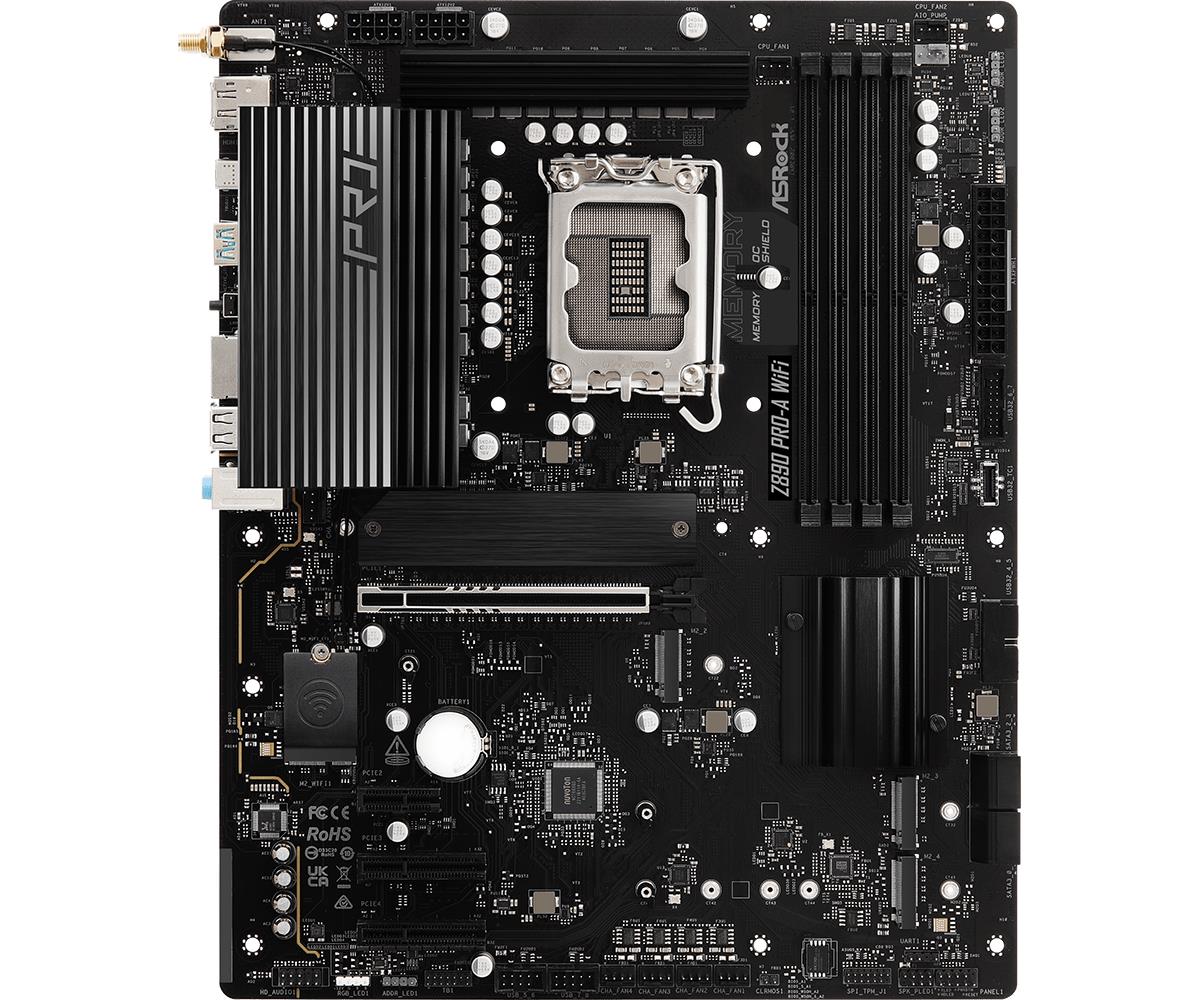

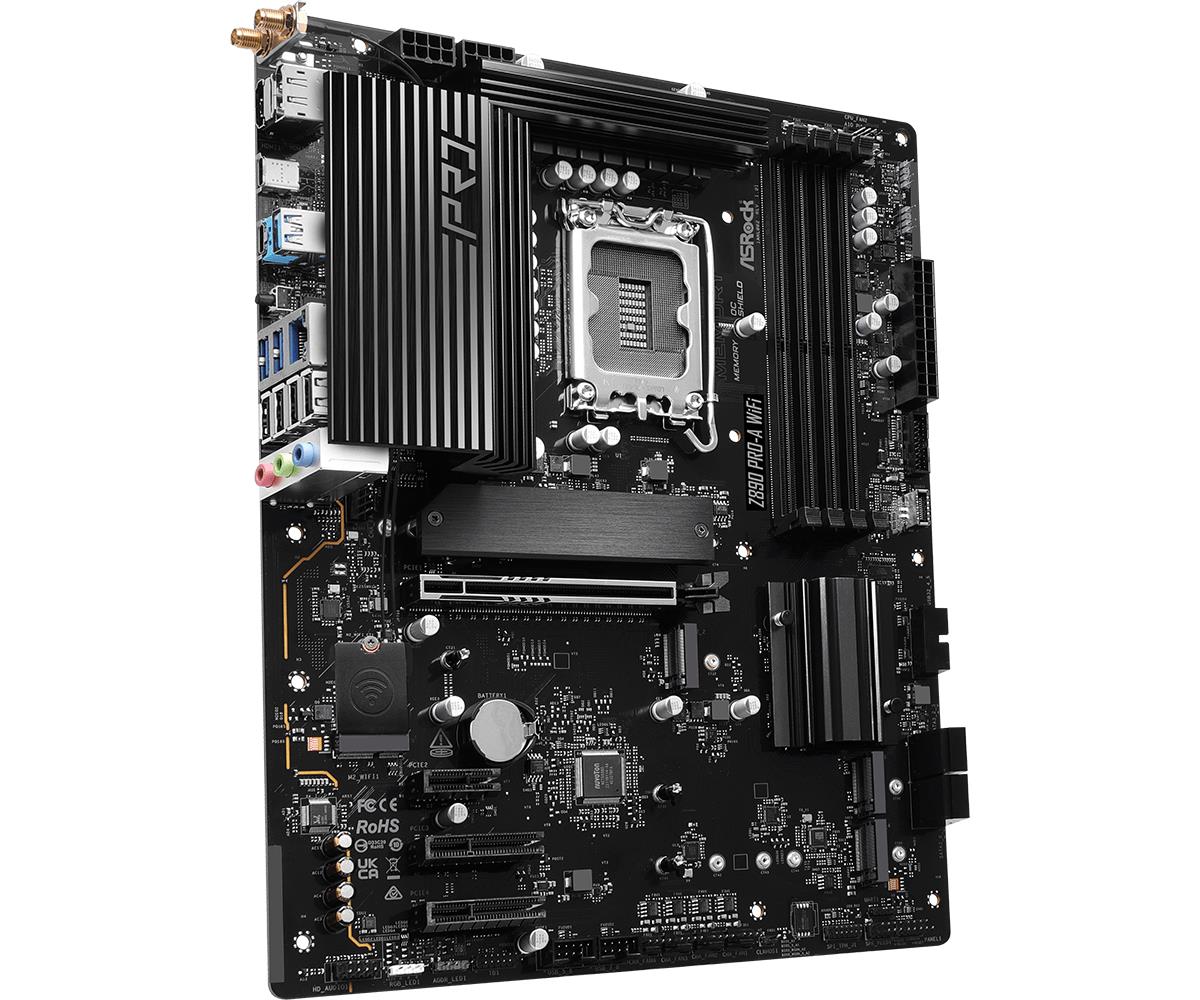

Mainboard|ASROCK|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|Z890PRO-AWIFI
Parastā cena
€206,18
Parastā cena
Akcijas cena
€206,18
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
ASROCK
Pieejamība:
Low stock
SKU:
Z890 PRO-A WIFI
Cena bez PVN 21%: €170,40
Parastā cena
€206,18
Parastā cena
Akcijas cena
€206,18
Specifikācija
| Vienības kastes platums | 0.28 kg |
| Vienības kastes garums | 0.35 kg |
| Vienības kastes augstums | 0.075 kg |
| Modelis | Z890 Pro-A WiFi mm |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.3 MHz |
| Units per Shipping Box | 5 mm |
| Unit Calculated Volume | 0.00888 cubm |
| Unit Calculated Weight | 1.9 kg |
| Summary | Asrock Z890 Pro-A WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel Core Ultra (Series 2) channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1851 (Socket V1) channels |
| Supported processor sockets | LGA 1851 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 9066 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| 12V power connector | Jā MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of chassis fan connectors | 5 MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 2 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Line-in | Jā MHz |
| Microphone in | Jā MHz |
| Thunderbolt ports quantity | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) MHz |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel Z890 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | ATX channels |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 MHz |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 MHz |
| PCI Express x4 (Gen 4.x) slots | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| Units per Pallet | Z890 Pro-A WiFi mm |
| LAN controller | Dragon RTL8125BG MHz |
| Screws included | Jā mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 8 MHz |
| PCI Express x1 (Gen 4.x) slots | 1 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Jā MHz |
| Depth | 244 mm |
| Width | 305 mm |
| Cables included | SATA mm |
| DisplayPorts quantity | 1 MHz |
| Headphone outputs | 1 MHz |
| Windows operating systems supported | Windows 11 x64 channels |
| Audio connector | Jā MHz |
| Number of CPU fan connectors | 2 MHz |
| USB 3.2 Gen 2x2 connectors | 1 MHz |
| Compliance certificates | CE/Federal Communications Commission (FCC) mm |
Apraksts
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
●Higher Capacitance: Greater charge storage for better support under high loads.
●Lower Ripple: Reduced power output fluctuations, improving quality.
●More Stable Output Current: Stable power supply, minimizing voltage impacts.
●Better Performance & System Stability: Increased reliability and consistent performance.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 9066+ (OC)
- 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5 x4)
- 2 Hyper M.2 (PCIe Gen4 x4)
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

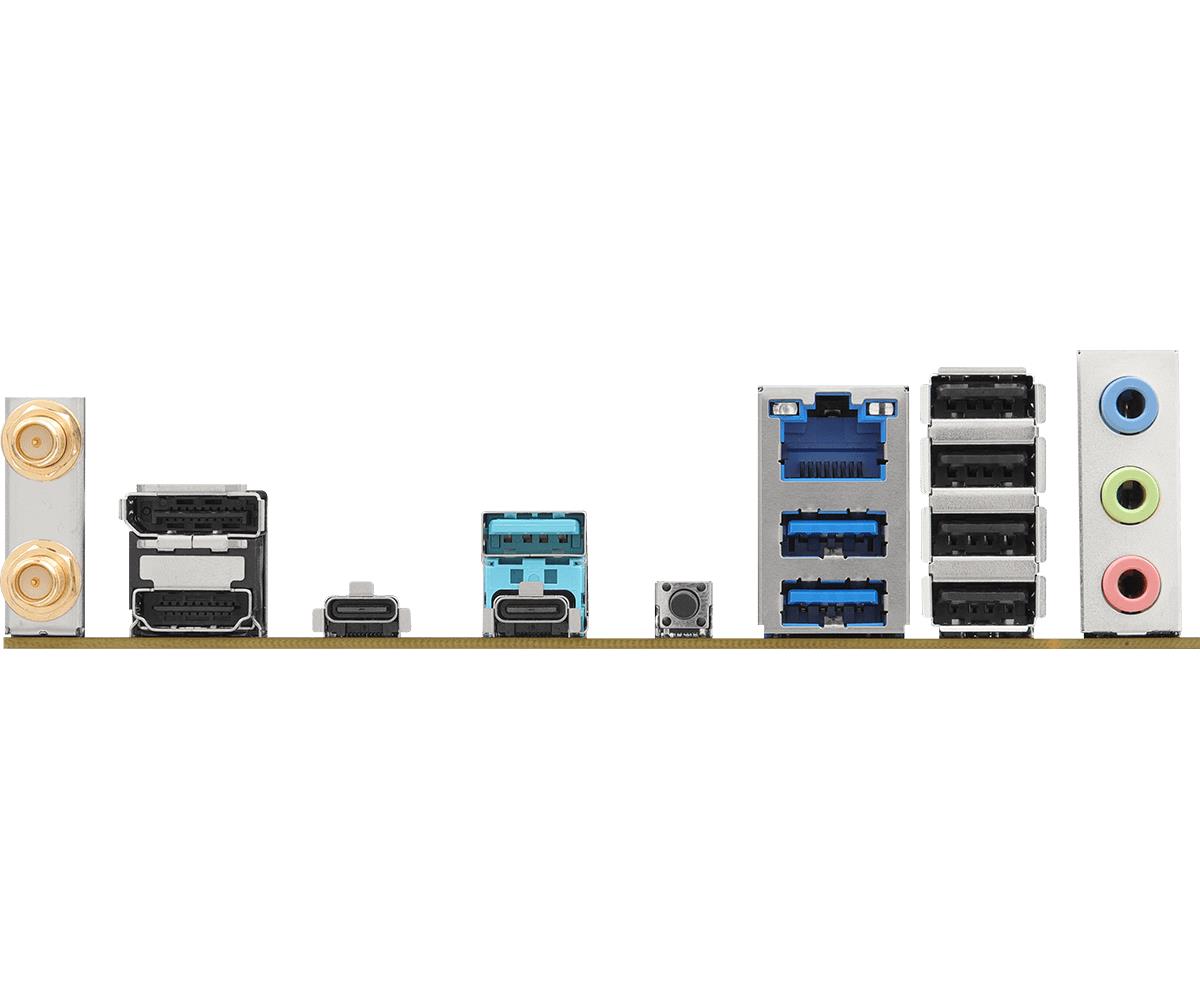

- 1 Thunderbolt™ 4 Type-C (Rear)
- 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
