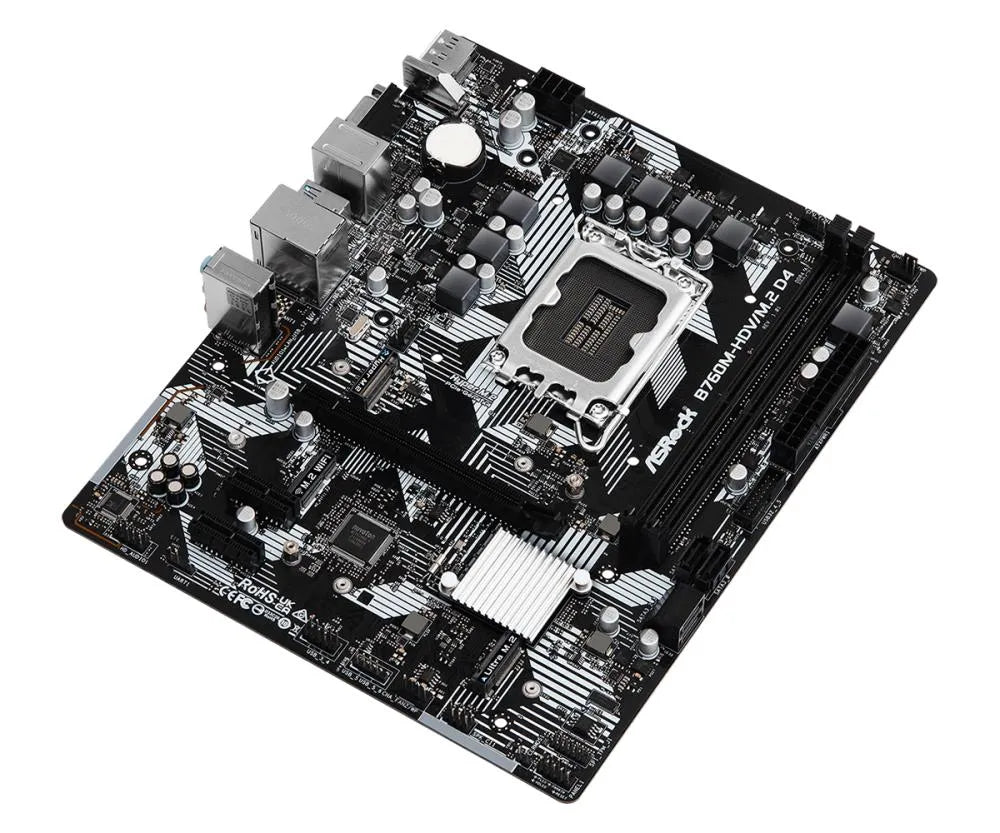

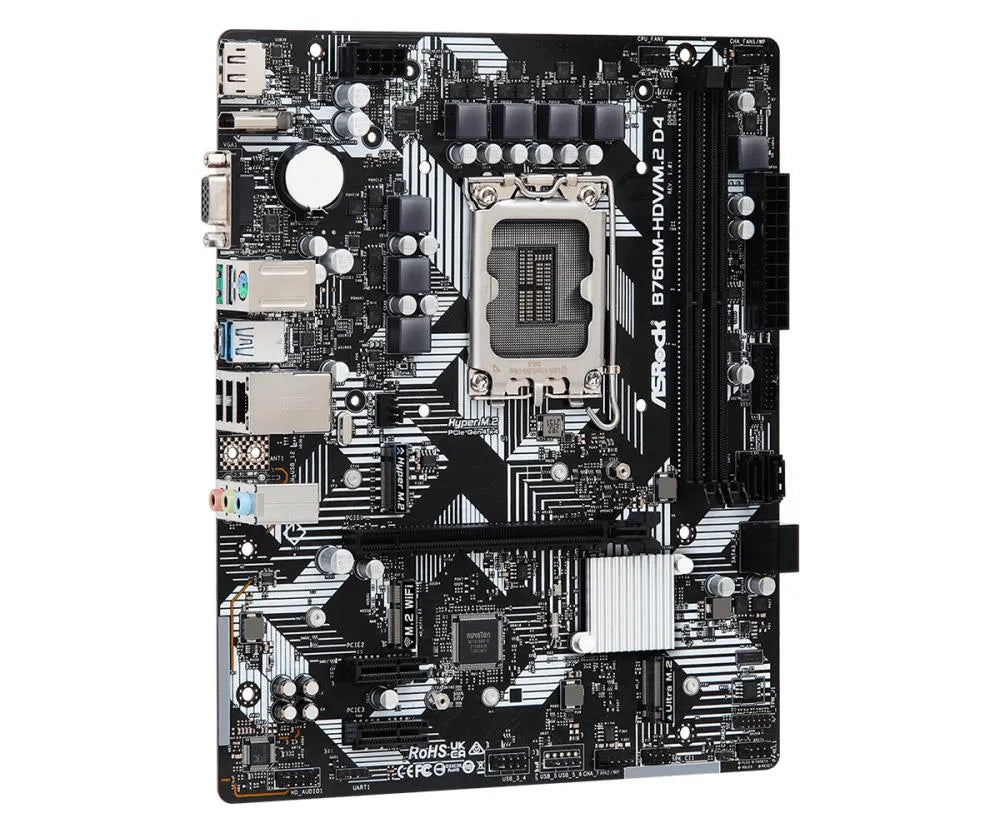

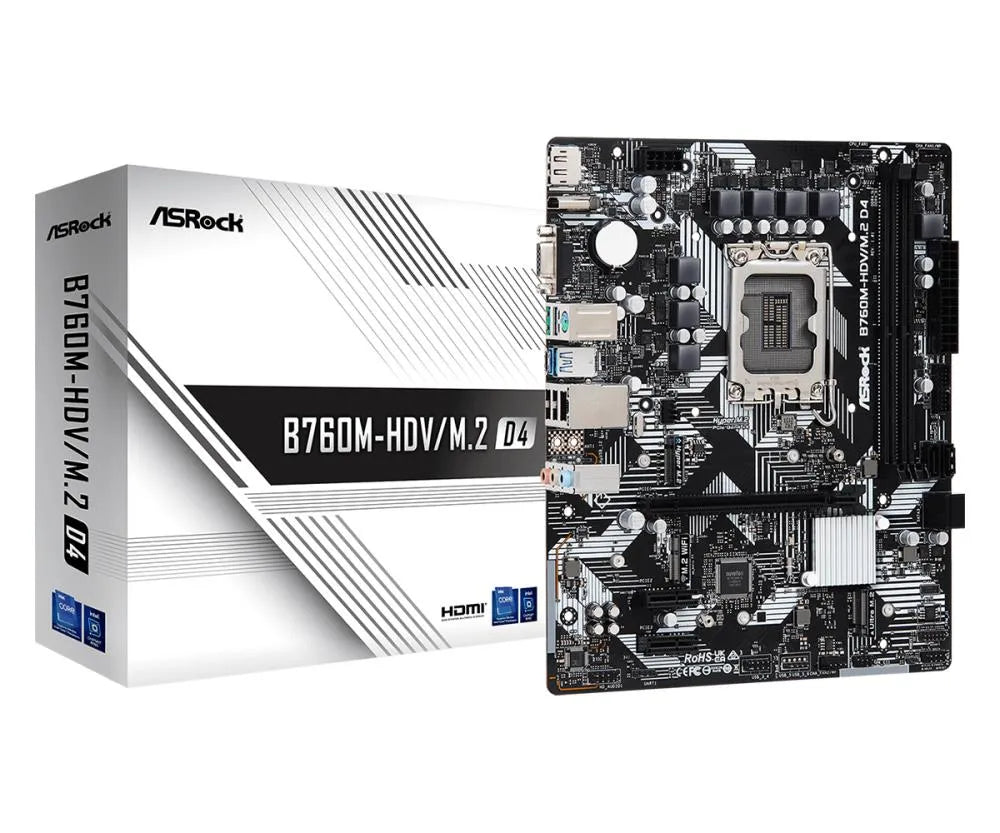

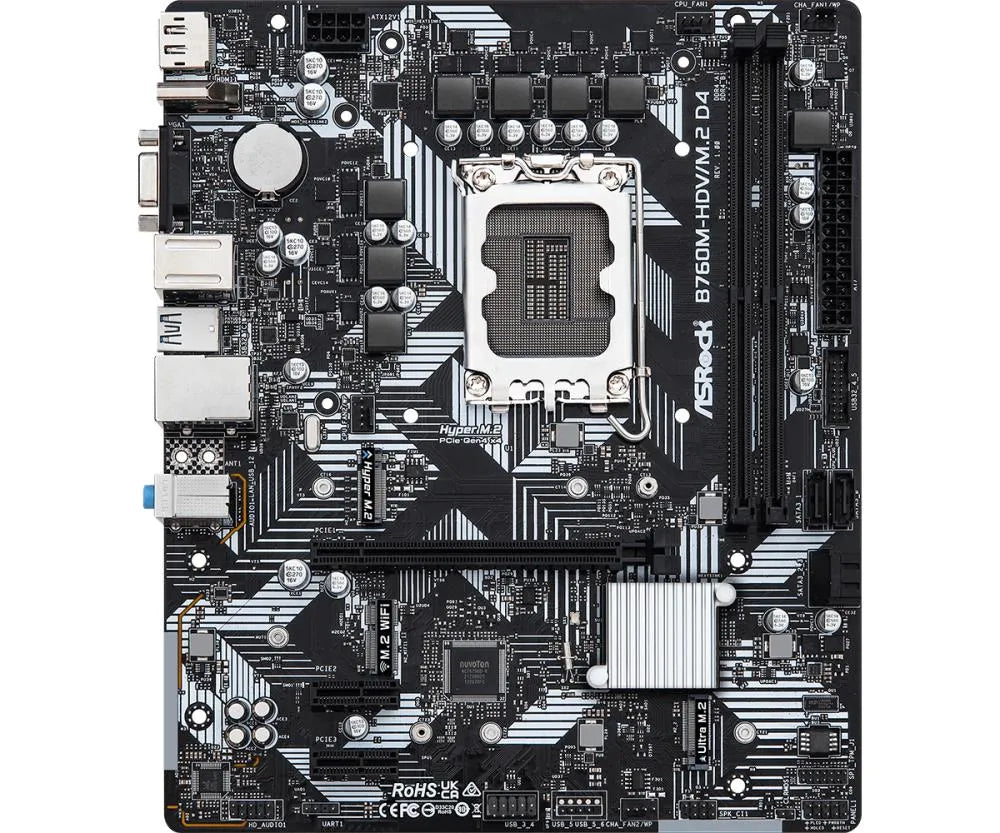

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760M-HDV/M.2D4
Parastā cena
€85,99
Parastā cena
Akcijas cena
€85,99
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
ASROCK
Pieejamība:
Ir noliktavā
SKU:
B760M-HDV/M.2D4
Cena bez PVN 21%: €71,07
Parastā cena
€85,99
Parastā cena
Akcijas cena
€85,99
Specifikācija
| Vienības kastes platums | 0.242 kg |
| Vienības kastes garums | 0.28 kg |
| Vienības kastes augstums | 0.06 kg |
| Modelis | B760M-HDV/M.2 D4 mm |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.004066 cubm |
| Unit Calculated Weight | 0.76 kg |
| Summary | Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 channels |
| Maximum number of SMP processors | 1 channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1700 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 2 GB |
| Supported memory clock speeds | 3200/4400/5333 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| RAID levels | 0/1/10/5 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Parallel processing technology support | Not supported MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| EPS power connector (8-pin) | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 3 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| DisplayPort version | 1.4 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| Line-in | Jā MHz |
| Microphone in | Jā MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 MHz |
| Ethernet interface type | Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel B760 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| Number of M.2 (M) slots | 1 MHz |
| PCI Express x16 (Gen 4.x) slots | 1 MHz |
| BIOS memory size | 128 Mbit |
| Chassis intrusion connector | Jā MHz |
| PCI Express x1 (Gen 3.x) slots | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| PS/2 ports quantity | 1 MHz |
| LAN controller | Realtek RTL8111H MHz |
| Front panel connector | Jā MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 2 MHz |
| VGA (D-Sub) ports quantity | 1 MHz |
| Wi-Fi | Nē MHz |
| Depth | 201 mm |
| Width | 244 mm |
| Cables included | SATA mm |
| HDCP | Jā MHz |
| DisplayPorts quantity | 1 MHz |
| Windows operating systems supported | Windows 10 Education x64/Windows 11 x64 channels |
| Certification | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) channels |
Apraksts
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

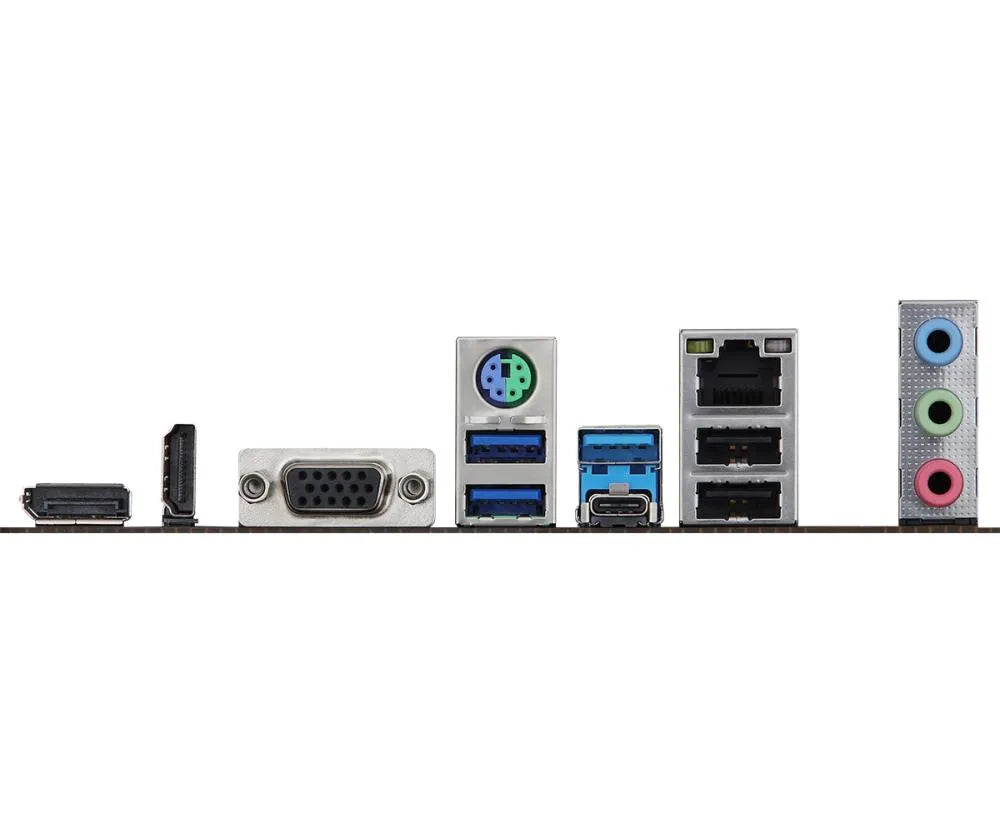

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
