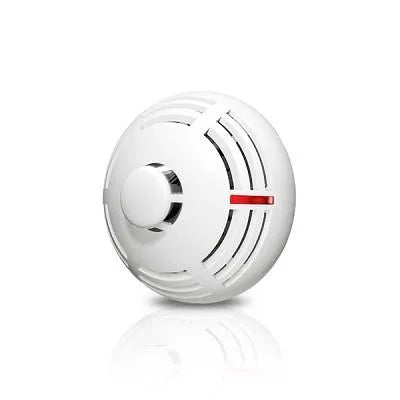

DETECTOR SMOKE FIRE TEMP./TSD-1 SATEL
Couldn't load pickup availability
Cena bez PVN 21%: €27,55
Specifikācija
| Detektora tips | Fire/Special |
| Darbības temperatūras diapazons | -10 C+55 C |
| Barošanas prasības | 12 V DC |
| Strāvas patēriņš | 24 mA |
| Izmēri | 108 x 61 mm |
| Nosūtīšanas kastes daudzums | 1 |
| Nosūtīšanas kastes dziļums | 12 cm |
| Nosūtīšanas kastes augstums | 7 cm |
| Nosūtīšanas kastes svars | 0.2 kg |
| Nosūtīšanas kastes platums | 12 cm |
| Vienības bruto tilpums | 0.001008 cubm |
| Vienības neto svars | 0.164 kg |
| Vienības bruto svars | 0.2 kg |
| Vienības kastes platums | 0.12 |
| Vienības kastes garums | 0.12 |
| Vienības kastes augstums | 0.07 |
Apraksts
The TSD-1 is a point detector designed to detect the early stages of a developing fire. For this purpose, it is equipped with a photoelectric sensor of visible smoke, as well as rate of rise temperature sensor. The unique design of the measuring chamber provides high sensitivity and omni-directionality, while a precise Hexamesh stainless steel filter protects the chamber from ingress of contamination and small insects. Detector configuration with DIP-switches and built-in parametric end of line resistors facilitate connection of the detector to virtually any control panel with a 12V power supply.
- unique Swirl chamber for increased smoke sensitivity
- EN54-7 compliant smoke detection
- EN54-5 compliant heat detection
- selectable operating mode (smoke, heat, multisensor)
- line type configuration (NO/NC/2EOL) with DIP switches
- precision stainless steel Hexamesh filter
- smoke chamber dirt build-up indicator
- easy installation with detachable base
- compatible with all 12V alarm panels
