Power Supply|XILENCE|1250 Watts|Efficiency 80 PLUS GOLD|PFC Active|XN178
Couldn't load pickup availability
Cena bez PVN 21%: €158,27
Specifikācija
| Vienības kastes platums | 0.19 kg |
| Vienības kastes garums | 0.33 kg |
| Vienības kastes augstums | 0.097 kg |
| Modeļa nosaukums | XP1250MR9.2 mm |
| Efektivitāte | 89 % |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.006082 cubm |
| Unit Calculated Weight | 3.33 kg |

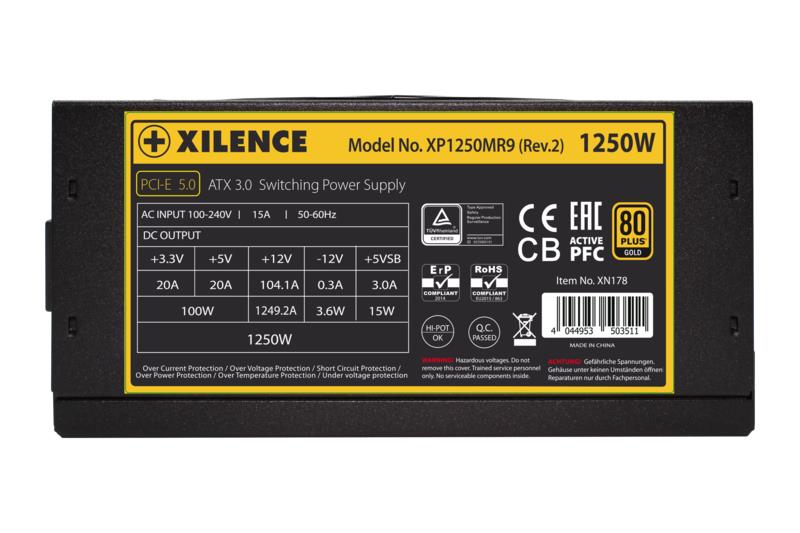

| Summary | Xilence XP1250MR9.2. Total power: 1250 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE kg |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 1250 W |
| Cabling type | Fully-Modular W |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 12 mm |
| PCI Express power connectors (6+2 pin) | 3 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| ATX version | 3.0 mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 140 mm |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage A |
| CPU power connector (4+4 pin) | Jā W |
| Max output current (+12V) | 104.1 A |
| Power Factor Correction (PFC) type | Active A |
| Bearing technology | FDB mm |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active mm |
| Product colour | Black/Red fan(s) |
| Depth | 180 mm |
| Height | 86 mm |
| Width | 150 mm |
| Purpose | PC mm |
| Number of fans | 1 fan(s) |
| Input current | 15 A |
| Compliance certificates | RoHS/WEEE fan(s) |
| Package type | Box mm |
| Sustainability compliance | Jā mm |
| PCI Express power connectors (8-pin) | 1 mm |
| Sustainability certificates | ErP mm |
Apraksts
The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
