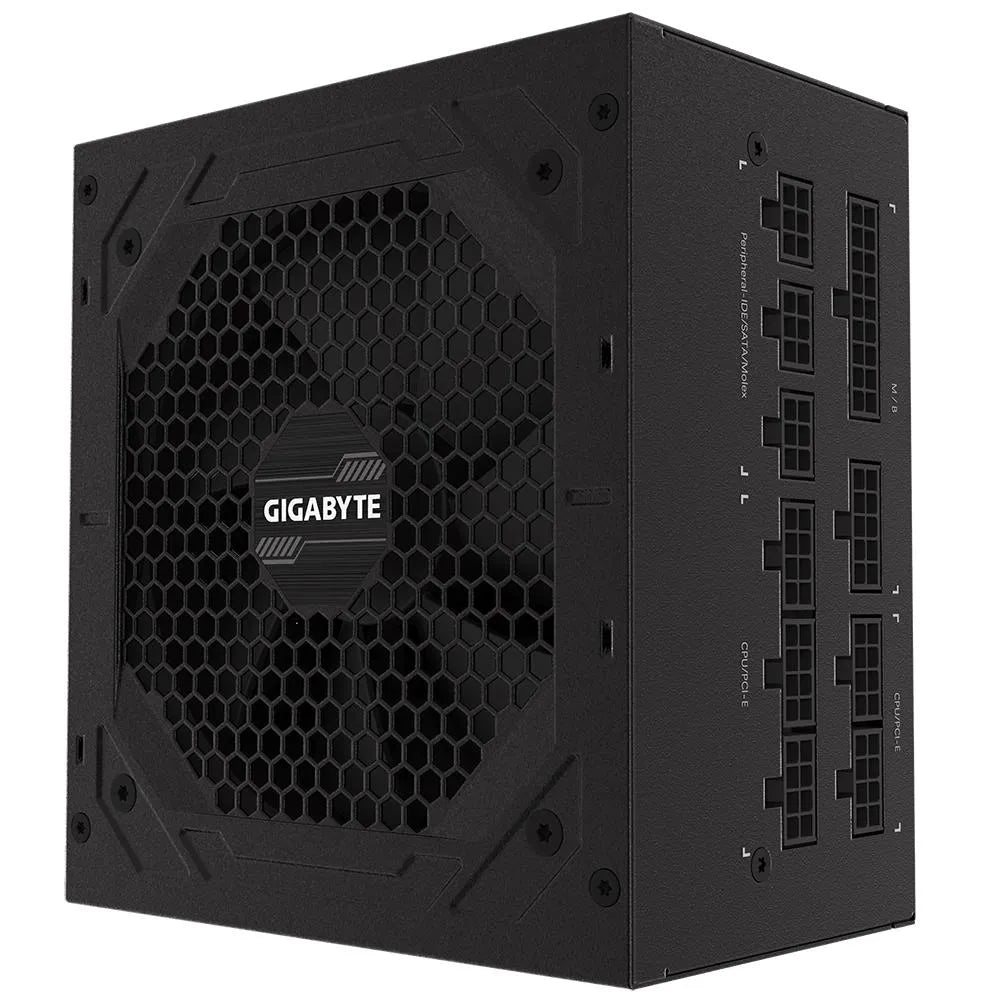

Power Supply|GIGABYTE|GP-P750GM|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P750GM
Couldn't load pickup availability
Cena bez PVN 21%: €67,57
Specifikācija
| Vienības kastes platums | 0.12 kg |
| Vienības kastes garums | 0.255 kg |
| Vienības kastes augstums | 0.21 kg |
| Modeļa nosaukums | GP-P750GM mm |
| Efektivitāte | 90 % |
| Units per Shipping Box | 5 mm |
| Unit Calculated Volume | 0.008137 cubm |
| Unit Calculated Weight | 2.63 kg |
| Summary | GIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA kg |
| Total power | 750 W |
| Cabling type | Fully-Modular W |
| EPS power connector (4+4 pin) | Jā mm |
| Floppy disk drive cable length | 120 mm |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 8 mm |
| PCI Express power connectors (6+2 pin) | 4 mm |
| Peripheral (Molex) power cable length | 120/500 mm |
| SATA power cable length | 150/600 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| ATX version | 2.31 mm |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 120 mm |
| Fan location | Top mm |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage A |
| CPU power connector (4+4 pin) | Jā mm |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 1 mm |
| Hold time | 16 ms |
| ATX power connector (20+4 pin) | Jā W |
| CPU power cable length | 600 mm |
| PCI Express connector | Jā mm |
| PCI Express power cable length | 600 mm |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 mm |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 12-6 A |
| Cables included | CPU,PCIe,Peripheral (Molex),SATA fan(s) |
| Harmonized System (HS) code | 84733020 mm |
Apraksts

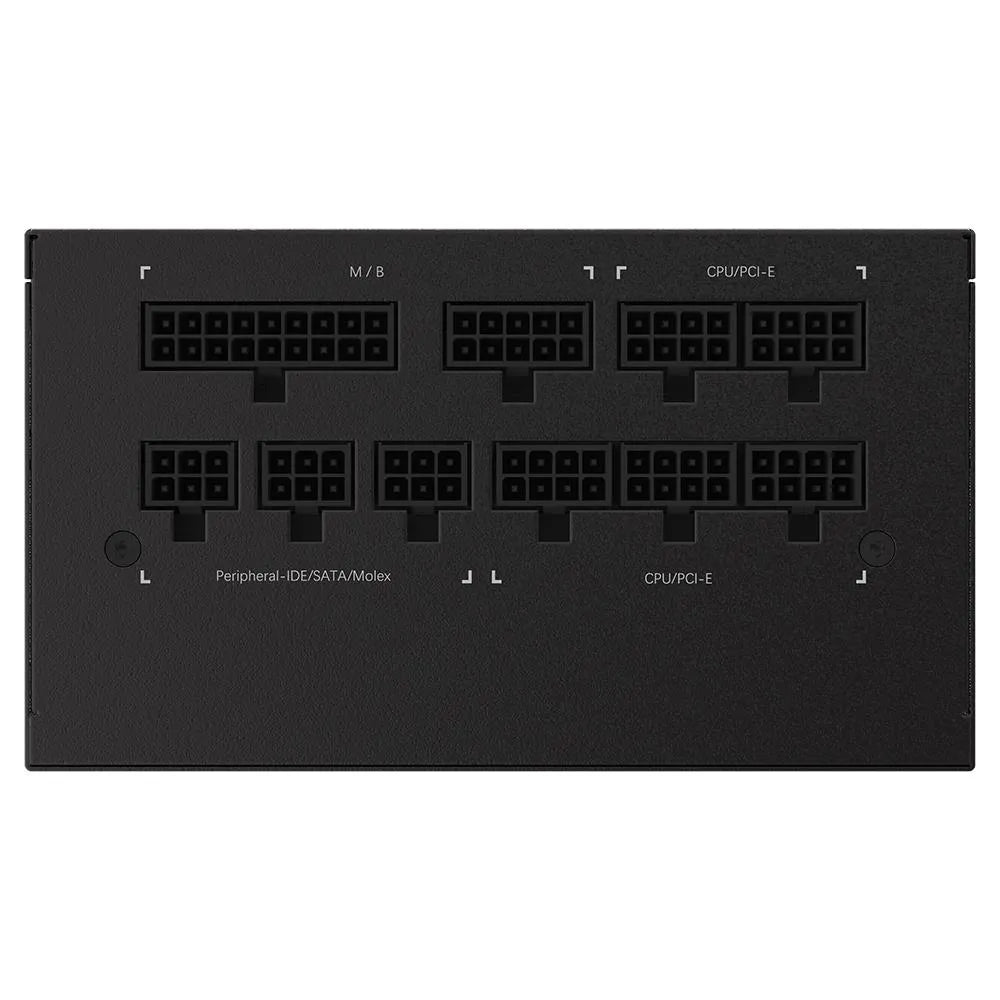

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
- 80 PLUS Gold certified
- Fully modular design
- 120mm Smart Hydraulic Bearing (HYB) Fan
- Main Japanese capacitors
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 5 years warranty (Adjusted according to different regions)
