| Marketing Description | |
| P450B's better power efficiency leads to less power waste, less heat and less fan noise. It provides a better solution for system builds. The flat cable reduces the clutter and improves the airflow in the case. | |
| Product Features | |
| |
| Product Properties | |

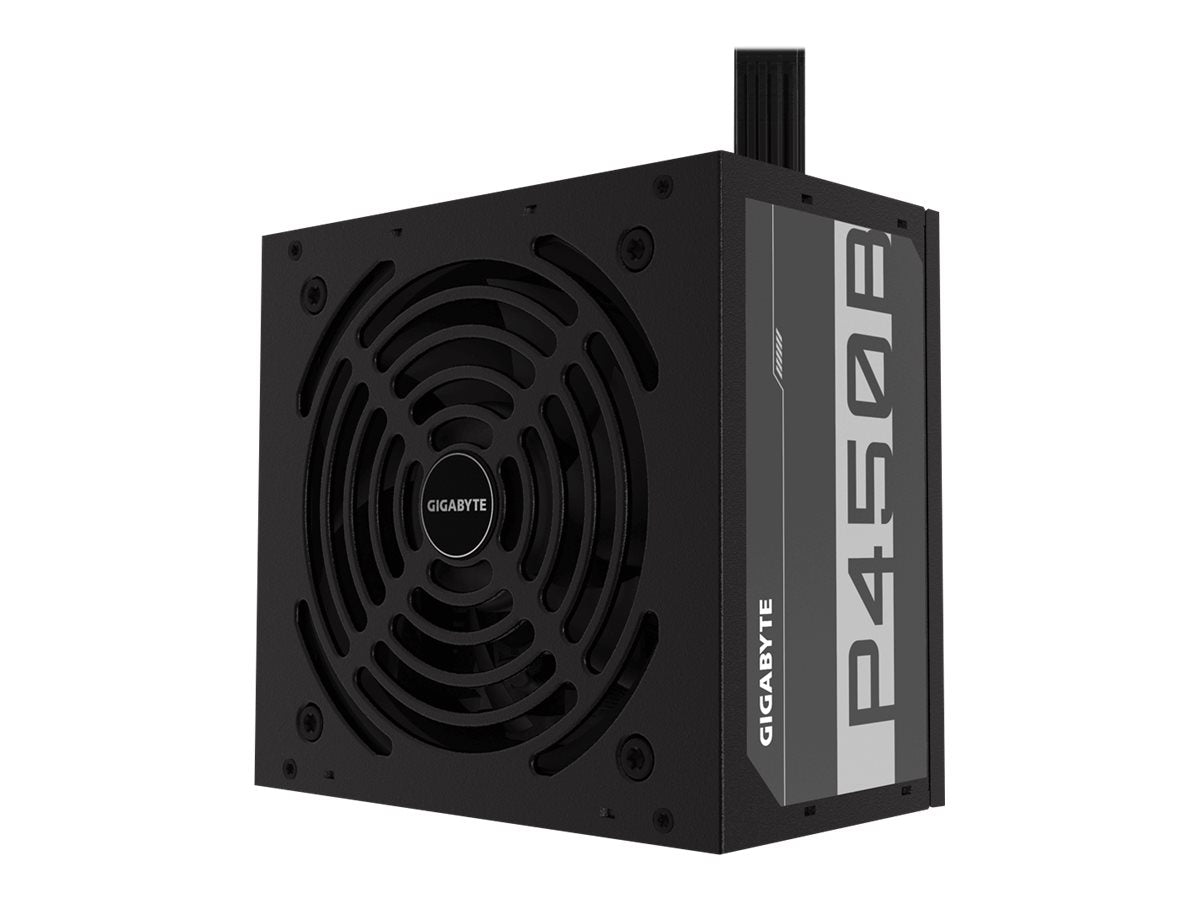

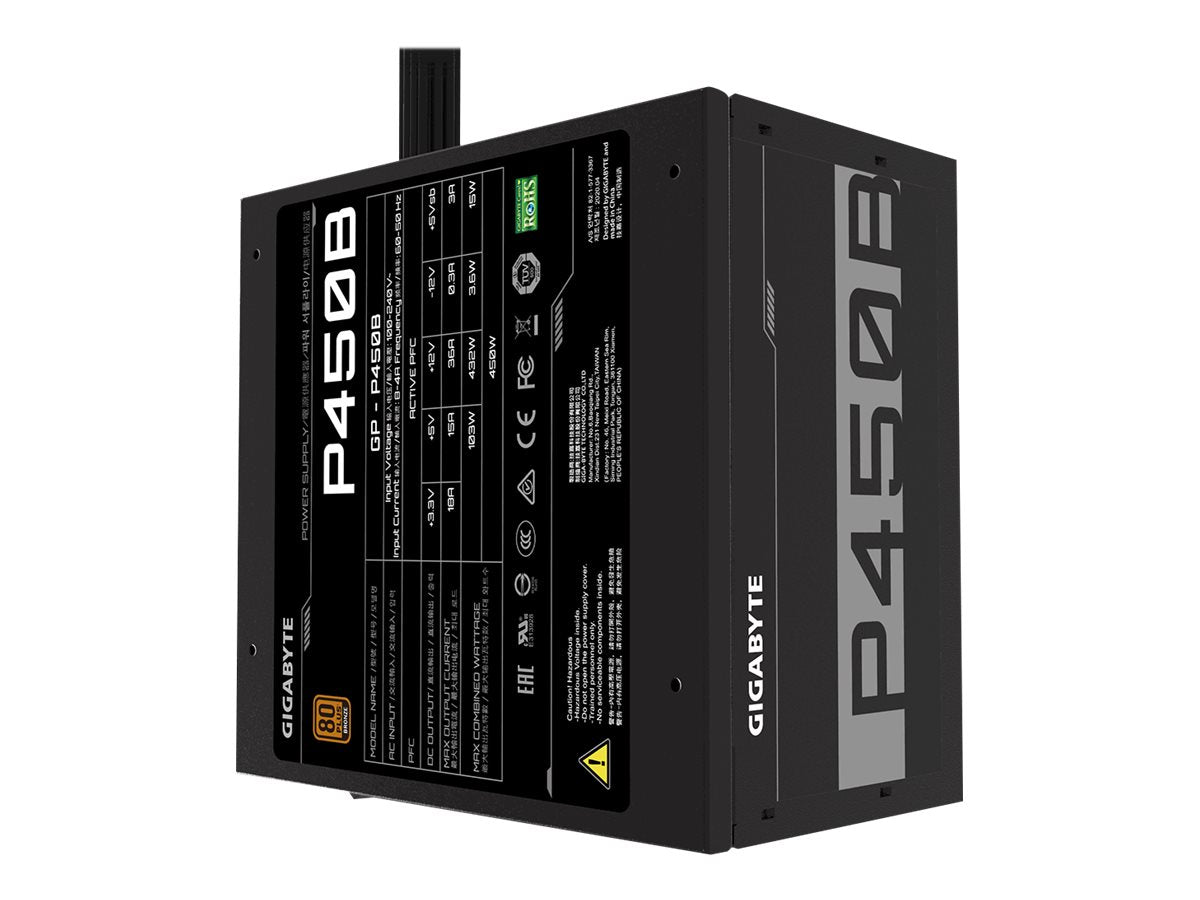

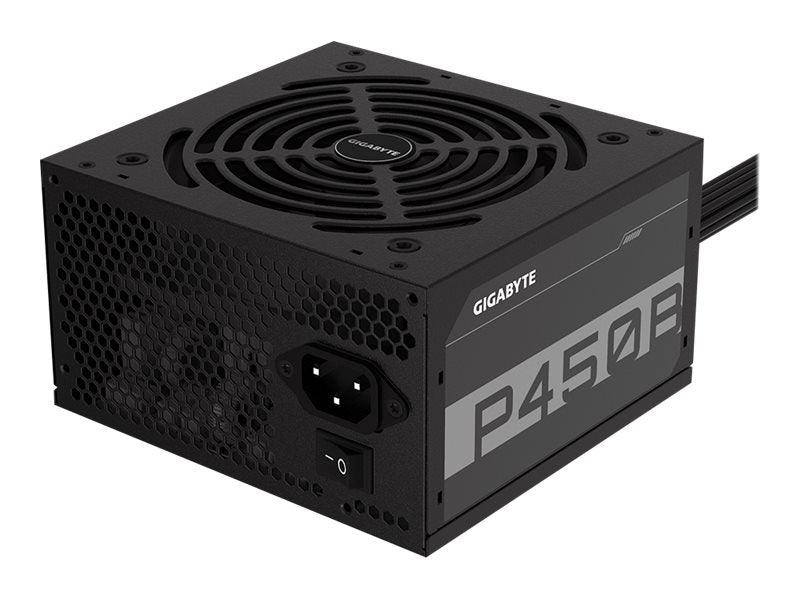

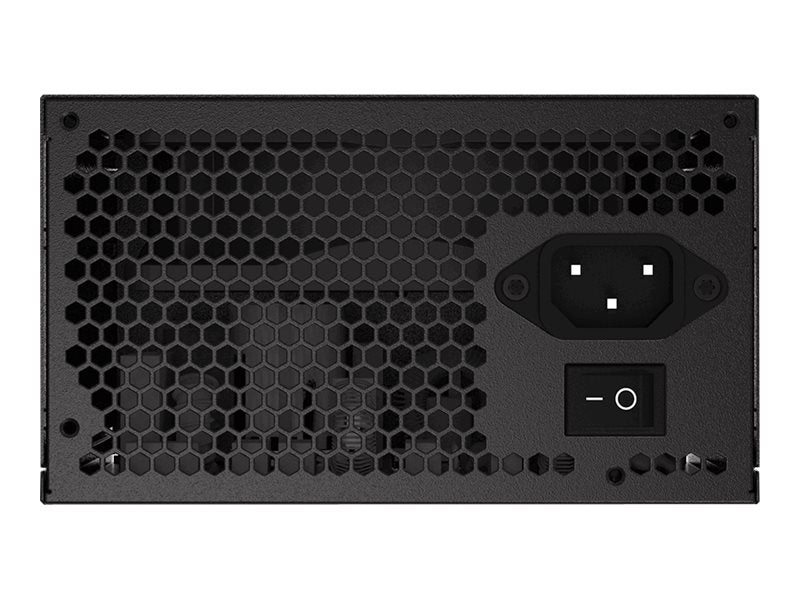

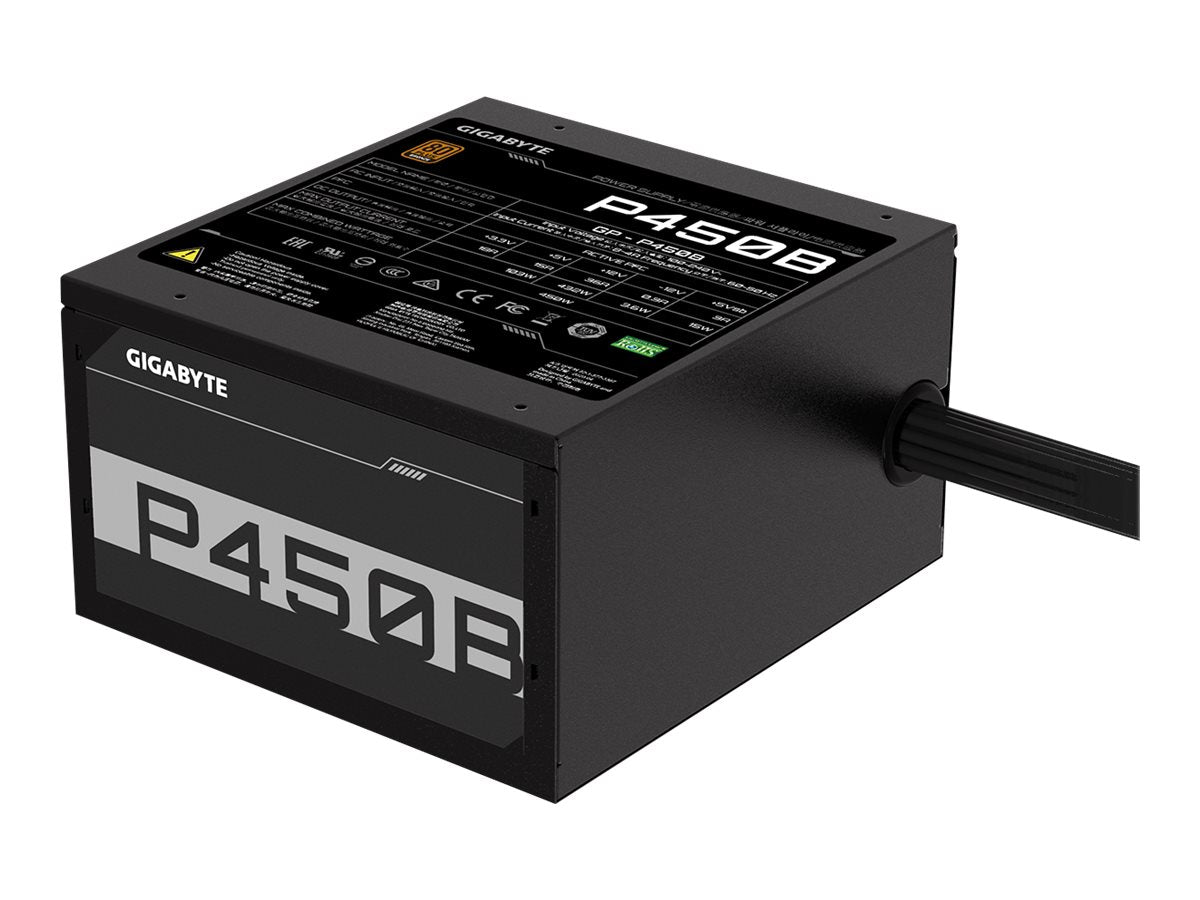

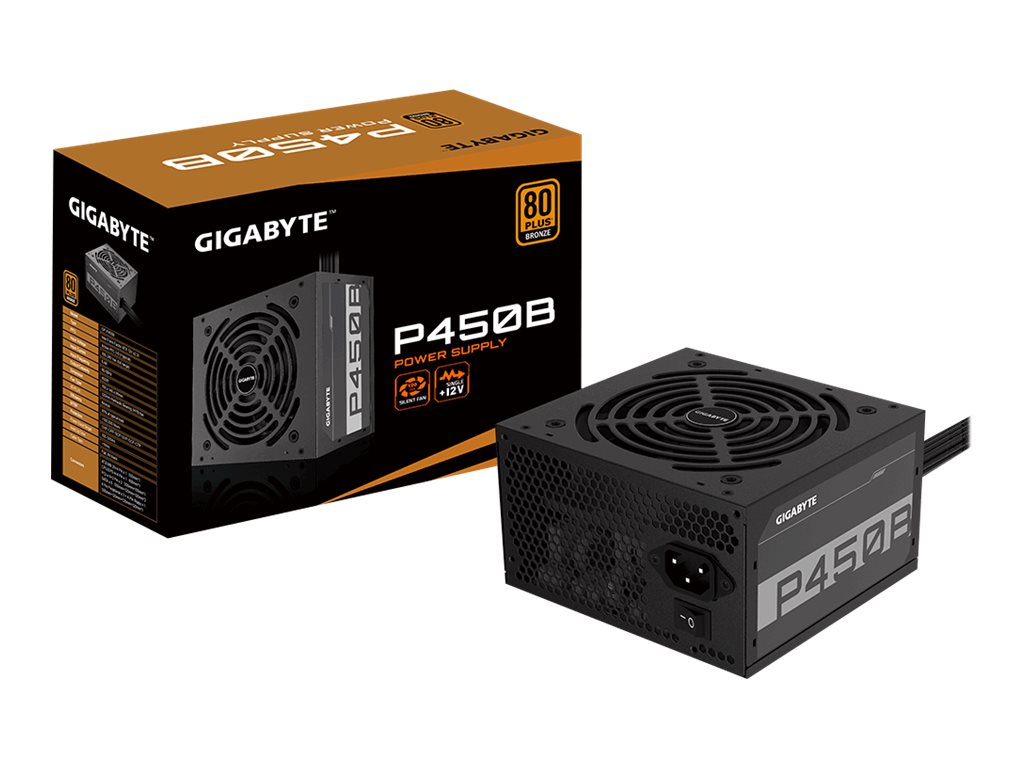

| Product Description | Gigabyte P450B - power supply - 450 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 450 Watt |
| Output Current | +3.3V - 18 A +5V - 15 A +12V - 36 A -12V - 0.3 A +5VSB - 3 A |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin +12V with detachable 4 pin section 2 x 8 pin PCI Express power with detachable 2 pin section 6 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 4 PIN mini-power connector |

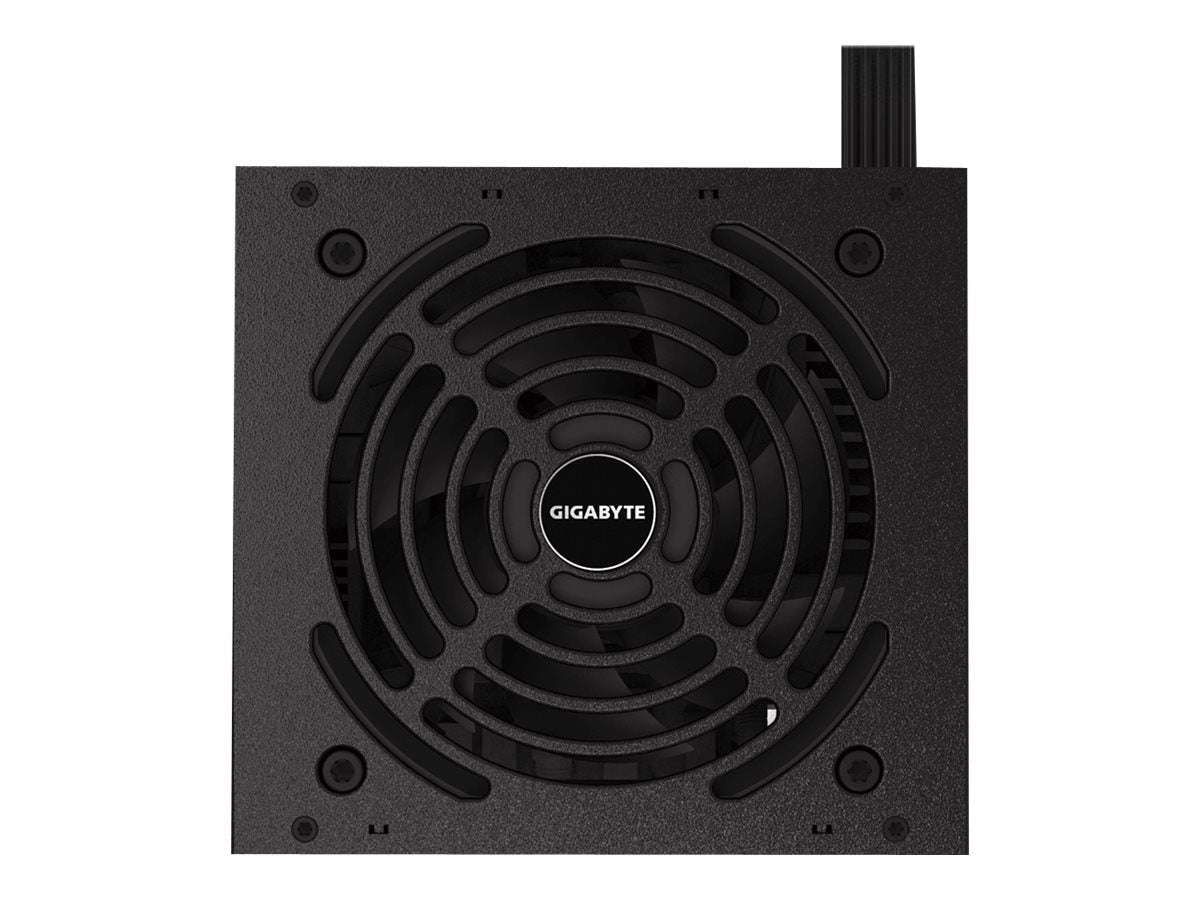

| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
| Manufacturer Warranty | 3-year warranty |
