| Marketing Description | |
| Today, system integrators do not only require for their PC assembly line, a durable and quality-promising chassis but a highly reliable power supply source as well. Chieftec's power supply units of the Smart Series fulfill these and more requirements. | |
| Product Properties | |

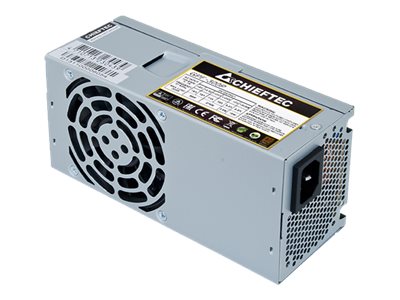

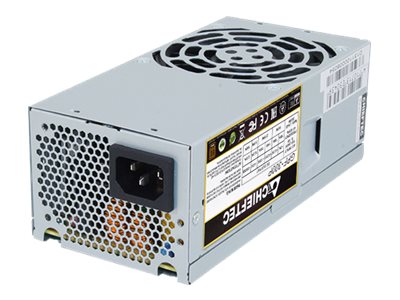

| Product Description | Chieftec Smart Series GPF-300P - power supply - 300 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | TFX12V 2.3 |
| 80 PLUS Certification | 80 PLUS Bronze |
| Weight | 1.07 kg |
| Input Voltage | AC 115-230 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 300 Watt |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 15 pin Serial ATA power 2 x 4 PIN internal power 1 x 4 PIN mini-power connector |
| Cooling System | 80 mm fan |
| Dimensions (WxDxH) | 8.5 cm x 17.5 cm x 6.5 cm |
| Manufacturer Warranty | 2-year warranty |
