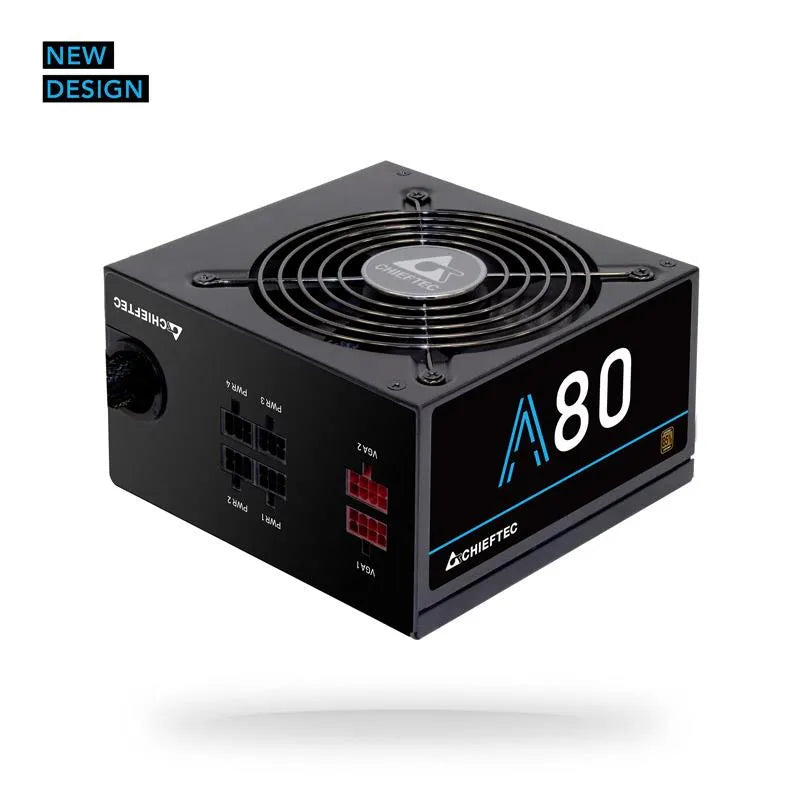

CASE PSU ATX 750W/CTG-750C CHIEFTEC
Parastā cena
€68,85
Parastā cena
Akcijas cena
€68,85
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
CHIEFTEC
Pieejamība:
Low stock
SKU:
CTG-750C
Cena bez PVN 21%: €56,90
Parastā cena
€68,85
Parastā cena
Akcijas cena
€68,85
Specifikācija
| Vienības kastes platums | 0.19 kg |
| Vienības kastes garums | 0.25 kg |
| Vienības kastes augstums | 0.1 kg |
| Efektivitāte | 85 % |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.00475 cubm |
| Unit Calculated Weight | 2.35 kg |
| Summary | Chieftec CTG-750C. Total power: 750 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, FCC kg |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+12V1) | 35 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 750 W |
| Cabling type | Semi-Modular W |
| Motherboard power connector | 24-pin ATX W |
| Number of SATA power connectors | 6 W |
| PCI Express power connectors (6+2 pin) | 2 W |
| 80 PLUS certification | 80 PLUS W |
| ATX version | 2.3 W |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 120 mm |
| Fan location | Top mm |
| Max output current (+12V2) | 35 A |
| Power protection features | Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage A |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 2 W |
| Power factor | 0.9 A |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 87 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 W |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 6 A |
| CPU P4 connector (4-pin) | 1 W |
| Compliance certificates | RoHS fan(s) |
| Package type | Box mm |
| Certification | CE, CB, FCC fan(s) |
| Harmonized System (HS) code | 84733020 mm |
| EPS power connector (8-pin) | Jā W |
| CPU power connectors (8-pin) | 1 W |
Apraksts
this popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.
