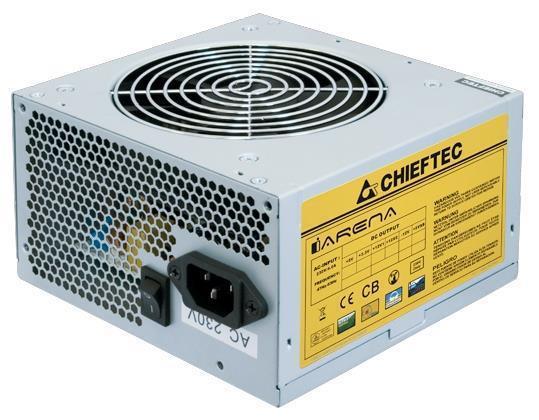

CASE PSU ATX 700W/GPA-700S CHIEFTEC
Parastā cena
€49,22
Parastā cena
Akcijas cena
€49,22
Vienības cena
per
Nodoklis iekļauts.
Couldn't load pickup availability
Zīmols:
CHIEFTEC
Pieejamība:
Ir noliktavā
SKU:
GPA-700S
Cena bez PVN 21%: €40,68
Parastā cena
€49,22
Parastā cena
Akcijas cena
€49,22
Specifikācija
| Vienības kastes platums | 0.155 kg |
| Vienības kastes garums | 0.22 kg |
| Vienības kastes augstums | 0.09 kg |
| Efektivitāte | 80 % |
| Units per Shipping Box | 1 g |
| Unit Calculated Volume | 0.003069 cubm |
| Unit Calculated Weight | 1.43 kg |
| Summary | Chieftec iArena GPA-700s. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC kg |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Total power | 700 W |
| Cabling type | Non-Modular W |
| Floppy disk drive connector | Jā mm |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 6 mm |
| PCI Express power connectors (6+2 pin) | 2 mm |
| Peripheral (Molex) power cable length | 500/650/800 mm |
| ATX version | 2.3 mm |
| Power supply unit (PSU) form factor | PS/2 mm |
| Fan diameter | 120 mm |
| Fan location | Top mm |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage A |
| CPU power connector (4+4 pin) | Jā mm |
| Max output current (+12V) | 50 A |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 1 mm |
| Power factor | 0.9 A |
| ATX power connector (20+4 pin) | Jā W |
| CPU power cable length | 550 mm |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Cooling type | Active mm |
| Product colour | Silver fan(s) |
| Depth | 150 mm |
| Height | 87 mm |
| Width | 140 mm |
| Weight | 1440 g |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC/Server mm |
| Number of fans | 1 fan(s) |
| Input current | 5 A |
| Compliance certificates | CB/CE/EAC fan(s) |
| Package type | Box mm |
| Package weight | 1570 g |
Apraksts
The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.
