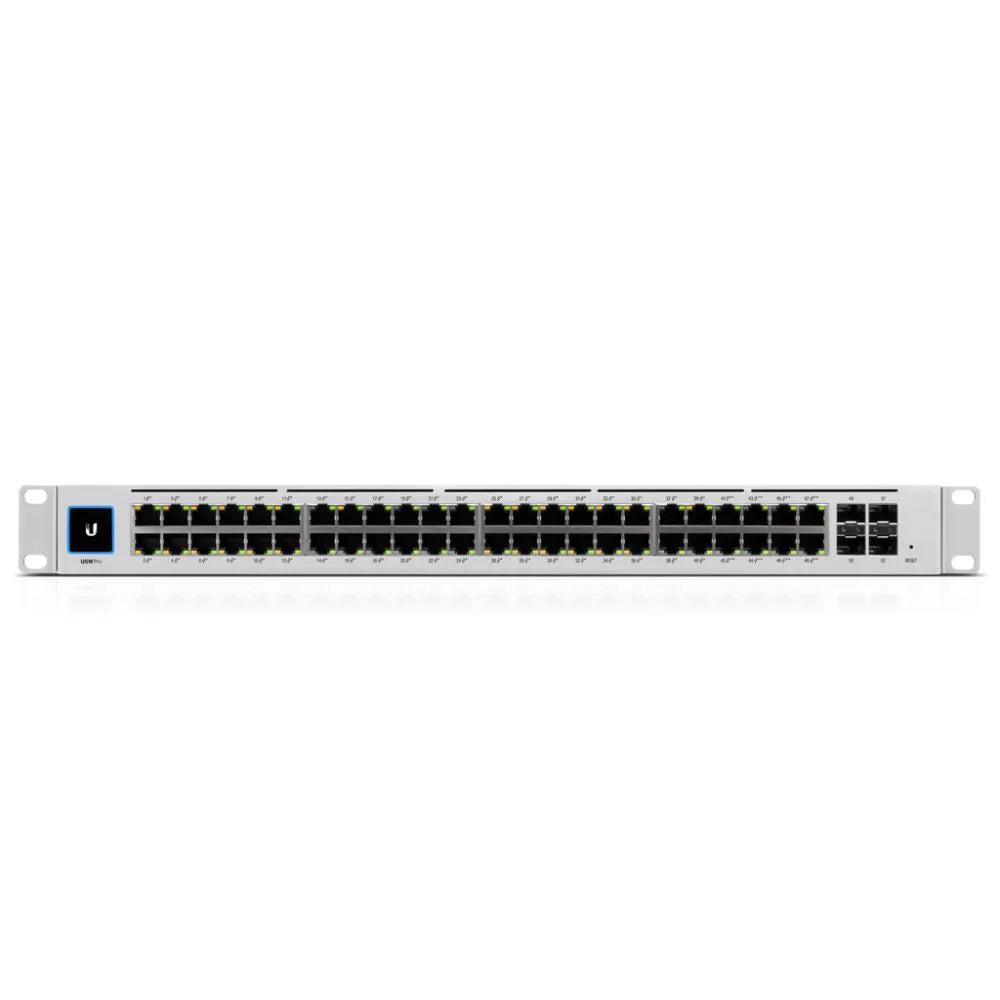

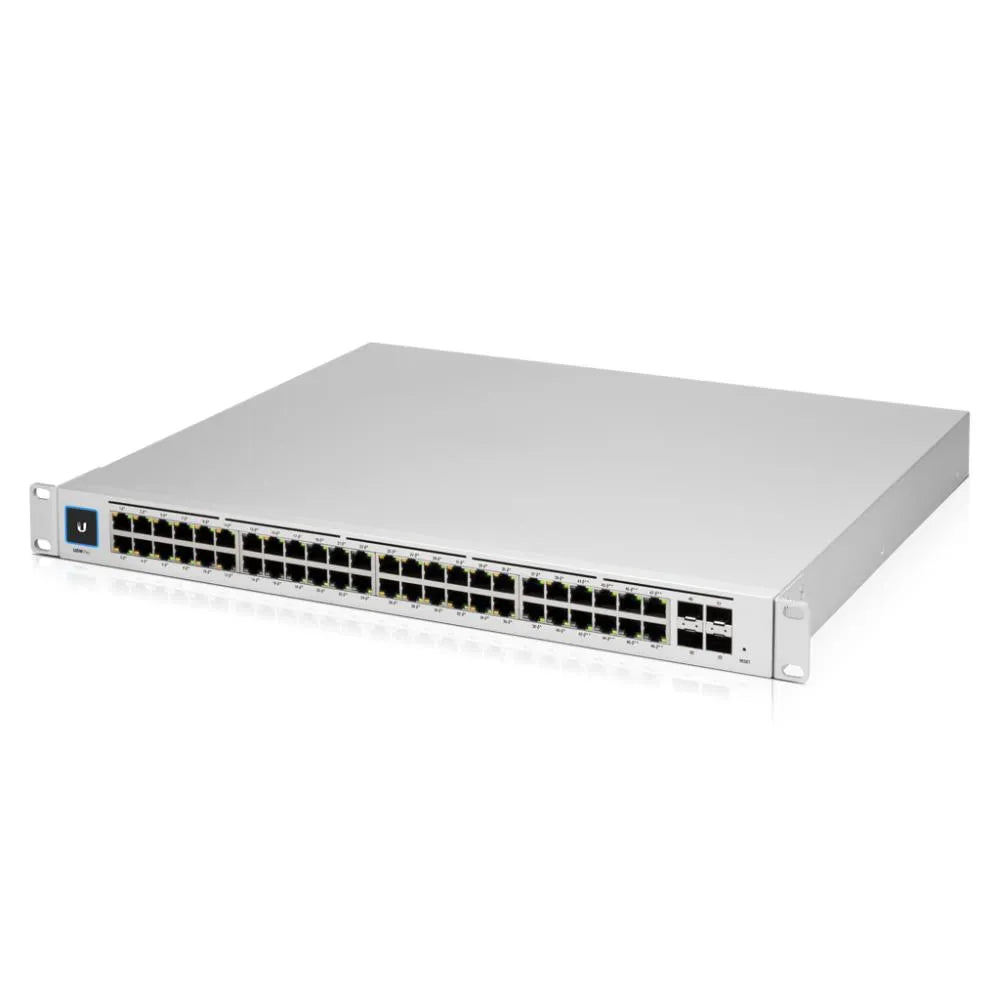

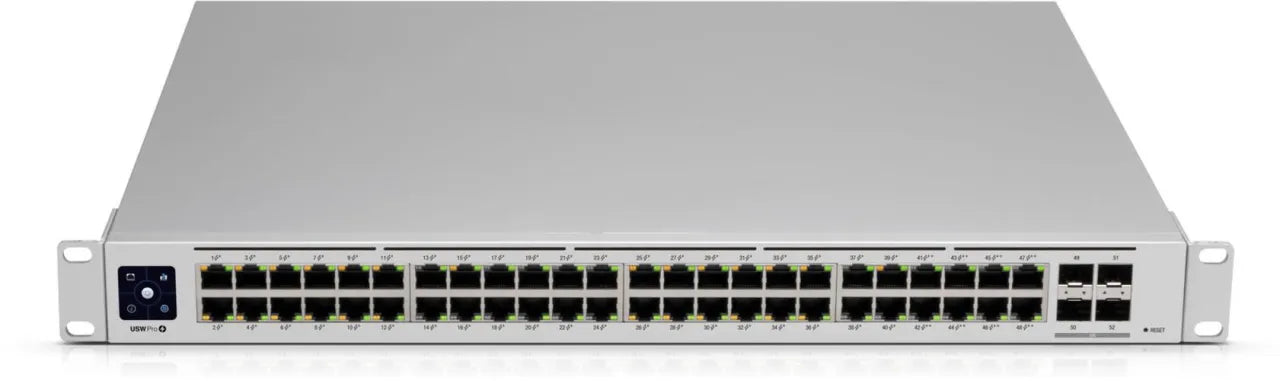

Switch|UBIQUITI|USW-PRO-48|Type L3|Rack|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|USW-PRO-48
Couldn't load pickup availability
Cena bez PVN 21%: €538,40
Specifikācija
| Vienības kastes platums | 0.122 kg |
| Vienības kastes garums | 0.523 kg |
| Vienības kastes augstums | 0.395 kg |
| Modeļa nosaukums | USW-PRO-48 mm |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.0252 cubm |
| Unit Calculated Weight | 5.2 kg |
| Summary | Ubiquiti UniFi USW-PRO-48. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1x. DC input voltage: 11.5 V. Rack mounting, Form factor: 1U kg |
|
|
| Switch layer | L2/L3 kg |
| Switch type | Managed kg |
| Basic switching RJ-45 Ethernet ports quantity | 48 kg |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) kg |
| 10G support | Jā kg |
| Networking standards | IEEE 802.1x kg |
| VLAN support | Jā kg |
| Switching capacity | 176 Gbit/s |
| Product colour | Silver Gbit/s |
| Rack mounting | Jā Gbit/s |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | Nē W |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Depth | 285.4 mm |
| Height | 43.7 mm |
| Weight | 4000 g |
| Width | 442.4 mm |
| Form factor | 1U Gbit/s |
| Power consumption (max) | 60 W |
| Power supply included | Jā W |
| SFP+ module slots quantity | 4 kg |
| Broadcast storm control | Jā kg |
| Flow control support | Jā kg |
| Port mirroring | Jā kg |
| Forwarding rate | 130.944 Mpps |
| Backlight display | Jā Gbit/s |
| LED indicators | Activity/Link/Speed Gbit/s |
| Certification | CE, FCC, IC ETSI300-019-1.4 mm |
| DC input voltage | 11.5 V |
| Input current | 5.22 A |
| Harmonized System (HS) code | 85176990 mm |
| Link aggregation | Jā kg |
| Spanning tree protocol | Jā kg |
| Authentication type | IEEE 802.1x,RADIUS Gbit/s |
| User guide | Jā mm |
Apraksts
UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere./
UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.
The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
- (48) Gigabit RJ45 ports
- (4) 10G SFP+ ports
- Layer 2 and Layer 3 features
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" touchscreen display
- Managed by UniFi Network Controller
