Power Supply|SEASONIC|VERTEX GX|1200 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|VERTEXGX-1200
Couldn't load pickup availability
Cena bez PVN 21%: €208,76
Specifikācija
| Vienības kastes platums | 0.115 kg |
| Vienības kastes garums | 0.35 kg |
| Vienības kastes augstums | 0.19 kg |
| Modeļa nosaukums | VERTEX GX year(s) |
| Units per Shipping Box | 1 year(s) |
| Unit Calculated Volume | 0.007647 cubm |
| Unit Calculated Weight | 3.97 kg |
| Summary | Seasonic Vertex GX-1200. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA kg |
| Combined power (+12V) | 1200 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 1200 W |
| Cabling type | Fully-Modular W |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 4 mm |
| Peripheral (Molex) power cable length | 690 mm |
| SATA power cable length | 950 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| ATX version | 3.0 mm |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 135 mm |
| On/off switch | Jā fan(s) |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage A |
| Max output current (+12V) | 100 A |
| ATX power connector (20+4 pin) | Jā W |
| CPU power cable length | 650 mm |
| Bearing technology | FDB mm |
| Mean time between failures (MTBF) | 150000 h |
| Cable tie(s) included | Jā °C |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 160 mm |
| Height | 86 mm |
| Width | 150 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 mm |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 15 - 7.5 A |
| CPU P4 connector (4-pin) | 2 W |
| Package type | Box mm |

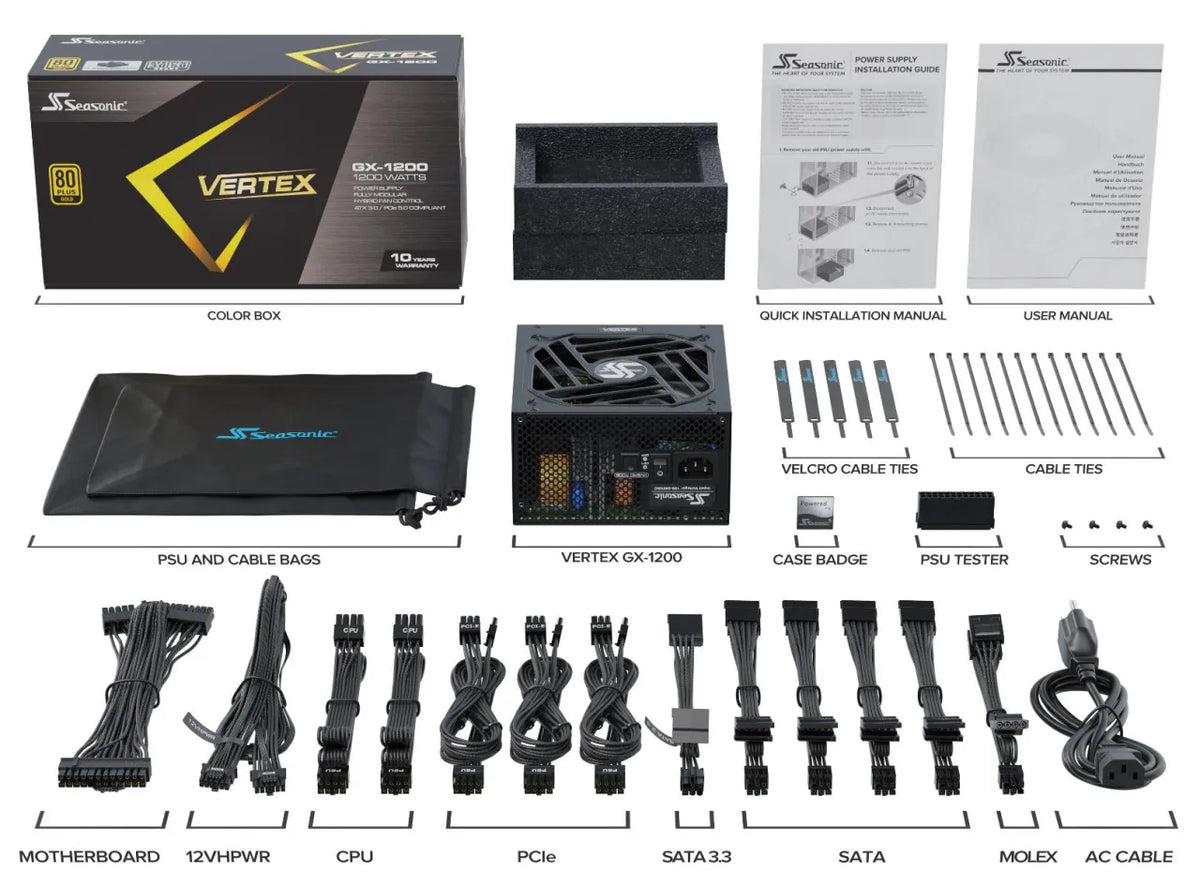

| Cables included | AC,CPU,PCIe,Peripheral (Molex),Peripheral (Molex) to SATA 3.3,SATA °C |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Warranty period | 10 year(s) |
Apraksts
80 PLUS GOLD
The Vertex GX Series achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.
FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
- Super-High Efficiency, 80 PLUS Gold Certified

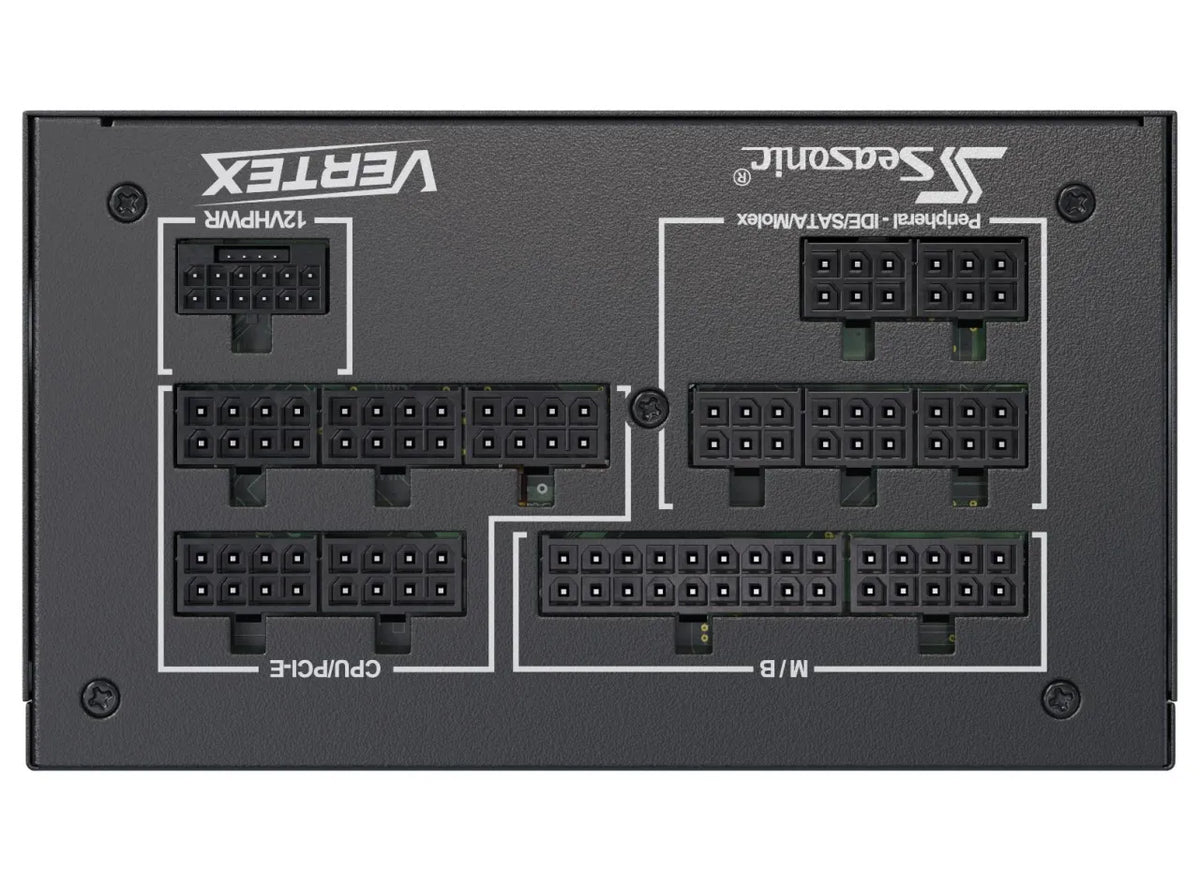

- Fully Modular
- ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

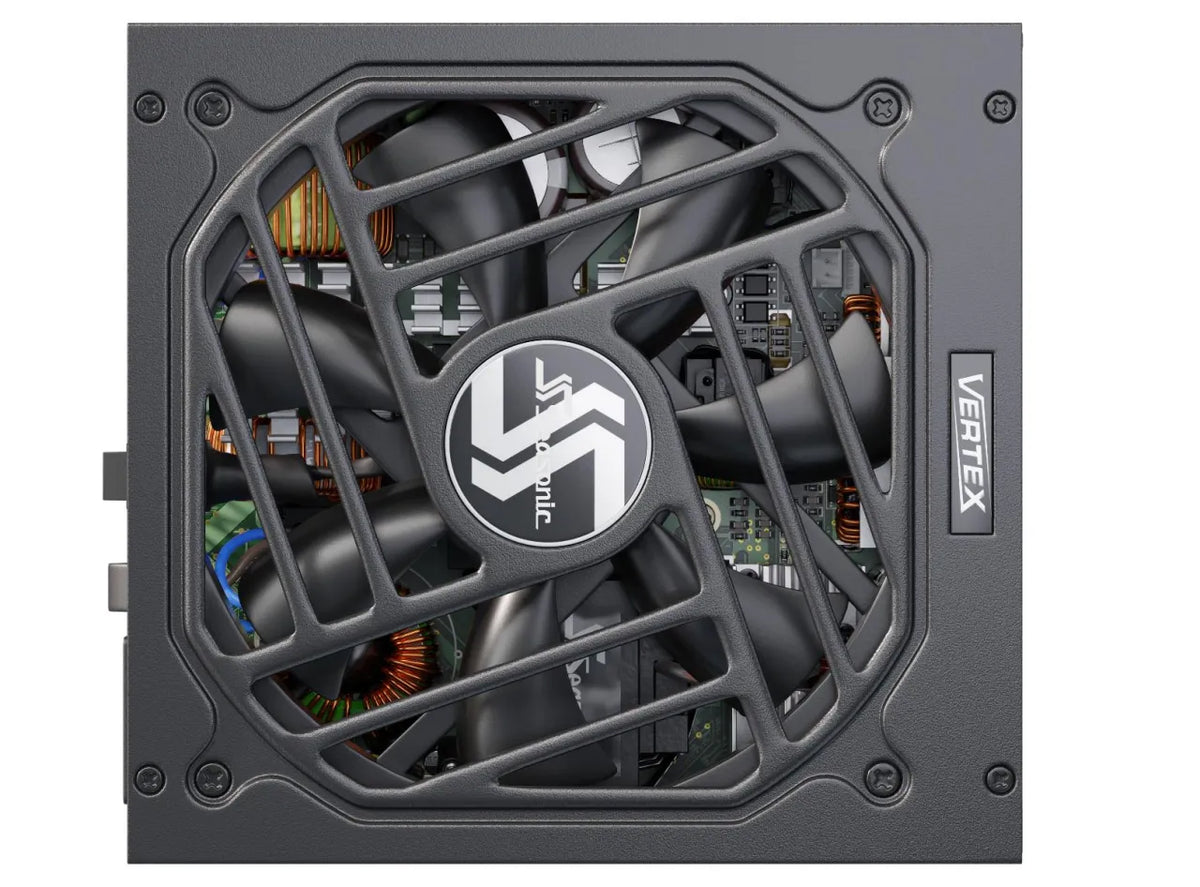

- Top-Quality 135 mm Fluid Dynamic Bearing Fan
- Premium Hybrid Fan Control
- Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 3 %]
- Gold Plated High Current Terminal (MB, CPU and PCIe)
