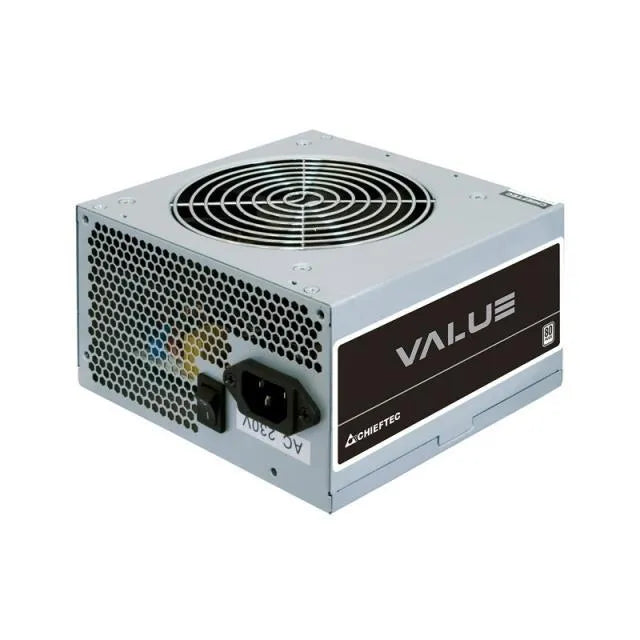

Power Supply|CHIEFTEC|700 Watts|Efficiency 80 PLUS|PFC Active|APB-700B8
Regular price
€46,46
Regular price
Sale price
€46,46
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
CHIEFTEC
Pieejamība:
In stock
SKU:
APB-700B8
Cena bez PVN 21%: €38,40
Regular price
€46,46
Regular price
Sale price
€46,46
Specifikācija
| Vienības kastes platums | 0.155 kg |
| Vienības kastes garums | 0.22 kg |
| Vienības kastes augstums | 0.09 kg |
| Units per Shipping Box | 1 g |
| Unit Calculated Volume | 0.003069 cubm |
| Unit Calculated Weight | 1.44 kg |
| Summary | Chieftec Value APB-700B8. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,550 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, Certification: CE, CB, EAC, TÜV kg |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Max output current (+12V1) | 54 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Total power | 700 W |
| Cabling type | Non-Modular W |
| EPS power connector (4+4 pin) | Jā mm |
| Floppy disk drive connector | Jā mm |
| Motherboard power cable length | 550 mm |
| Motherboard power connector | 20+4 pin ATX mm |
| Number of SATA power connectors | 4 mm |
| PCI Express power connectors (6+2 pin) | 2 mm |
| Peripheral (Molex) power cable length | 150/500 mm |
| SATA power cable length | 150/550 mm |
| 80 PLUS certification | 80 PLUS mm |
| ATX version | 2.3 mm |
| Power supply unit (PSU) form factor | ATX mm |
| Fan diameter | 120 mm |
| Power protection features | Over voltage/Overheating/Overload/Short circuit/Under power/Under voltage A |
| CPU power connector (4+4 pin) | Jā mm |
| Power Factor Correction (PFC) type | Active A |
| Floppy drive power connector | 1 mm |
| Power factor | 0.9 A |
| CPU power cable length | 500 mm |
| PCI Express power cable length | 500 mm |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Cooling type | Active mm |
| Product colour | Silver fan(s) |
| Depth | 140 mm |
| Height | 87 mm |
| Width | 150 mm |
| Weight | 1420 g |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC/Server mm |
| Number of fans | 1 fan(s) |
| Input current | 5 A |
| Compliance certificates | CE fan(s) |
| Package weight | 1570 g |
| Certification | CE, CB, EAC, TÜV fan(s) |
| Harmonized System (HS) code | 84733020 g |
| Sustainability compliance | Jā g |
Apraksts
The new VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
