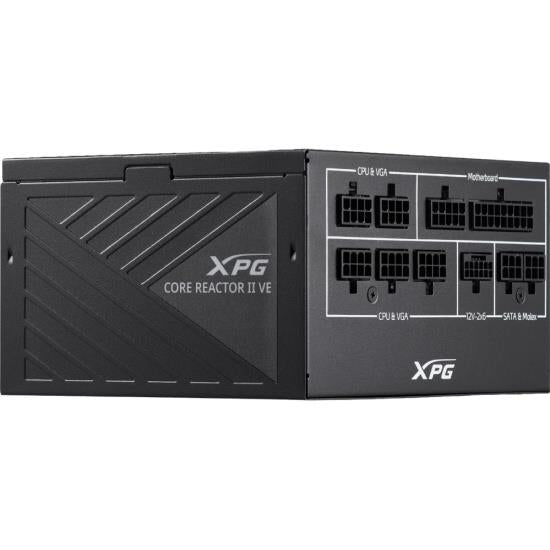

Power Supply|ADATA|XPG CORE REACTOR II VE|850 Watts|Efficiency 80 PLUS GOLD|COREREACTORIIVE850G-BKCEU
Couldn't load pickup availability
Cena bez PVN 21%: €88,01
Specifikācija
| Vienības kastes platums | 0.205 kg |
| Vienības kastes garums | 0.3 kg |
| Vienības kastes augstums | 0.12 kg |
| Modeļa nosaukums | XPG CORE REACTOR II VE g |
| Units per Shipping Box | 6 g |
| Unit Calculated Volume | 0.00875 cubm |
| Unit Calculated Weight | 2.98 kg |
| Summary | XPG COREREACTOR II VE 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus kg |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Total power | 850 W |
| Cabling type | Fully-Modular W |
| EPS power connector (4+4 pin) | Jā mm |
| Motherboard power cable length | 650 mm |
| Motherboard power connector | 24-pin ATX mm |
| Number of SATA power connectors | 6 mm |
| PCI Express power connectors (6+2 pin) | 3 mm |
| SATA power cable length | 150/450 mm |
| 80 PLUS certification | 80 PLUS Gold mm |
| ATX version | 3.1 mm |
| Power supply unit (PSU) form factor | ATX h |
| Fan diameter | 120 mm |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush protection (SIP)/Under voltage A |
| CPU power connector (4+4 pin) | Jā mm |
| Max output current (+12V) | 70.8 A |
| Power factor | 0.99 A |
| CPU power cable length | 750 mm |
| Bearing technology | FDB mm |
| Mean time between failures (MTBF) | 100000 h |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Cooling type | Active h |
| Product colour | Black fan(s) |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Weight | 1450 g |
| Peripheral (Molex) power connectors (4-pin) | 2 mm |
| Purpose | PC h |
| Number of fans | 1 fan(s) |
| Input current | 12 A |
| Package weight | 3030 g |
| Certification | CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus fan(s) |
| EPS power connector (8-pin) | Jā mm |
| ATX Power connector (24-pin) | Jā W |
| ATX power connector (12+4 pin) | Jā W |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| PCI Express power connectors (12-pin) | 1 mm |
Apraksts
CORE REACTOR II VE
CORE COMPETENCE
XPG CORE REACTOR II VE empowers your system with efficient power delivery. It’s compatible with Intel’s latest ATX 3.1 design guidelines and has a dedicated 12V-2x6 connector for the latest graphics cards. This unit boasts a DC-DC circuit design for enhanced performance, stability, and consistency, with exceptional ripple control and hold-up time surpassing Intel's specifications. It has 8 industrial protections fortifying its durability, safeguarding both the unit and your system.
ATX 3.1 Compatible
XPG CORE REACTOR II VE integrates seamlessly with ATX 3.1 standards, enhancing performance and reliability. With a dedicated 12V-2x6 connector, it ensures optimal compatibility with the latest graphics card requirements, delivering advanced power delivery and efficiency.
12V-2x6 Connector
The provided 12V-2x6 connector ensures direct and efficient power delivery to critical components, maximizing system stability and performance. By minimizing voltage drops and optimizing efficiency, this connector guarantees consistent and reliable power for your system's demanding needs.
DC-DC Circuit Design
XPG CORE REACTOR II VE’s DC-DC circuit design maximizes efficiency and reliability by converting power directly to the required output voltage. This enhances system stability, reduces heat generation, and prolongs hardware lifespan.
Low Ripple Noise Design
XPG CORE REACTOR II VE features a low ripple noise design, surpassing Intel's specifications with ripple levels below 60mV at +12V and below 40mV at +5V and +3.3V. This ensures stable power delivery, minimizes electrical interference, and enhances system performance, providing a seamless computing experience.
15ms Hold Up Time
XPG CORE REACTOR II VE boasts an impressive hold-up time, surpassing Intel’s standards with over 15ms of uninterrupted power delivery. This ensures reliable operation under challenging conditions, making it the perfect choice for high-performance computing setups.
8 Industrial Protections
XPG CORE REACTOR II VE offers 8 industrial-grade protections, shielding your system from over-voltage, under-voltage, overcurrent, short circuits, and more. With this comprehensive protection suite, you can rely on uninterrupted performance with peace of mind, even in the wake of electrical anomalies.
140mm Length
XPG CORE REACTOR II VE's compact 140mm length design maximizes space efficiency without compromising on performance. Its sleek form factor ensures easy integration into various PC setups and chassis, delivering uncompromising power and reliability.
PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
