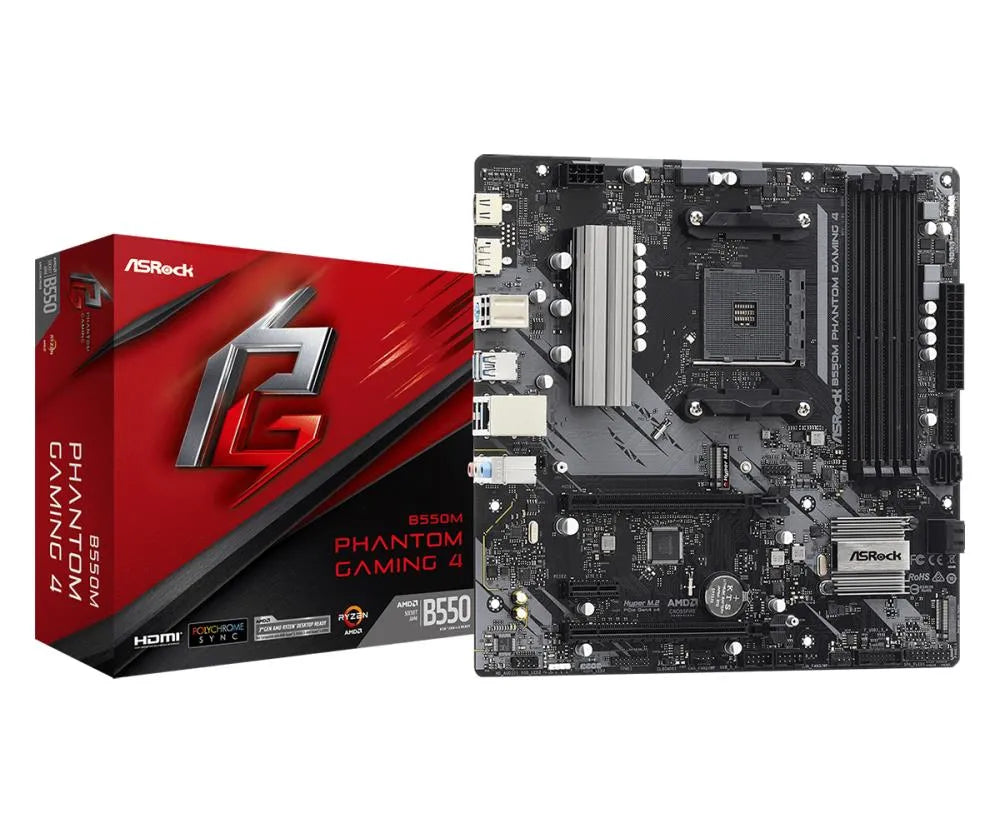

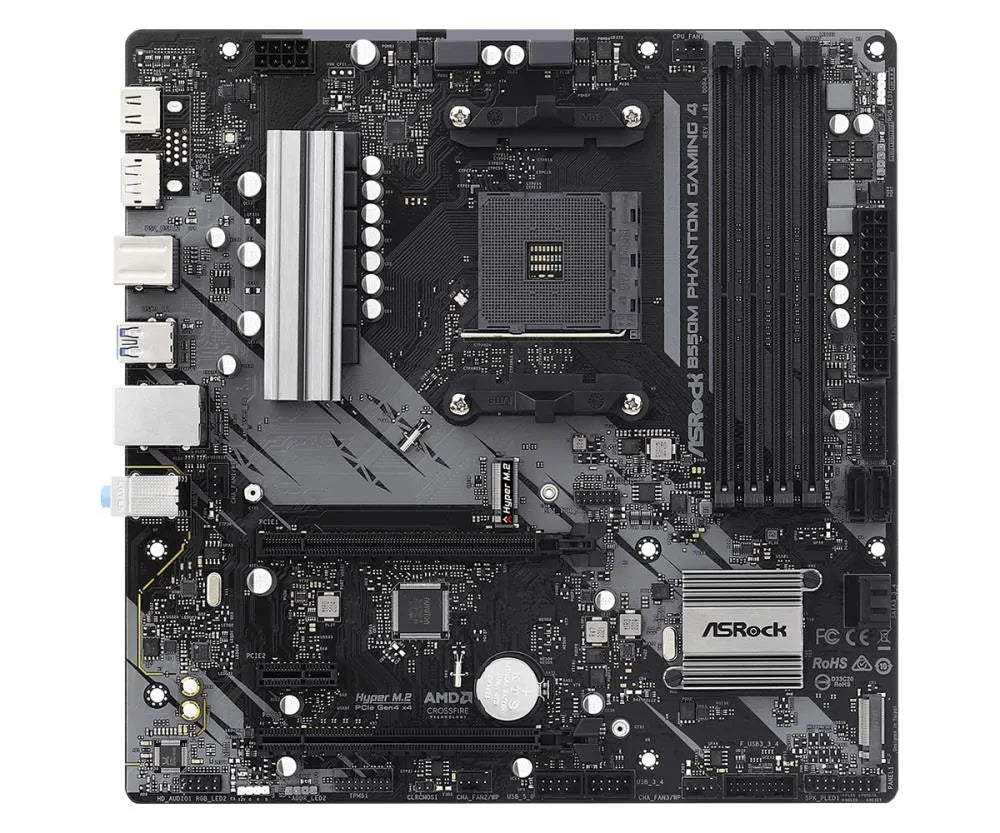

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 4x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|B550MPHANTOMGAMING4
Couldn't load pickup availability
Cena bez PVN 21%: €74,11
Specifikācija
| Vienības kastes platums | 0.06 kg |
| Vienības kastes garums | 0.275 kg |
| Vienības kastes augstums | 0.26 kg |
| Units per Shipping Box | 1 g |
| Unit Calculated Volume | 0.00429 cubm |
| Unit Calculated Weight | 1.1 kg |
| Summary | Asrock B550M Phantom Gaming 4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H kg |
| Compatible processor series | AMD Ryzen 3000 Series channels |
| Maximum number of SMP processors | 1 channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM4 channels |
| ECC ?ompatibility | ECC & Non-ECC channels |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| Supported storage drive interfaces | SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of chassis fan connectors | 3 pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 pixels |
| DisplayPort version | 1.4 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 pixels |
| Ethernet interface type | Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Audio chip | Realtek ALC887 / Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD B550 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | micro ATX channels |
| Number of M.2 (M) slots | 1 pixels |
| BIOS memory size | 256 Mbit |
| PCI Express x1 (Gen 3.x) slots | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| Drivers included | Jā mm |
| PS/2 ports quantity | 1 pixels |
| LAN controller | Realtek RTL8111H pixels |
| DirectX version | 12.0 MHz |
| Wake-on-LAN ready | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage channels |
| PCI Express x16 (Gen 3.x) slots | 3 pixels |
| ACPI version | 5.1 pixels |
| System Management BIOS (SMBIOS) version | 2.3 Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 2 pixels |
| Wi-Fi | Nē pixels |
| Harmonized System (HS) code | 84733020 Mbit |
| Depth | 244 mm |
| Width | 244 mm |
| Cables included | SATA mm |
| HDCP | Jā MHz |
| Maximum resolution | 5120 x 2880 pixels |
| DisplayPorts quantity | 1 pixels |
| Windows operating systems supported | Windows 10 x64 channels |
| Height | 70 mm |
| HDMI version | 2.1 pixels |
| Weight | 465 g |
| Overclocking features | FCC, CE ErP/EuP channels |
Apraksts
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 2280 M.2
Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

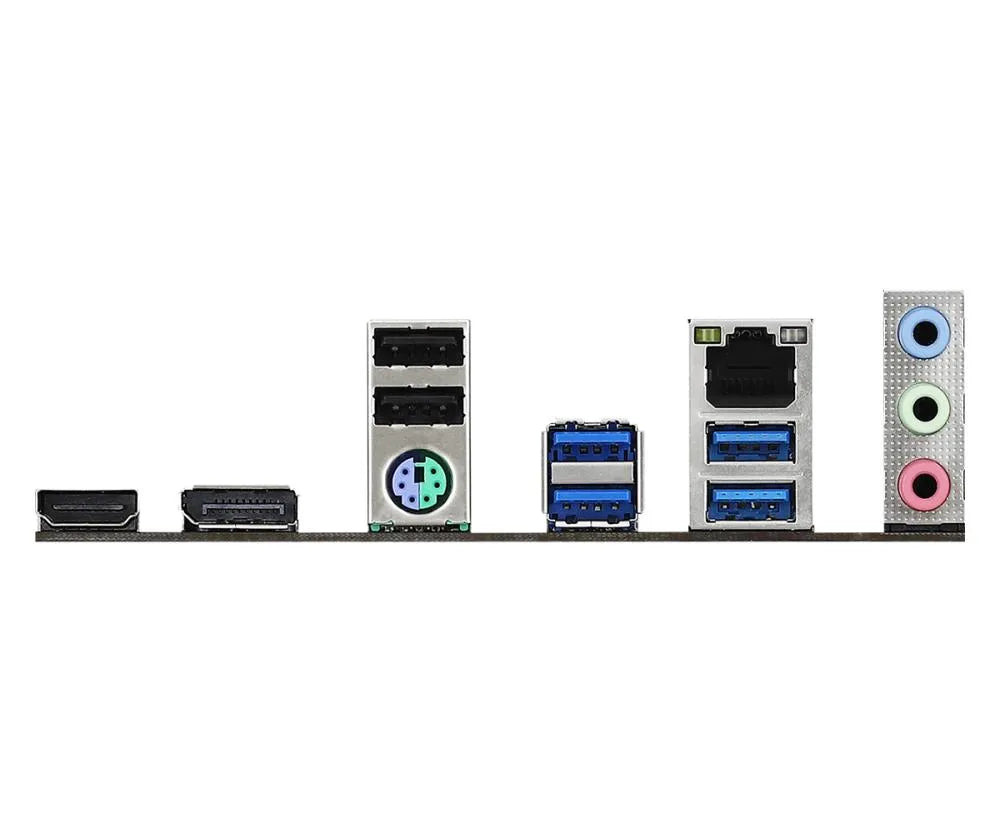

Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
- ASRock Hyper M.2 (PCIe Gen4x4)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
