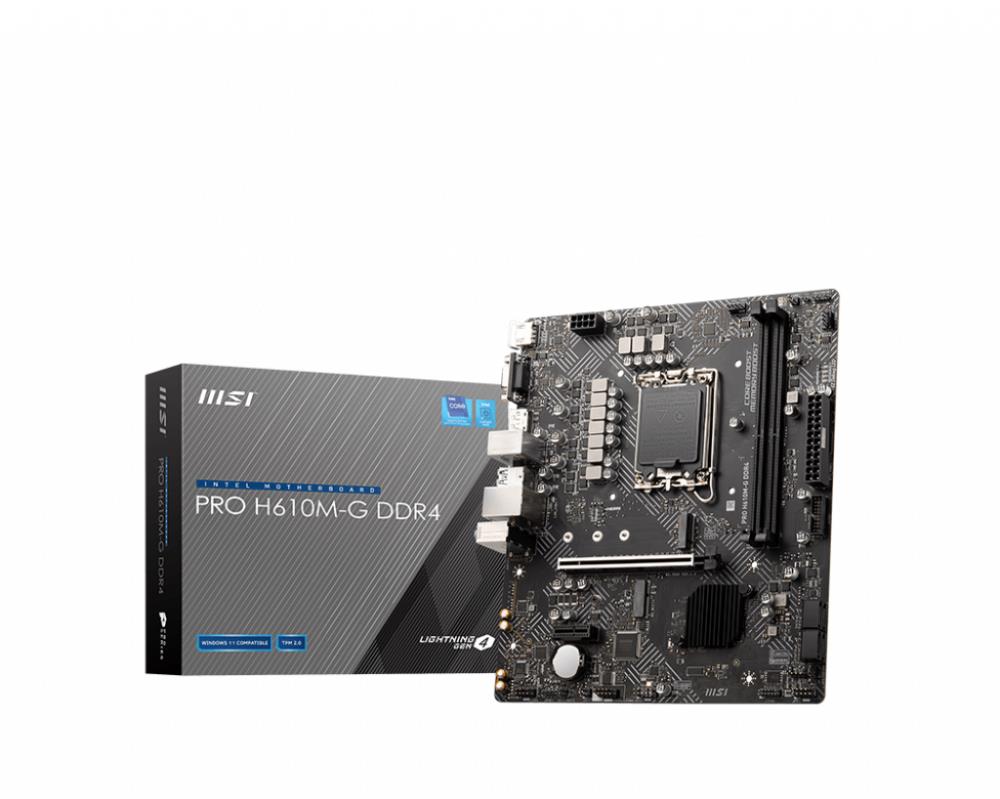

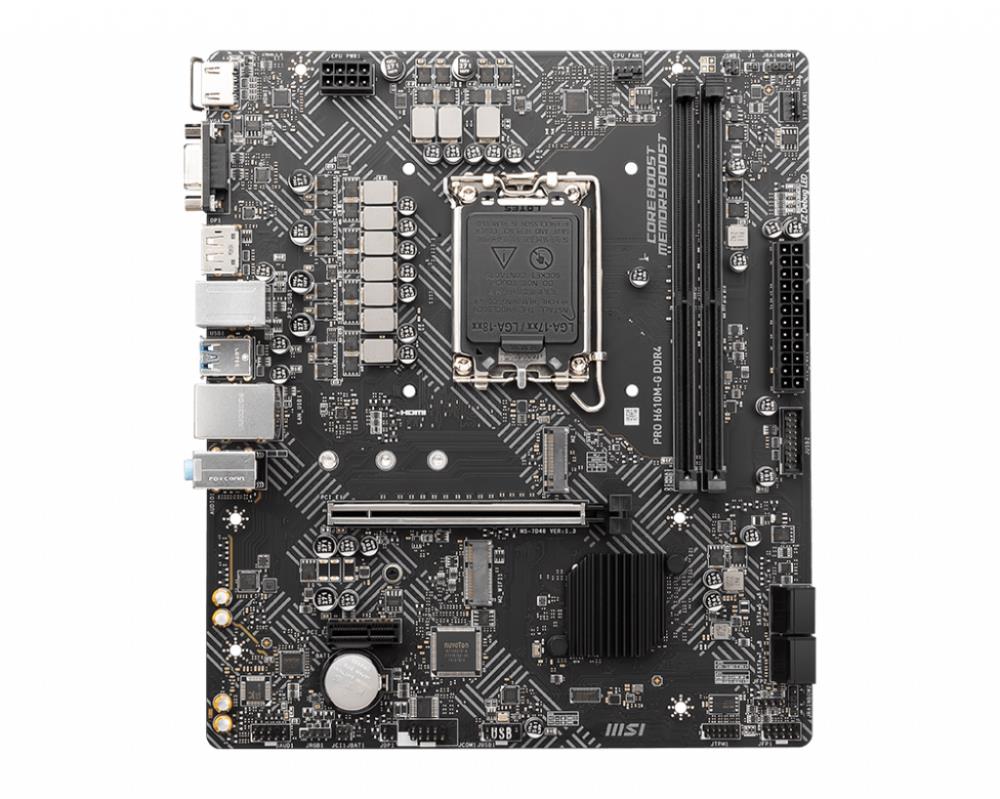

Mainboard|MSI|Intel H610|LGA1700|MicroATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|PROH610M-GDDR4
Couldn't load pickup availability
Cena bez PVN 21%: €63,49
Specifikācija
| Vienības kastes platums | 0.26 kg |
| Vienības kastes garums | 0.265 kg |
| Vienības kastes augstums | 0.055 kg |
| Units per Shipping Box | 1 g |
| Unit Calculated Volume | 0.003789 cubm |
| Unit Calculated Weight | 0.764 kg |
| Summary | MSI PRO H610M-G DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel kg |
| Compatible processor series | Intel® Core™ i9 channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1700 channels |
| Supported processor sockets | LGA 1700 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 2 GB |
| Supported memory clock speeds | 2133/2666/2933/3200 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | SSD MHz |
| Parallel processing technology support | Not supported MHz |
| 12V power connector | Jā MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| TPM connector | Jā MHz |
| USB 2.0 connectors | 2 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 MHz |
| Ethernet interface type | Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | Intel H610 channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| BIOS type | UEFI AMI MHz |
| Drivers included | Jā mm |
| DirectX version | 12.0 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| VGA (D-Sub) ports quantity | 1 MHz |
| Wi-Fi | Nē MHz |
| Harmonized System (HS) code | 84733020 MHz |
| Depth | 244 mm |
| Width | 211 mm |
| Cables included | SATA mm |
| DisplayPorts quantity | 1 MHz |
| Windows operating systems supported | Windows 10/Windows 11 channels |
| Height | 65 mm |
| Weight | 764 g |
Apraksts
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
