Mainboard|MSI|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MGAMINGPLUSWIFI
Couldn't load pickup availability
Cena bez PVN 21%: €149,46
Specifikācija
| Vienības kastes platums | 0.07 kg |
| Vienības kastes garums | 0.28 kg |
| Vienības kastes augstums | 0.28 kg |
| Modelis | B850M GAMING PLUS WIFI mm |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.4 MHz |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.005488 cubm |
| Unit Calculated Weight | 1.48 kg |
| Summary | MSI B850M GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD channels |
| Processor socket | Socket AM5 channels |
| Supported processor sockets | Socket AM5 channels |
| ECC ?ompatibility | Non-ECC channels |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4800/6400/8200 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| RAID levels | 0/1/10 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2 MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Nē MHz |
| ATX Power connector (24-pin) | Jā MHz |
| CPU fan connector | Jā MHz |
| Front panel audio connector | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| USB 2.0 connectors | 4 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 MHz |
| Ethernet interface type | 5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) MHz |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD B850 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | micro ATX channels |
| Number of M.2 (M) slots | 3 MHz |
| PCI Express x16 (Gen 4.x) slots | 1 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| BIOS memory size | 256 Mbit |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 MHz |
| BIOS type | UEFI AMI Mbit |
| Units per Pallet | B850M GAMING PLUS WIFI mm |
| LAN controller | Realtek RTL8126 MHz |
| Front panel connector | Jā MHz |
| PCI Express x16 (Gen 3.x) slots | 1 MHz |
| ACPI version | 6.5 MHz |
| System Management BIOS (SMBIOS) version | 3.7 Mbit |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| PCI Express x16 slots | 1 MHz |
| HDMI ports quantity | 1 MHz |
| Wi-Fi | Jā MHz |
| Depth | 243.84 mm |
| Width | 243.84 mm |
| Total number of SATA connectors | 4 MHz |
| Product colour | Black channels |
| Windows operating systems supported | Windows 11 x64 channels |
| HDMI version | 2.1 MHz |
| Number of CPU fan connectors | 2 MHz |
| Number of RGB LED pin headers | 3 MHz |
| Number of water pump connectors | 1 MHz |
| 1st M.2 highest PCI Express generation | 5.0 MHz |
| 1st M.2 largest key size | 2280 MHz |
| 2nd M.2 highest PCI Express generation | 5.0 MHz |
| 2nd M.2 largest key size | 2280 MHz |
| 3rd M.2 highest PCI Express generation | 4.0 MHz |
| 3rd M.2 largest key size | 2280 MHz |
| PCI Express x4 slots | 1 MHz |
Apraksts

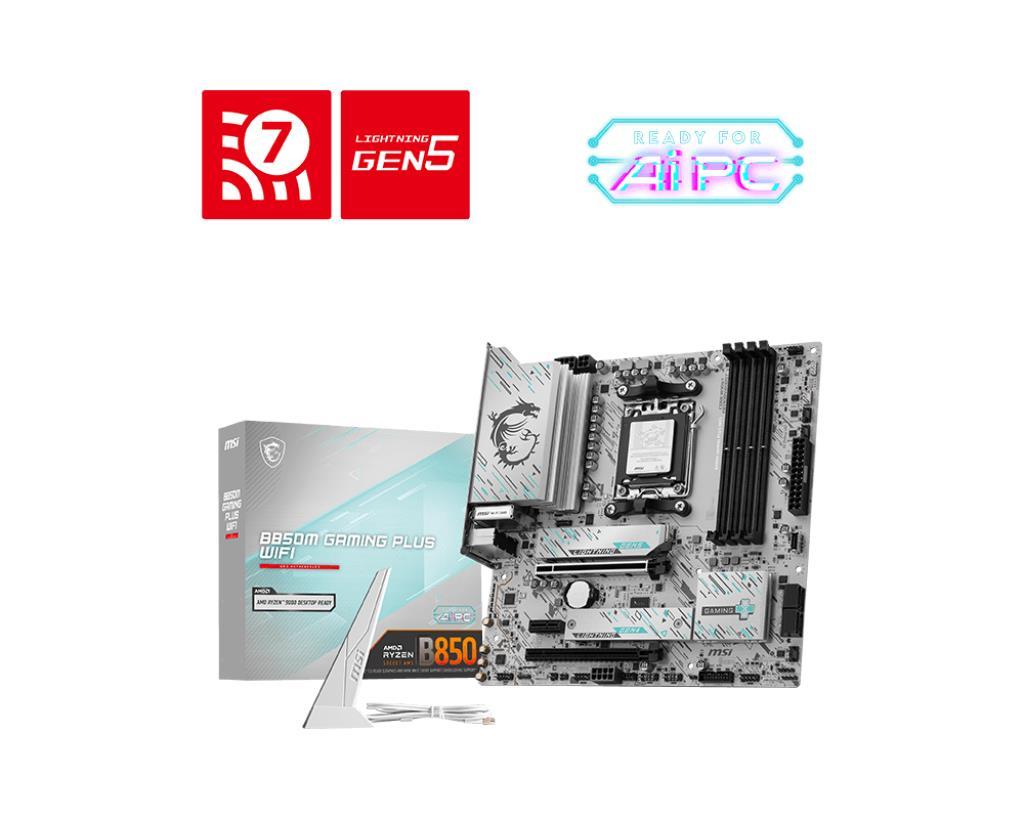

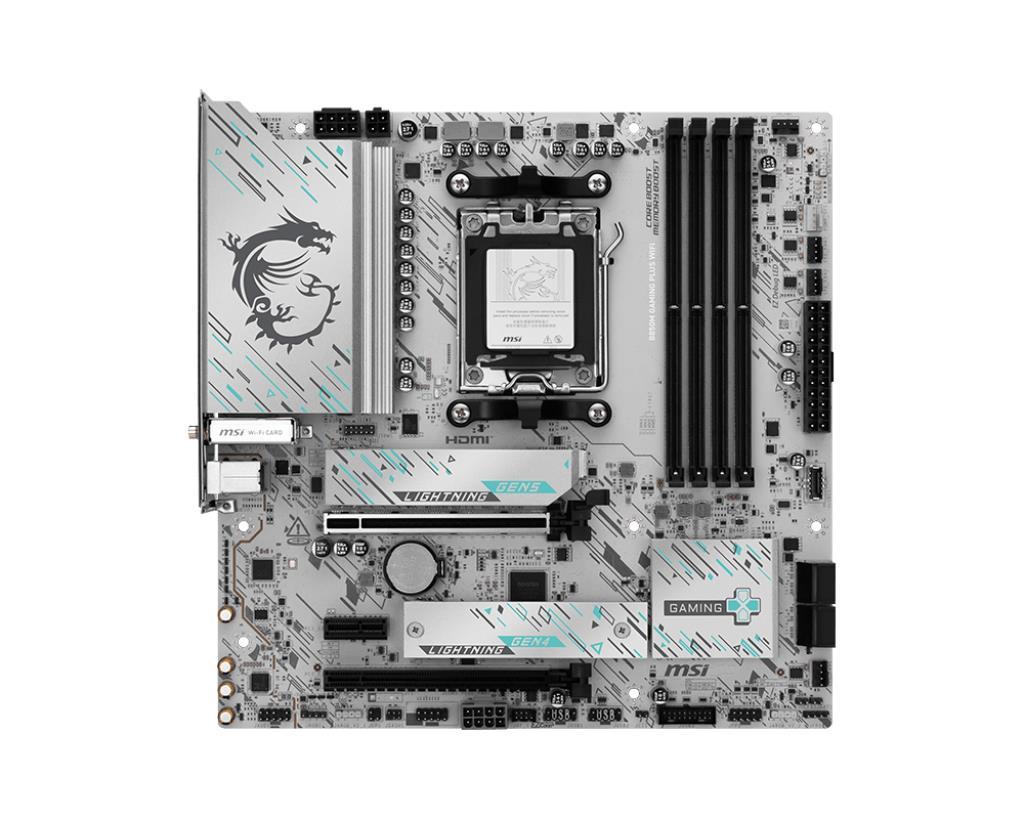

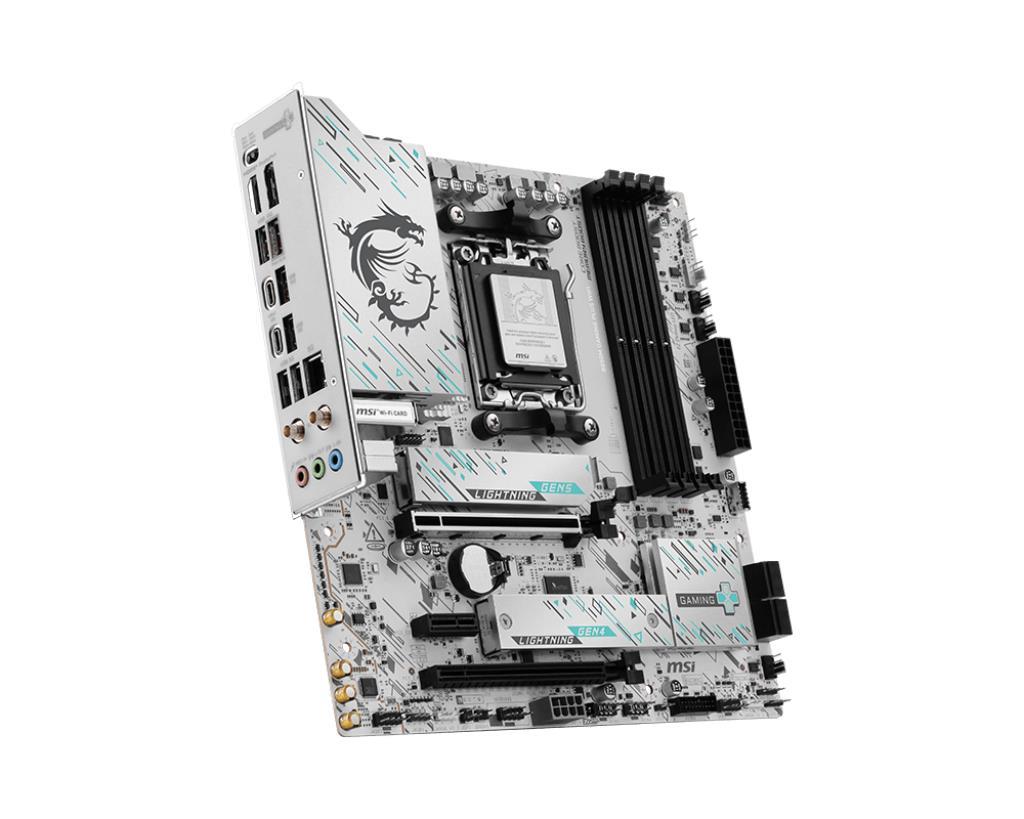

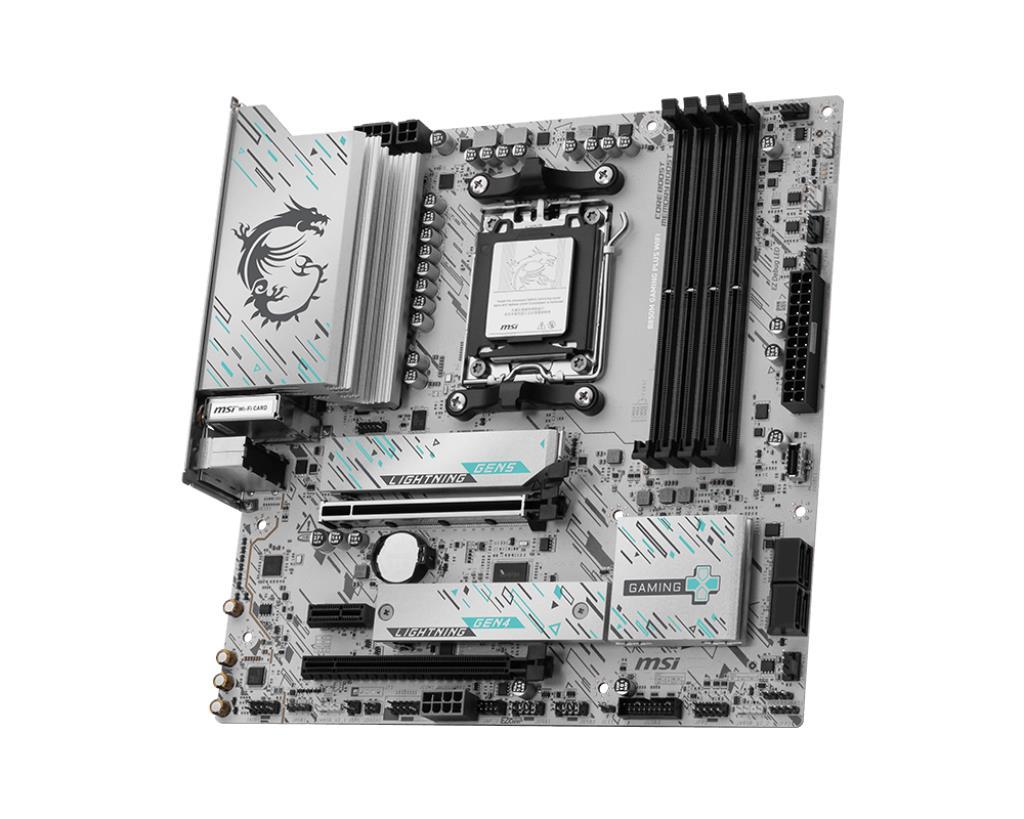

B850M GAMING PLUS WIFI
The B850M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the latest Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 8+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8+4-pin power connectors and exclusive Core Boost technology, the B850M GAMING PLUS WIFI is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: Direct 8+2+1 Power System with 60A SPS, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
