Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|PROB850-PWIFI
Couldn't load pickup availability
Cena bez PVN 21%: €158,04
Specifikācija
| Vienības kastes platums | 0.27 kg |
| Vienības kastes garums | 0.35 kg |
| Vienības kastes augstums | 0.07 kg |
| Modelis | PRO B850-P WIFI mm |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.4 MHz |
| Units per Shipping Box | 10 mm |
| Unit Calculated Volume | 0.008299 cubm |
| Unit Calculated Weight | 1.84 kg |
| Summary | MSI PRO B850-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD GB |
| Processor socket | Socket AM5 GB |
| Supported processor sockets | Socket AM5 GB |
| ECC ?ompatibility | Non-ECC GB |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8200 MHz |
| Supported memory clock speeds | 4800/5600/8200 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| RAID levels | 0/1 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,Micro SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Nē MHz |
| CPU fan connector | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| USB 2.0 connectors | 4 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) MHz |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) MHz |
| Audio chip | Realtek ALC897 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD B850 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 3 MHz |
| PCI Express x16 (Gen 4.x) slots | 1 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 MHz |
| PCI Express x16 (Gen 3.x) slots | 2 MHz |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 7 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Jā MHz |
| Depth | 304.8 mm |
| Width | 243.84 mm |
| Maximum internal memory supported by processor | 256 GB |
| Total number of SATA connectors | 4 MHz |
| Product colour | Black channels |
| HDMI version | 2.1 MHz |
| Number of CPU fan connectors | 1 MHz |
| Number of RGB LED pin headers | 3 MHz |
| Number of water pump connectors | 1 MHz |
| 1st M.2 highest PCI Express generation | 5.0 MHz |
| 1st M.2 largest key size | 2280 MHz |
| 2nd M.2 highest PCI Express generation | 4.0 MHz |
| 2nd M.2 largest key size | 22110 MHz |
| 3rd M.2 highest PCI Express generation | 4.0 MHz |
| 3rd M.2 largest key size | 2280 MHz |
Apraksts

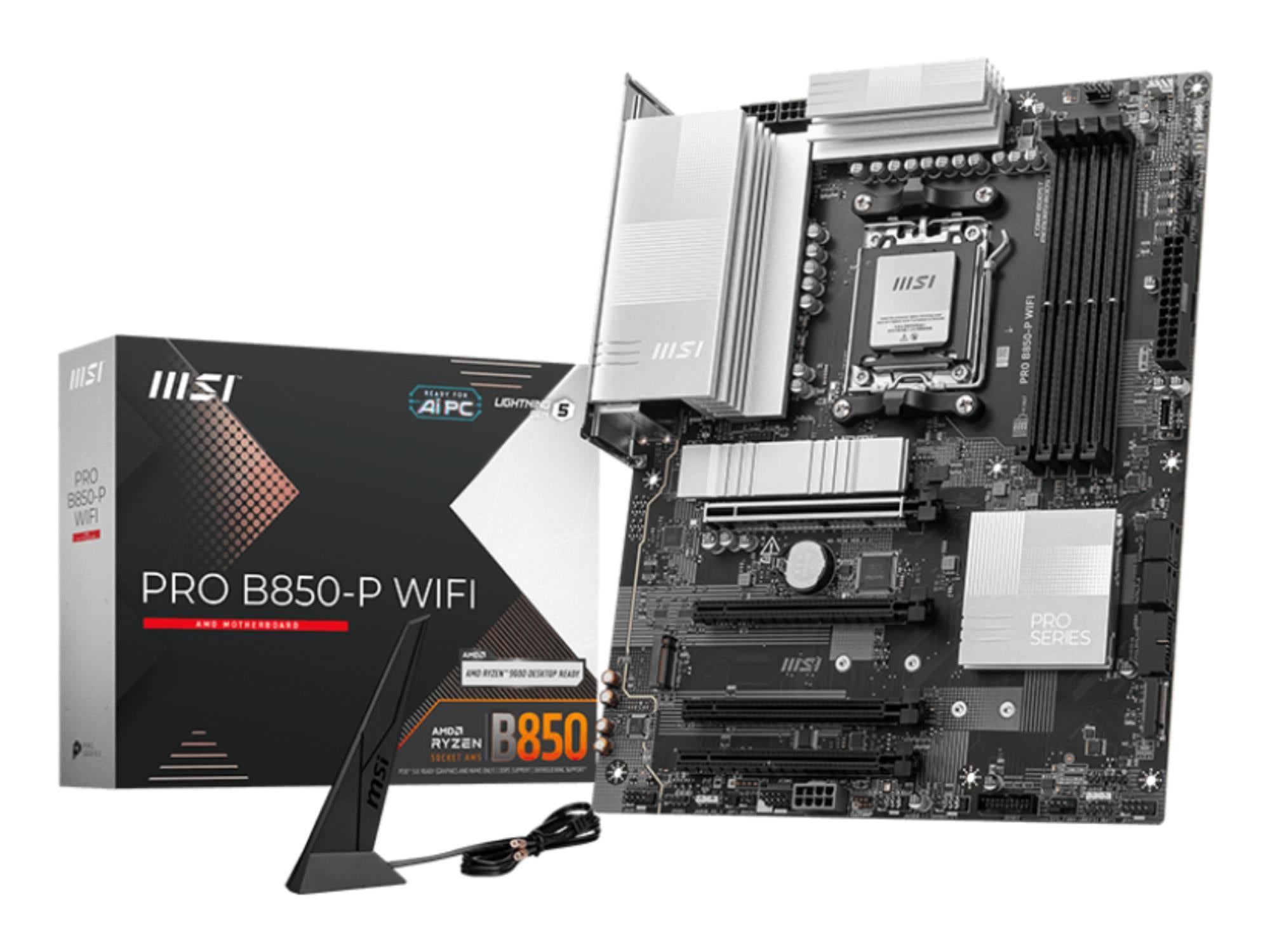

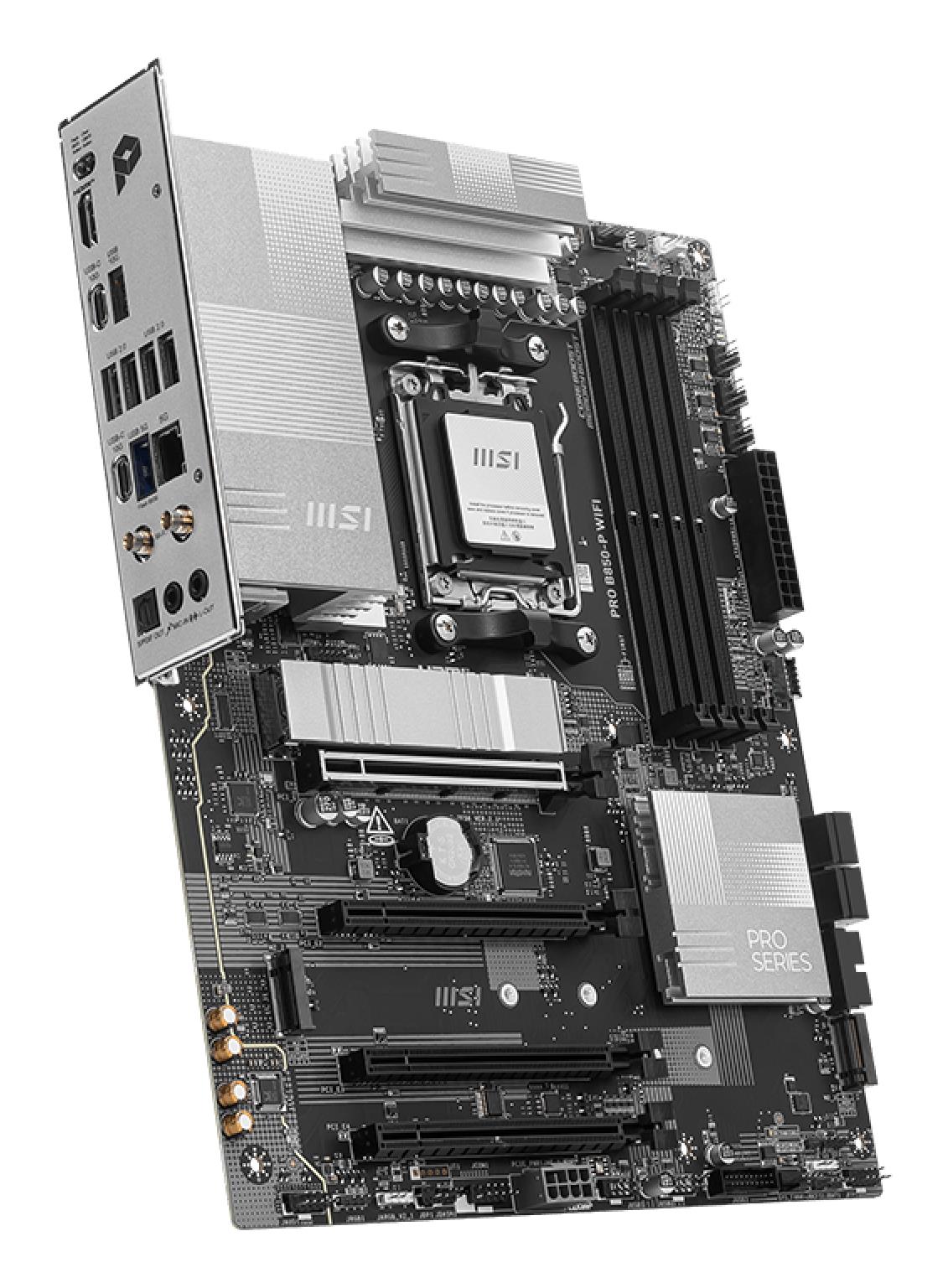

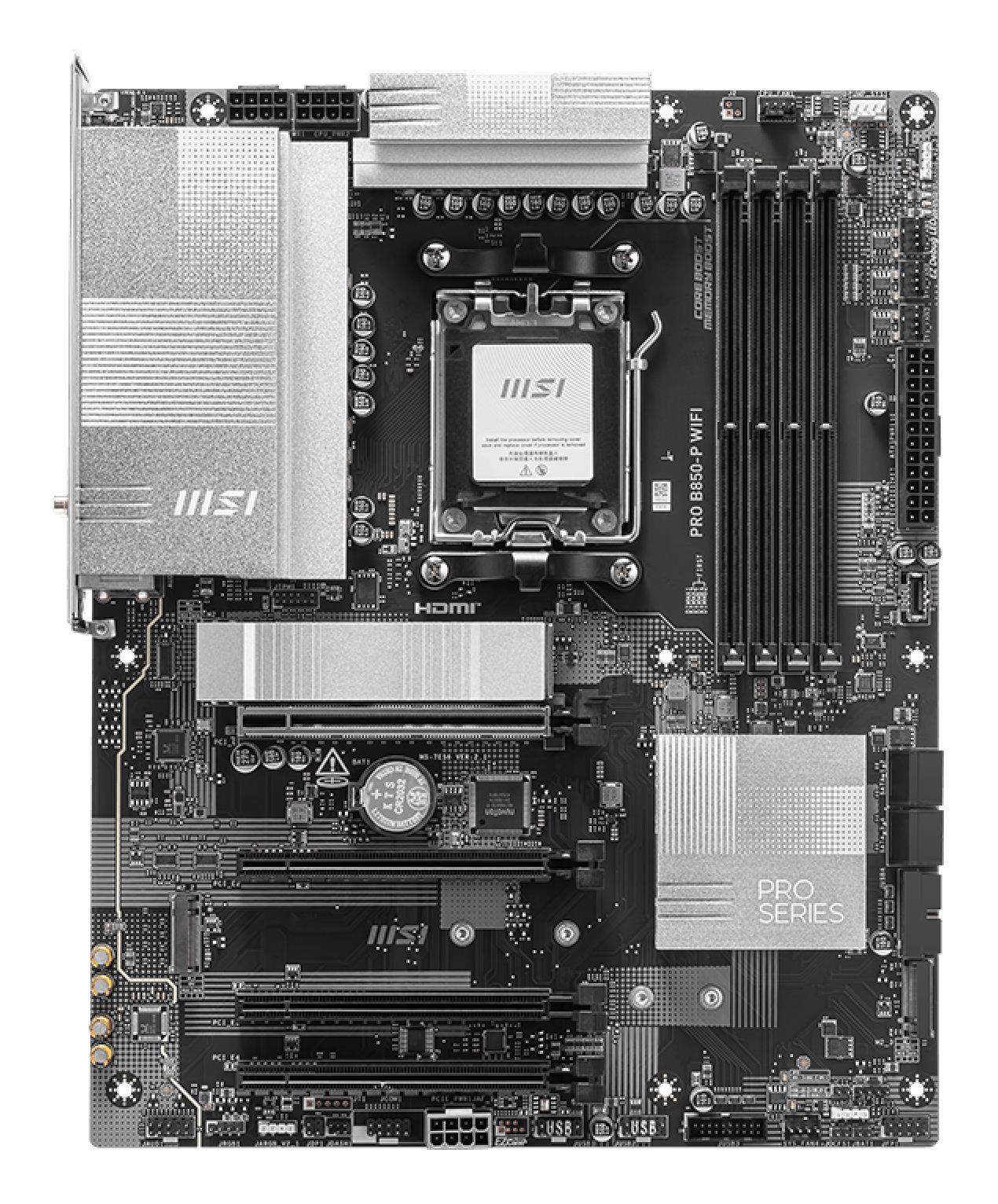

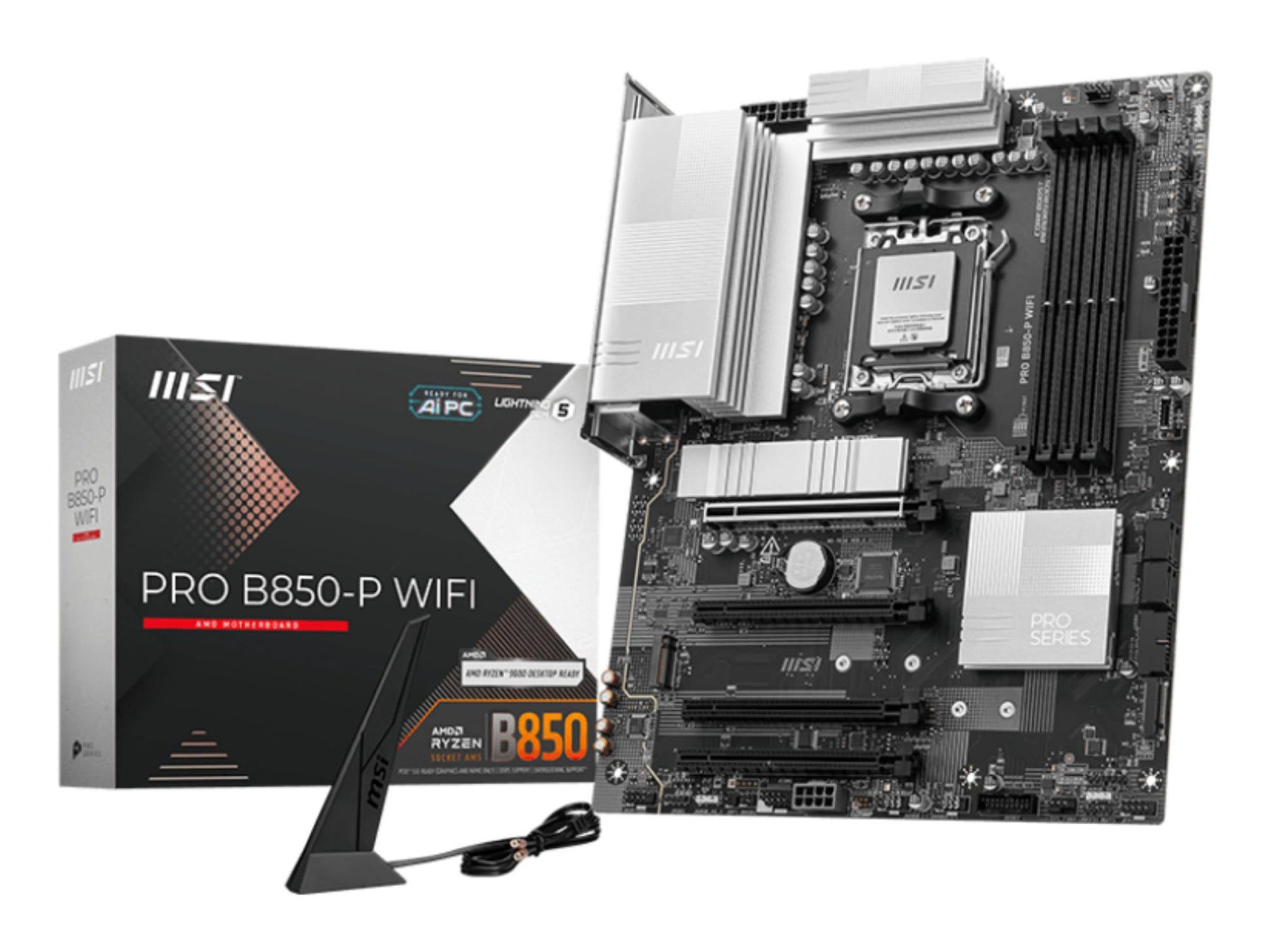

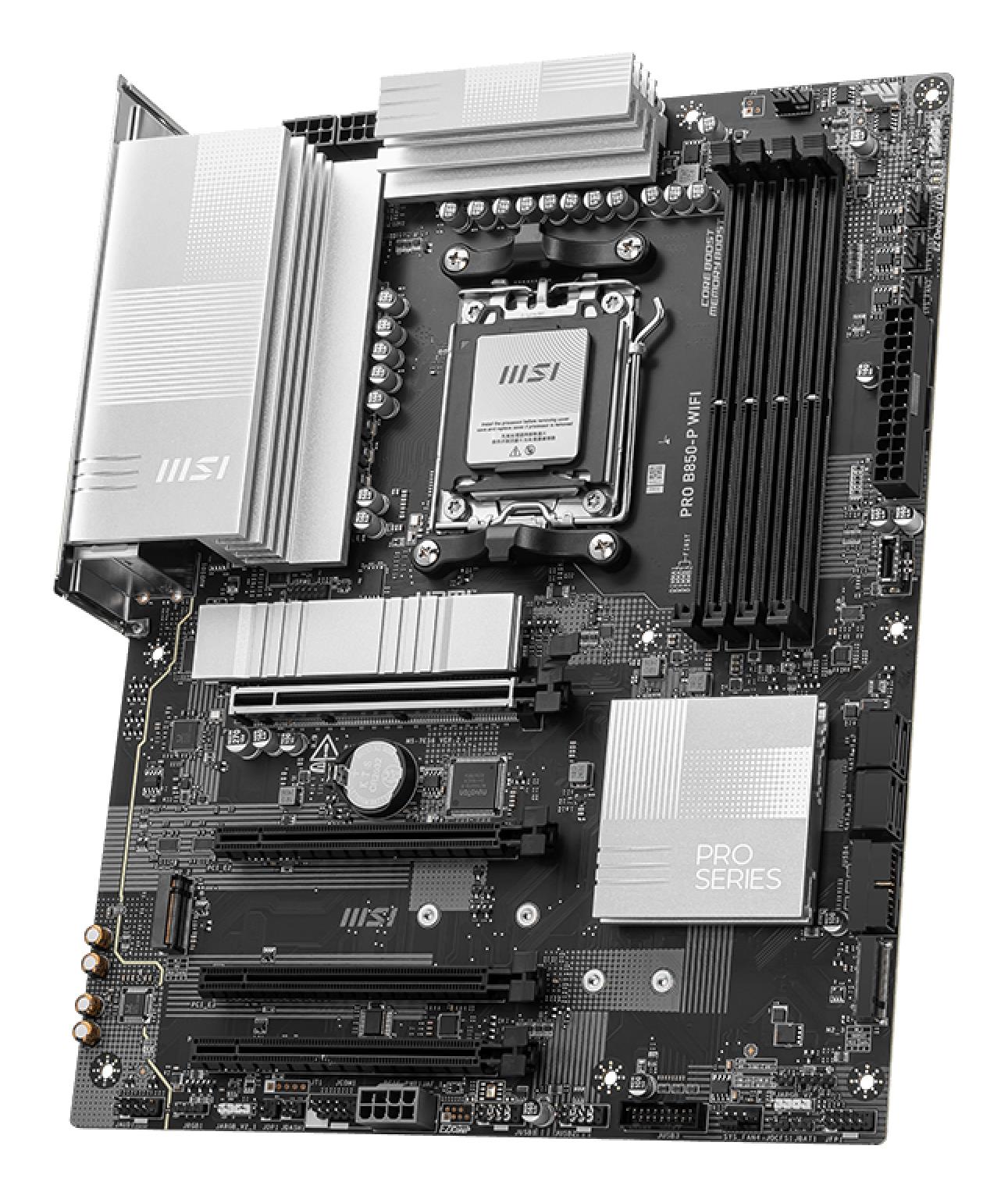

PRO B850-P WIFI
PRO B850-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
12+2+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2+1 digital power phases. With dual power connectors, PRO B850-P WIFI is ready for the challenge of high-end processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2

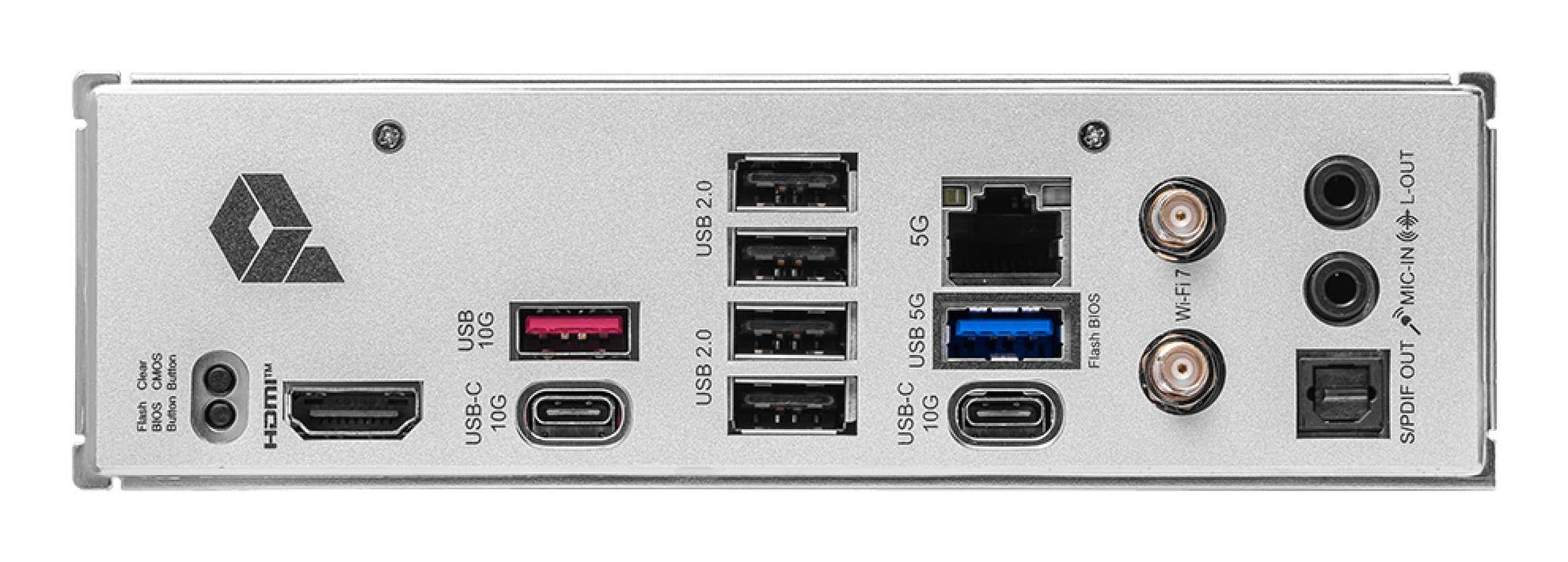

- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
