Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|1xUSB 3.0|2xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|MPGB850EDGETIWIFI
Couldn't load pickup availability
Cena bez PVN 21%: €259,64
Specifikācija
| Vienības kastes platums | 0.075 kg |
| Vienības kastes garums | 0.345 kg |
| Vienības kastes augstums | 0.275 kg |
| Modelis | MPG B850 EDGE TI WIFI mm |
| Bluetooth | Jā MHz |
| Bluetooth versija | 5.4 MHz |
| Units per Shipping Box | 1 mm |
| Unit Calculated Volume | 0.007116 cubm |
| Unit Calculated Weight | 2.25 kg |
| Summary | MSI MPG B850 EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD kg |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series channels |
| Processor manufacturer | AMD GB |
| Processor socket | Socket AM5 GB |
| Supported processor sockets | Socket AM5 GB |
| ECC ?ompatibility | Non-ECC GB |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 4 GB |
| Supported memory clock speed (max) | 8400 MHz |
| Supported memory clock speeds | 4800/5600/8400 MHz |
| Supported memory types | DDR5-SDRAM MHz |
| RAID levels | 0/1/10 MHz |
| RAID support | Jā MHz |
| Supported storage drive interfaces | M.2,Micro SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| On-board graphics card | Nē MHz |
| CPU fan connector | Jā MHz |
| Number of SATA III connectors | 4 MHz |
| RGB LED pin header | Jā MHz |
| USB 2.0 connectors | 4 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 MHz |
| Ethernet LAN (RJ-45) ports | 1 MHz |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 MHz |
| Ethernet interface type | 2.5 Gigabit Ethernet MHz |
| Ethernet LAN | Jā MHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) MHz |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) MHz |
| Audio chip | Realtek ALC4080 kg |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Motherboard chipset | AMD B850 channels |
| Motherboard chipset family | AMD channels |
| Motherboard form factor | ATX channels |
| Number of M.2 (M) slots | 4 MHz |
| PCI Express x16 (Gen 4.x) slots | 1 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 MHz |
| PCI Express x16 (Gen 3.x) slots | 1 MHz |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 8 MHz |
| HDMI ports quantity | 1 MHz |
| USB 2.0 ports quantity | 4 MHz |
| Wi-Fi | Jā MHz |
| Depth | 243.84 mm |
| Width | 304.8 mm |
| Maximum internal memory supported by processor | 256 GB |
| Total number of SATA connectors | 4 MHz |
| Product colour | White channels |
| Windows operating systems supported | Windows 11 x64 channels |
| HDMI version | 2.1 MHz |
| Number of CPU fan connectors | 6 MHz |
| Number of RGB LED pin headers | 3 MHz |
| Number of water pump connectors | 1 MHz |
| 1st M.2 highest PCI Express generation | 5.0 MHz |
| 1st M.2 largest key size | 22110 MHz |
| 2nd M.2 highest PCI Express generation | 5.0 MHz |
| 2nd M.2 largest key size | 2280 MHz |
| 3rd M.2 highest PCI Express generation | 4.0 MHz |
| 3rd M.2 largest key size | 2280 MHz |
| 4th M.2 highest PCI Express generation | 4.0 MHz |
| 4th M.2 largest key size | 2280 MHz |
Apraksts

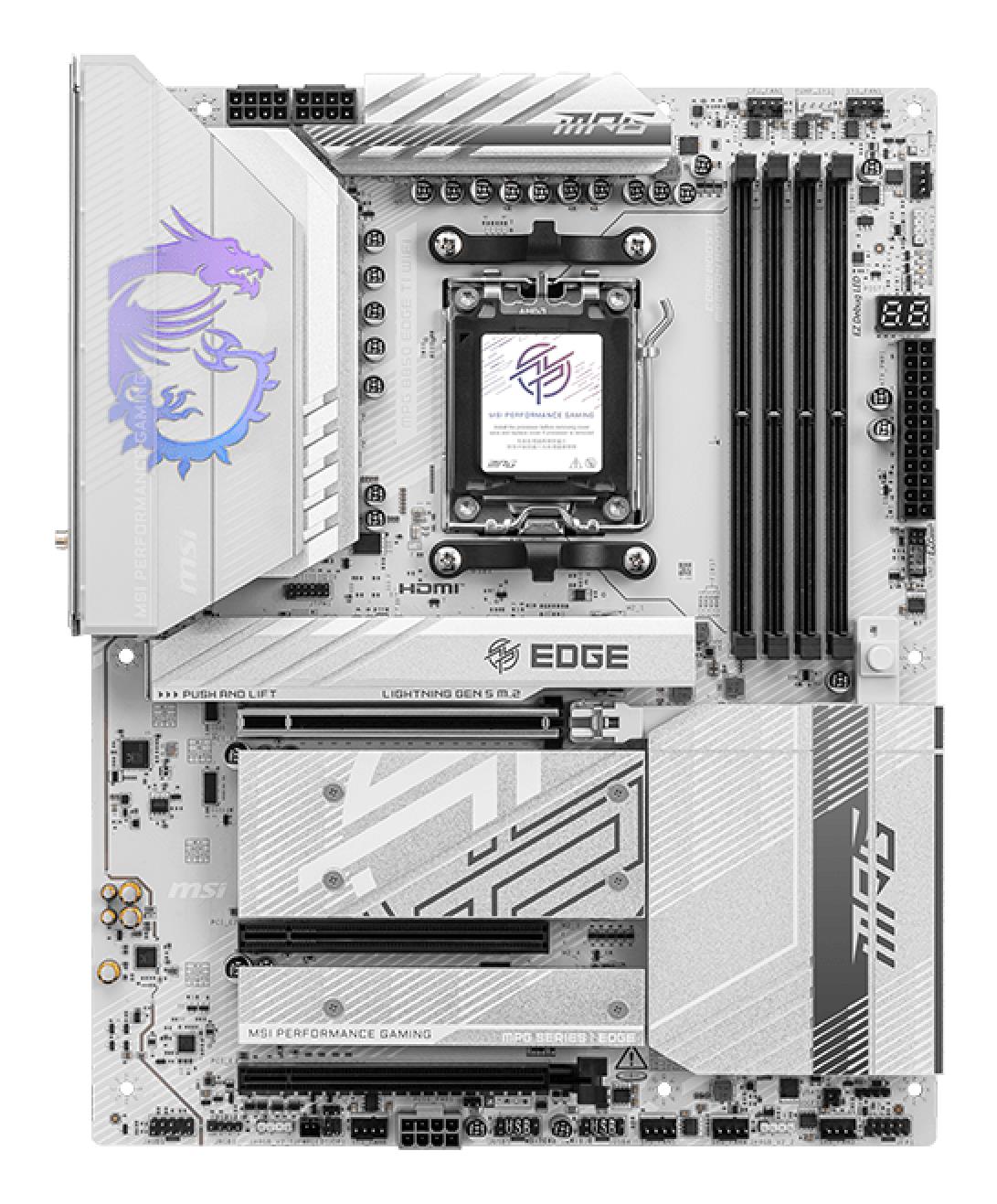

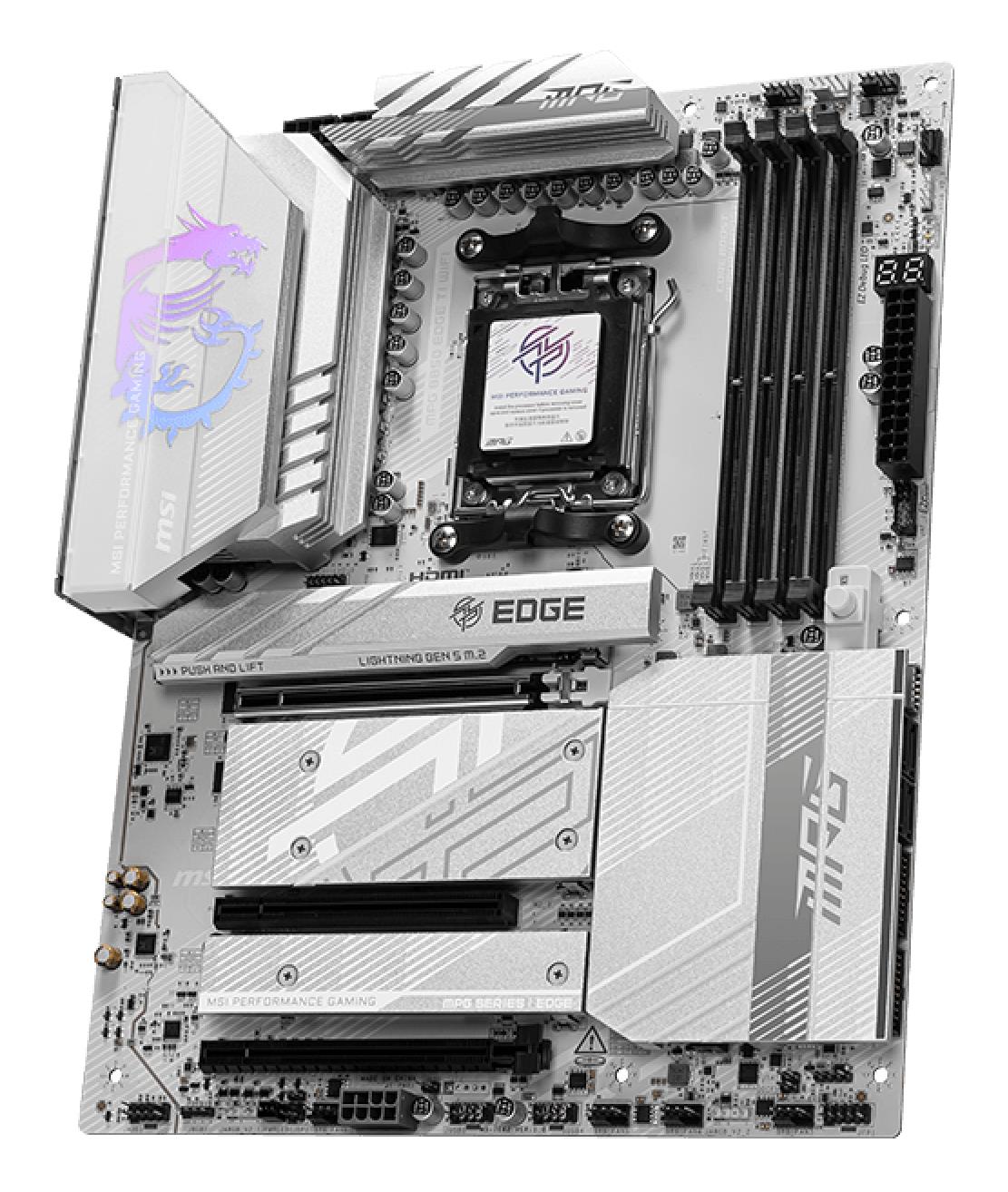

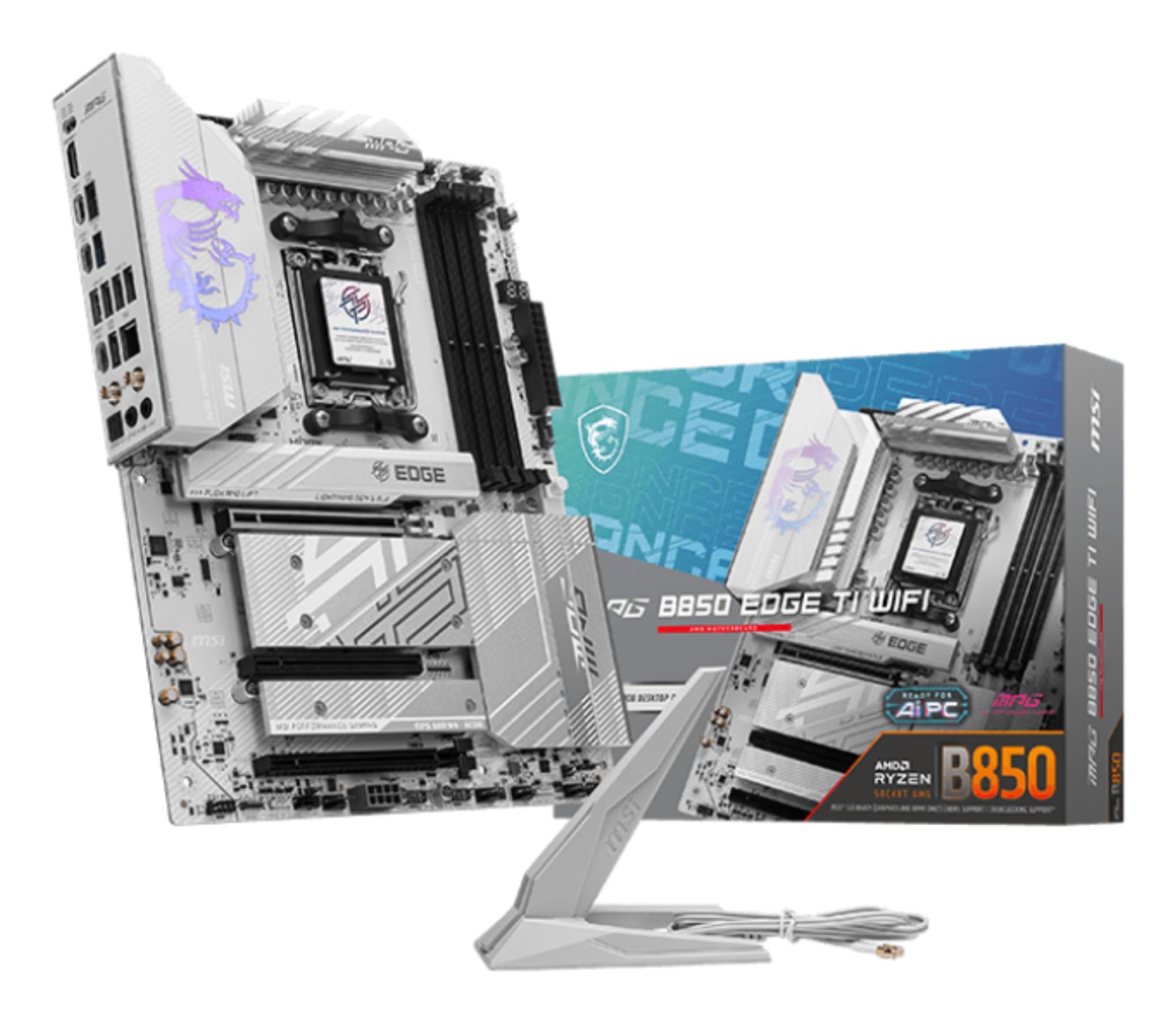

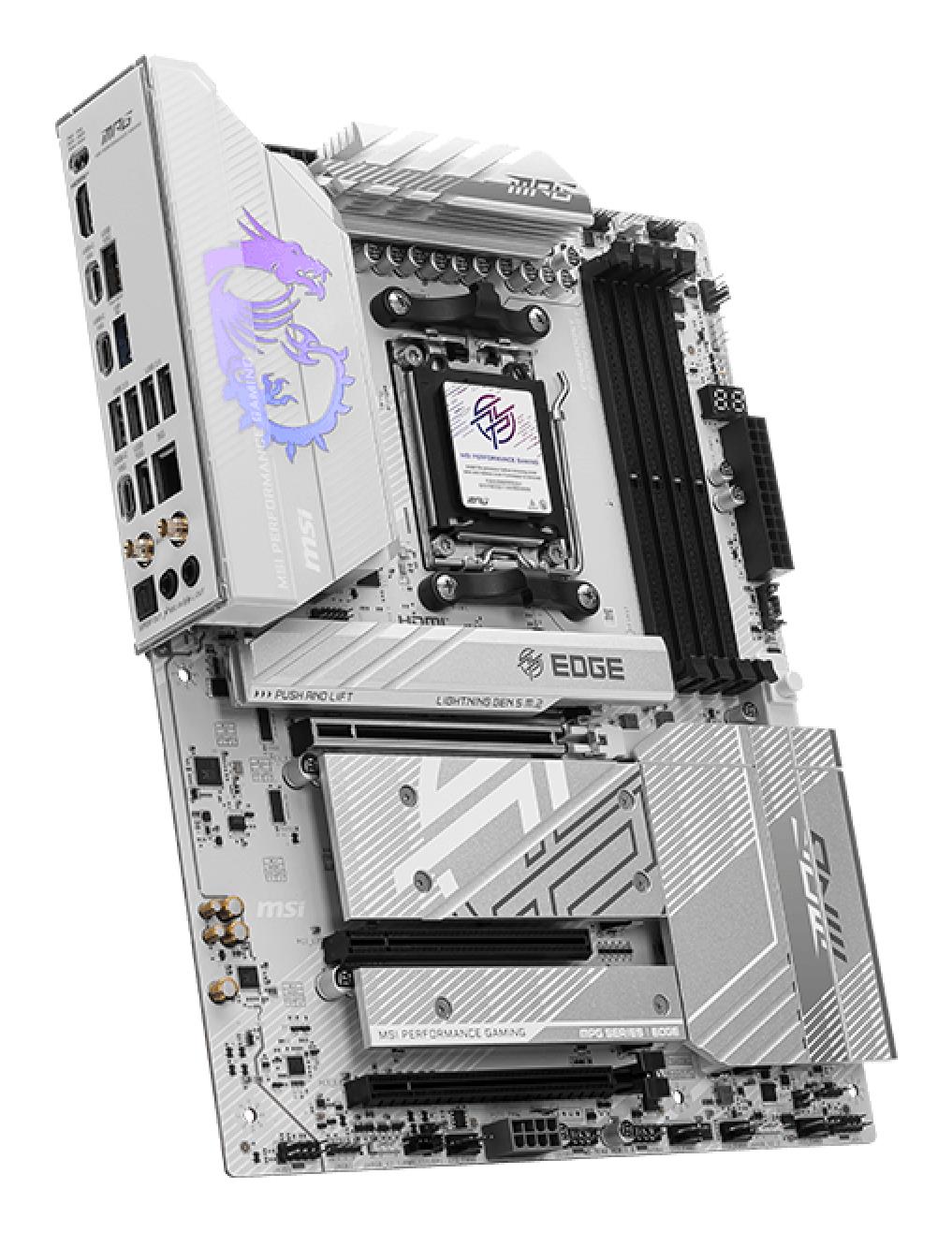

MPG B850 EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
