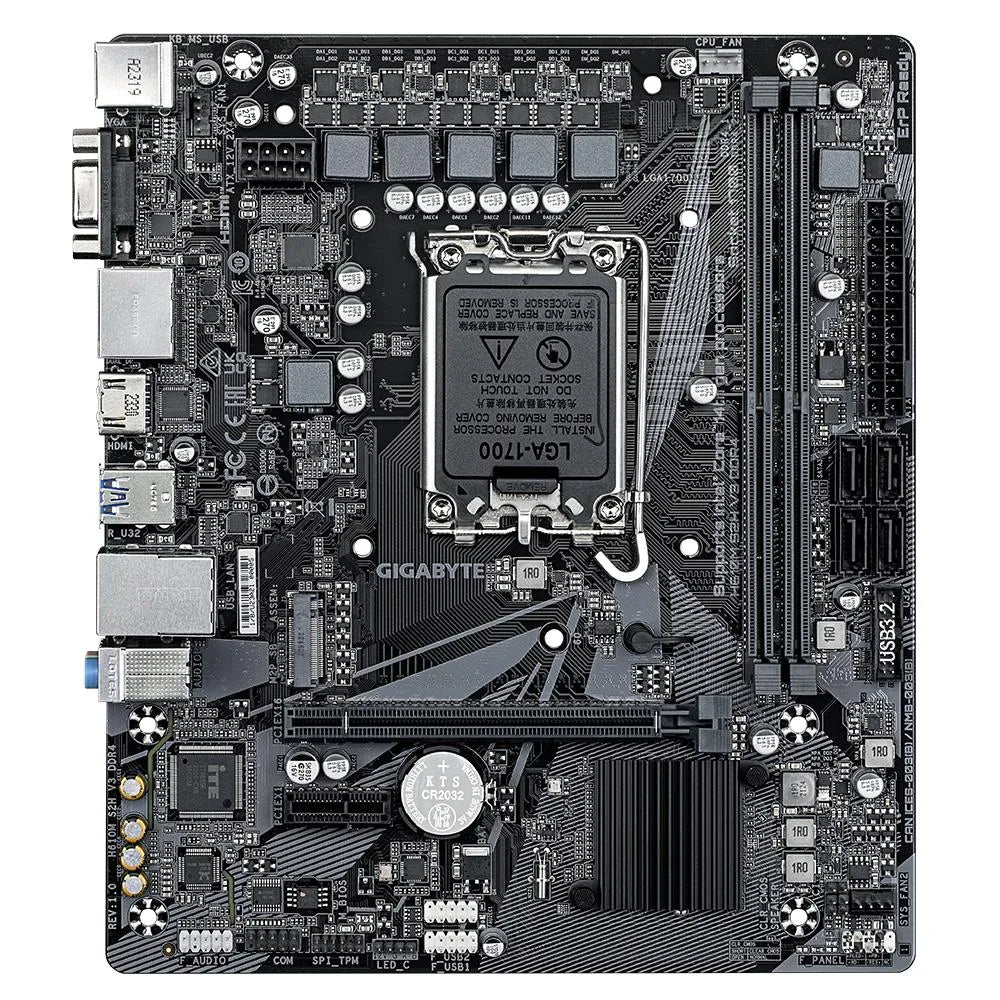

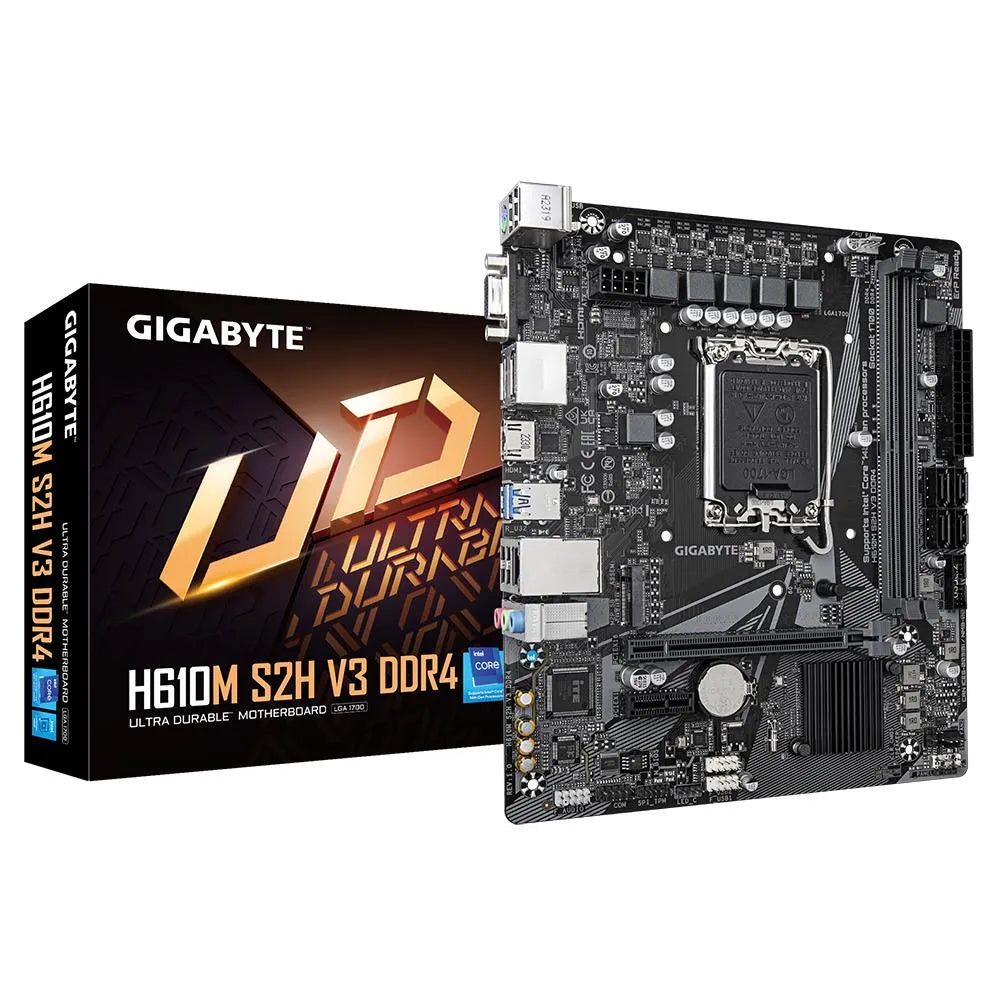

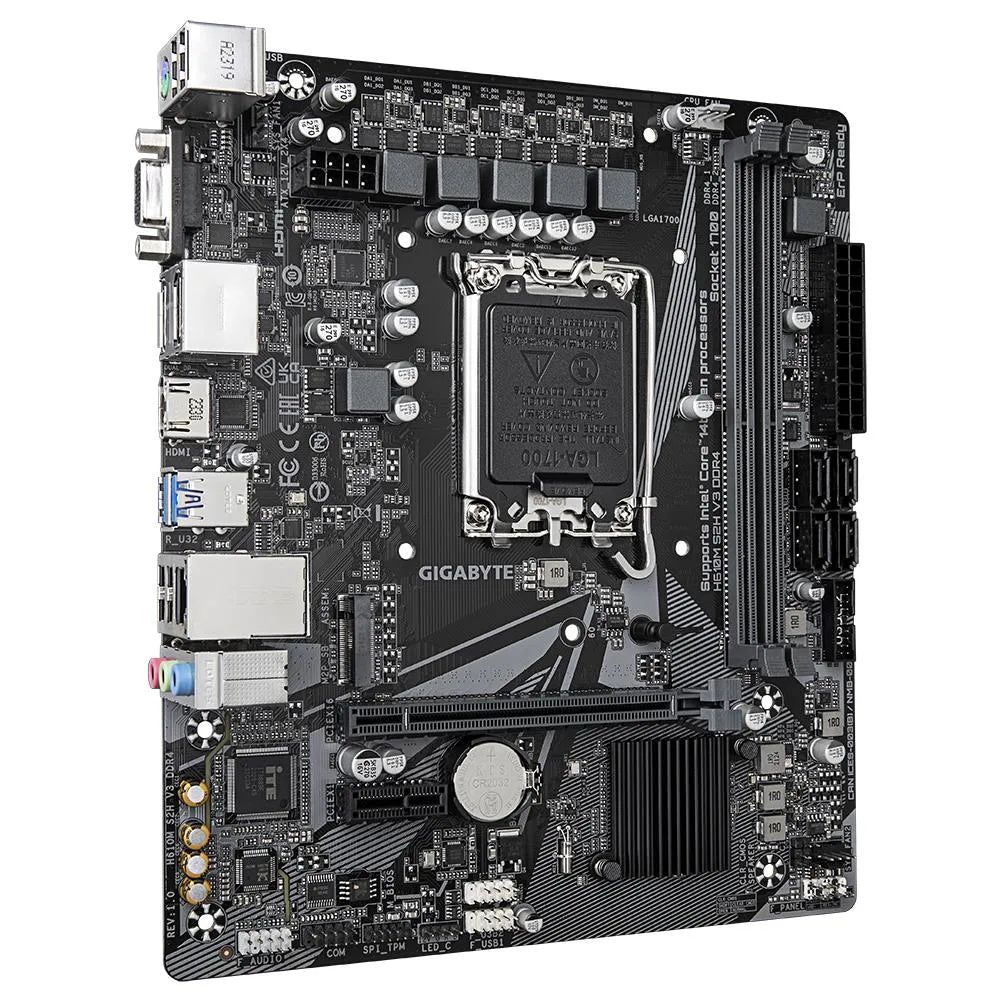

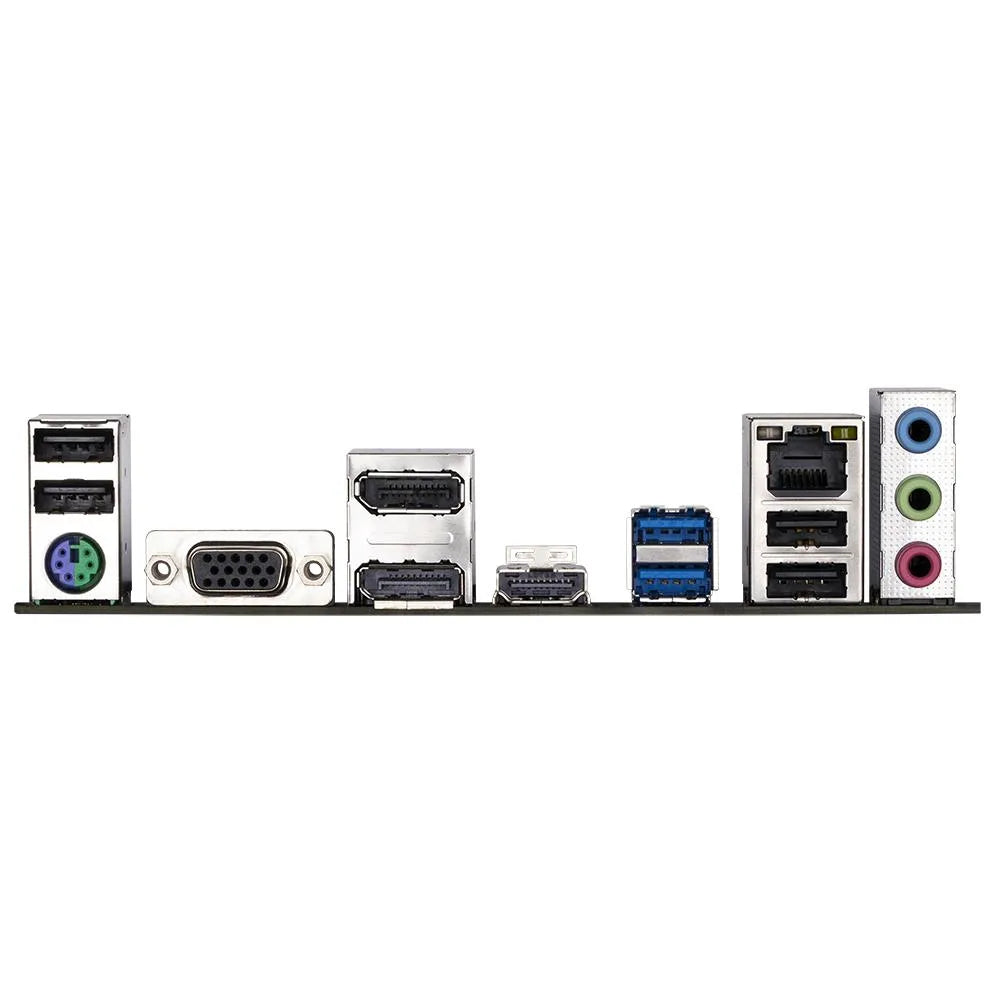

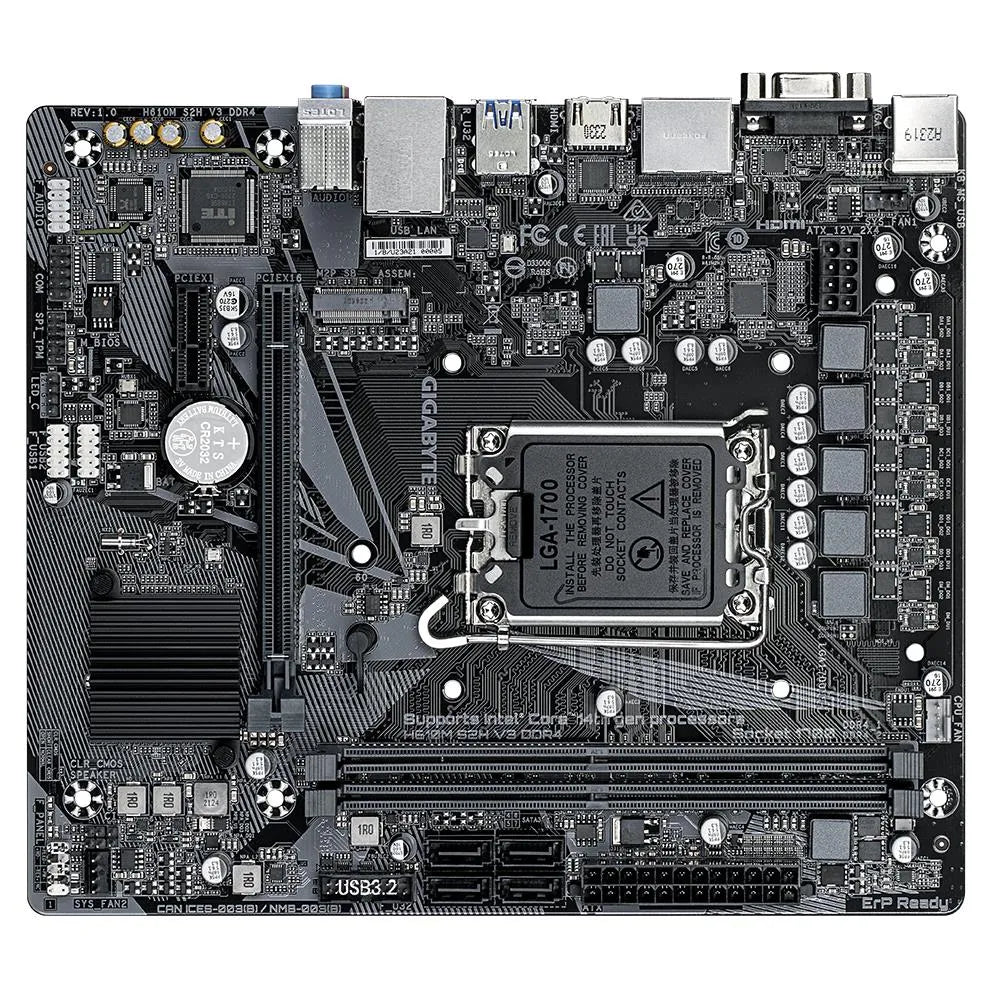

Mainboard|GIGABYTE|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xDisplayPort|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610MS2HV3DDR4
Regular price
€71,42
Regular price
Sale price
€71,42
Unit price
per
Tax included.
Couldn't load pickup availability
Brand:
GIGABYTE
Pieejamība:
In stock
SKU:
H610MS2HV3DDR4
Cena bez PVN 21%: €59,02
Regular price
€71,42
Regular price
Sale price
€71,42
Specifikācija
| Vienības kastes platums | 0.26 kg |
| Vienības kastes garums | 0.27 kg |
| Vienības kastes augstums | 0.05 kg |
| Modelis | H610M S2H V3 DDR4 year(s) |
| Units per Shipping Box | 1 year(s) |
| Unit Calculated Volume | 0.00351 cubm |
| Unit Calculated Weight | 0.5 kg |
| Summary | GIGABYTE H610M S2H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN , USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A kg |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7 channels |
| Processor manufacturer | Intel channels |
| Processor socket | LGA 1700 channels |
| Supported processor sockets | LGA 1700 channels |
| ECC ?ompatibility | ECC & Non-ECC channels |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel GB |
| Memory slots type | DIMM GB |
| Number of memory slots | 2 GB |
| Supported memory clock speed (max) | 3200 MHz |
| Supported memory clock speeds | 2133/2400/2666/2933/3000/3200 MHz |
| Supported memory types | DDR4-SDRAM MHz |
| Unbuffered memory | Jā MHz |
| Supported storage drive interfaces | M.2,SATA III MHz |
| Supported storage drive types | HDD & SSD MHz |
| Parallel processing technology support | Not supported pixels |
| 12V power connector | Jā pixels |
| ATX Power connector (24-pin) | Jā pixels |
| CPU fan connector | Jā pixels |
| EPS power connector (8-pin) | Jā pixels |
| Front panel audio connector | Jā pixels |
| Number of SATA III connectors | 4 pixels |
| RGB LED pin header | Jā pixels |
| TPM connector | Jā pixels |
| USB 2.0 connectors | 2 pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 pixels |
| DisplayPort version | 1.2 pixels |
| Ethernet LAN (RJ-45) ports | 1 pixels |
| Line-in | Jā pixels |
| Microphone in | Jā pixels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 pixels |
| Ethernet interface type | Gigabit Ethernet pixels |
| Ethernet LAN | Jā pixels |
| Audio output channels | 7.1 channels |
| Component for | PC channels |
| Cooling type | Active channels |
| Motherboard chipset | Intel H610 Express channels |
| Motherboard chipset family | Intel channels |
| Motherboard form factor | micro ATX channels |
| Power source type | ATX channels |
| Number of M.2 (M) slots | 1 pixels |
| PCI Express x16 (Gen 4.x) slots | 1 pixels |
| BIOS memory size | 128 Mbit |
| Chassis intrusion connector | Jā pixels |
| PCI Express x1 (Gen 3.x) slots | 1 pixels |
| BIOS type | UEFI AMI Mbit |
| PS/2 ports quantity | 1 pixels |
| Front panel connector | Jā pixels |
| PC health monitoring | Fan/Temperature/Voltage/Water cooling channels |
| ACPI version | 5.0 pixels |
| System Management BIOS (SMBIOS) version | 2.7 Mbit |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software mm |
| Number of HDDs supported | 4 MHz |
| Number of storage drives supported | 5 MHz |
| Clear CMOS jumper | Jā Mbit |
| HDMI ports quantity | 1 pixels |
| USB 2.0 ports quantity | 4 pixels |
| VGA (D-Sub) ports quantity | 1 pixels |
| Wi-Fi | Nē pixels |
| Depth | 193 mm |
| Width | 223 mm |
| HDCP | Jā MHz |
| Maximum resolution | 4096 x 2304 pixels |
| Serial port headers | 1 pixels |
| Total number of SATA connectors | 4 pixels |
| DisplayPorts quantity | 2 pixels |
| Product colour | Black channels |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 channels |
| Desktop Management Interface (DMI) version | 2.7 Mbit |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) Mbit |
| Battery type | CR2032 Mbit |
| Battery weight | 3 g |
| Country of origin | China g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 g |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 774 g |
| Package width | 265 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Height | 35 mm |
| Batteries included | Jā mm |
| Warranty period | 3 year(s) |
| HDMI version | 2.1 pixels |
| USB connector type | USB Type-A pixels |
| Number of CPU fan connectors | 1 pixels |
| Number of EPS power connectors (8-pin) | 1 pixels |
| Number of RGB LED pin headers | 1 pixels |
| 1st M.2 highest PCI Express generation | 3.0 pixels |
| 1st M.2 largest key size | 2280 pixels |
Apraksts
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
